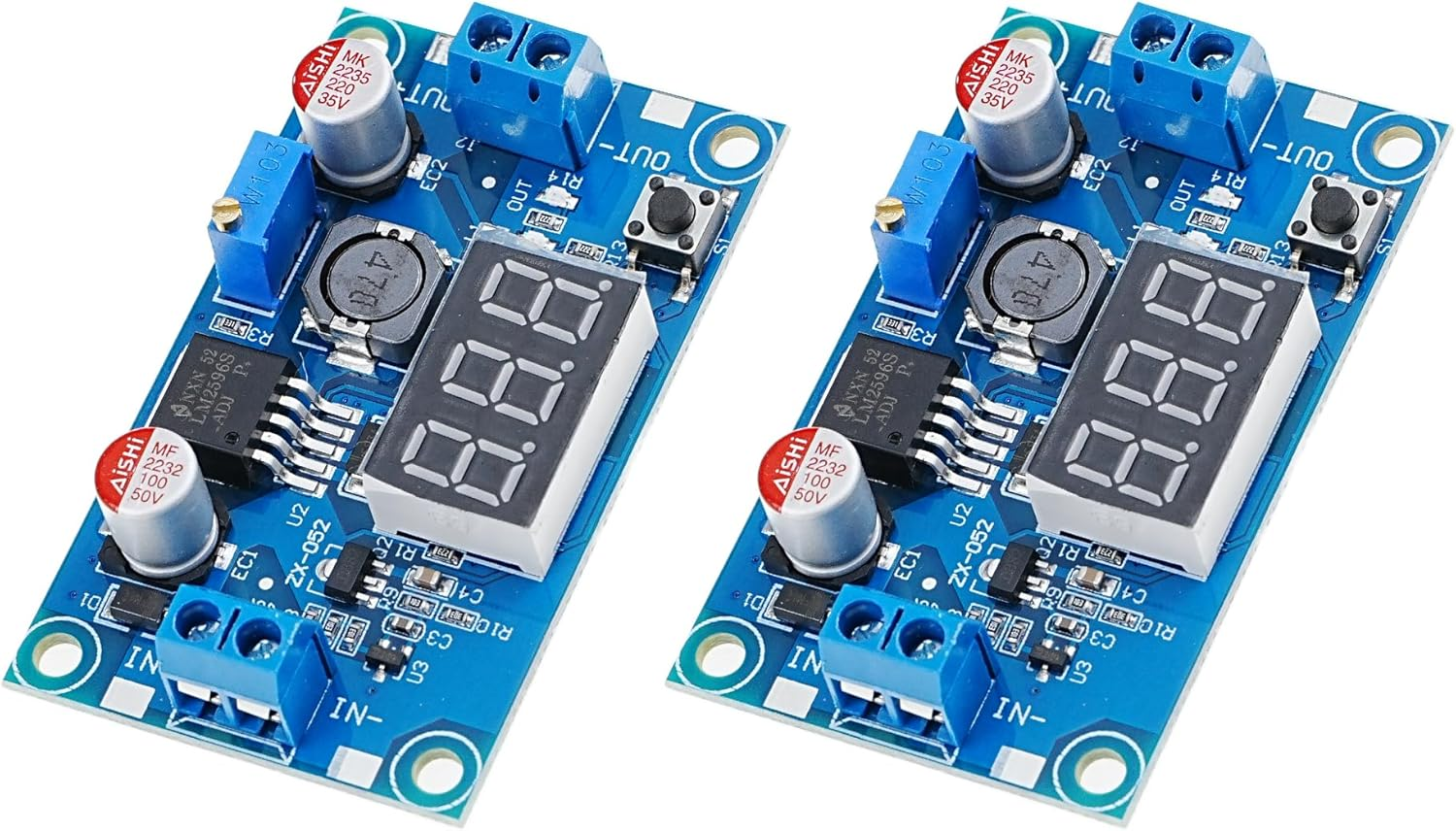

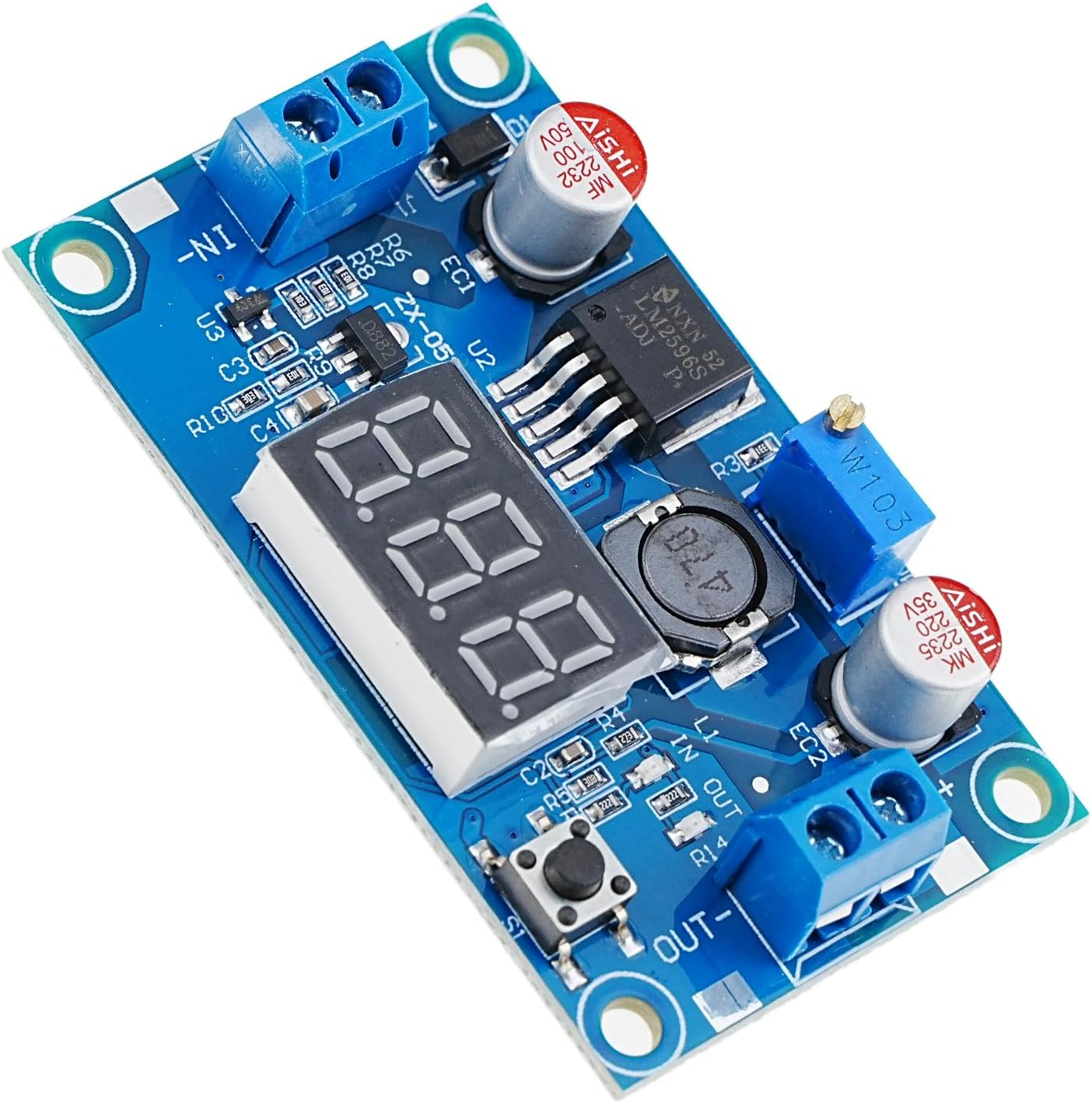

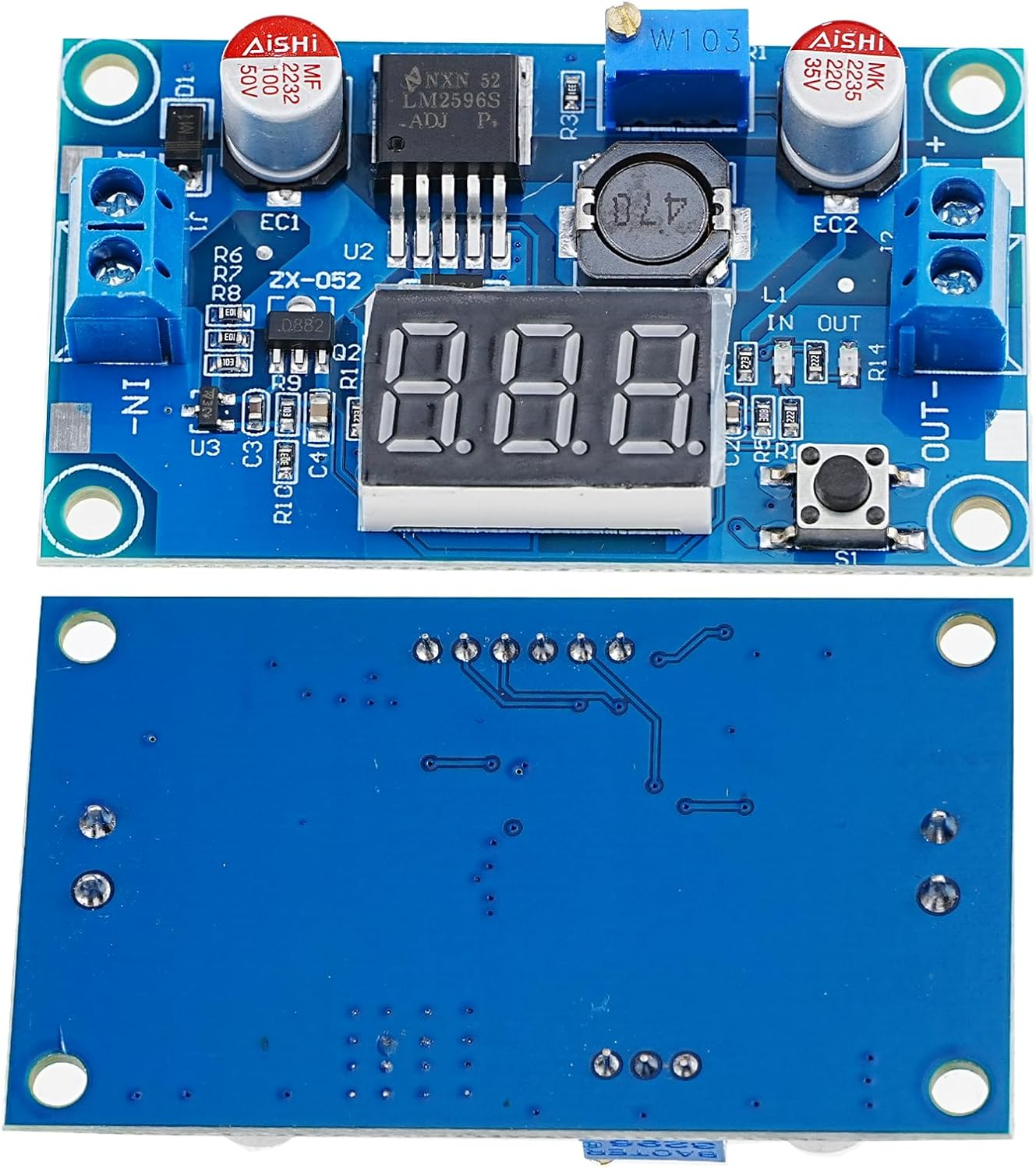

A-DIGISHUO 2Pcs LM2596 Adjustable with Display Buck Module (2Pcs Lm2596S with Display)

A-DIGISHUO 2Pcs LM2596 Adjustable with Display Buck Module (2Pcs Lm2596S with Display)

Brand: A-DIGISHUO
4.0
A$8.40 - A$11.55
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Step down converter: LM296 voltage regulator can step down the input voltage to a stable and adjustable output voltage, which must be lower than the input and output voltages.
  • Wide range: Input voltage DC3V-40V (input voltage must be 1.5V higher than output voltage, no boost); The output voltage is DC1.5V-35V, and the voltage can be continuously adjusted. The maximum output current is 3A.
  • Operation steps: Connect the power supply, rotate the eddy current button on the blue potentiometer, and monitor the voltage through a multimeter to obtain the required voltage (the factory has tested it at the maximum voltage, and the default voltage is very high. You need to rotate it counterclockwise for 15-20 turns to start the voltage drop, usually clockwise to increase and counterclockwise to decrease).

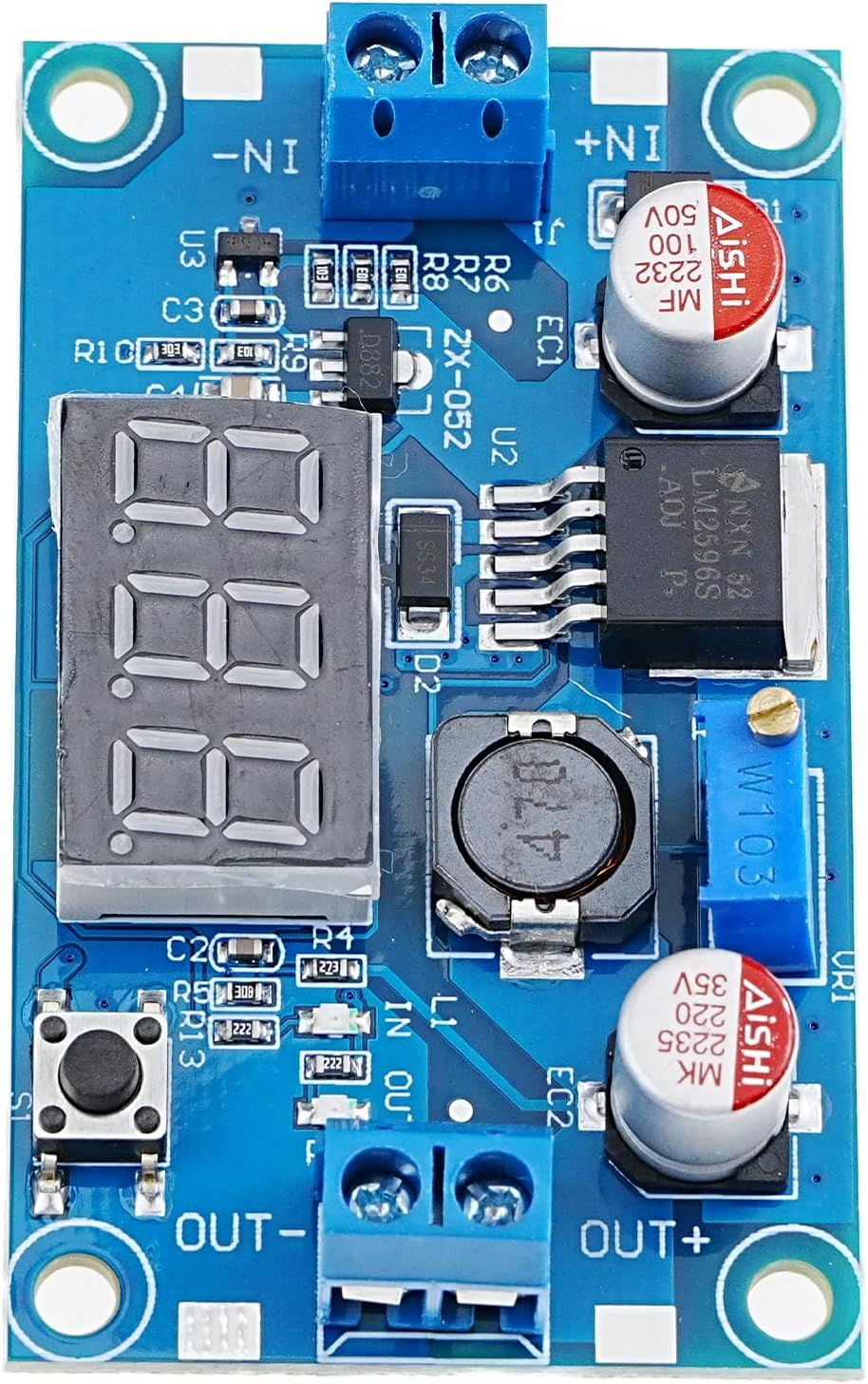

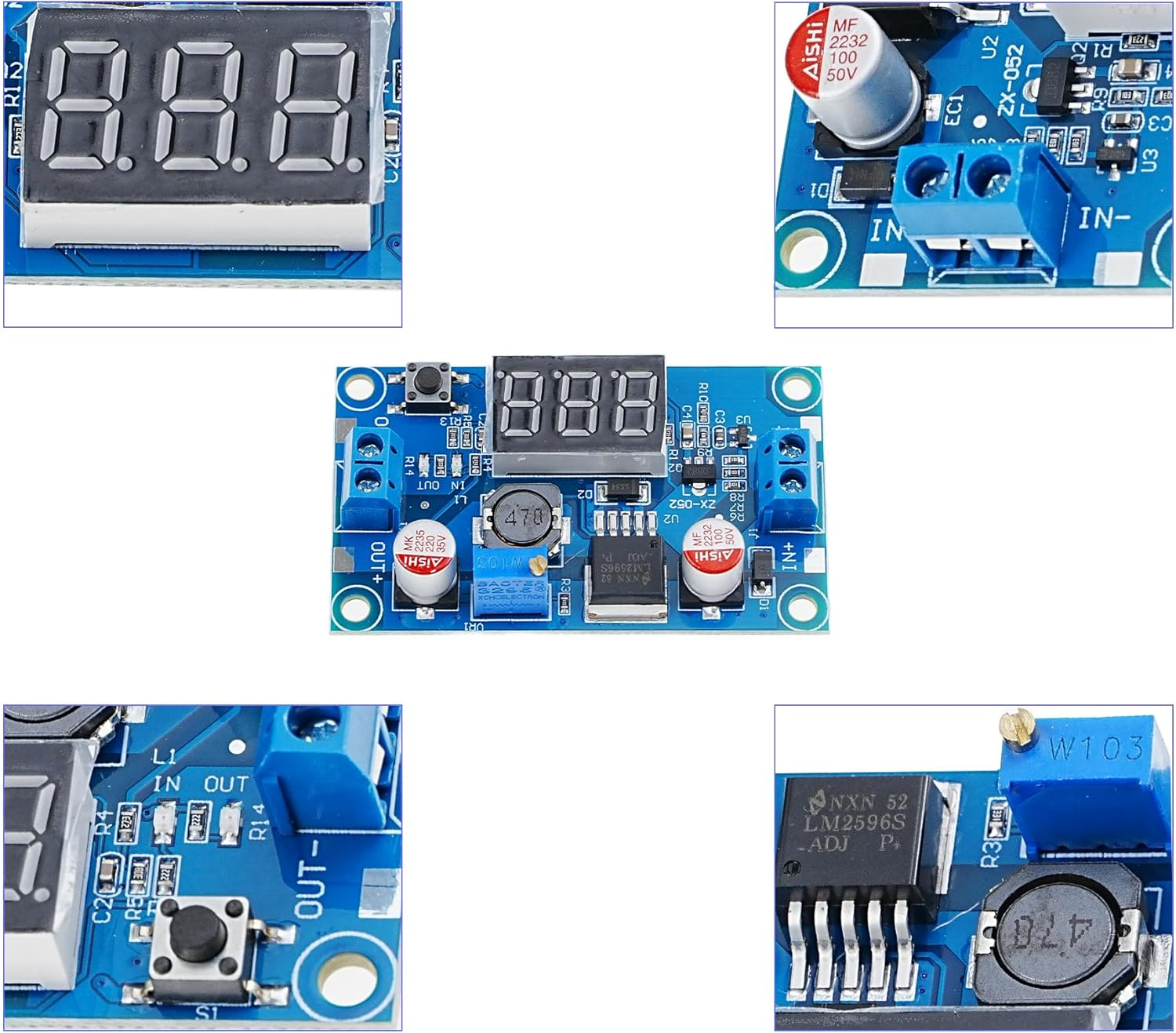

  • Features: The LM2596 voltage reduction module adopts a 36U thick circuit board, equipped with high-Q inductors and output LED indicator lights, and is equipped with high-quality solid-state capacitors to effectively filter out high-frequency noise
  • Application scenarios: Suitable for DIY power bank projects, monitor power supply, communication devices, and other electronic devices.

Product Description

Features:

  • The input voltage: 3-40 V
  • The output voltage:1.5-35 V
  • The output current: It is recommended to use under 2A, maximum 3A (Additional heatsink is required).
  • Conversion efficiency: 92% Max (the higher output voltage, the higher efficiency)
  • Load adjust ratio: +/-0.5%
  • Voltage adjust ratio: +/-2.5
  • Switching frequency:1.5MKHz
  • Work temperature:-Minus 40 degrees-85 degrees
  • Module property:Non-isolation buck
  • Rectification mode:Non-synchronous rectifier

Function:

  • Used to step down load, built in current limit function
  • Built in over-temperature protection function
  • Built in output short-circuit protection function

You WillReceive:

  • 2Pcs LM2596 Adjustable With Display Buck Module
  • Item Model Number: 2Pcs LM2596s With Display
  • Number of items: 5
  • Mounting Hardware: LM2596 DC to DC Buck Converter
  • Batteries Required: No
  • Brand: A-DIGISHUO
  • Item Weight: 20 g
  • Model: 2Pcs LM2596s With Display
  • Product dimensions: 6.5 x 4.3 x 1.2 cm; 20 Grams
  • Country/Region of origin: China
  • Manufacturer: A-DIGISHUO
