Overview

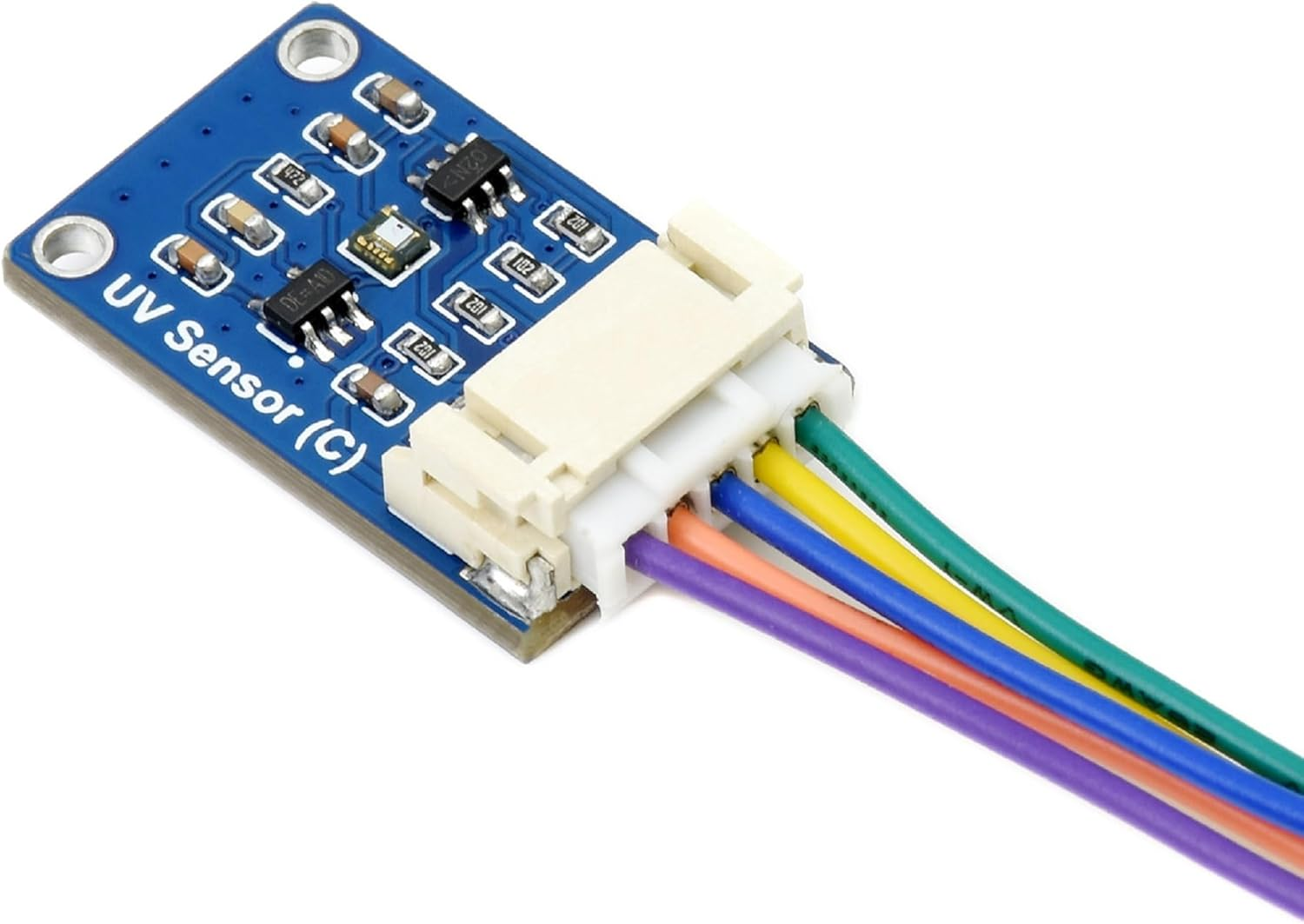

The UV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet ray as well as visible light, and providing light intensity value output.
With features including sensitive detection, fast response, and small form factor, the UV Sensor (C) integrates the main sensor LTR390-UV-01 on its 27 × 20mm body, allowing easy integration into other devices.
Features
Incorporates LTR390-UV-01, for measuring ultraviolet ray and visible light
Embedded ADC, direct light intensity value output via I2C bus, less noise interference

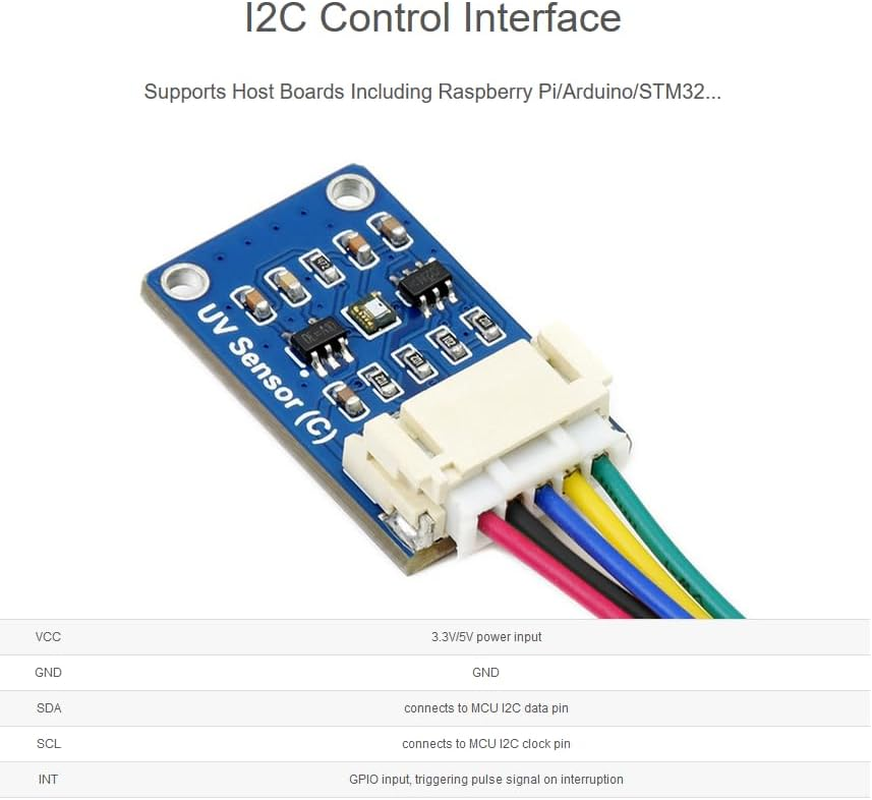

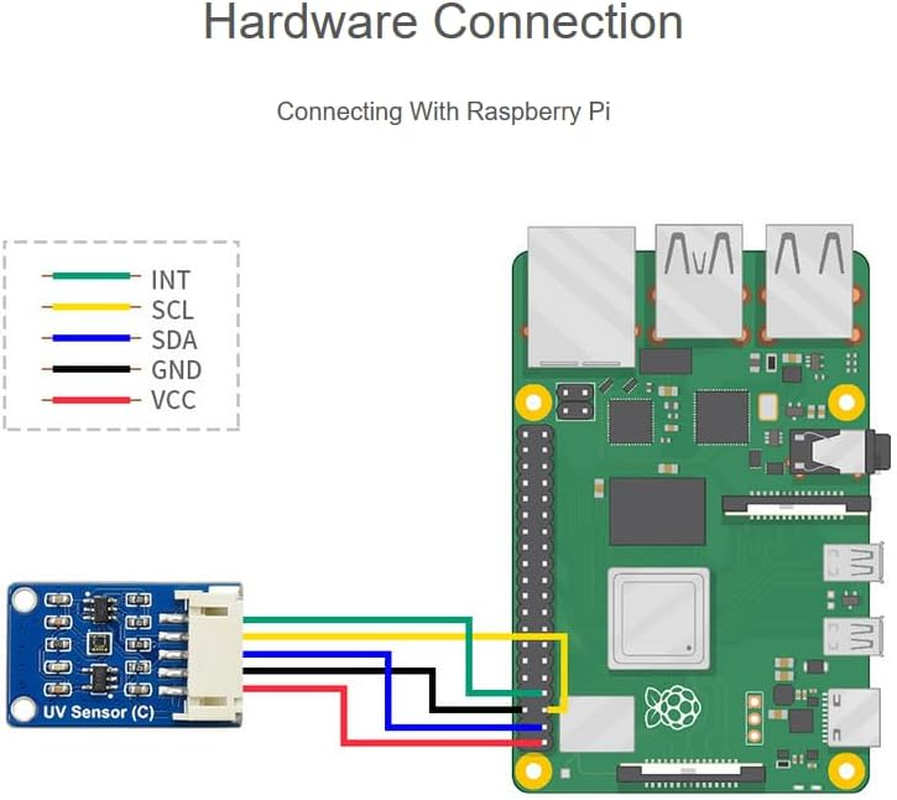

I2C control interface: supports host boards including Raspberry Pi/Arduino/STM32
Supports interrupt output, programmable upper/lower threshold
Onboard voltage translator, compatible with 3.3V/5V operating voltages
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
Sensor: LTR390-UV-01
Response Spectrum: 280 - 430nm
Communication bus : I2C (constant address: 0x53)
Operating voltage : 3.3V/5V

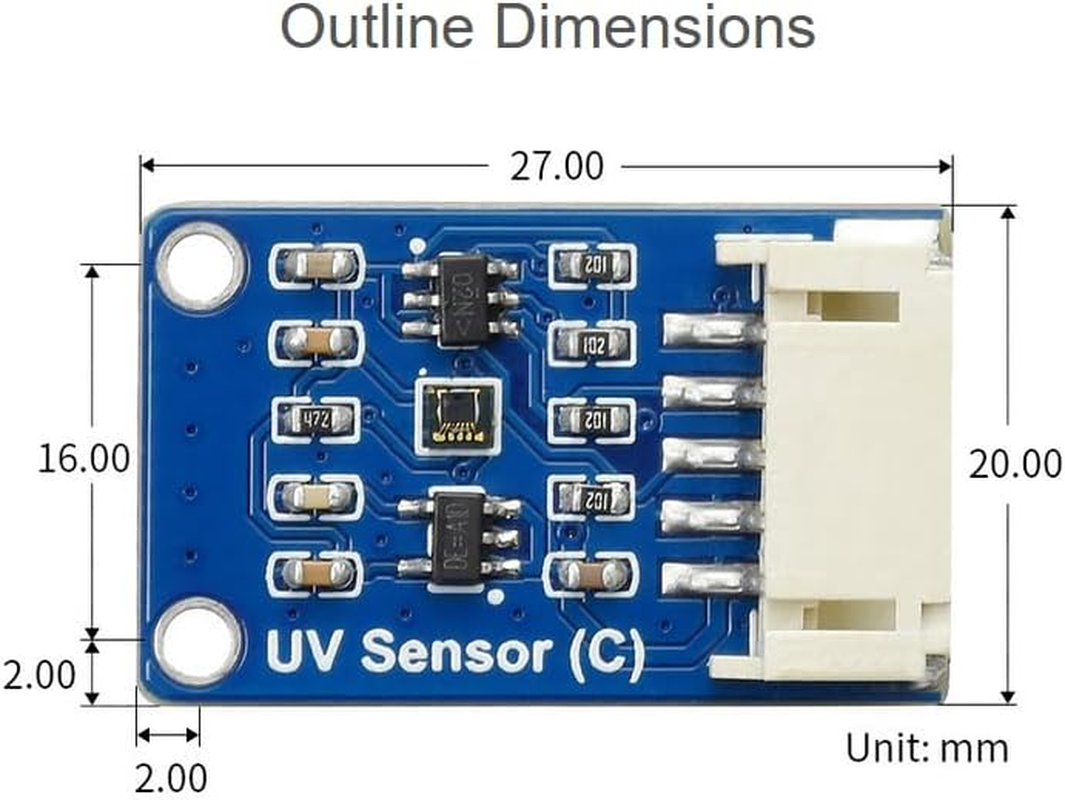

Dimensions : 27 × 20mm
Mounting hole size: 2.0mm
Online Development Resources ://bit.ly/45C8raf

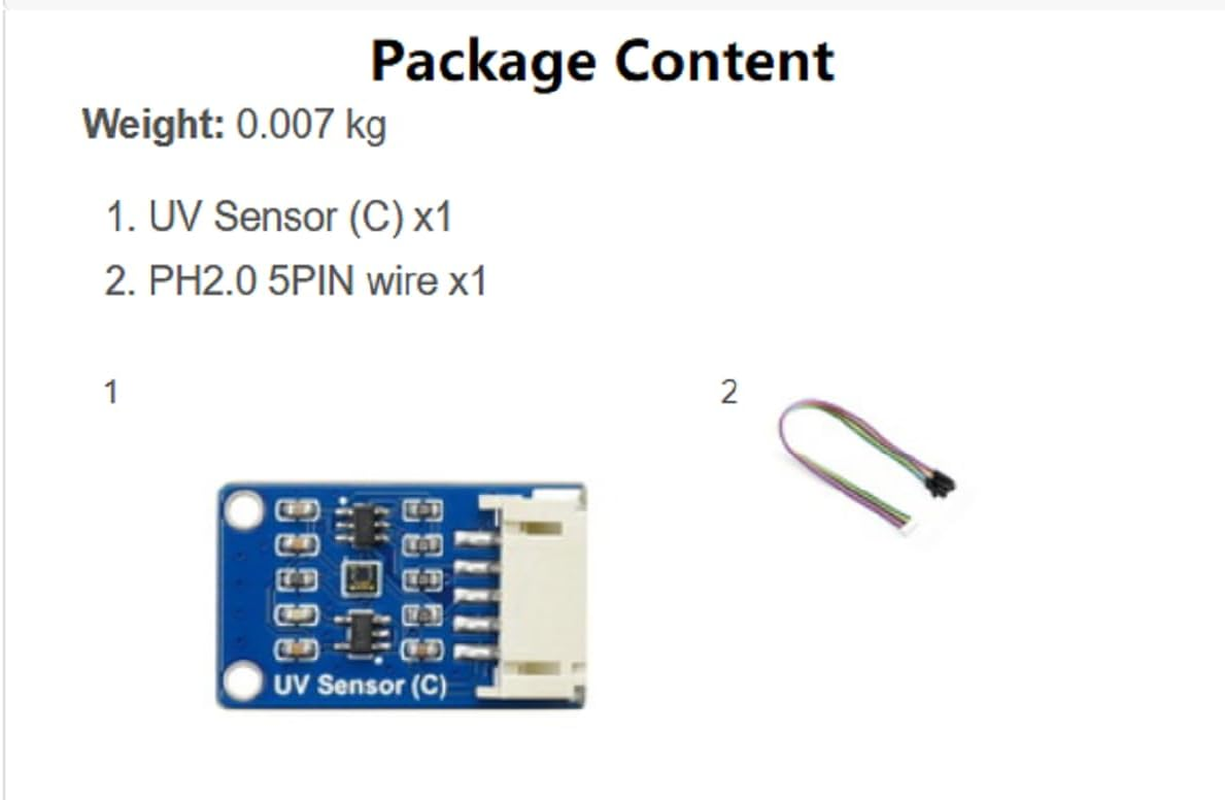

Package Content
UV Sensor (C) x1
PH2.0 5PIN wire x1
