Freenove Super Starter Kit with Board V5 Rev4 Mini (Compatible with Arduino IDE), Arm Cortex-M4 Microcontroller, 305-Page Detailed Tutorial, 172 Items, 60 Projects - With V5 (Rev4) Mini

Freenove Super Starter Kit with Board V5 Rev4 Mini (Compatible with Arduino IDE), Arm Cortex-M4 Microcontroller, 305-Page Detailed Tutorial, 172 Items, 60 Projects - With V5 (Rev4) Mini

Brand: Freenove
5.0
A$46.15
Colour Name
Availability:
  • In Stock

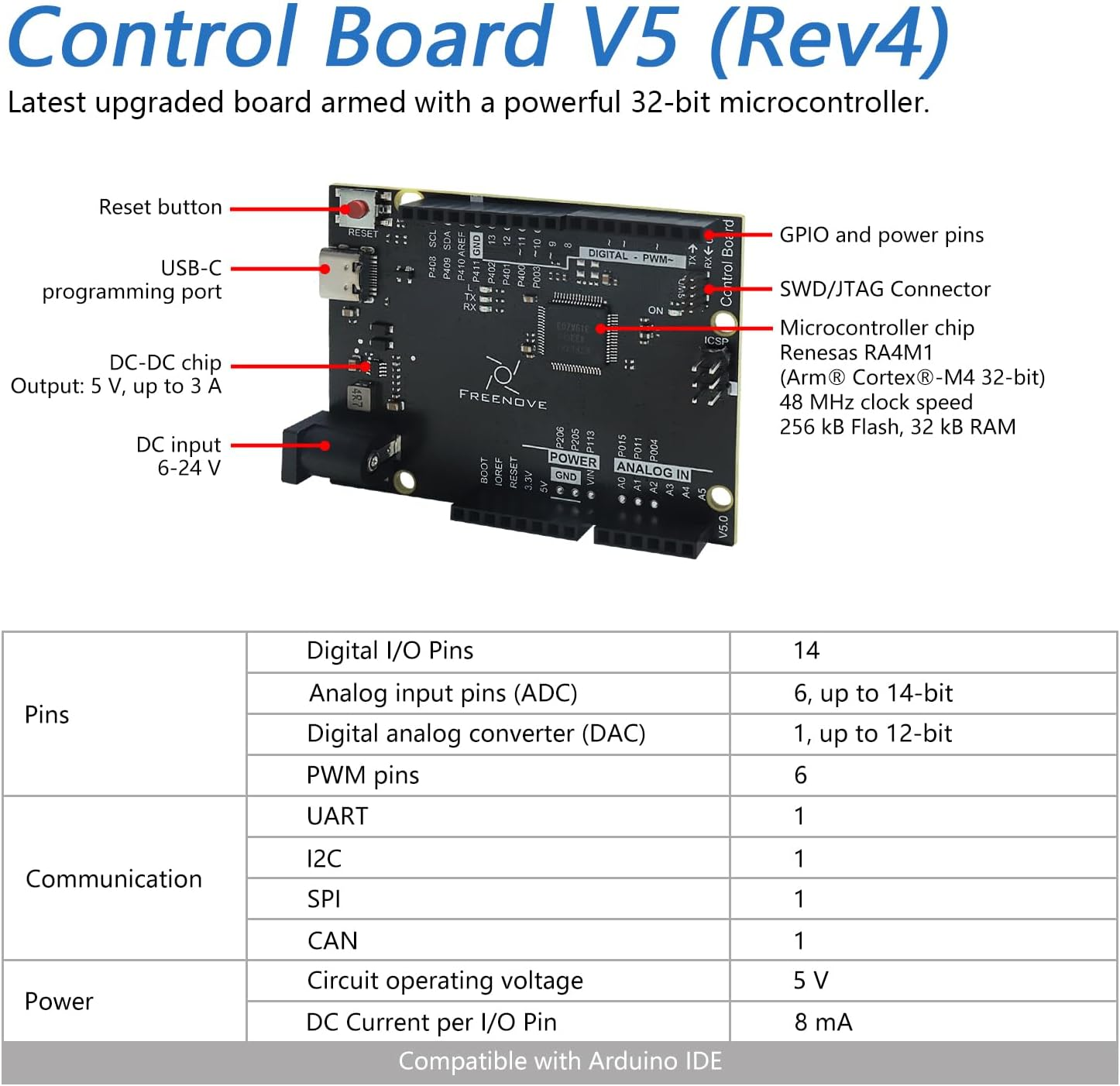

  • Latest Version: Upgrade to Arm Cortex-M4 Microcontroller with 48 MHz main core clock speed, 256 kB Flash and 32 kB RAM (Fully compatible with Blue Rev4 MINI board; some code and libraries may not be compatible with Blue Rev3 board)
  • 172 Items in Total: This kit includes the common components, modules and sensors available for the control board

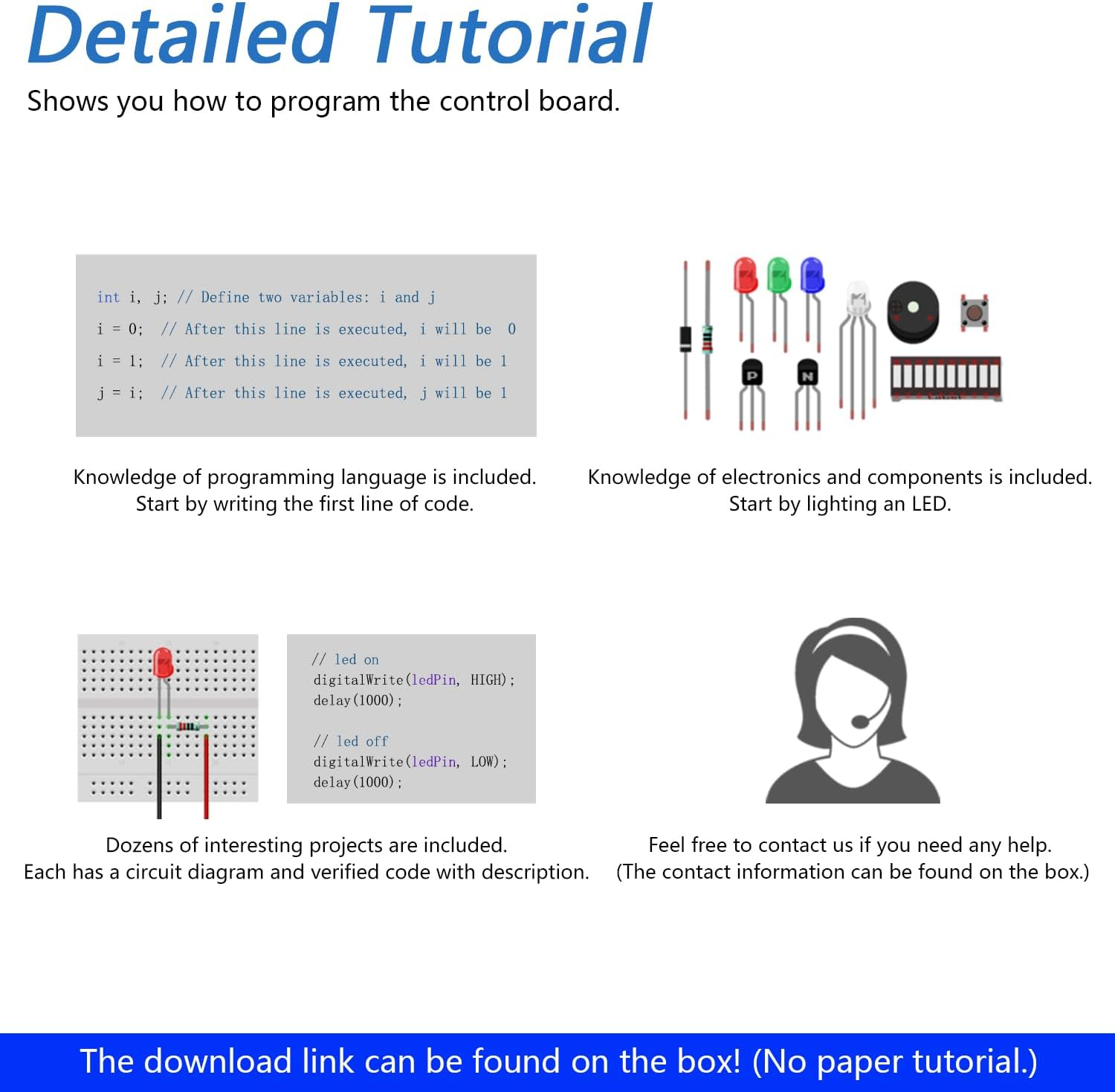

  • 305-page Detailed Tutorial: Provides step-by-step guide with basic electronics and programming knowledge (The download link can be found on the product box) (No paper tutorial)

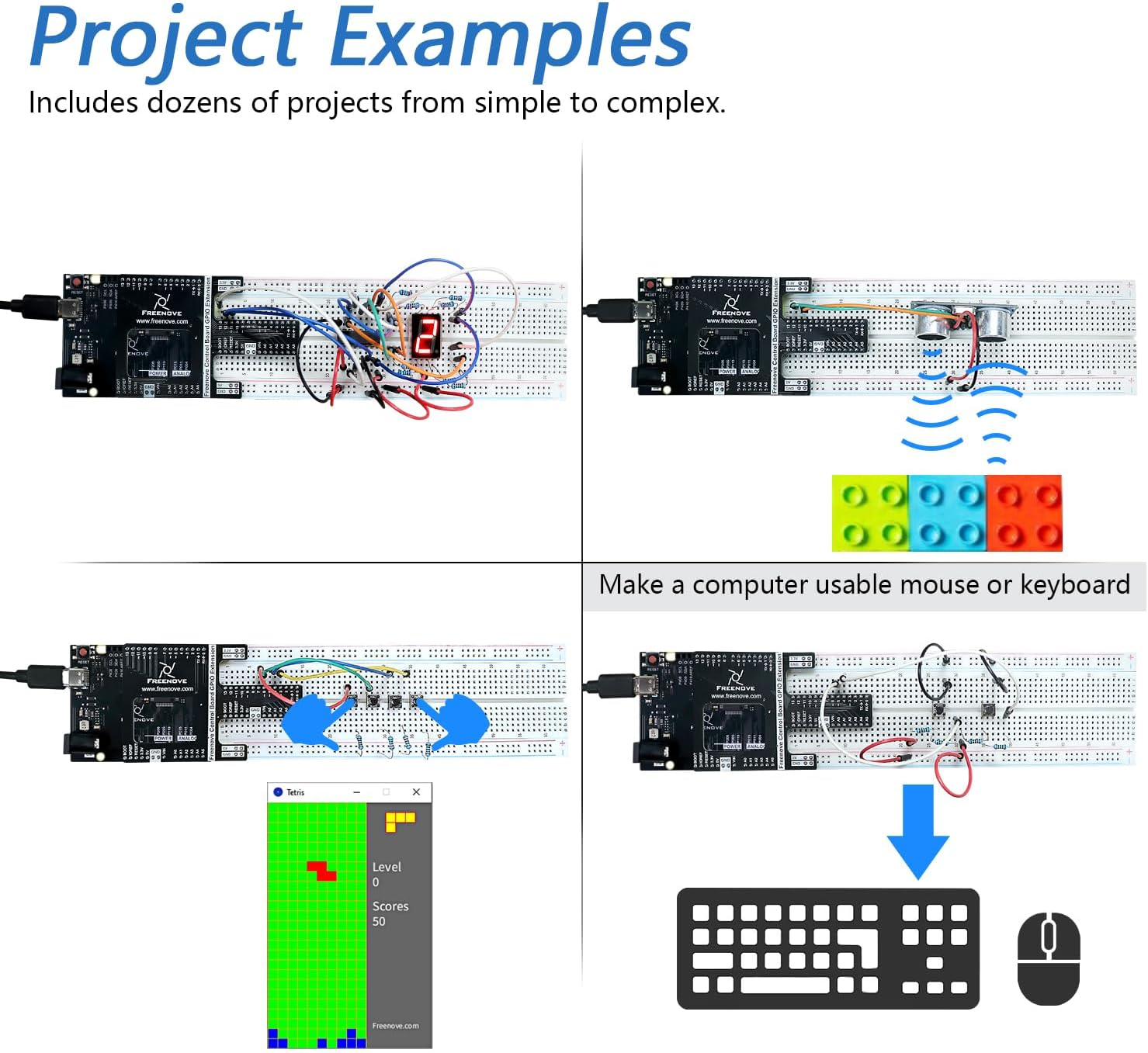

  • 60 Projects from Simple to Complex: Each project has schematics, wiring diagrams, complete code and detailed explanations
  • Extra Advanced Projects: Make virtual instruments (voltmeter, oscilloscope) and game consoles

Purchase Options:
V5 WiFi has onboard ESP32-S3 module and 12x8 red LED matrix, V5 Mini does not.
This option includes the V5 Mini board.
Overview:
Enhanced and improved, this latest upgraded board is armed with a powerful 32-bit microcontroller.
This kit helps you learn and use it with its tutorial and project examples.
We provide free technical support to help you with any questions and problems.

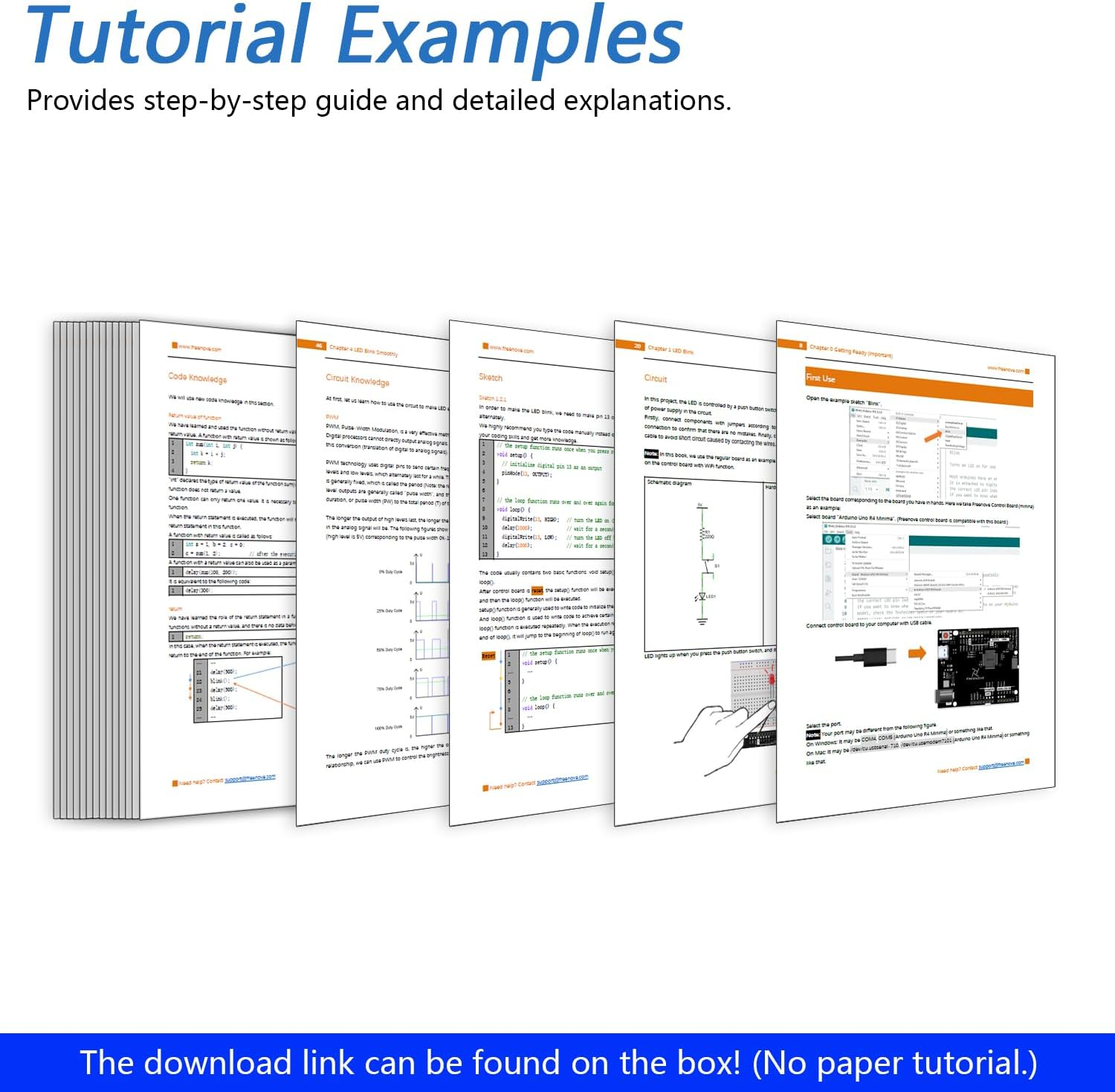

Tutorial and Code:
Comes with basic (Tutorial.pdf) and advanced (Processing.pdf) tutorial. (Download needed, no paper tutorial.)
Including basic electronics and programming knowledge, and dozens of projects.
The download link can be found on the product box.
Contents of Tutorial.pdf:
Preface
  Programming Software
  First Use
Chapter 1 LED Blink
  Project 1.1 By Manual Button
  Project 1.2 By Control Board
Chapter 2 Two LEDs Blink
  Project 2.1 Two LEDs Blink
  ...
(Download tutorial for details)
  ...
Chapter 25 USB HID
  Project 25.1 Mouse
  Project 25.2 Keypad
Other Components
What's Next?
Appendix
Contents of Processing.pdf:
Preface
  Processing Software
  First Use
Chapter 1 Voltmeter
  Project 1.1 Voltmeter
  Project 1.2 Dual-Channel
Chapter 2 Oscilloscope
  Project 2.1 Oscilloscope
  ...
(Download tutorial for details)
  ...
Chapter 6 Pong Game
  Project 6.1 Pong Game
  Project 6.2 Game 3D
Chapter 7 Tetris
  Project 7.1 Tetris
What's Next?

  • Country/Region of origin: China
  • Processor Count: 1
  • Processor Brand: ARM
  • Wireless Type: 802.11b
  • Operating System: Linux
  • Colour Name: with V5 (Rev4) Mini
  • Brand: Freenove
  • Ram Memory Technology: DDR
  • Model Name: FNK0094B
  • Graphics RAM Type: SRAM
  • Package Dimensions: 20 x 14.4 x 4.6 cm; 453 Grams
  • Does it contain liquid?: No
  • Manufacturer: Freenove
  • Item Model Number: FNK0094
  • Batteries Included: No
  • Batteries Required: No
  • Ram Memory Installed Size: 32 KB
  • Connector Type: Bluetooth, GPIO, USB, Wi-Fi
  • Item Weight: 453 g
  • Human interface input: Buttons
  • Graphics Card Description: Integrated
  • Model: FNK0094
  • Total USB ports: 1
  • Number of items: 1
  • Mounting Hardware: board
  • Processor Speed: 48 MHz
  • Compatible Devices: Personal Computer, Smartphone, Tablet
  • Graphics Card Interface: Integrated
  • Hard Drive Interface: USB 2.0/3.0
  • Processor Type: 5X86
