A-DIGISHUO 2Pcs IIC I2C 2004 LCD Module 20X04 LCD Screen Module Display for Arduino Raspberry Pi (2Pcs 2004 LCD)

A-DIGISHUO 2Pcs IIC I2C 2004 LCD Module 20X04 LCD Screen Module Display for Arduino Raspberry Pi (2Pcs 2004 LCD)

Brand: A-DIGISHUO
5.0
A$13.65 - A$20.30
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

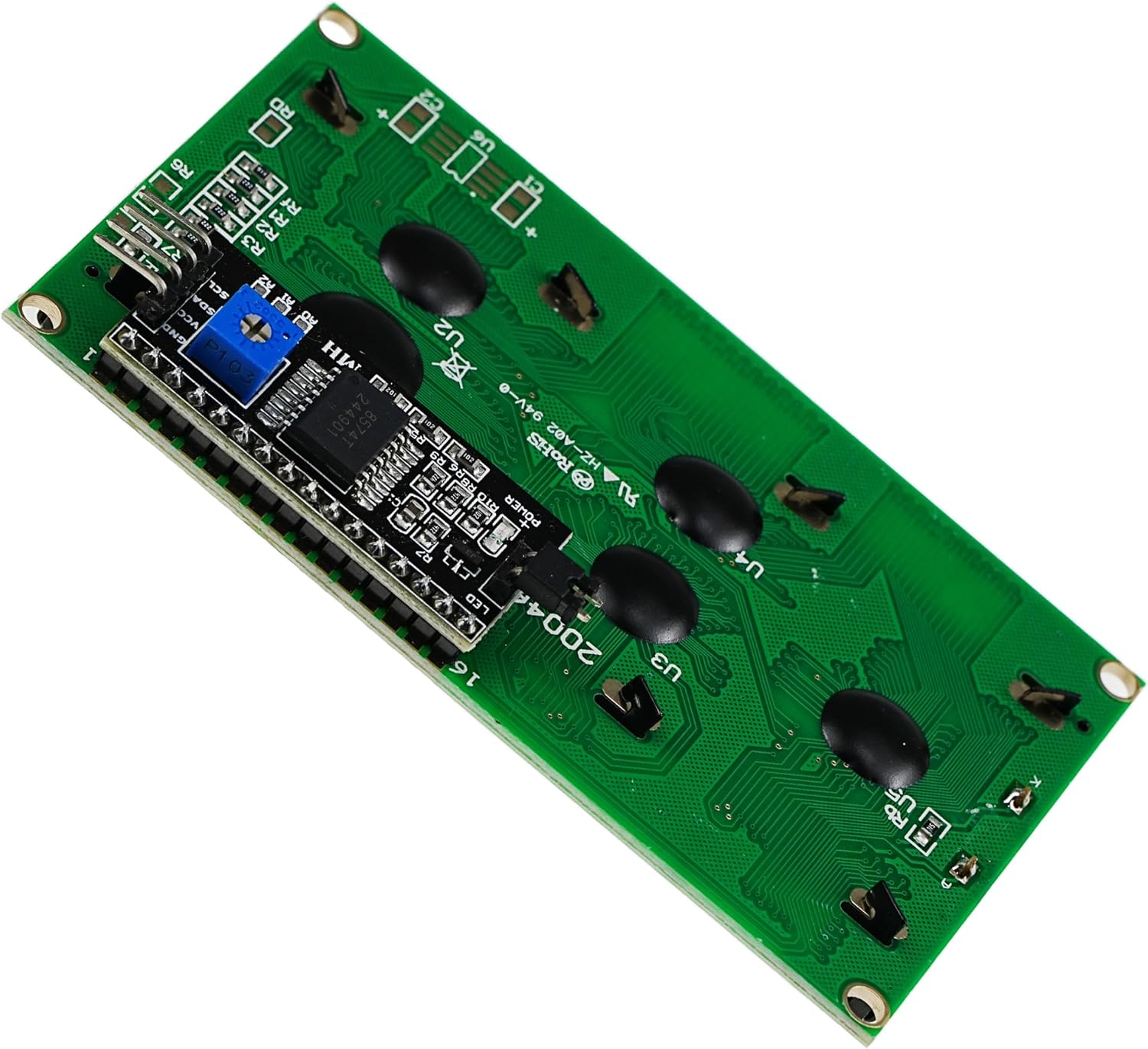

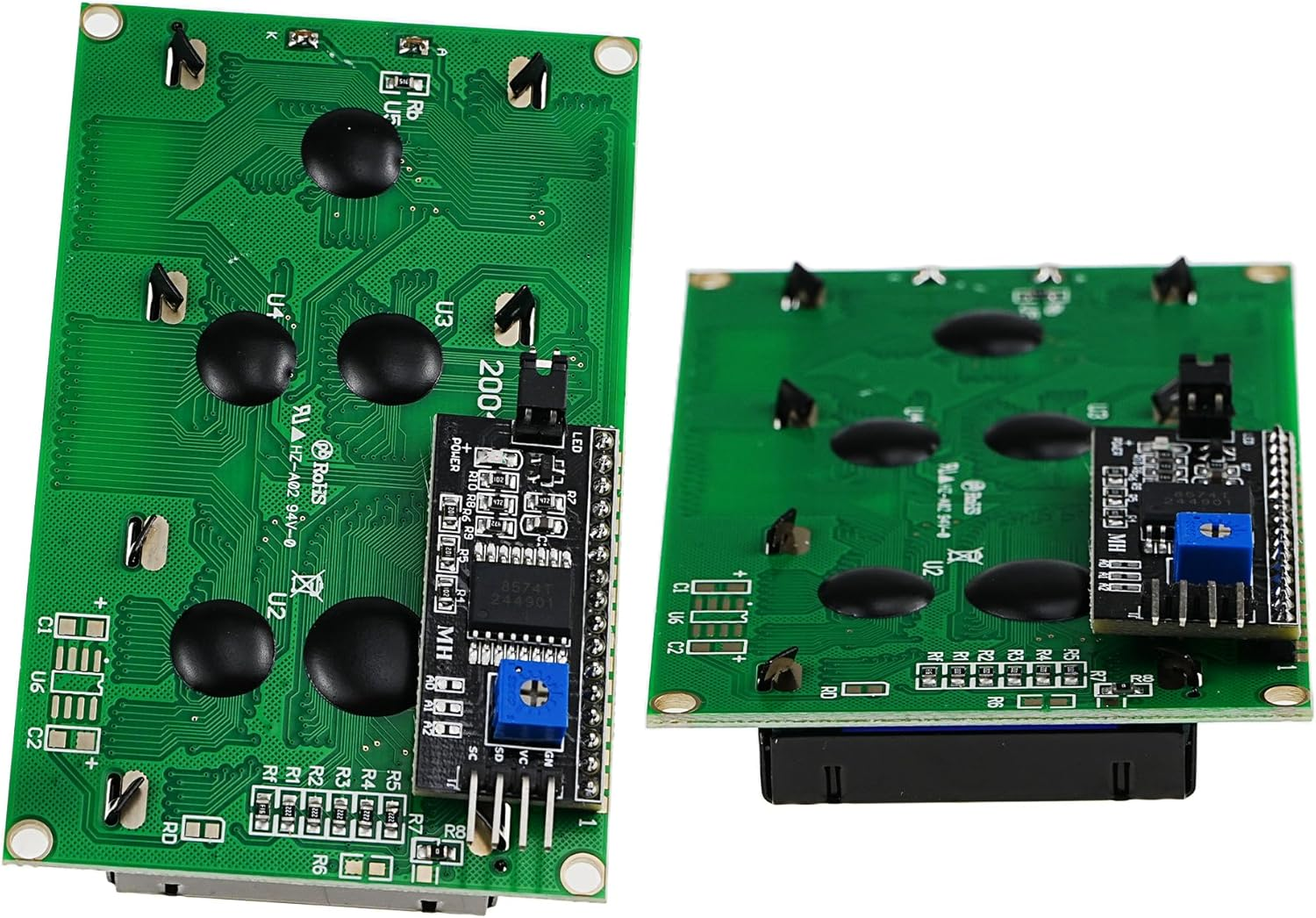

  • *Built in independent potentiometer, the backlight can be adjusted through the rear potentiometer.

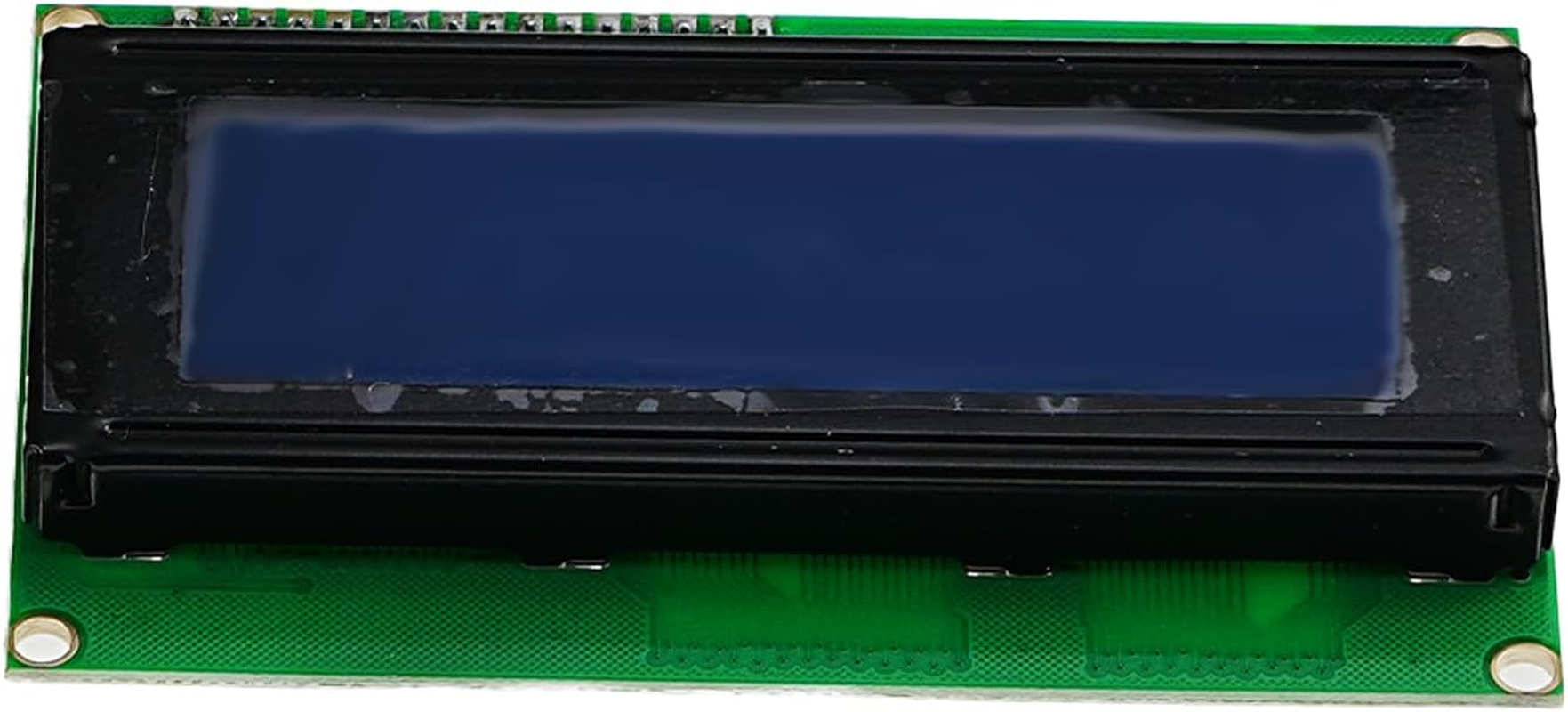

  • *2004 LCD screen can display 4 lines x 20 characters, with I2C serial port, blue display.
  • *Power supply: 5V; I2C address: 0x27; Wiring methods: VCC-VCC, GND-GND, SDA-A4, SCL-A5
  • *Compatible with most development boards such as Arduino, Raspberry Pi, Banana Pi, Nano Pi, Tinkerboard, STM32, etc.
  • *Widely applicable: Internet of Things, smart buildings, school electronic projects, maker DIY projects, etc., can display numbers, letters, characters, real-time clock or temperature.

Product Description

Contrast can be adjusted by turning the biue potentionmeter clockwise increase,counterclockwise weakened.

Compatible with mainstream models of Arduino / Raspberry Pi / Raspberry Pi Pico / ESP32 / ESP8266.

Specification:

  • Display: 4-lines x 20-characters
  • Backlight: Blue with white character color
  • Pin Definition: VCC, GND,SDL and SCA
  • Contrast Adjust: Potentiometer
  • Backlight Adjust: Jumper
  • Default Address: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip
  • Working Voltage: 5V

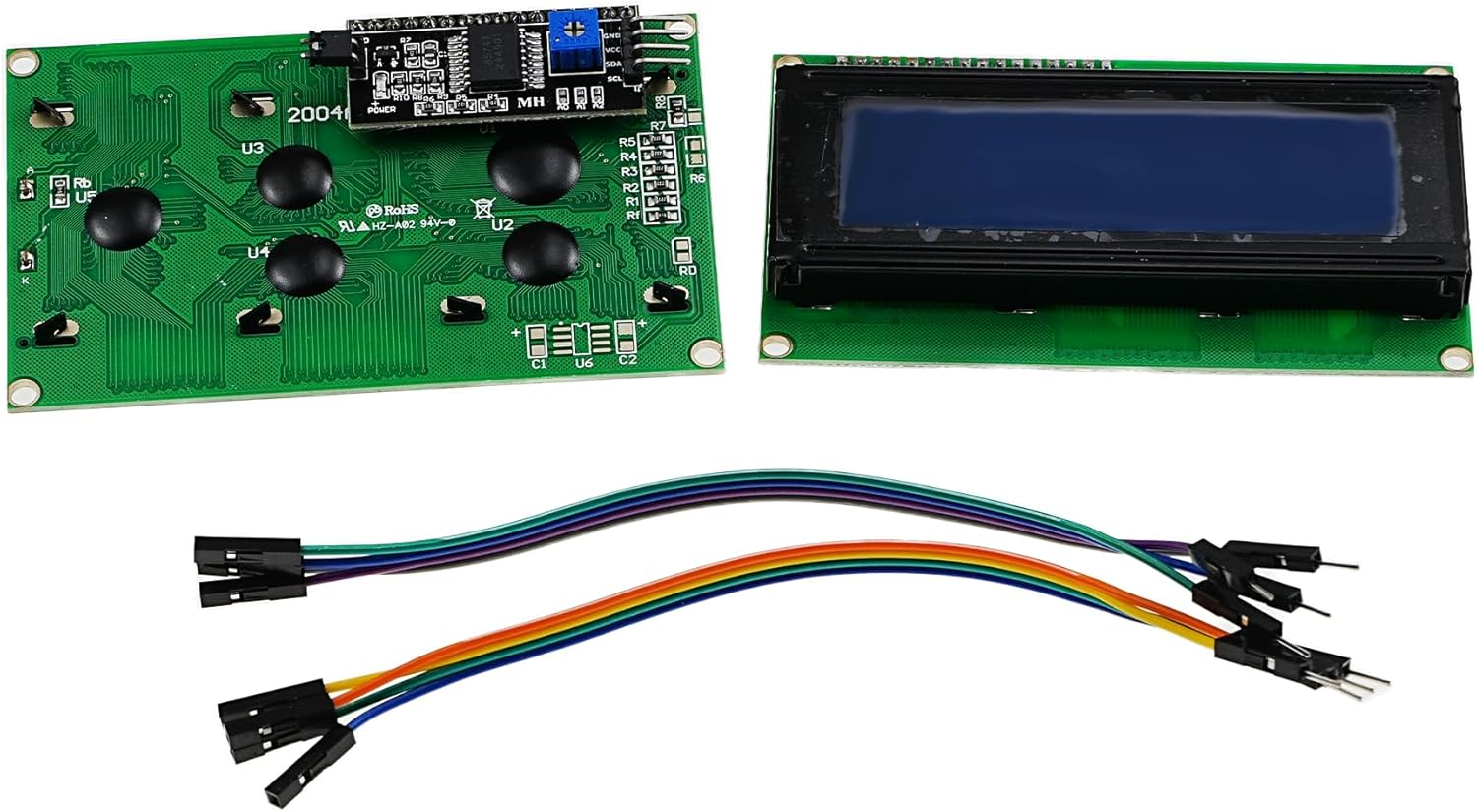

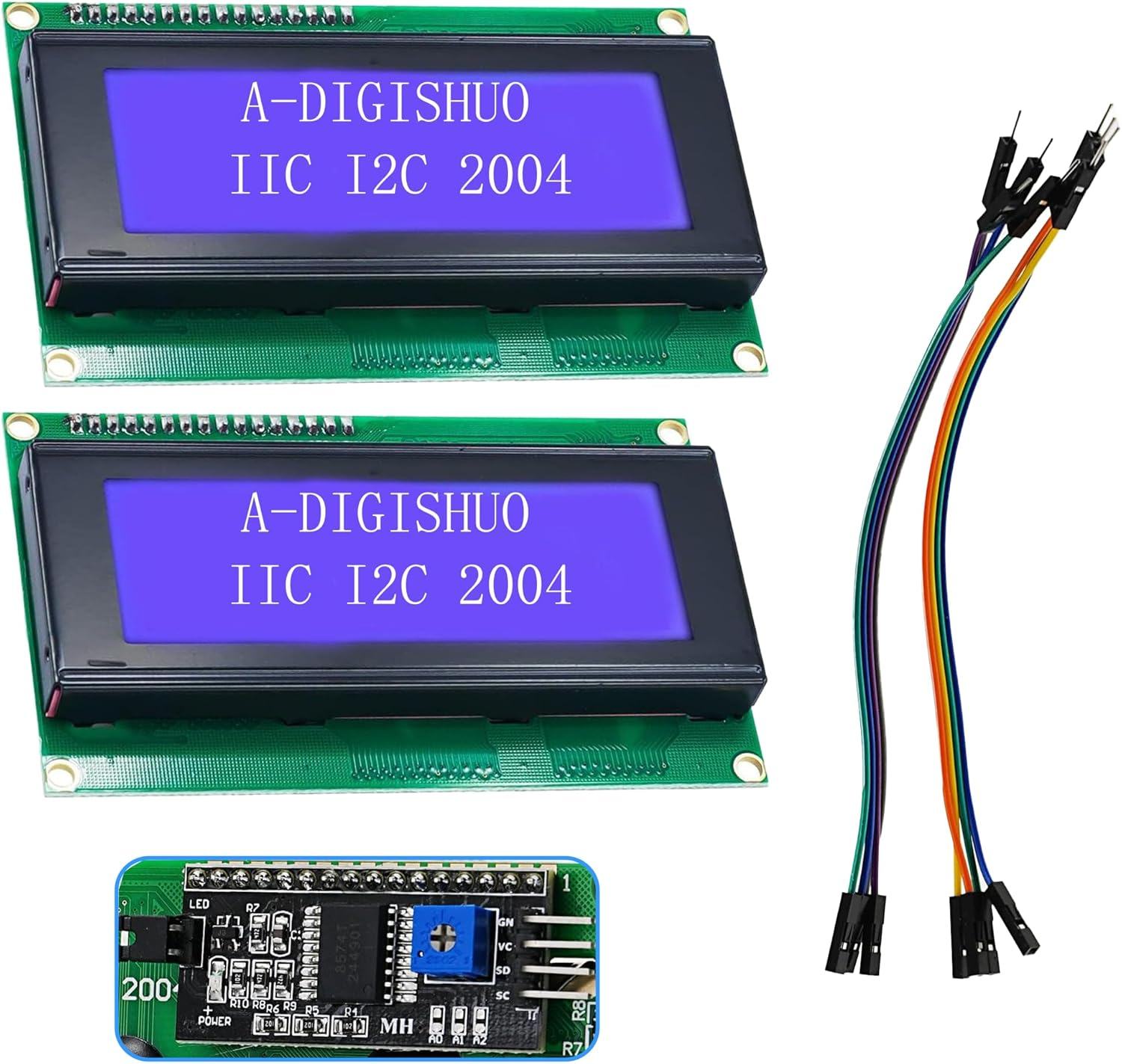

You Will Receive:

  • 2Pcs I2C 2004 LCD

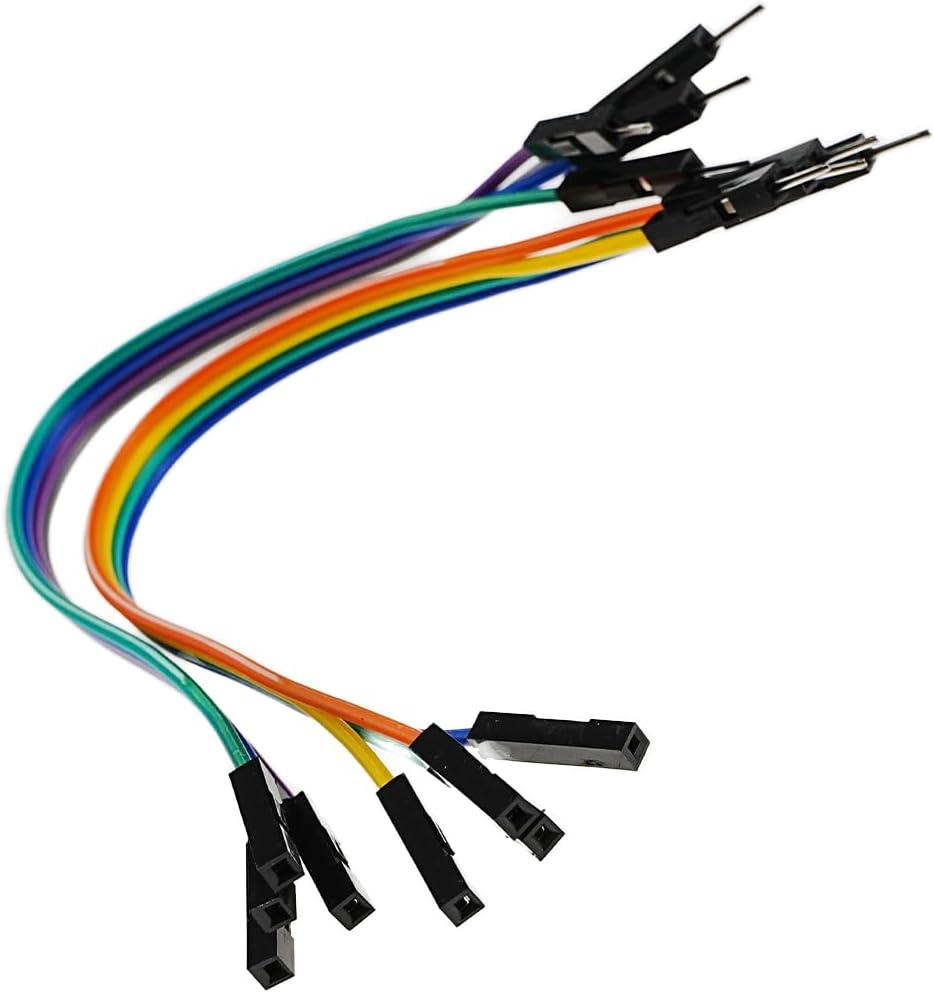

  • 2Pcs 4pin jumper wires
  • Size Name: 2Pcs 2004 LCD
  • Number of items: 2
  • Country/Region of origin: China
  • Batteries Required: No
  • Brand: A-DIGISHUO
  • Item Weight: 70 g
  • Ram Memory Technology: DDR3
  • Product dimensions: 9.7 x 6 x 2 cm; 70 Grams
  • Manufacturer: A-DIGISHUO
