Overview

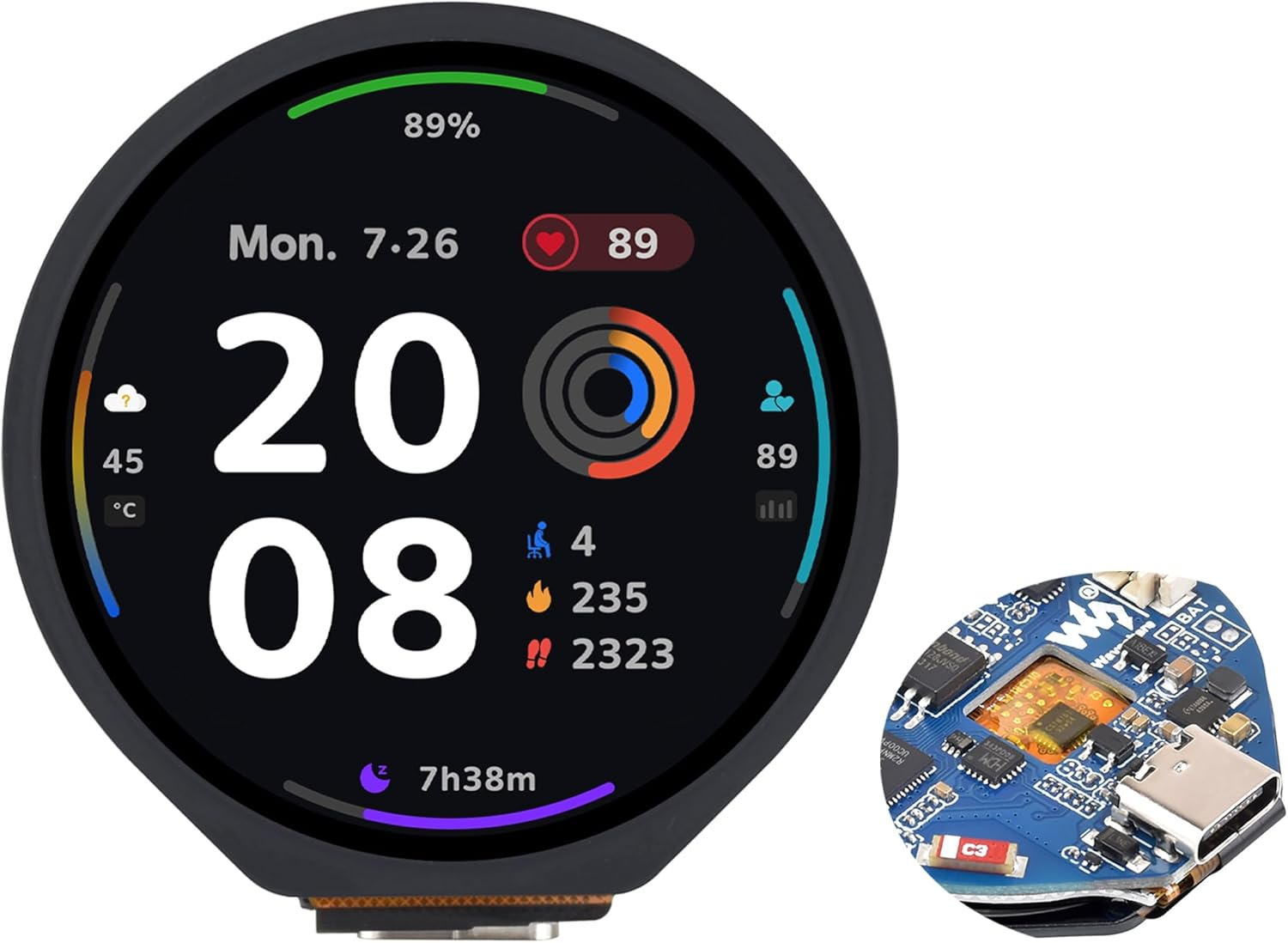

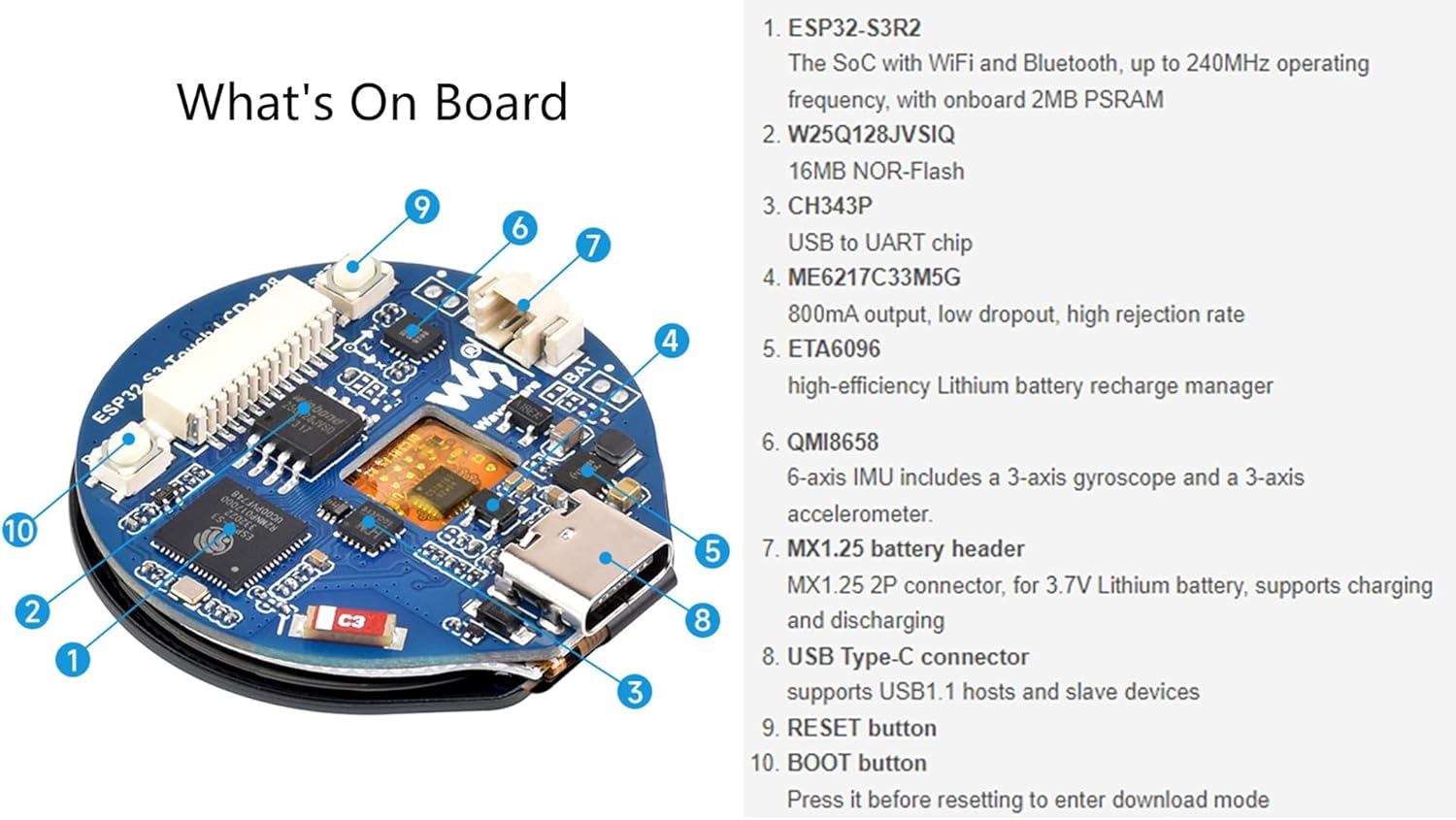

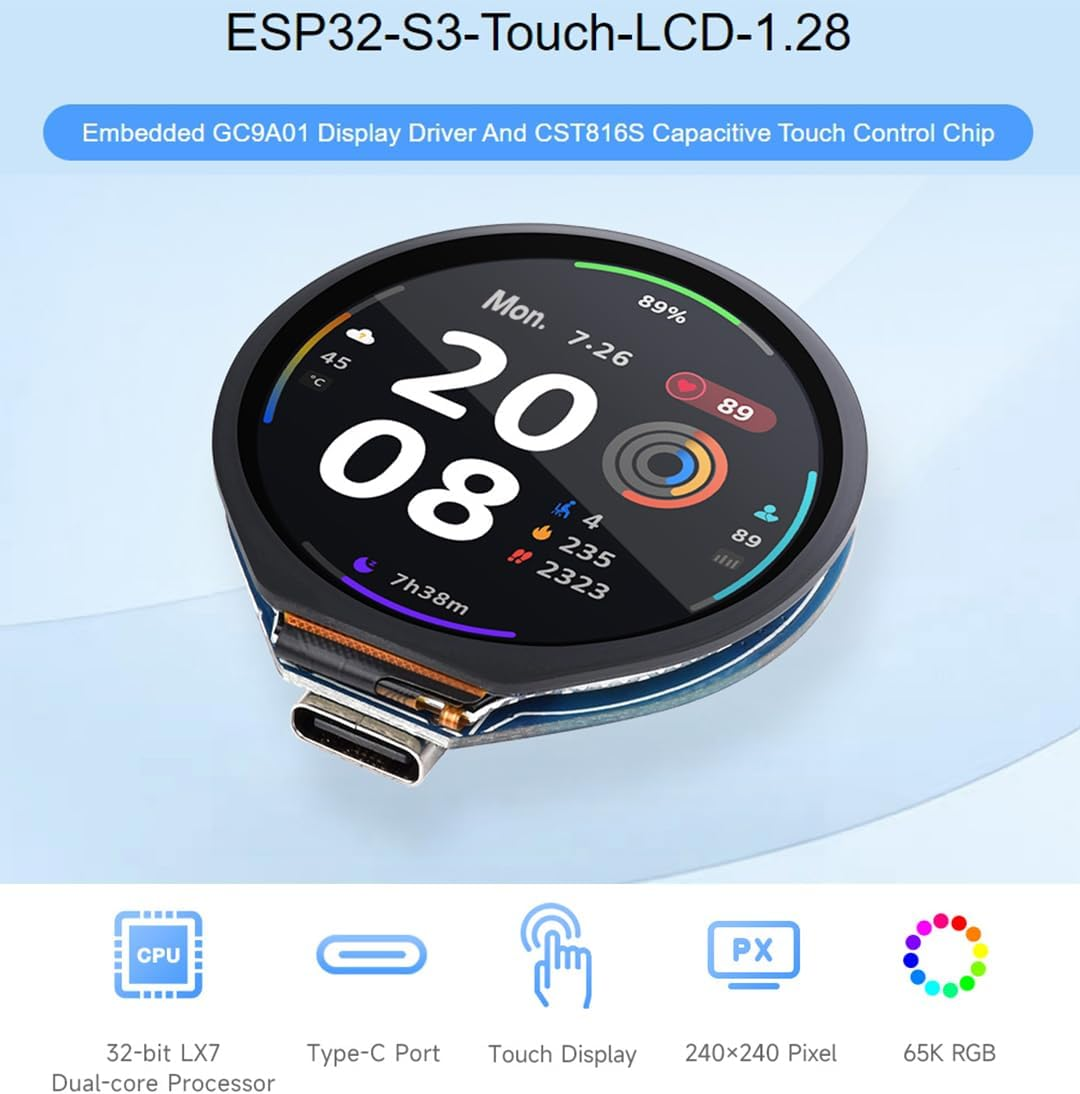

ESP32-S3-Touch-LCD-1.28 is ESP32-S3 Development MCU Board with onboard 1.28inch round capacitive touch display, bat recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope),etc, which makes it easy for you to develop and integrate it into products quickly. Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip.

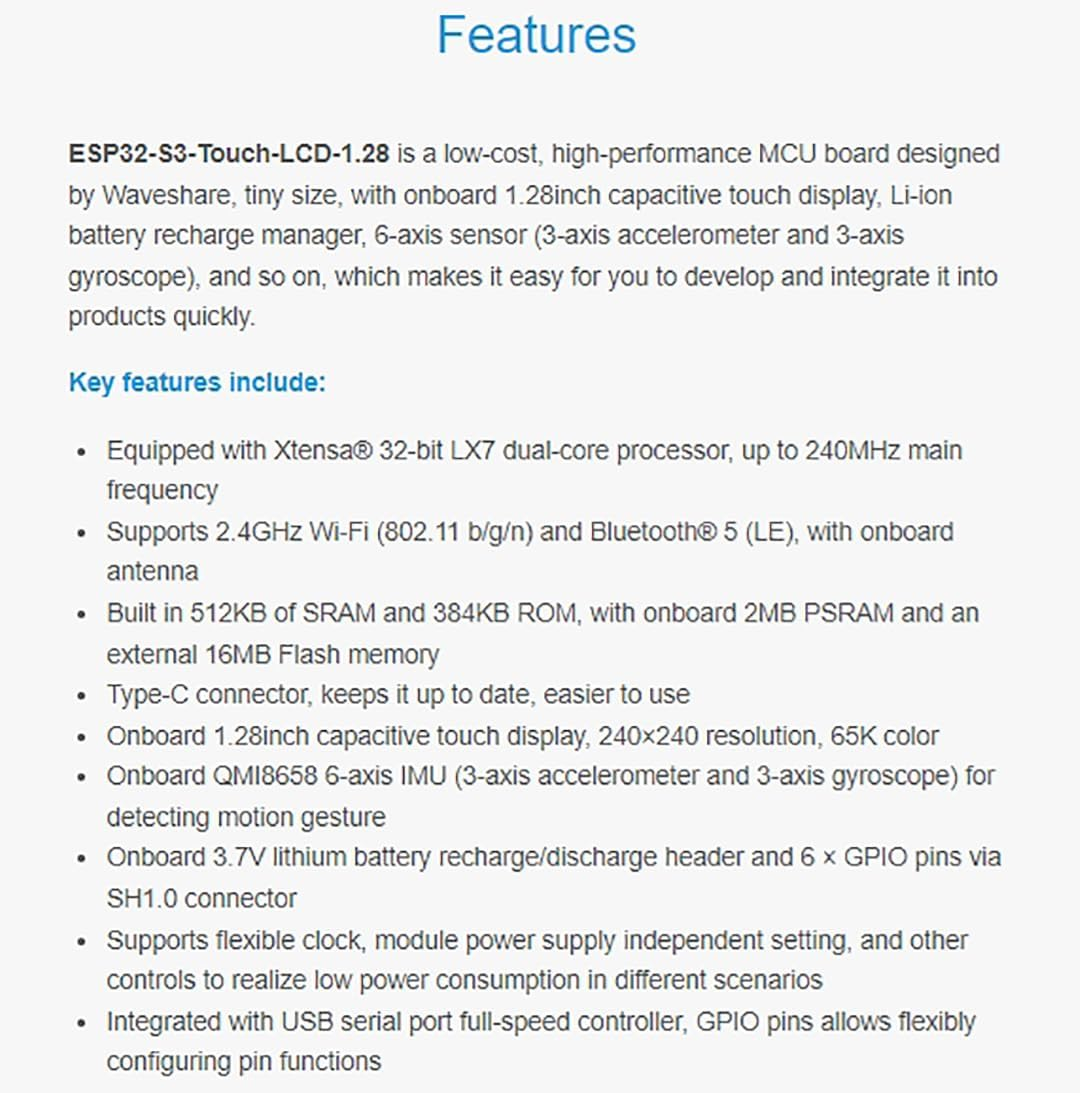

Key Features Include:
1. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
3. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
6. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
7. Onboard 3.7V bat recharge/discharge header and 6 × GPIO pins via SH1.0 connector
8. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
9. Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

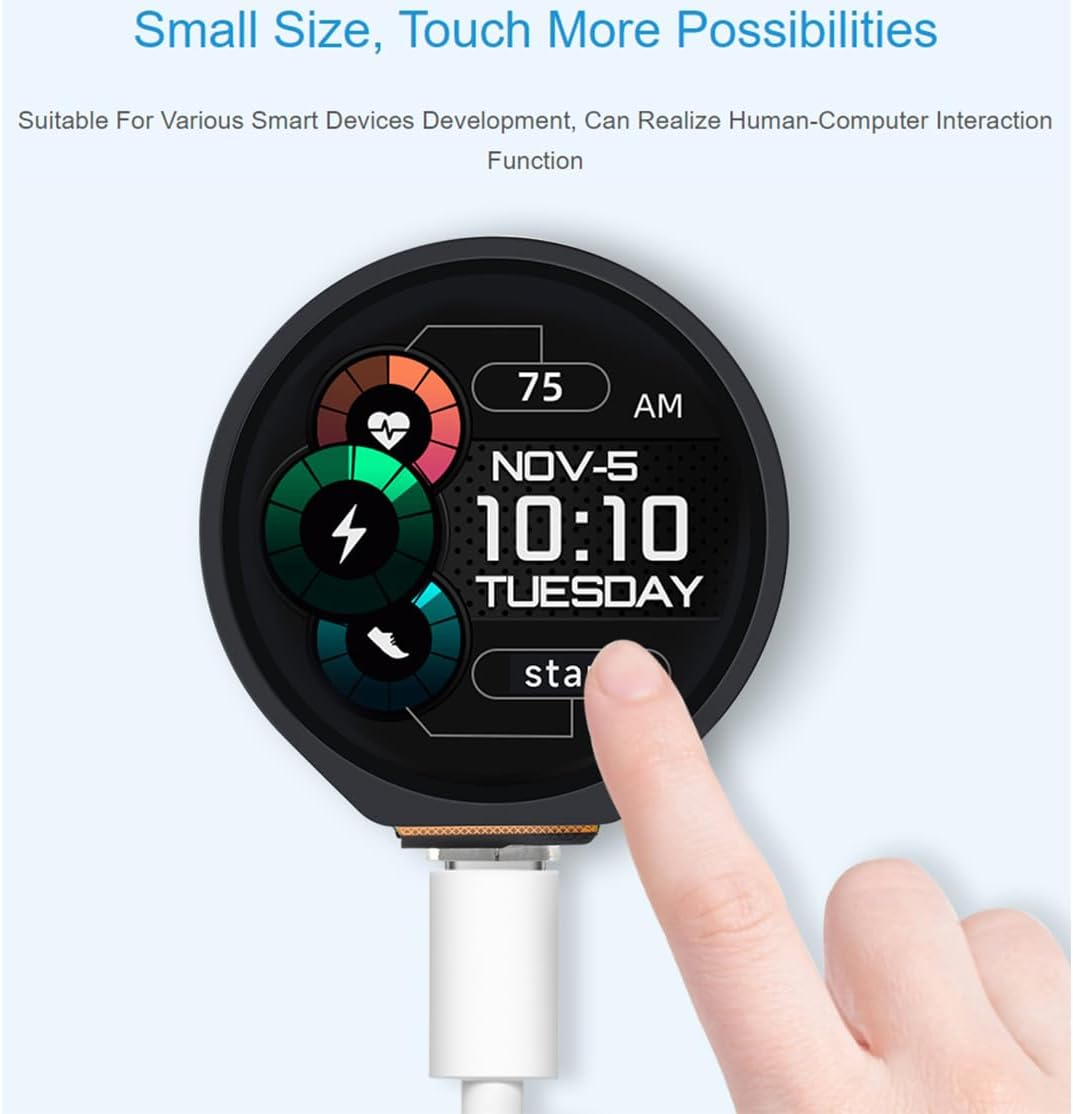

10. Suitable for various smart devices development, can realize human-computer interaction function
Online Development Resources /User Manual ://bit.ly/3FFaDT3
Package Content
ESP32-S3-Touch-LCD-1.28 x1
