Elecgear Intel CPU Anti-Bending Contact Frame for 13Th and 12Th, Aluminum Mod ILM for Intel LGA1700/LGA1800 Socket, Replacement CPU Retrofit Mount Kit Fixing Buckle and Thermal Paste

Elecgear Intel CPU Anti-Bending Contact Frame for 13Th and 12Th, Aluminum Mod ILM for Intel LGA1700/LGA1800 Socket, Replacement CPU Retrofit Mount Kit Fixing Buckle and Thermal Paste

Brand: ElecGear
4.2
A$15.75 - A$74.45
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

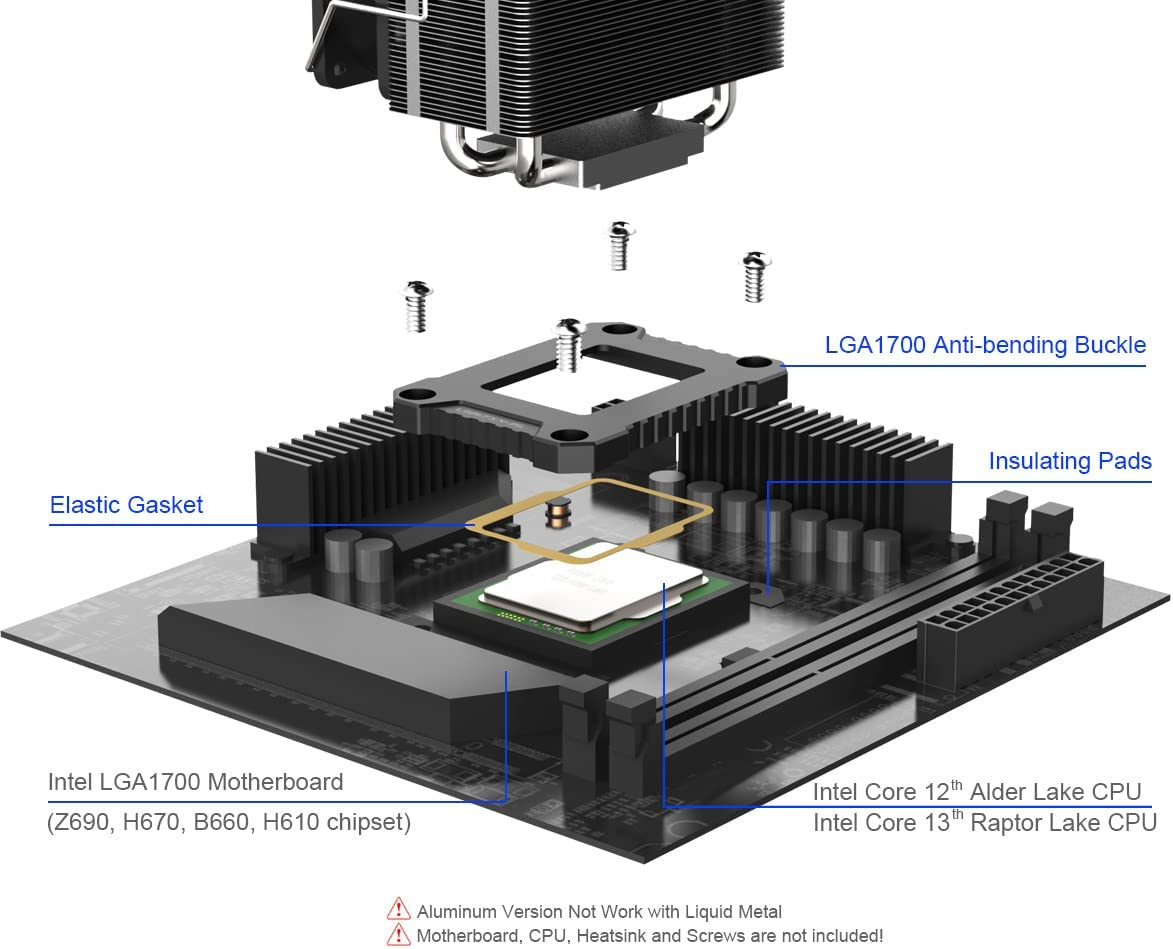

  • [Intel 13th and 12th CPU Anti-bending Bracket] – The contact frame together with the elastic gasket inside evenly distributes the pressure on the entire edge of IHS. The precision CNC machined frame ensures CPU is perfectly flat when installed in LGA1700/LGA1800 socket, preventing it from flexing the middle down

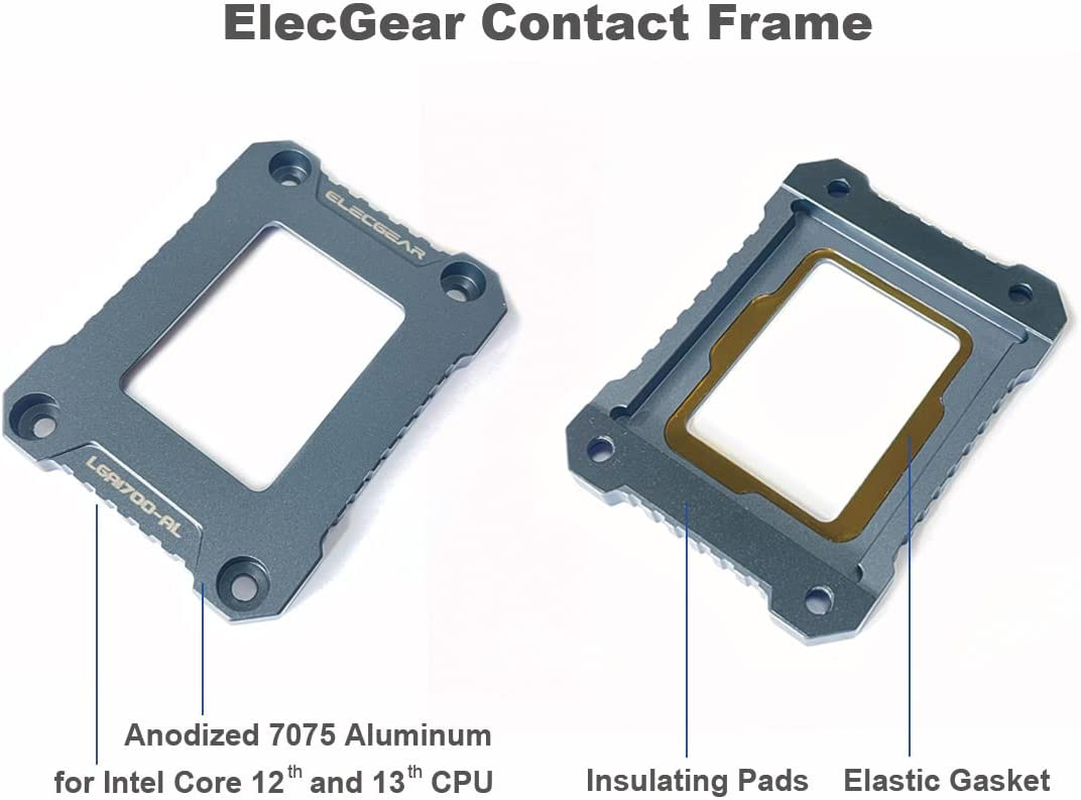

  • [CNC-ed Frame and Insulating Pads] – Anodized 7075 aluminum delivers the most strength. The bottom insulating pads are ready for electronic safe contact onto MB. The inner gasket gives a soft touch on the IHS and prevents thermal paste bleeding into the socket. Both are made of materials withstanding 130℃ high temperature for most stability
  • [Bending Issue of Raptor Lake and Alder Lake] – Intel elongated its IHS and the stock ILM placed tremendous pressure on the middle that causes the top to bend. Some famous IT publisher reported this bending deflection increases CPU temperatures by 5℃. Intel insists that it’s no problem, but PC enthusiasts won't agree with the poor contact with a warped processor and higher temp

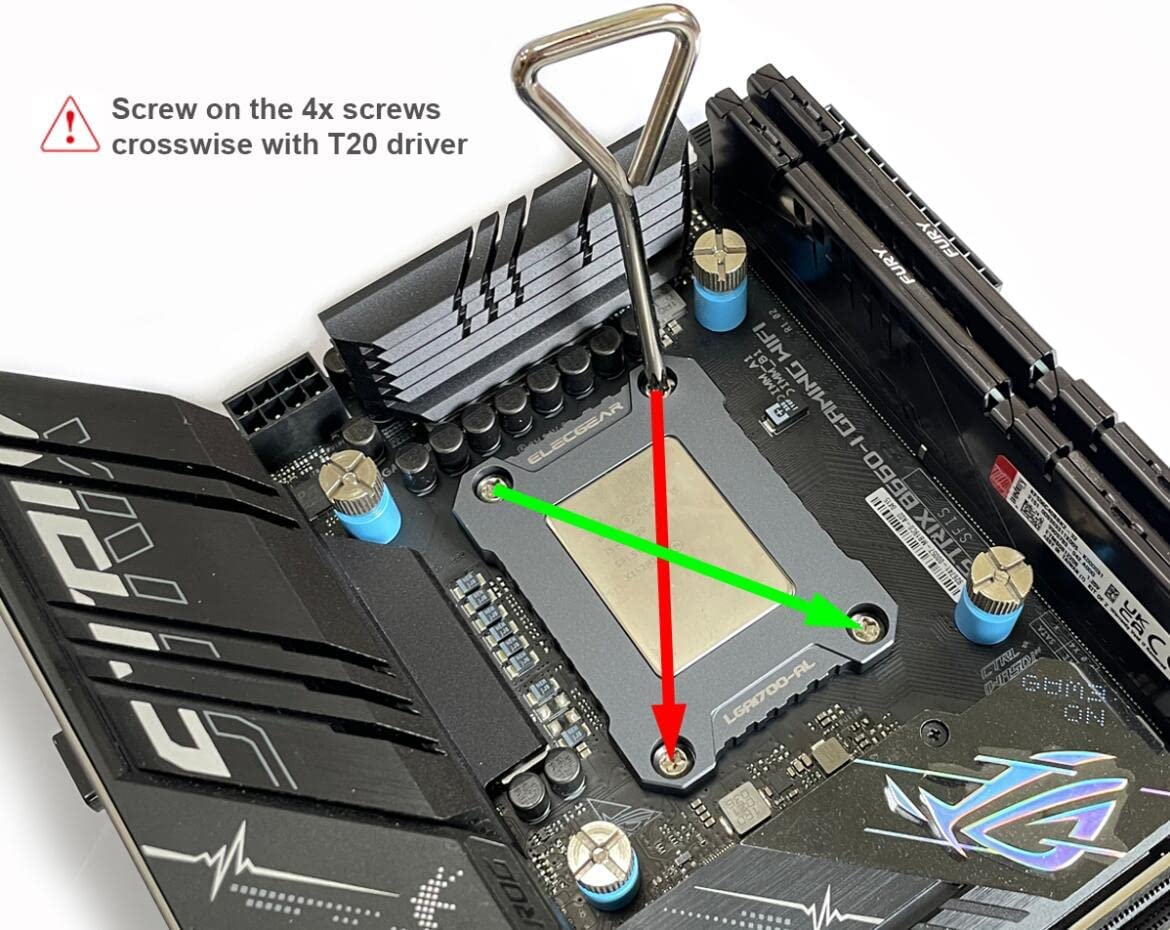

  • [T20 screwdriver and Thermal Paste] – Specially customized thermal compound is the ideal CPU heatsink grease with high thermal conductivity (6.5W/m-K), low thermal resistance, metal-free, non-bleeding and easy to apply. T20 trox screwdriver included for easy teardown and assembly

Anti-bending Correction Bracket for Intel 13th and 12th CPU
CNCed Frame ensures CPU is perfectly Flat in LGA1700 Socket
An Elastic Gasket helps to Distribute the Pressure on CPU Top
Special Profile will not interfere with Small Parts on CPU/PCB
Anodized Aluminum and High Temp Pads deliver the Stability
Heatsink Thermal Paste & T20 Screwdriver for Easy Operation
Specifications:
Brand: ElecGear
Model: LGA1700-AL
Compatibility:
Intel Core 13th gen Raptor Lake
Intel Core 12th gen Alder Lake
Dimension: 70x53x6.4mm
Weight: 23gram
Finish: Aluminum Oxidation
Color: Gray
What’s in Package:
1x Anti-bending Contract Frame (Aluminum Version)
1x Thermal Paste (6.5W/m-K, 1.3gram)
1x Elastic Gasket
2x Bottom Pads
1x T20 Screwdriver

  • Item Model Number: LGA1700-AL
  • Part Number: LGA1700-AL
  • Number of items: 1
  • Colour Name: Aluminum Anti-bending Frame
  • Processor Socket: LGA 1700
  • Batteries Required: No
  • Processor Brand: Intel
  • Wattage: 6.5 watts
  • Batteries Included: No
  • Processor Speed: 5
  • Product dimensions: 7 x 5.3 x 0.1 cm; 60 Grams
  • Item Weight: 60 g
  • Model: LGA1700-AL
  • Processor Count: 1
  • Processor Type: Core i9-12900K
  • Is discontinued by manufacturer: No
  • Brand: ElecGear
  • Does it contain liquid?: No
  • Manufacturer: ElecGear
