Korean OD 6" Ultimate Handwheel for Any Machine Fits 3/4"-19.10Mm Shaft or Smaller Ideal for Table Saw Band Saw Milling Lathe Drill Press Tailstock Liquid Filling Equipment Crank Revolving Handle

Korean OD 6" Ultimate Handwheel for Any Machine Fits 3/4"-19.10Mm Shaft or Smaller Ideal for Table Saw Band Saw Milling Lathe Drill Press Tailstock Liquid Filling Equipment Crank Revolving Handle

Brand: DONGYANG Ind. Co.,
5.0
A$69.20 - A$82.10
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

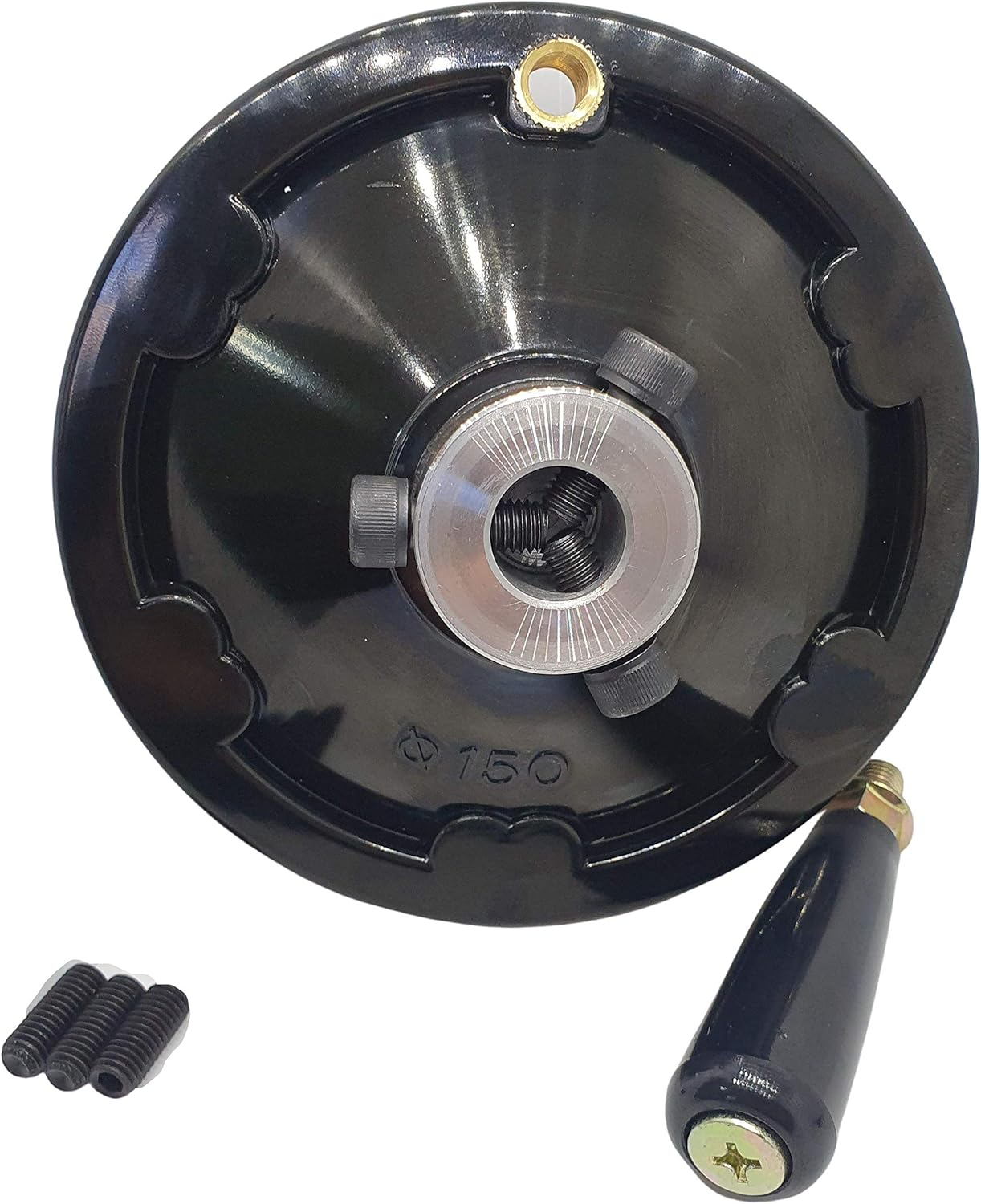

  • Handwheel has a diameter of 5.90 inches and a pre-machined inner diameter of 3/4 inch. It is ready to use with shafts ranging from 1/16 to 3/4 inch. extended up to 1.2" when processed by the user. The three-point fixing screw applied to the product allows for comfortable and easy adaptation to any shape of shaft to be used.
  • Efficiency in time, cost, and safety with the Replacement Crank Wheel Handle - When using machinery, significant time and expenses are typically incurred in obtaining a suitable handle and tools for handle customization. Unfortunately, unsuccessful customization attempts and potential hazards can arise.
  • Exceptional user friendliness - Unlike using handwheels with significant loss as described above, the "Ultimate Handwheel" is designed to provide versatility across all axes, fitting into smaller pre-machined bores.
  • The average life expectancy of this product, made with proper manufacturing techniques, is approximately 40 years. It offers exceptional durability, with excellent wear resistance, oil resistance, and weather resistance.. For guidance on proper handling, please refer to the accompanying video. Currently, there is no alternative product that matches the quality and performance of this item. We take pride in manufacturing and offering this exceptional product.
  • Lifetime Warranty: From the moment you become a customer, even if you lose your receipt, we provide warranty service forever. It doesn't matter how much we lose. We put our customers first. It doesn't matter how many years have passed since using it. During the lifetime of our company, this product is covered by a lifetime warranty. It doesn't matter who the seller of this product is. The mere fact that you have used our products is sufficient evidence of warranty.

Product Description

The Ultimate Handwheel, A lot of people have tried it and have proven its name.

Various customers from different countries used it as shown in the image above.

  • Also, we don't sell products we don't make. They are all made in KOREA.
  • This product is commonly purchased by woodworking customers.
  • The machines shown in the image mostly consist of table saws.
  • Some customers also use it specifically for drill presses at the 3 o'clock and 5 o'clock positions.
  • Additionally, it has been utilized in the Tailstock for lathes at the 7 o'clock position (Yellow Gray).
  • It is versatile and can be used on machines of various standards, including custom-made ones by you. Before purchasing, simply measure the desired area with a vernier and select the corresponding product from the provided chart.
  • Give it a try, and I assure you that this product will effectively solve the challenges you've been facing.
  • The handwheel is a finished product that has undergone multiple improvements to eliminate the need for additional mounting processing after purchase.
  • It is designed to be compatible with the central core part, allowing for seamless integration. It is built to withstand various designs, additional modifications, and post-processing without any issues.
  • It will undoubtedly save you pain, time, and money.
  • This level of compatibility in a handwheel has never been seen before.

Great example of utilizing the Ultimate Handwheel

Replaced crank on a broken Drill press

This customer, who specializes in woodworking, used to extend the drill press table by adding a wider plate. However, every time he raised the plate, the crank would hit the underside and become unable to work properly. He had to remove the original crank and use a spanner to raise and lower the plate. But after discovering our product, he was able to reduce the torque distance and use the crank comfortably. He was very satisfied with the results.

Challenges faced when using OEM parts.

However, after finding our product, he decided to use it with a reduced torque distance and was able to safely raise the plate with his left hand while turning the wheel crank with his right hand, and was very satisfied with the solution.

This shows that even though ready-made products are convenient, sometimes it's necessary to replace them for the best results.

Ultimate Handwheel (3.94-1/2) VS OEM Parts

The greater the distance between the center and the outer shell, the easier it is to work with high torque. Our handwheels have a radius of 2 inches, which is smaller than the standard 3 inches of off-the-shelf cranks. This specific product has a radius of 3.94 inches minus 1/2 inch. While it may require more force to turn the crank, using the left hand to lift the plate reduces the load, preventing hand injuries and increasing overall efficiency. As a manufacturer, we consider this customer to be the perfect example of using our product to its full potential.

The Ultimate Handwheel Preview

Tech Specs

Item classification is outer diameter and pre-machined inner diameter
It is a product that solves the most difficult part for customers who use this item in advance.

DONGYANG Industry's Ultimate Handwheel is a versatile product that caters to a diverse range of customers, including machine shop and workshop professionals, designers, and hobbyists who create tools or jigs. The product allows customers to achieve precise angles at a fraction of the cost compared to implementing an accurate three-slot flank. Additionally, customers who require expansion can easily achieve it by boring through the lathe and those who need precision can process the coupling to match the concentricity.

How it works?

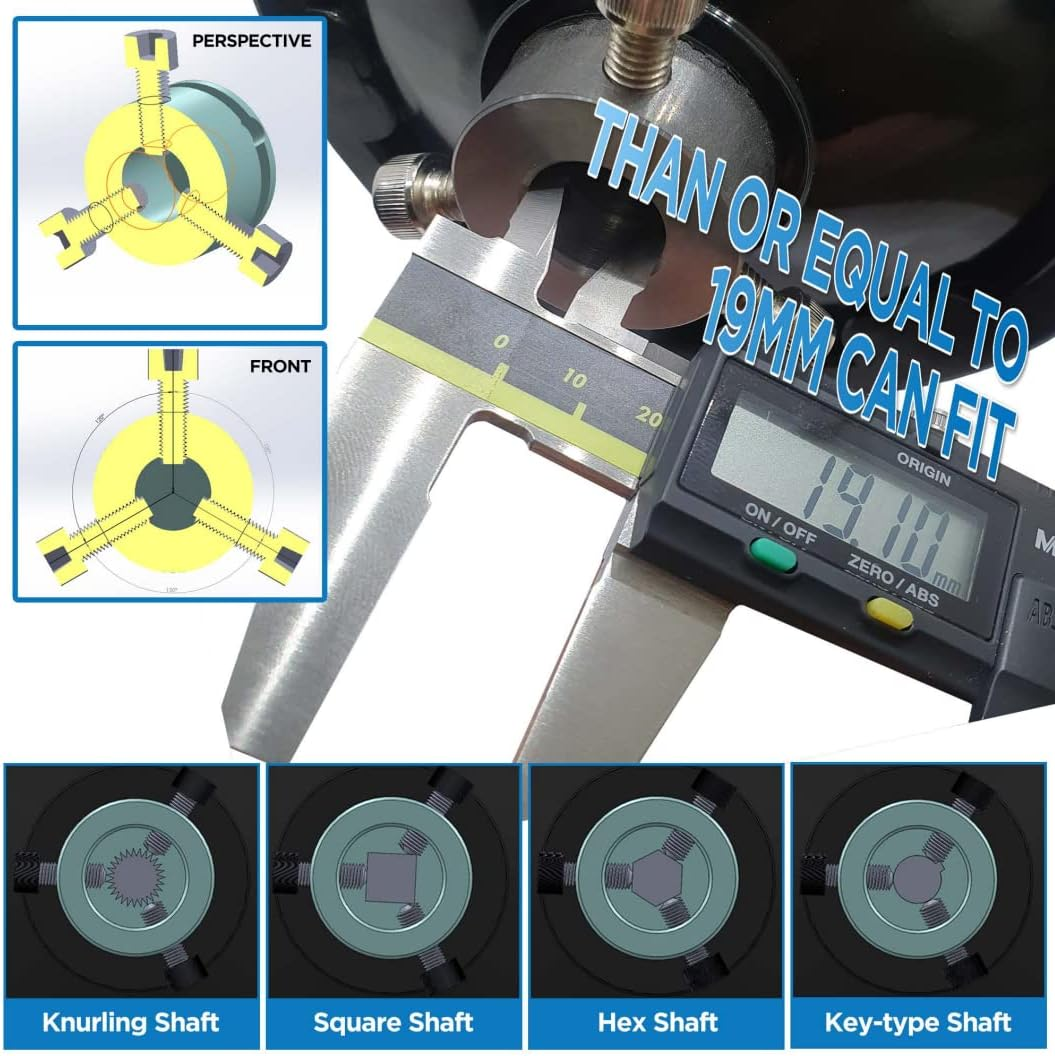

The 3-point fixed screw, evenly divided into 120 degrees, securely fastens the shaft (similar to the principle of a drill chuck).

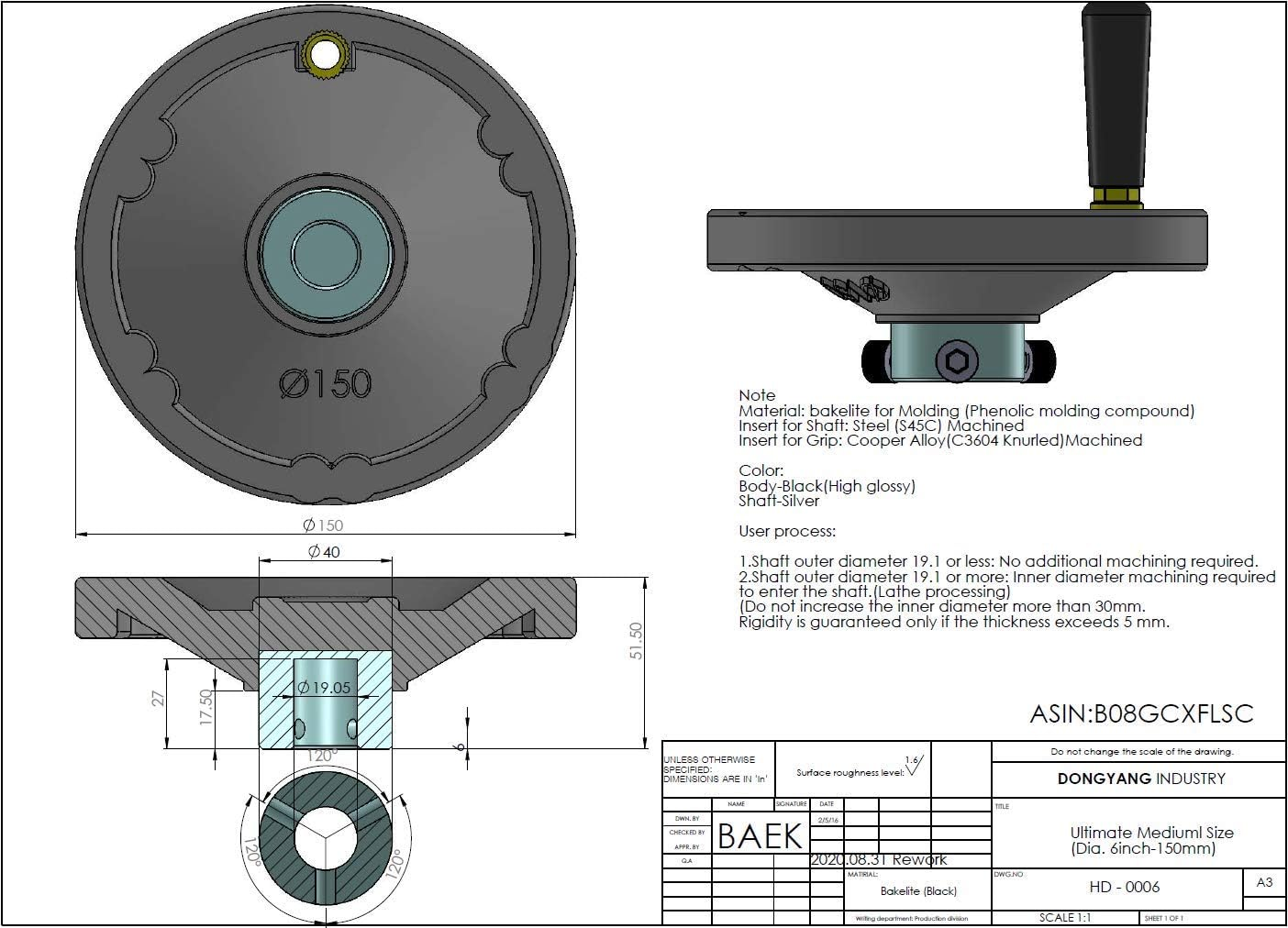

The image on the left is an example modeling image of the "5.90-1" model.

5.90 means the diameter and 1 means the inner diameter of the core.

To gain a better understanding of its usage, we recommend watching our modeling and production videos, which are designed to be easily comprehensible.

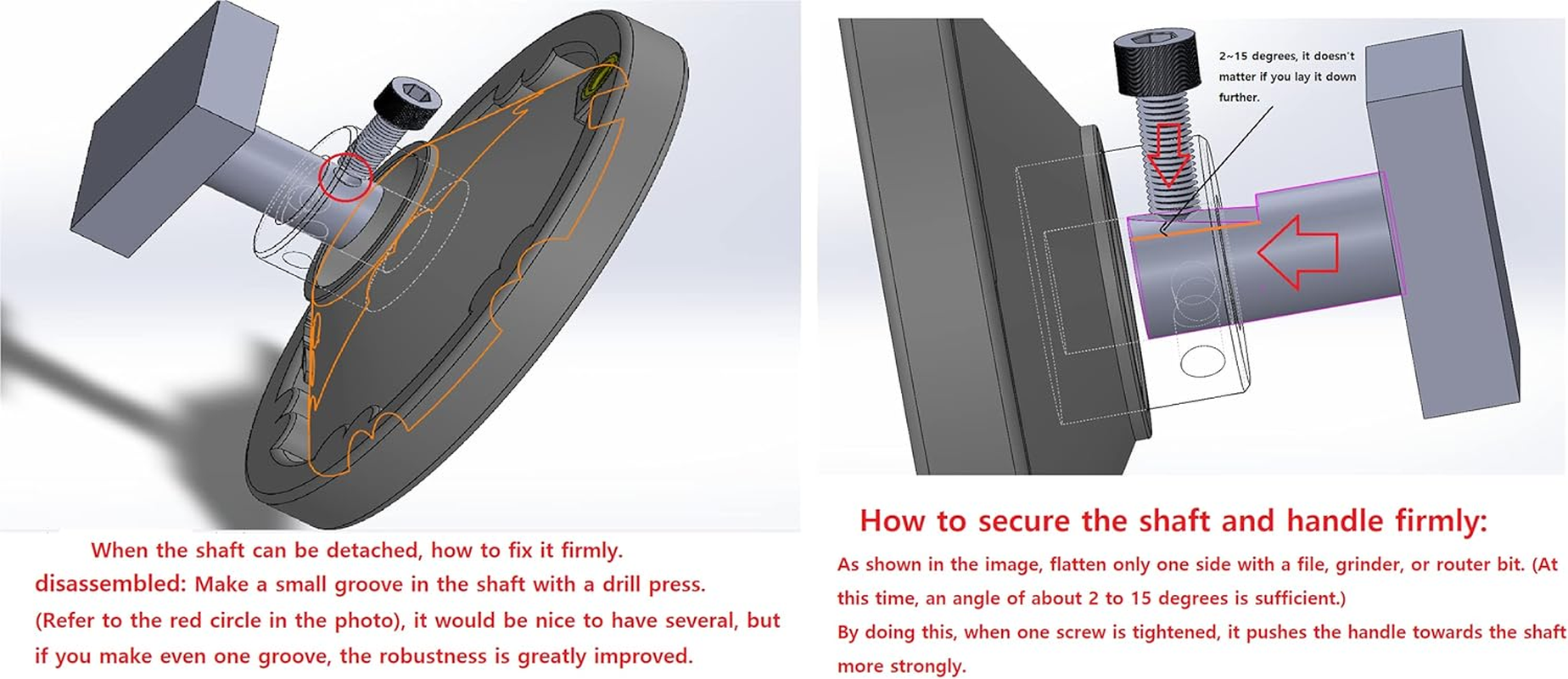

Excellent 3-axis fixing method.

Our product, The Ultimate Handwheel, is designed to cater to the needs of 95% of customers who do not possess the skills to use a lathe. As a replacement part, it is ideal for those who have been unable to find a discontinued handwheel. This product is versatile and can be used in a wide range of applications, making it a valuable tool for mechanics and other professionals.

Ultimate Handwheel was born with this intention.

DONGYANG Industry's Ultimate handwheel for most machines.

Ex) Industrial Machines for tools and cutters (wood, metal)

It can be used on universal or horizontal machine tools, such as CNC milling machines, lathes, tailstocks, vise handles, radial drilling machines, drill press tables, surface and cylindrical grinders, sharing machines, boring machines, profile cutting machines, turning CNCs, and plastic automatic cutting machines.

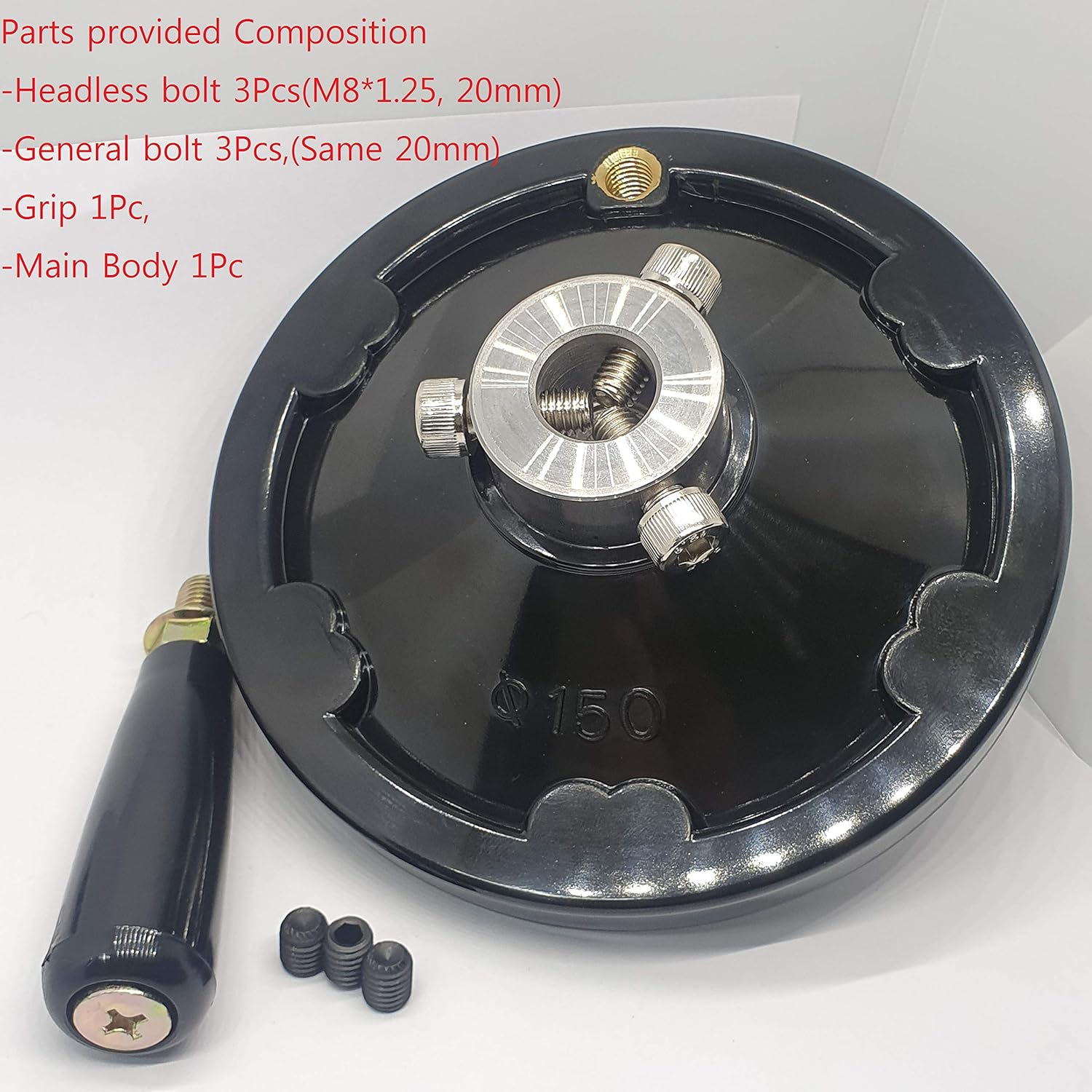

  • Main Dished Handle Body, 3pcs of standard fixing bolt (for set screws M8 * P 1.25)
  • 3pcs of Headless set screws (Common, M8 * P 1.25), 1 set of Knob assembly
  • Everything you all need is provided. However, a Phillips screwdriver and hexagon wrench are not included in the product and will need to be purchased separately.
  • Style: Classic
  • Product dimensions: 15 x 15 x 15 cm; 839 Grams
  • Batteries Included?: No
  • Usage: Woodwork
  • Is discontinued by manufacturer: No
  • Grit Number: 201
  • Size Name: 5.90-3/4
  • Batteries Required?: No
  • Finish: Polished
  • Colour Name: Black
  • Material: Plastic
  • Installation Method: Screw-In
  • Included Components: Installation Hardware
  • Item Model Number: U-150-3/4-AL
  • Item Package Quantity: 1
  • Colour: Black
  • Handle/Lever Placement: Veritical
  • Warranty description: Lifetime
  • Number Of Pieces: 2
  • Item Weight: 839 g
  • Head Style: Hex
  • Special Features: Adjustable
  • Part Number: U-150-3/4-AL
  • Country of origin: Korea, Republic of
  • Shape: Round
  • Manufacturer: DONGYANG Ind. Co.,
  • Grit Description: Very Fine
  • Size: 5.90-3/4
