Aucent Crimping Tool Kit Crimper Set with 9 Jaws 23-5 AWG for Dupont JST Open Barrel Pins,Insulated and Non-Insulated Terminal/Butt,Coax RF MC4 Connector,Wire Ferrule,End Sleeve (1 Crimper 9 Jaws Set)

Aucent Crimping Tool Kit Crimper Set with 9 Jaws 23-5 AWG for Dupont JST Open Barrel Pins,Insulated and Non-Insulated Terminal/Butt,Coax RF MC4 Connector,Wire Ferrule,End Sleeve (1 Crimper 9 Jaws Set)

Brand: HKS
4.1
A$107.80 - A$119.45
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Versatility: 9 jaws suit for open barrel terminals (for Dupont, JST, TE, MOLEX etc.), D-sub conenctors,KF 2510 connectors, ATX,EPS,PCIE,SATA Pins (2.54/3.96/4.8/5.08/6.3mm²), insulated and non-Insulated ferrules, butt connectors,solar connectors, coaxial cable connectors.

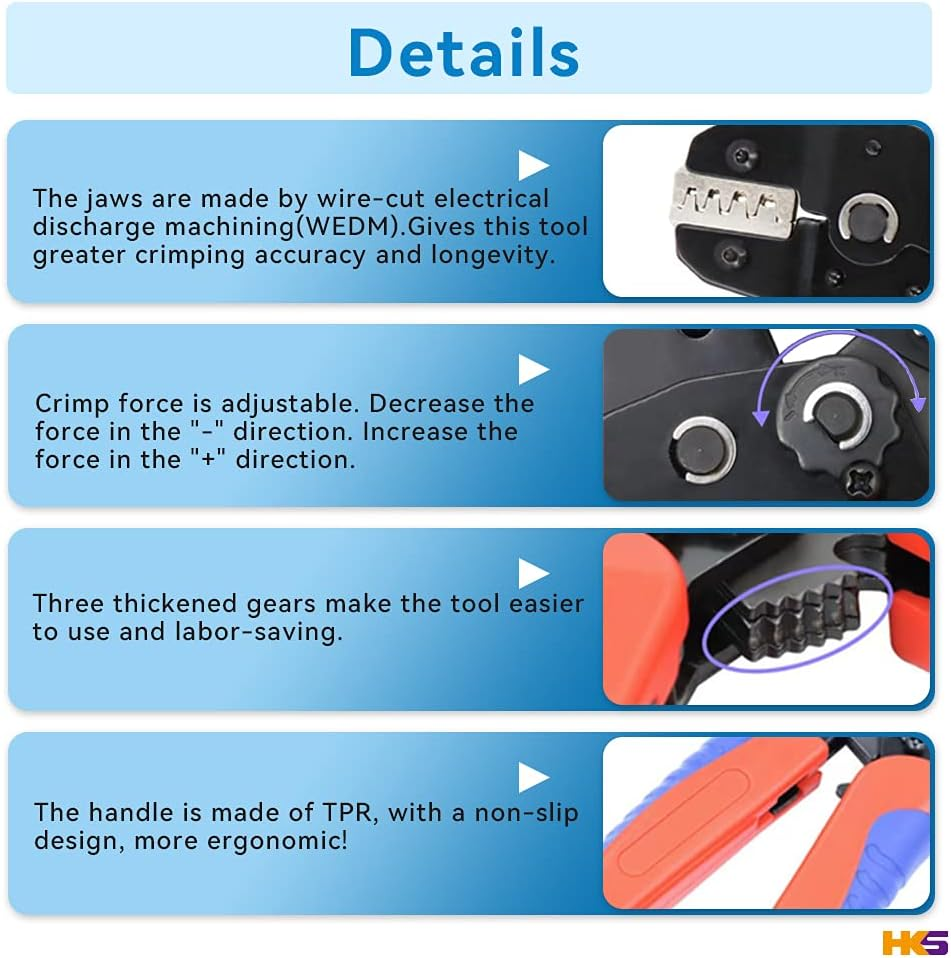

  • Excellent Performance:The secondary polished jaws and ratchet mechanism ensure a super quality crimp after repeated crimping. One of the jaws, A58, is made of powder alloy for greater hardness and longer life, providing more precise crimping results.
  • Ease Of Use:The 7-inch pliers, weighing 0.7 pounds, are designed with an automatic release mechanism and are very labor-saving to use.

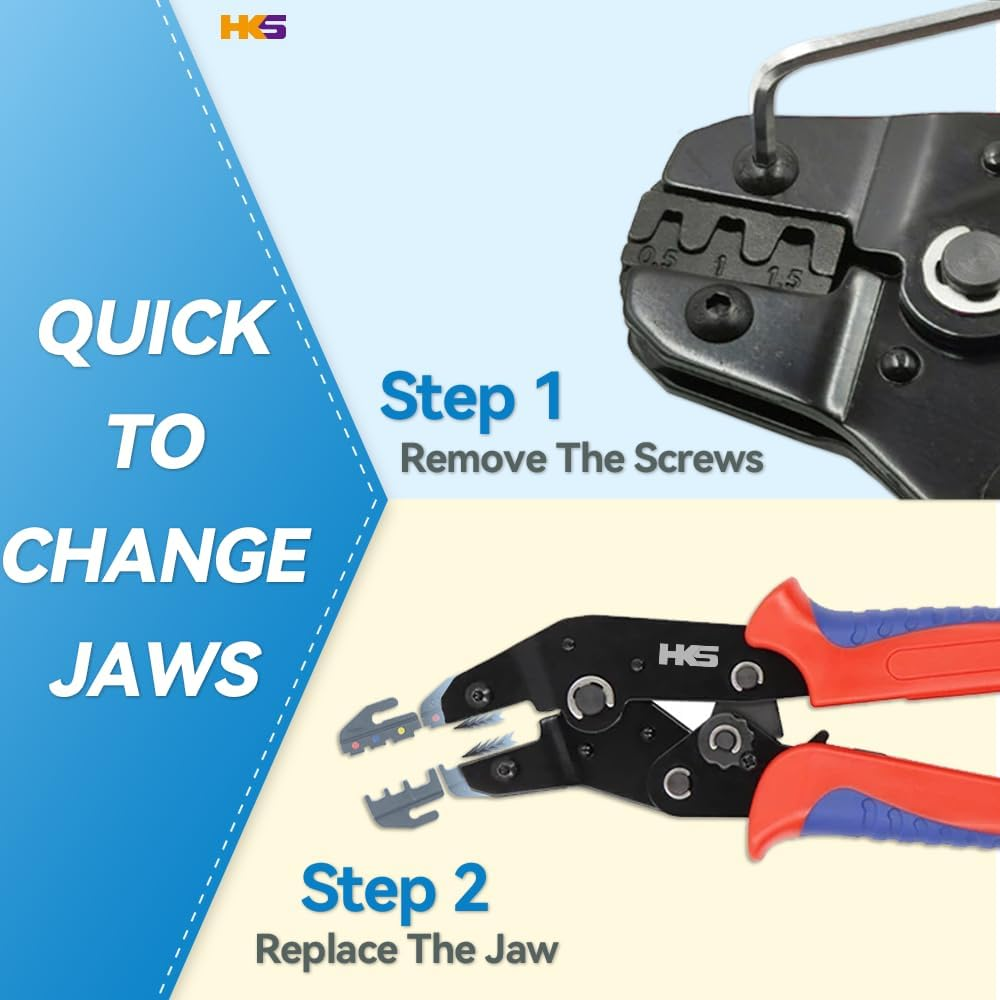

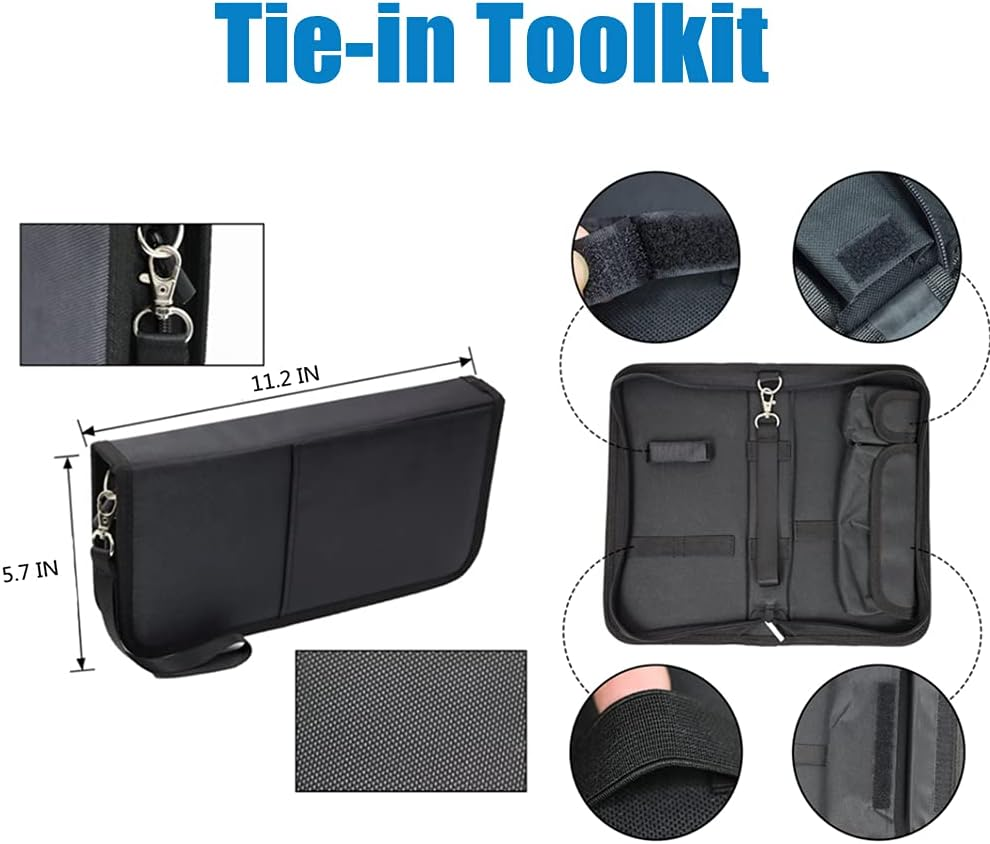

  • Convenience:Comes with a tie-in toolkit for easy replacement of dies. All tools and accessories are packed in a durable tool bag, which is easy to carry and transport.
  • Ergonomic:Due to the optimal handle grip position and TPR material comfortable non-slip grip, yes the work process is very labor-saving.

This is a kind of quality crimper, made of high strength steel, with higher hardness, longer life and can provides finer crimping effect. The demanded pressing force should be reached before the brake unit automatically release the jaw of the pliers. Uniform clamp pressure to ensure the uniform, accurate line appearance. Equipped with 9 replacement jaws, easy to replace it according to your demands. You can take a try!

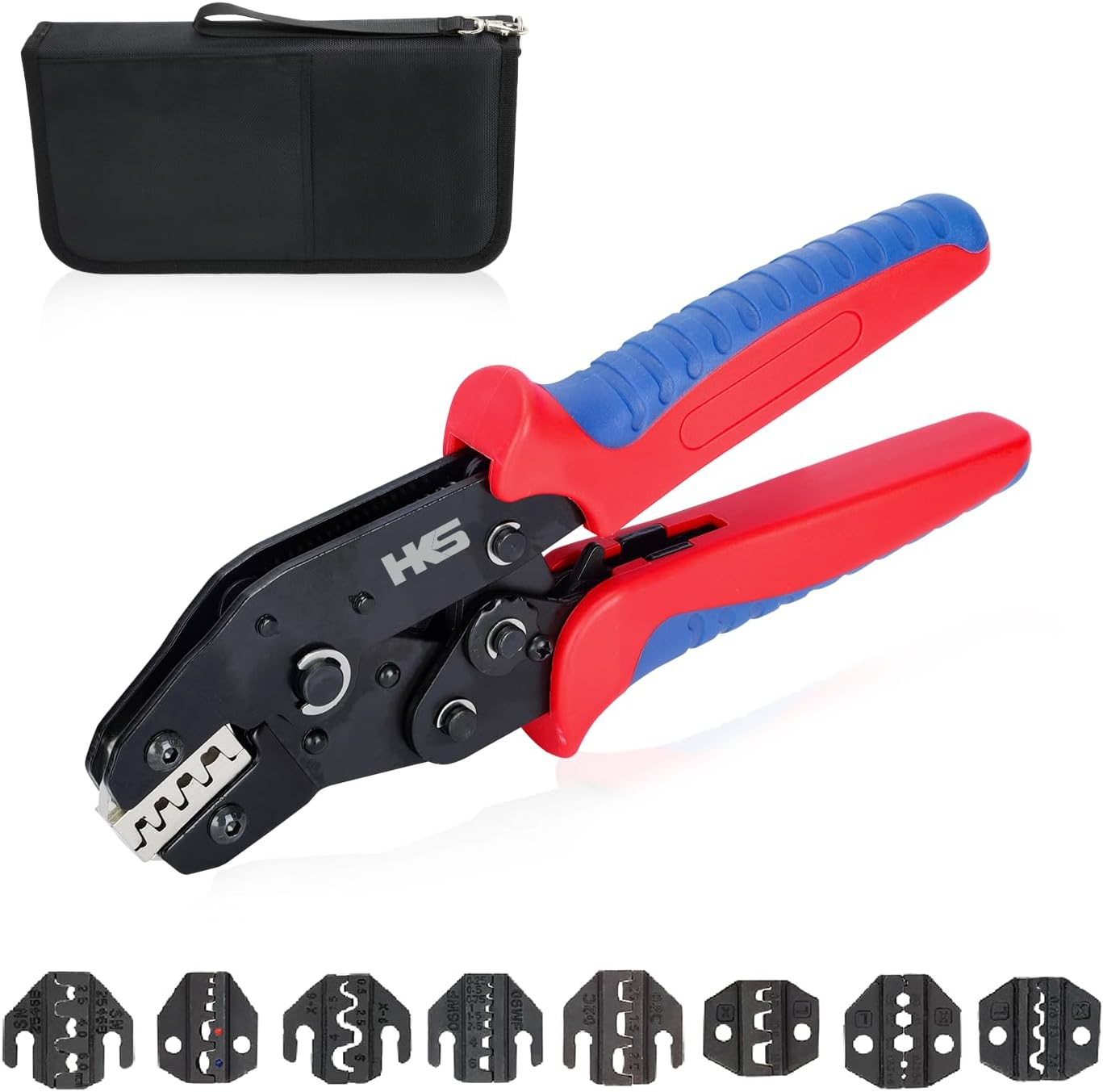

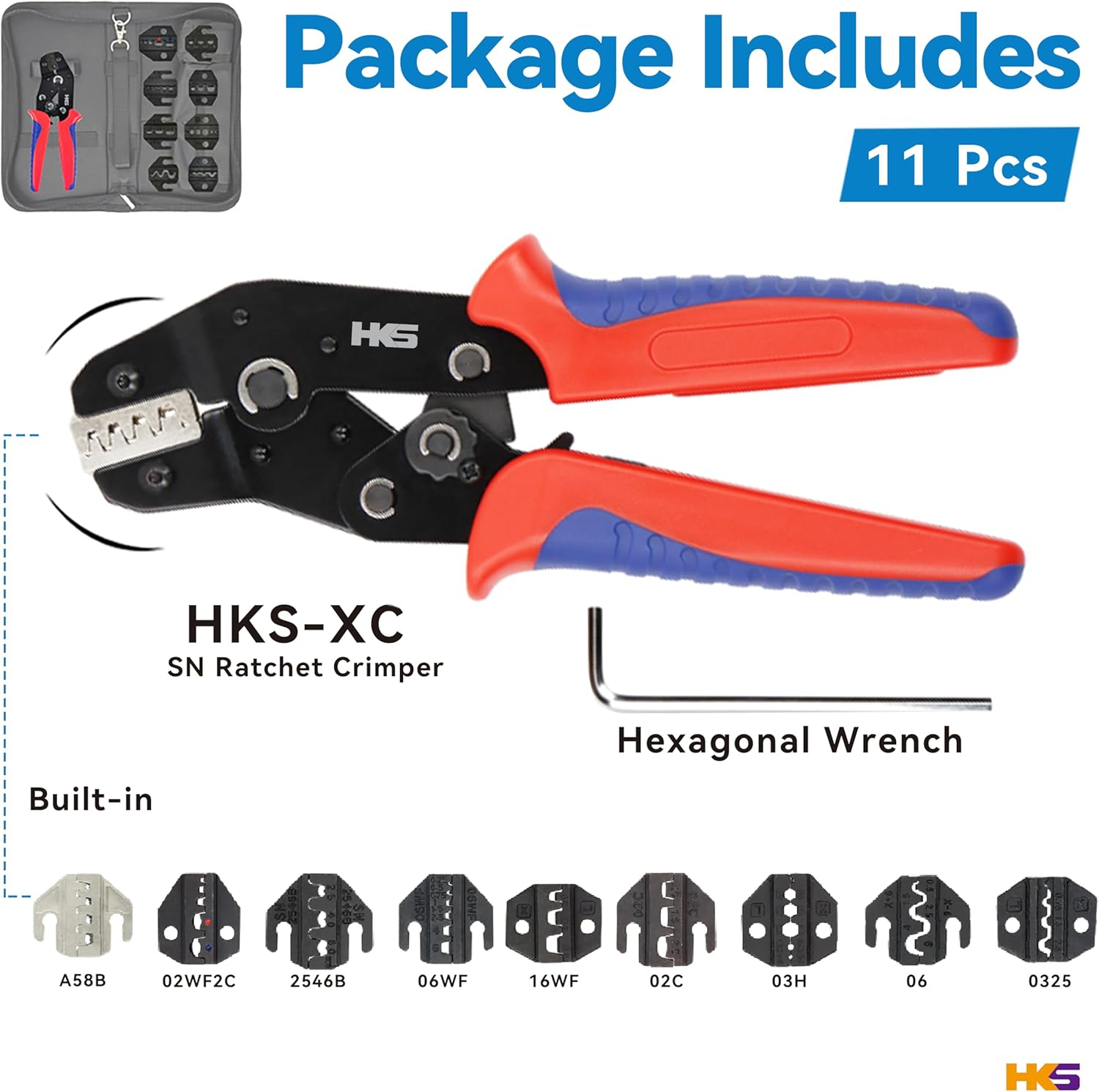

PACKAGE CONTENTS:

1 * Ferrule Crimper

9 * Jaws

1 * Hex Wrench

1 * Tie-in Toolkit

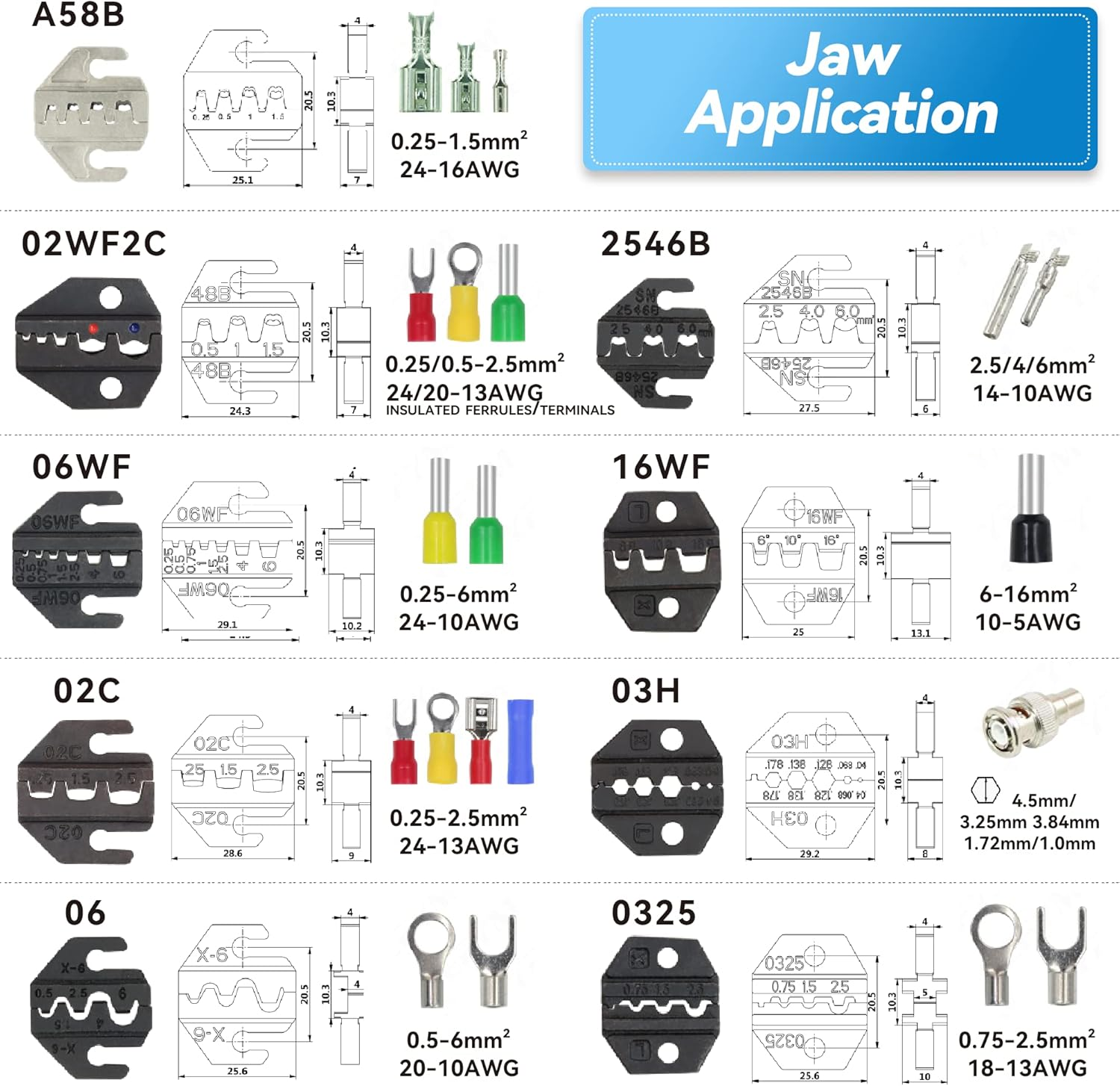

List Of Jaw Parameters:

A58B - 0.25-1.5mm2 24-16 AWG Non-Insulated Tabs - Open Barrel Terminals (for Dupont,JST,TE,MOLEX etc.),D-sub Conenctors,KF2510 Connector,ATX,.EPS,PCIE,SATA Power Pins - 2.54/3.96/4.8/5.08/6.3mm2 Grounding Terminal Connectors

02WF2C - 0.25-2.5mm2 23-13 AWG Insulated Ferrules and 0.5-2.5mm2 20-13AWG Insulated Terminals

2546B - 2.5-6.0mm2 14-10 AWG Solar connectors

06WF - 0.25-6.0mm2 23-10 AWG Insulated and Non-Insulated Ferrules,End Sleeves

16WF - 0.6-16mm2 10-5 AWG Insulated and Non-Insulated Ferrules,End Sleeves

02C - 0.25-2.5mm2 24-14 AWG Insulated Terminals and Butt Connectors

06 - 0.5-6mm2 20-10 AWG Non-Insulated Ferrule Terminals

03H - 4.5/3.25/3.84/1.72/1mm2 28-18 AWG BNC SMA SMB MCX Cap/Coaxial Cable Terminals and Connectors(RG178 RG174 RG195 RG316)

0325 - 0.75-2.5mm2 18-13 AWG Non-Insulated Terminals

  • Item Model Number: 11PCS Mini Crimping Tool Set
  • Part Number: SN-48BSR SET
  • Style: Clamp
  • Power Source: No Power
  • Item Package Quantity: 1
  • Colour: Chrome/Silver
  • Material: Steel
  • Country of origin: China
  • Batteries Required?: No
  • Item Weight: 9 g
  • Handle Material: Carbon Steel
  • Batteries Included?: No
  • Usage: Working with open barrel terminals, D-sub connectors, coaxial cable connectors, and various other connectors and terminals
  • Model: 11PCS Mini Crimping Tool Set
  • Manufacturer: HKS
  • Package Dimensions: 29.69 x 15.8 x 5.59 cm; 9 Grams
  • Included Components: Crimper/9 Pcs Jaws
