●●●Hilitchi 20-Pcs High Quality Aviation Male Female Connectors Plug Assortment Set
【Specifications】
Product Name: Aviation Connector Plug
Set Includes Model: 16-2 / 16-3 / 16-4 / 16-5

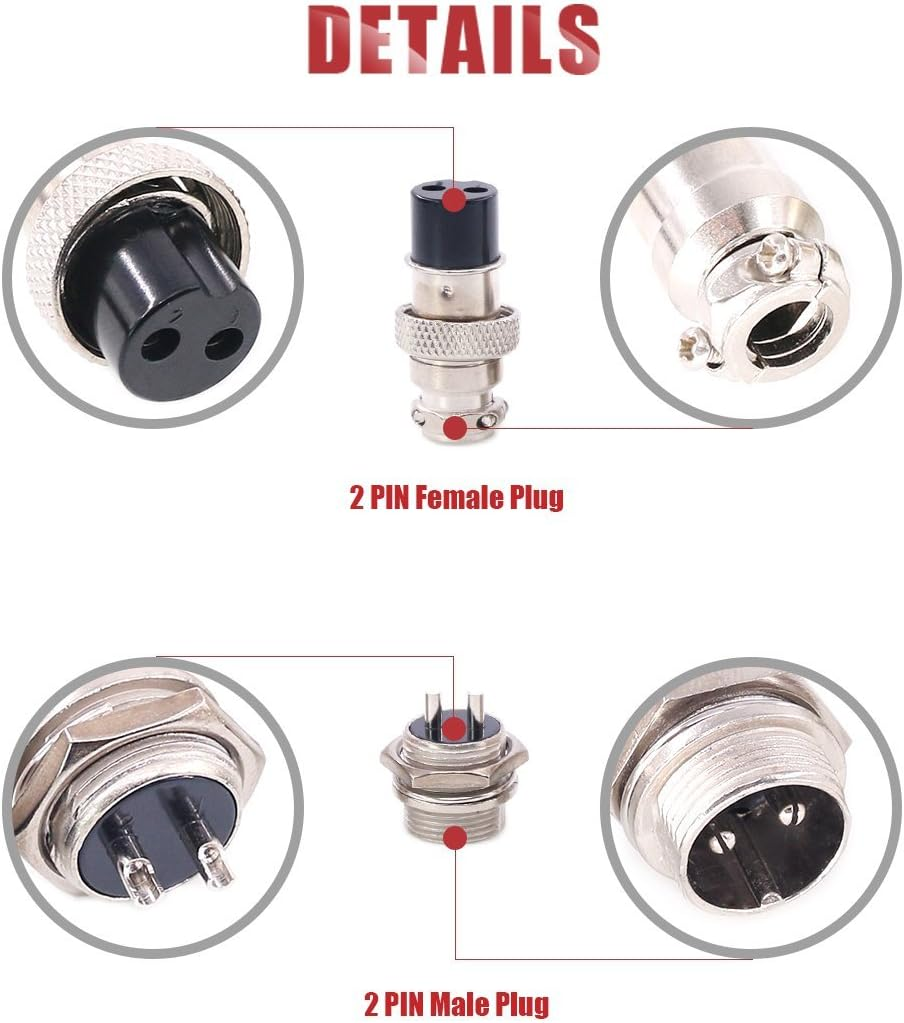

Type: Male Female Plug
*****【2 Pin Specifications】*****
Rated: 125V 7A;
WorkingVoltage: AC 200V;
Withstand Voltage: AC 1500V
Insulation Resistance(at DC 500V): Min:1500M Ohm;
ContactResistance(at DC 1A): Max: 3.0M Ohm;
Contacts Pin Diameter: 2.45mm/0.1"
*****【3 Pin Specifications】*****
Rated: 125V 7A;
WorkingVoltage: AC 200V;
Withstand Voltage: AC 1500V
Insulation Resistance(at DC 500V): Min:1500M Ohm;
ContactResistance(at DC 1A): Max: 3.0M Ohm;
Contacts Pin Diameter: 2.45mm/0.1"
*****【4 Pin Specifications】*****
Rated: 125V 5A;
WorkingVoltage: AC 200V;
Withstand Voltage: AC 1500V
Insulation Resistance(at DC 500V): Min:1500M Ohm;
ContactResistance(at DC 1A): Max: 3.0M Ohm;
Contacts Pin Diameter: 2.45mm/0.1"
*****【5 Pin Specifications】*****
RatedVoltage: AC 125V;
RatedCurrent: 4A;
Operating Voltage: AC 200V
Withstand Voltage: AC 1500V;
Insulator Resistance: 1500 Ohm;
Pin Diameter: 2.0mm

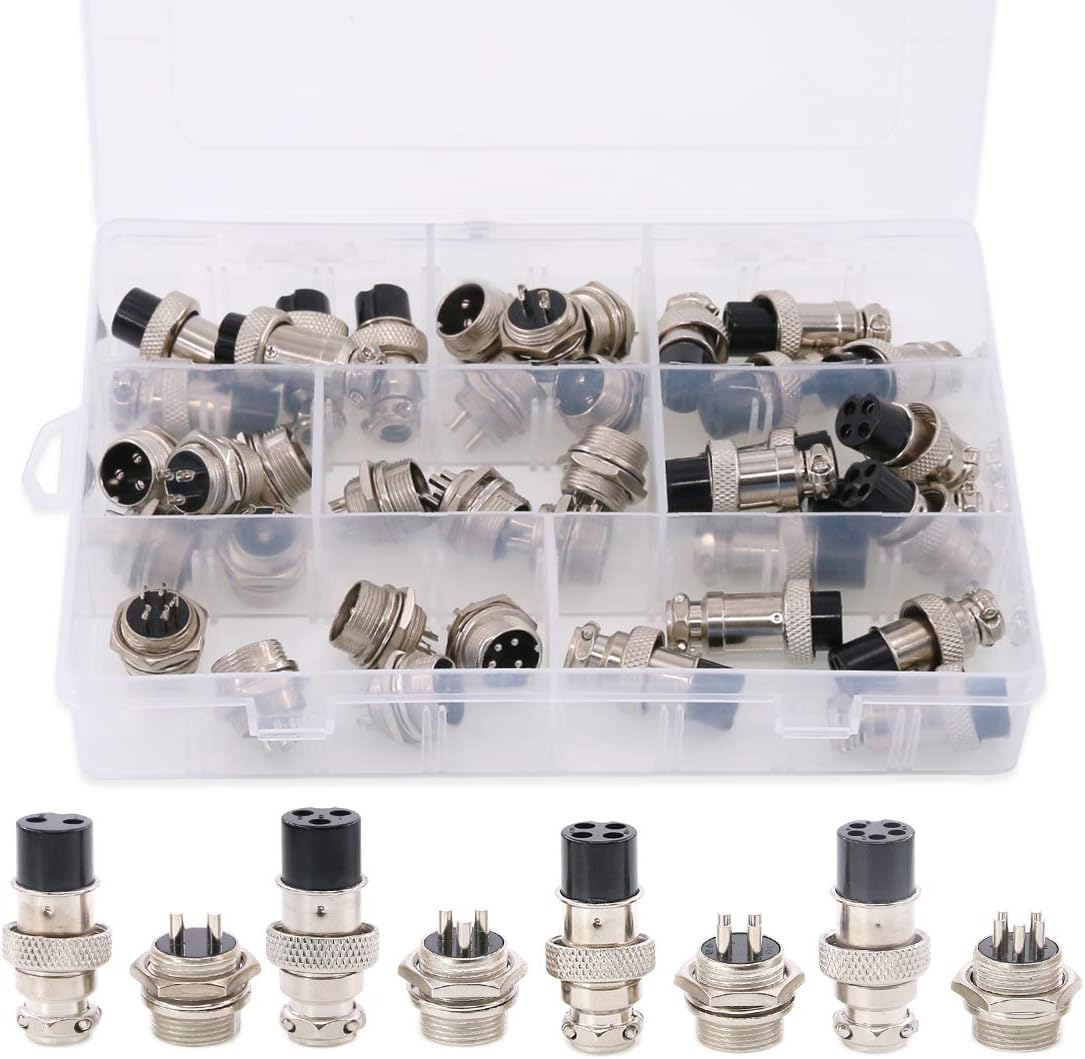

【Package Included】
- 2 Pin - 5Pcs
- 3 Pin - 5Pcs
- 4 Pin - 5Pcs
- 5 Pin - 5Pcs
【Package Included】
- 2 Pin Female / Male - 10Pcs
- 3 Pin Female / Male - 10Pcs
- 4 Pin Female / Male - 10Pcs
- 5 Pin Female / Male - 10Pcs
【Package Quantity: 40pcs】

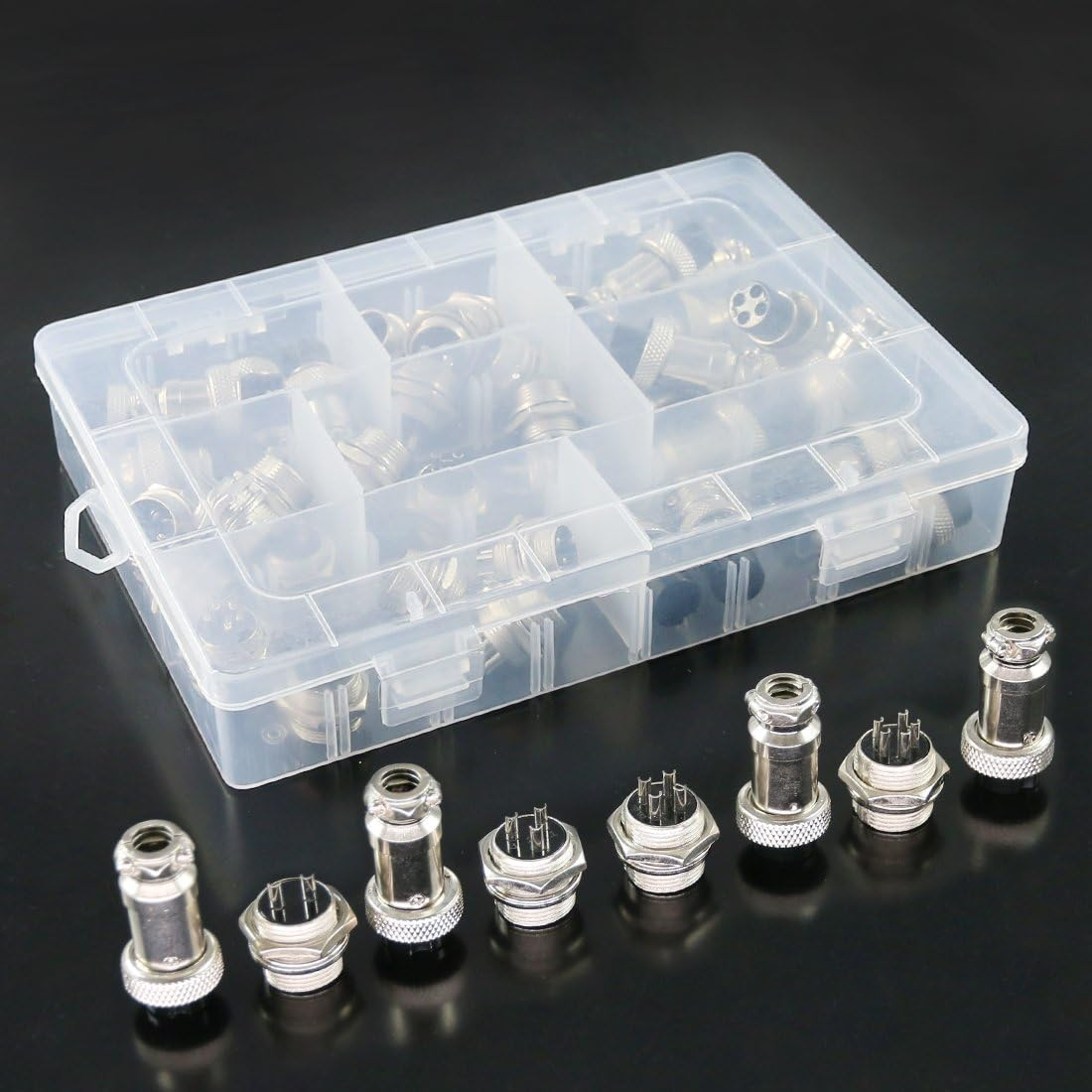

This set is organized by size in a transparent storage case for quick access and protection.
