AOHUA 3 Way Junction Box, M23 3-Pin Connector, 500V/35A, IP68 T Shape Waterproof Electrical Wire Connector for Ø10-15Mm Cable, Ul/Saa/Ce/Rohs Certified (1-Pack)(Ah-M23-3503T01122)

AOHUA 3 Way Junction Box, M23 3-Pin Connector, 500V/35A, IP68 T Shape Waterproof Electrical Wire Connector for Ø10-15Mm Cable, Ul/Saa/Ce/Rohs Certified (1-Pack)(Ah-M23-3503T01122)

Brand: AOHUA
3.5
A$23.00
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

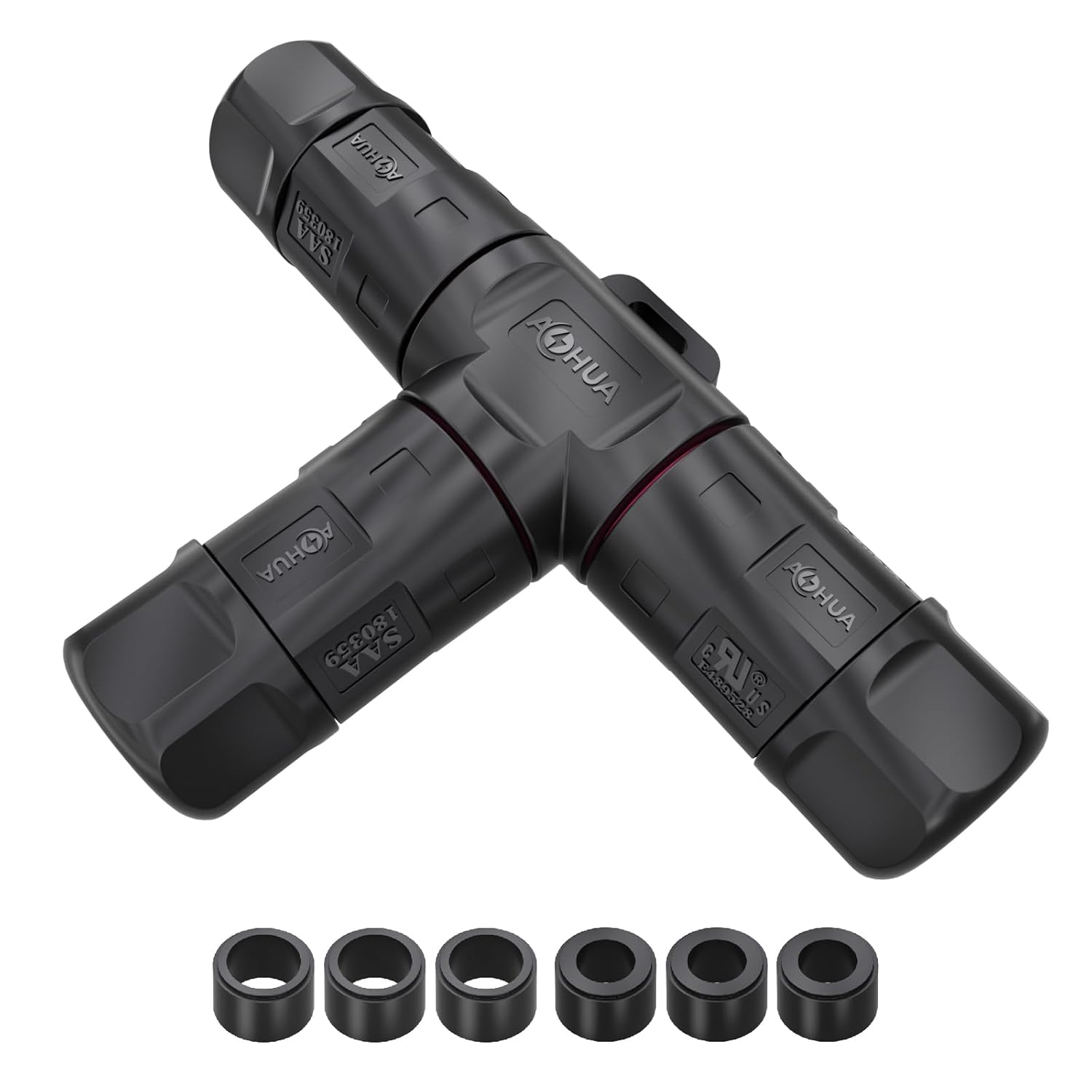

  • ✅【M23 3-Pin T Shape Waterproof Wire Connectors】 This 3 way wire connector waterproof junction box fits Ø10–15mm cables with two silicone grommets (12mm & 15mm). Designed as a heavy-duty waterproof extension cord connector, it’s perfect for outdoor junction box setups, underground electrical junction boxes, and landscape lighting connectors waterproof in garden projects. ⚡Note: Please pay attention to the size of the product when making a purchase.
  • ✅【Durable Specifications】 ⚡Cable Diameter: 10–15mm (each connector includes two sizes of grommets). ⚡Wire Gauge: ≤4mm². ⚡Voltage/Current: AC/DC ≤500V/35A (suitable for standard electrical loads). ⚡Temperature Range: -40°C to 105°C. Ensures reliable performance in harsh weather. ⚡Waterproof Rating: IP68 (dustproof and water-resistant). ⚡Materials: Black nylon housing with silicone seal guarantees long-lasting protection, UL/SAA/CE/ROHS certified. ⚡Wire Conection Method： Screw.
  • ✅【IP68 Certified Waterproof Junction Box】 These outdoor junction box waterproof connectors are UL/CE/ROHS/SAA certified, resistant to dust, rain, and snow. Tested under IPX8 conditions (1m depth/24h). Great as an outdoor cable box or underground electrical junction box. Note: Use correct cable size to maintain IP68 seal; If the cable is too thin, the seal won’t stay IP68; Not for long-term underwater use.
  • ✅【Flame-Retardant Nylon PA66 Housing】 Built from 94V-0 flame-retardant Nylon PA66, these 3 wire waterproof connectors resist heat, UV rays, corrosion, and aging. The screw-lock design ensures a secure connection without special tools—ideal as a 3 pin waterproof connector for marine wiring, DIY home projects, industrial control, underground electricians and outdoor extension cord repairs.
  • ✅【Versatile Application】 Engineered for multiple uses, these IP68 connectors support LED billboards, tunnel lighting, garden spike lights, solar panels, mining machinery, and renewable energy systems. Works as a waterproof electrical junction box, outdoor extension cord splitter, or landscape lighting connectors. A true all-in-one solution for secure connections in residential, commercial, and industrial projects.

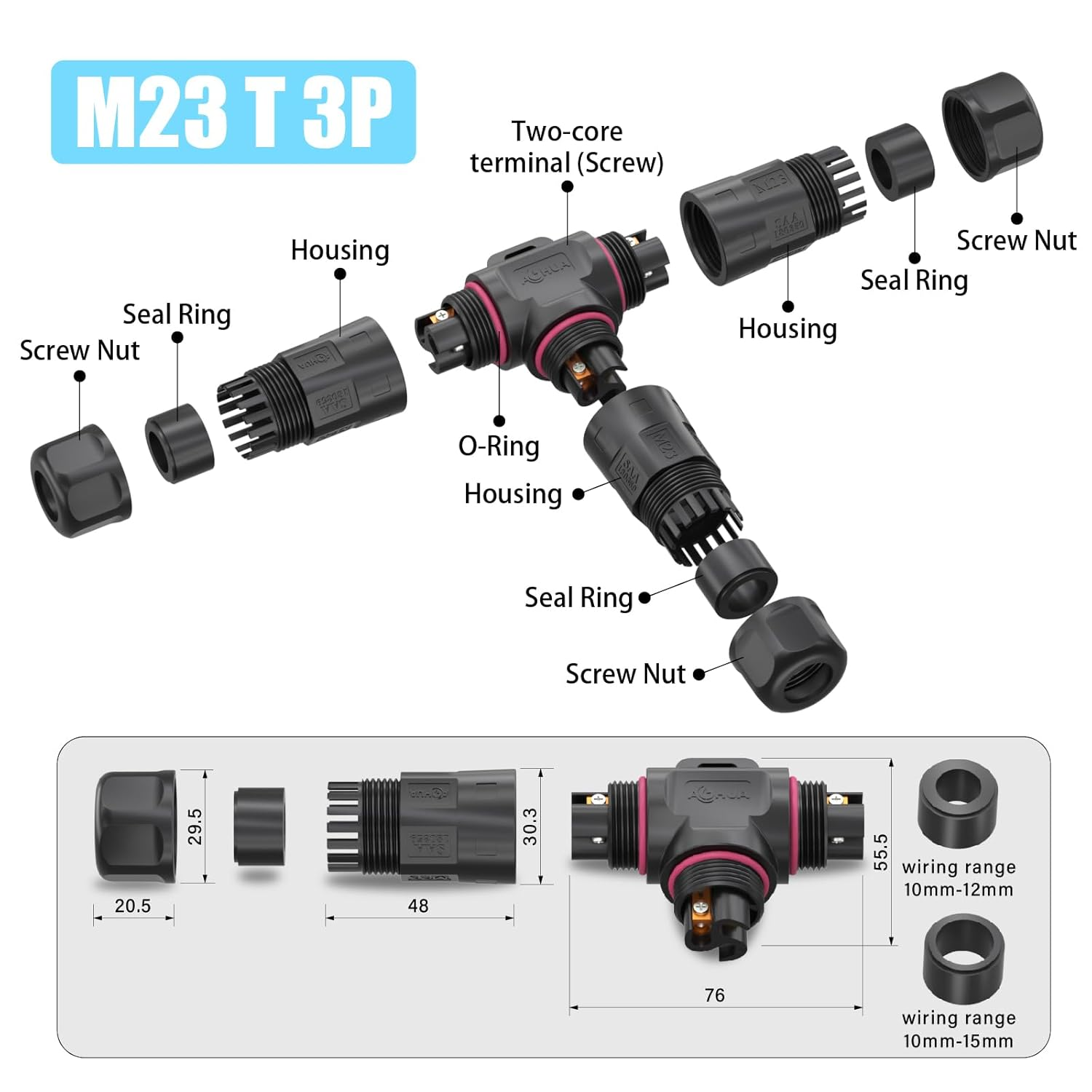

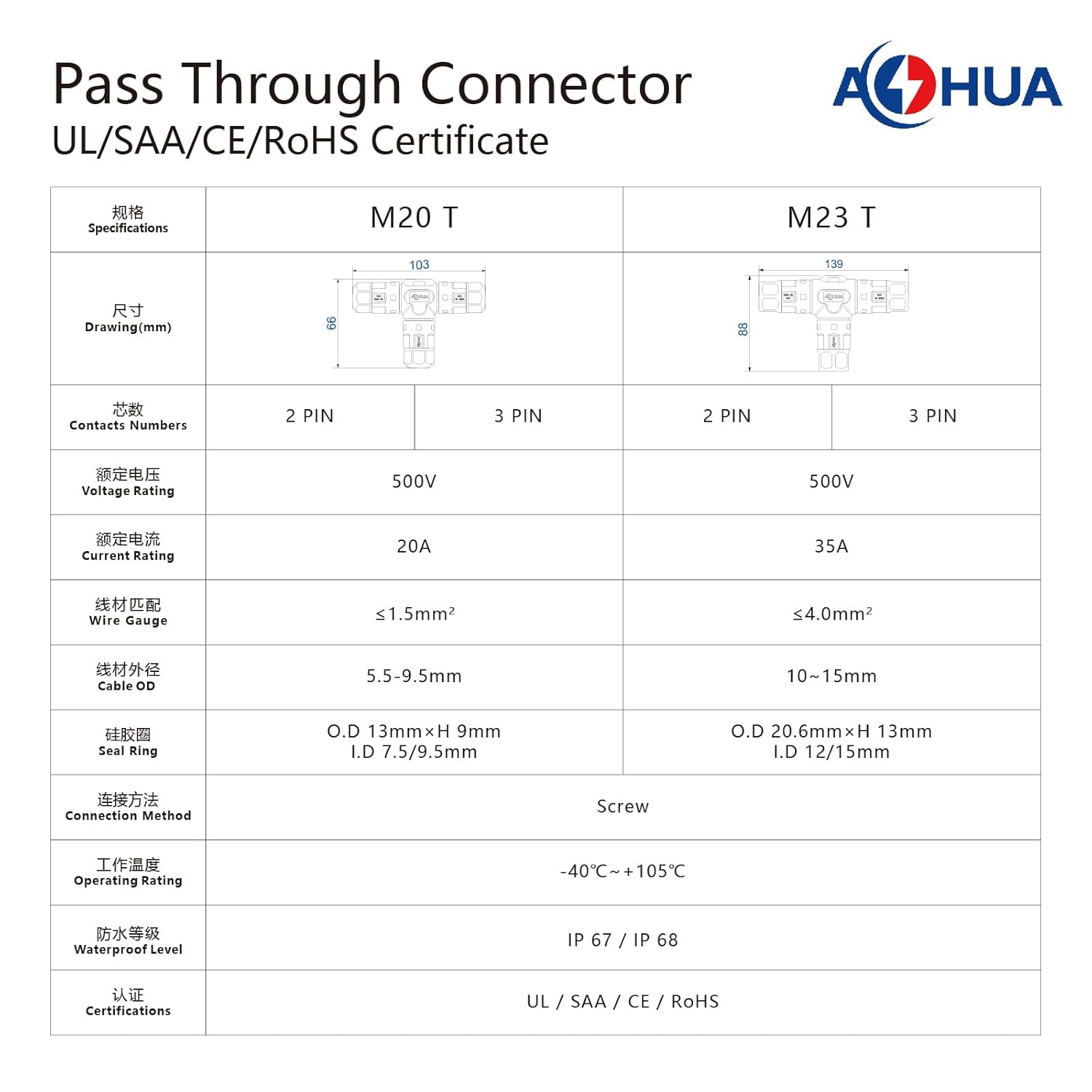

3 way M23 T junction box technical specifications:

* Certification: UL SAA CE IP67 ROHS certification

* Packing: 1 per pack ( Comes with 2 sets of different sized grommets to accommodate different size wires. )

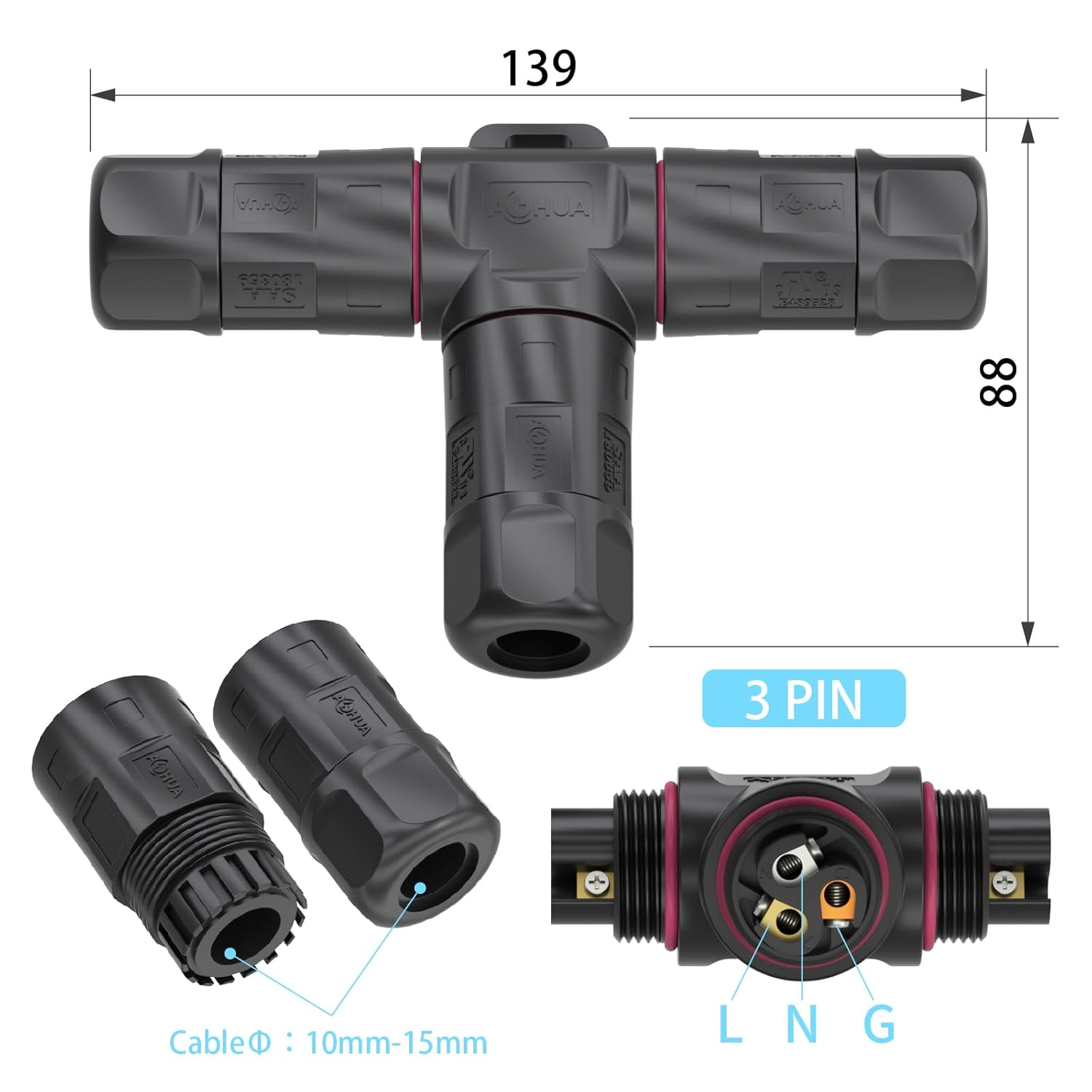

* Cable Range: 10.0-12.0mm/12.0-15.0mm ( If you use a cable that is too thin, then the seal won't even cover IP67!)

* Waterproof rating: IP67 advanced waterproof connector

* Rated voltage: ≤ 300V

* Rated current: ≤ 35A

* Working Temperature: -40°C~105°C

* Material: plastic (nylon), seal ring (silicon)

* Colour: Black

* Connection method: The screw terminal box is easy to install, small in size, and easy to install.

* Scope of application: outdoor billboards, tunnel lights, road landscape lights, outdoor displays, garden lights, and other wire connections. Can be used for coastal, river, or underwater engineering, underground engineering, etc.

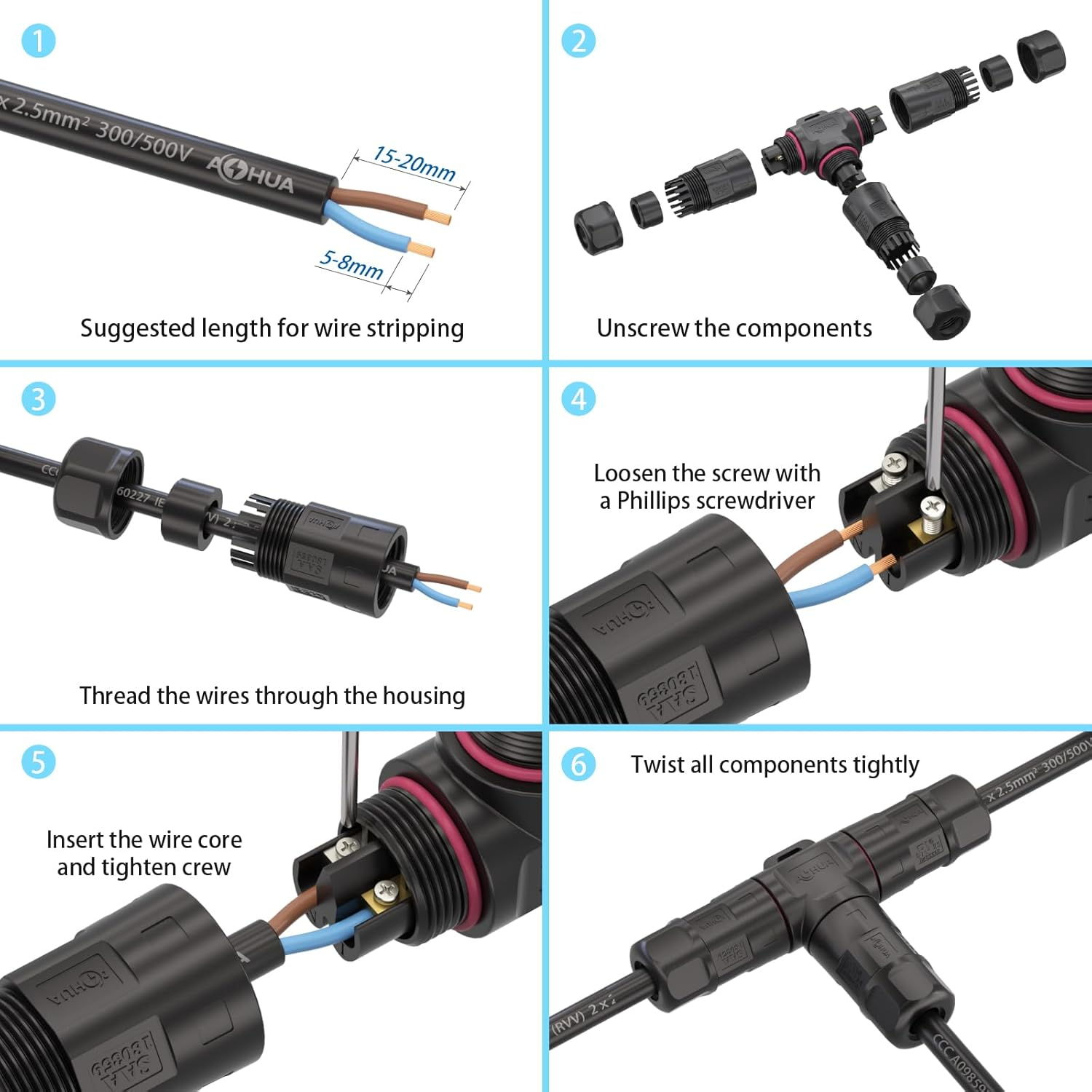

* USAGE: Twist the port of the waterproof connector, insert the wire directly, tighten the screw with a screwdriver to secure the wire, and then close the cap. Please make sure to connect the wire correctly.

* Note: when finished, check that all nuts are tight.

  • Item Model Number: M23-3Vie-3Poli
  • Size Name: M23-3Pin
  • Package Dimensions: 20.1 x 13.9 x 3.1 cm; 160 Grams
  • Manufacturer: AOHUA
