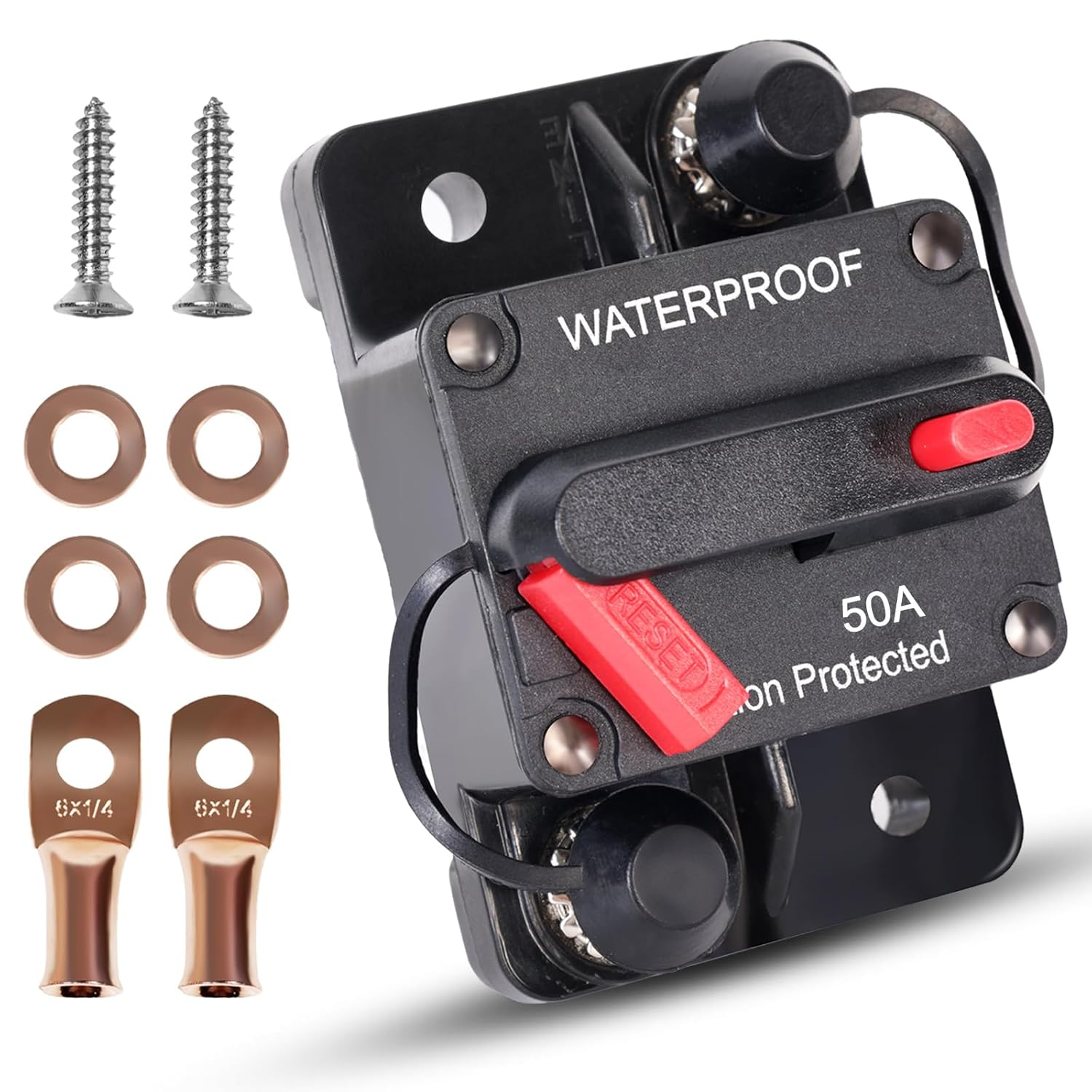

Erayco 12V- 48VDC Waterproof 50 Amp Marine Circuit Breaker with Manual Reset
Features:

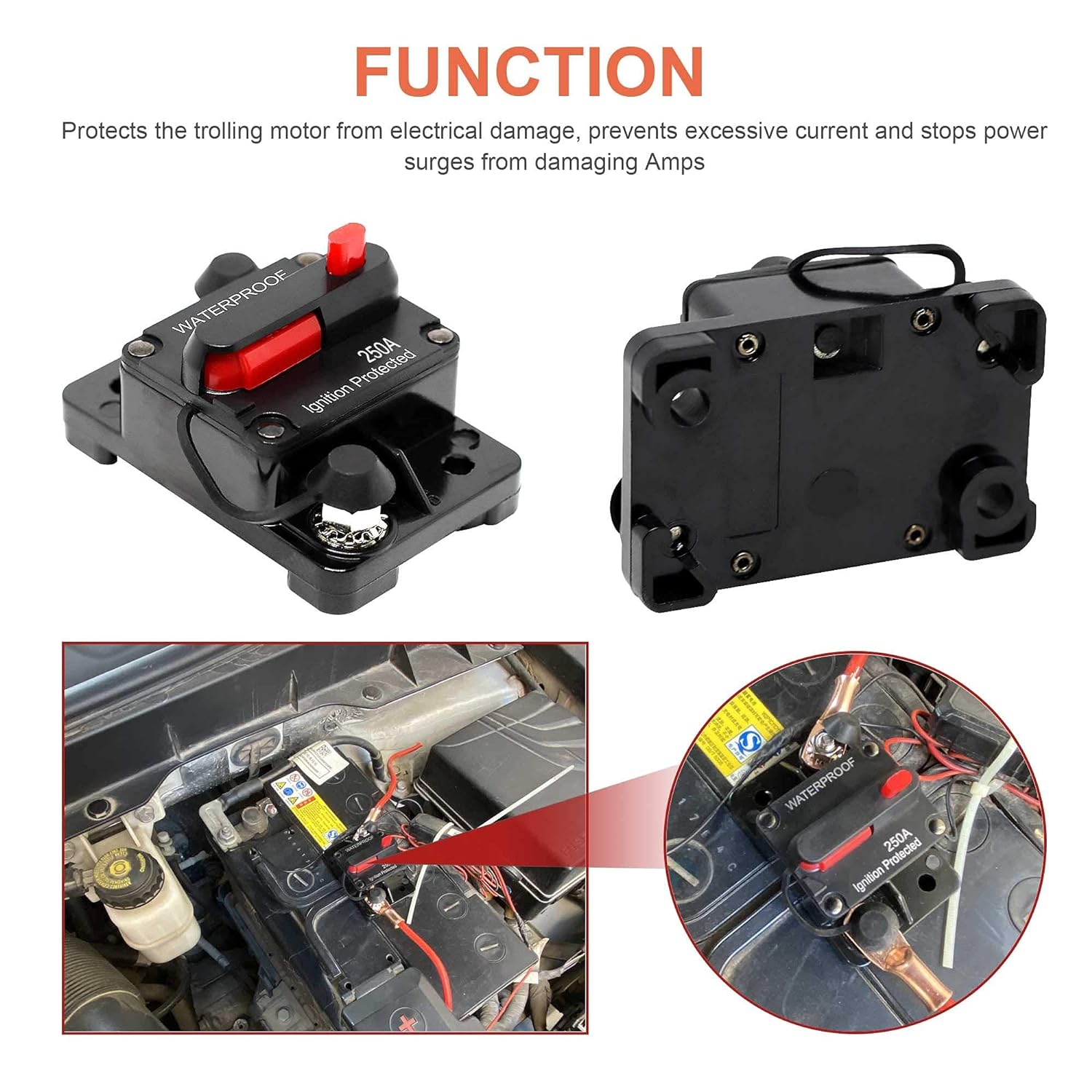

-Stops power surges from damaging your amps ,protects your trolling motor from electrical damage.
-Mount on panel or firewall unique push button reset can also be used as a kill switch
-No more spending money on replacing fuses
-Unique push button reset can also be used as a kill switch
-Good conductivity and craftsmanship, high temperature pressure

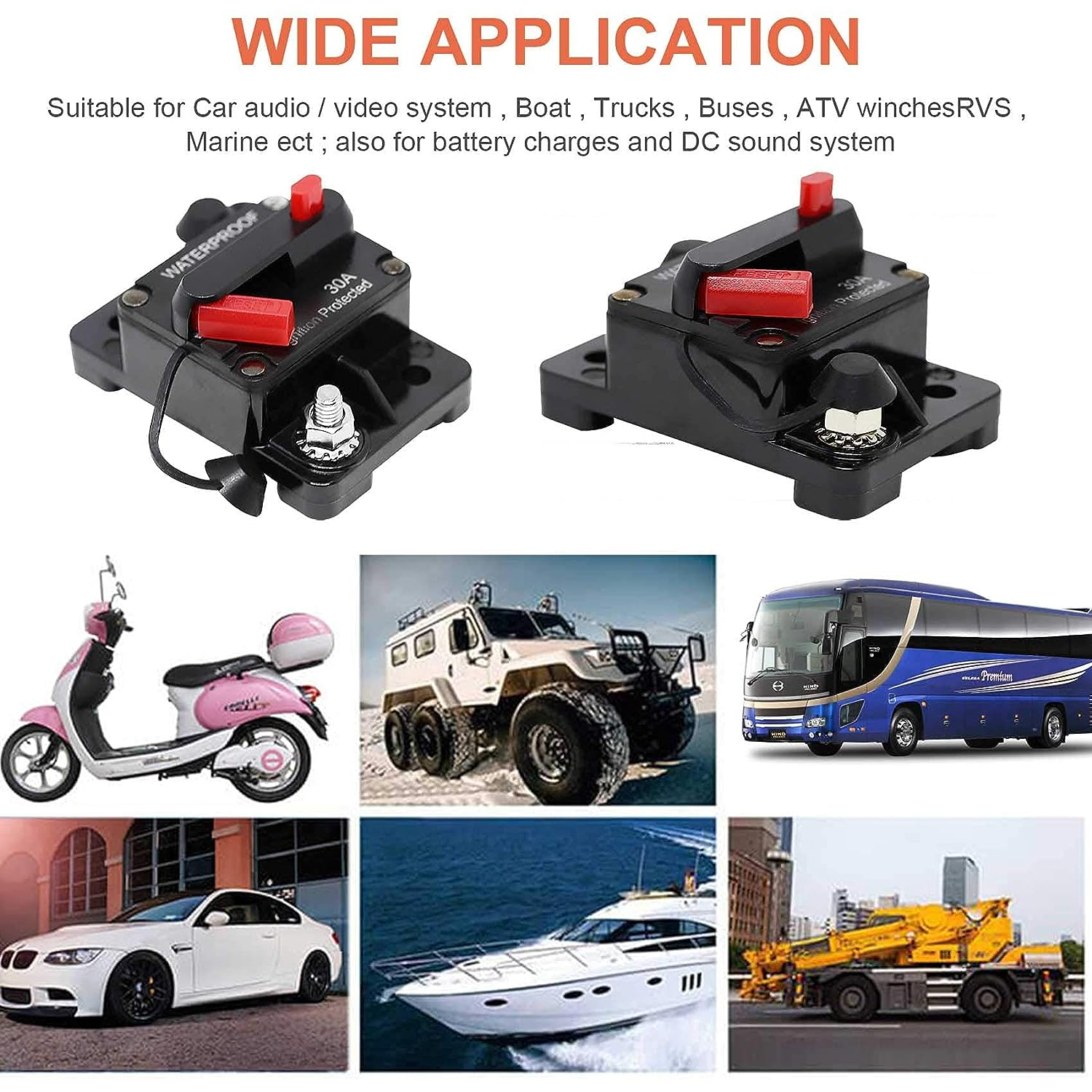

-Application: Typically used in auxiliary and accessory circuits for Boat, Trucks, Buses, Marine, RV and ATV applications. Also can used as an on/off button switch for the battery or DC sound system.

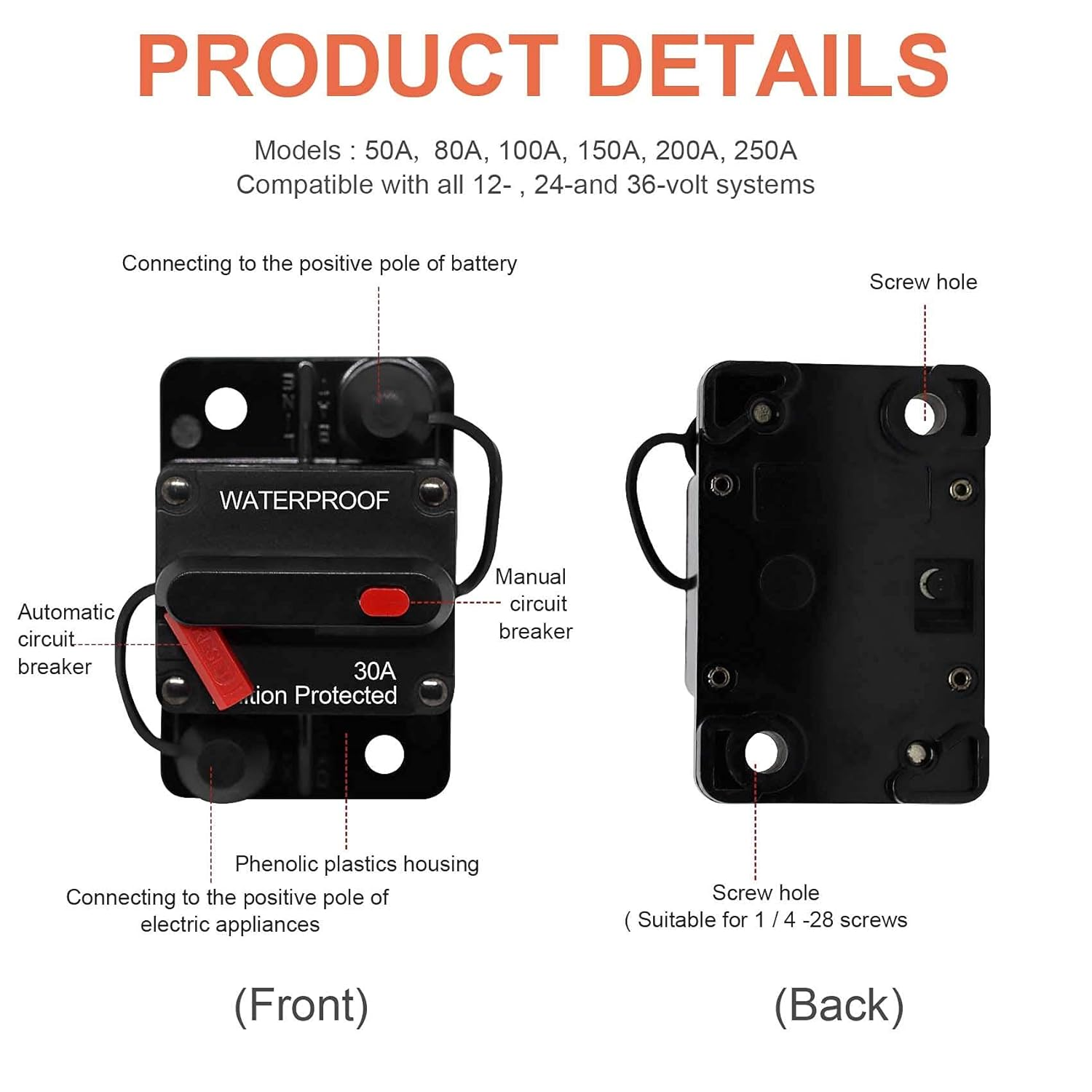

Specifications:
-Rated current: 50 Amp
-Rated voltage: 12-48VDC Maximum
-Breaking capacity: 3000A @ 48 VDC
-Manual Reset Circuit Breaker
-Red manual reset button
-Surface Mount, protective stud insulator included
-Ambient temperature: -32 °C to 82 °C (-25 °F to 180 °F)
-Storage Temperature: -34 °C to 149 °C (-30°F to 300°F )
Size: (LxWxH) 74 x 49 x 44 mm /2.9 x 1.9 x1.7 inch

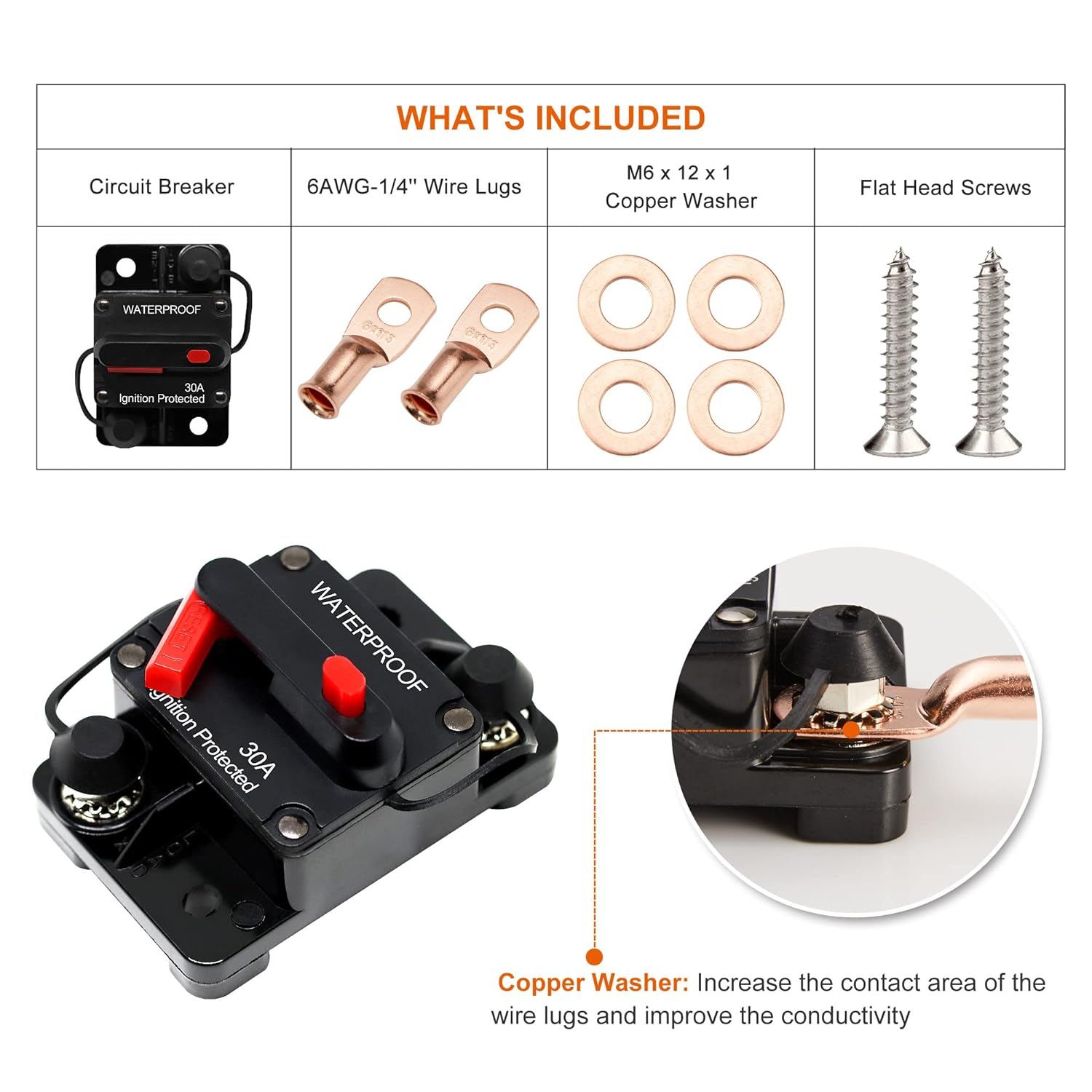

Package Includes:
1 x 50 Amp Circuit Breaker with Manual Reset
2 x 6AWG-1/4'' Wire Lugs
4 x M6 Copper Washers
2 x Self Tapping Screws
Notes:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow 1-3cm measuring deviation due to manual measurement.
