Waveshare USB to UART Communication Module High Baud Rate Transmission with Type-C Connectors Multi-Device Applicable Multi-System Compatible-Type-C Connectors - Ch343 Usb Uart Board (Micro)

Waveshare USB to UART Communication Module High Baud Rate Transmission with Type-C Connectors Multi-Device Applicable Multi-System Compatible-Type-C Connectors - Ch343 Usb Uart Board (Micro)

Brand: Waveshare
3.5
A$15.75
Colour Name
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

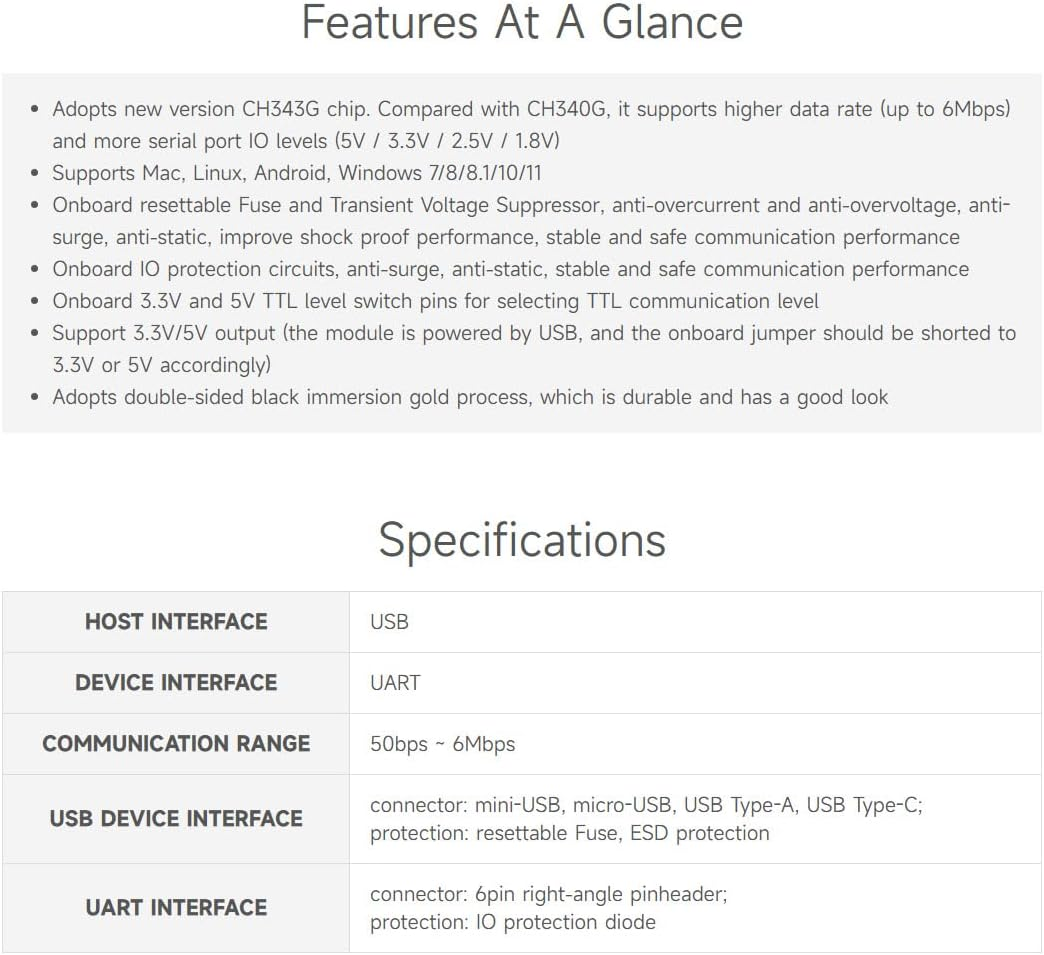

  • Adopts new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)

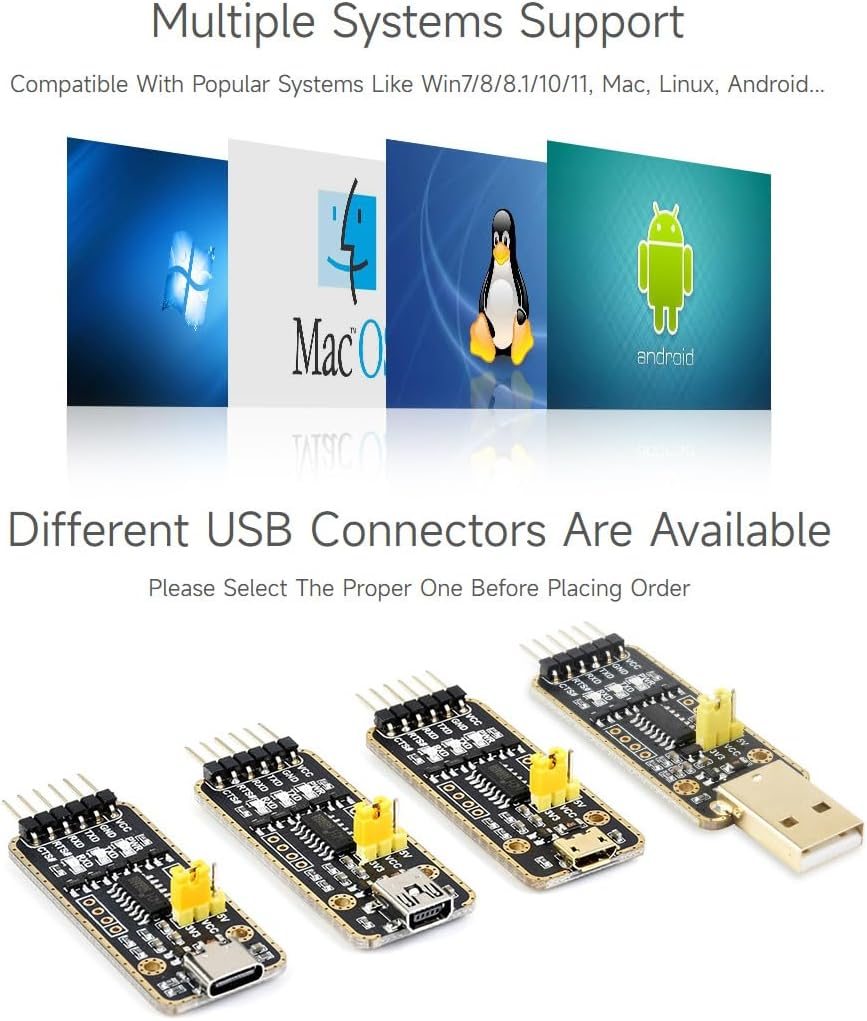

  • Supports Mac, Linux, Android, Windows 7/8/8.1/10/11. Adopts double-sided black immersion gold process, which is durable and has a good look

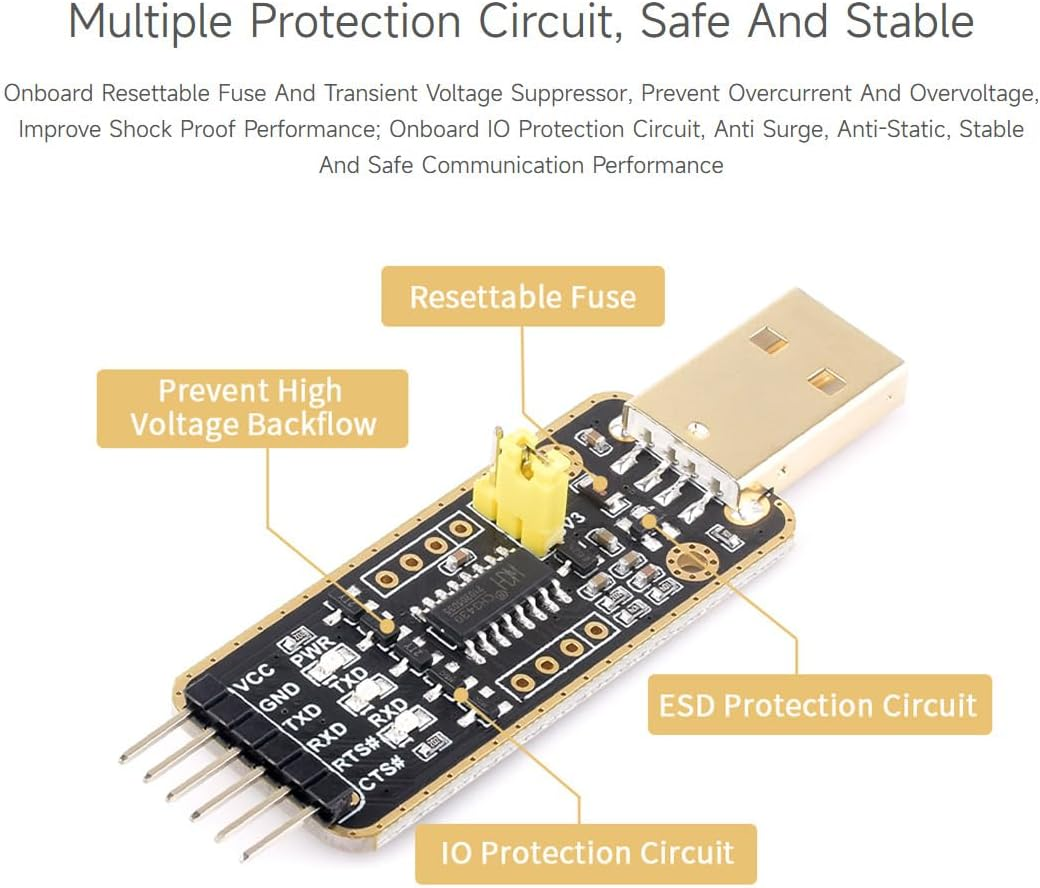

  • Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock resistance, stable and safe communication performance

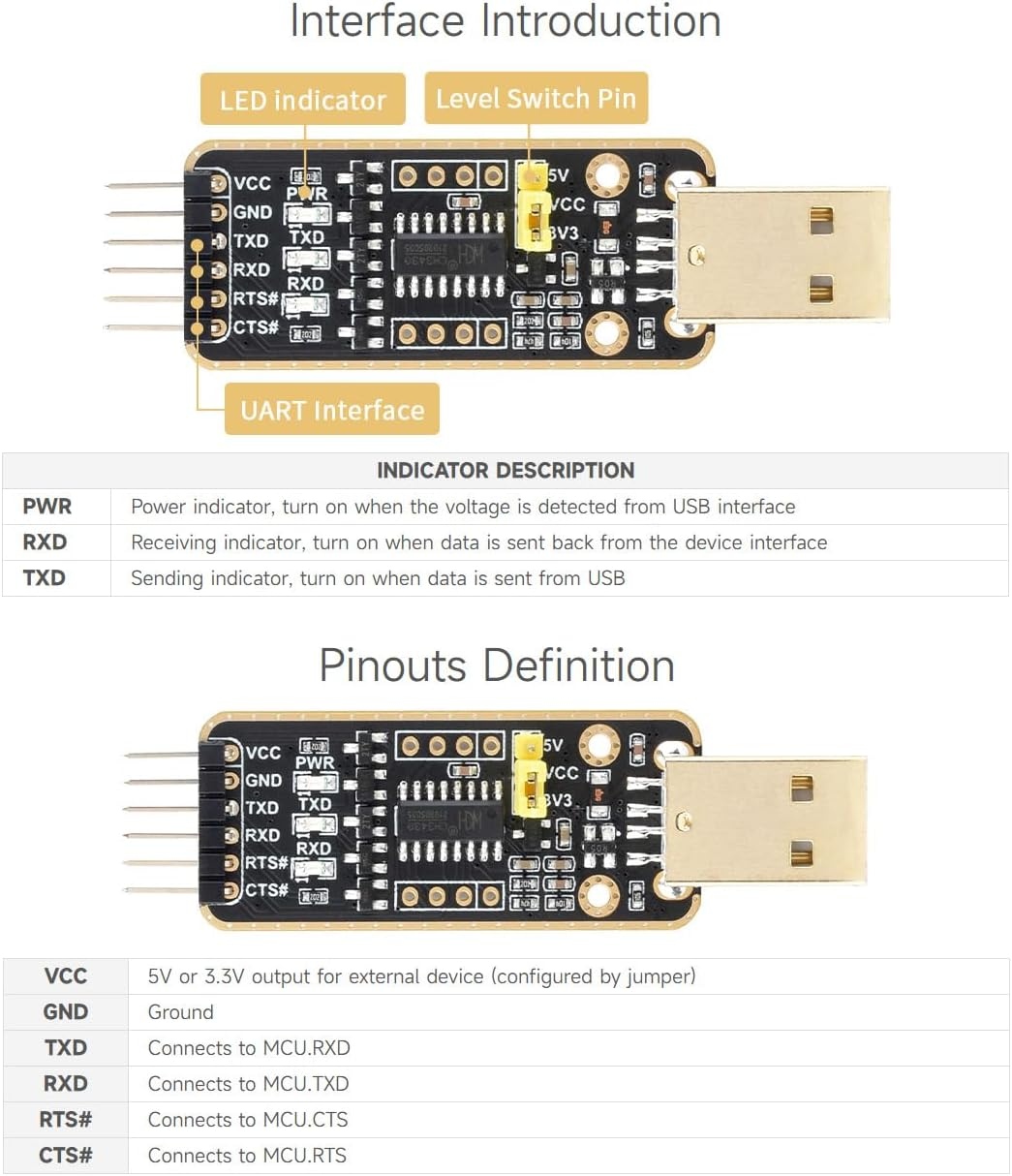

  • Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance. Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
  • Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)

Product Description

  • Country/Region of origin: China
  • Memory Storage Capacity: 1 TB
  • Model: CH343 USB UART Board (type C)
  • Operating System: Linux
  • Colour Name: CH343 USB UART Board (type C)
  • Brand: Waveshare
  • Ram Memory Technology: DDR4
  • Model Name: CH343 USB UART Board (type C)
  • Hardware Interface: USB
  • Package Dimensions: 7 x 5 x 2.2 cm; 15 Grams
  • Manufacturer: Waveshare
  • Item Model Number: CH343 USB UART Board (type C)
  • Batteries Required: No
  • Connector Type: USB
  • Item Weight: 15 g
  • Number of Ports: 2
  • Graphics Card Description: Dedicated
  • Standing screen display size: 1 Inches
  • Special Features: Usb
  • Part Number: CH343 USB UART Board (type C)
  • Total USB ports: 1
  • Scanner Resolution: 3840 x 2160
  • Compatible Devices: Personal Computer, Laptop
  • Graphics Card Interface: Integrated
  • Chipset Type: CH343G
