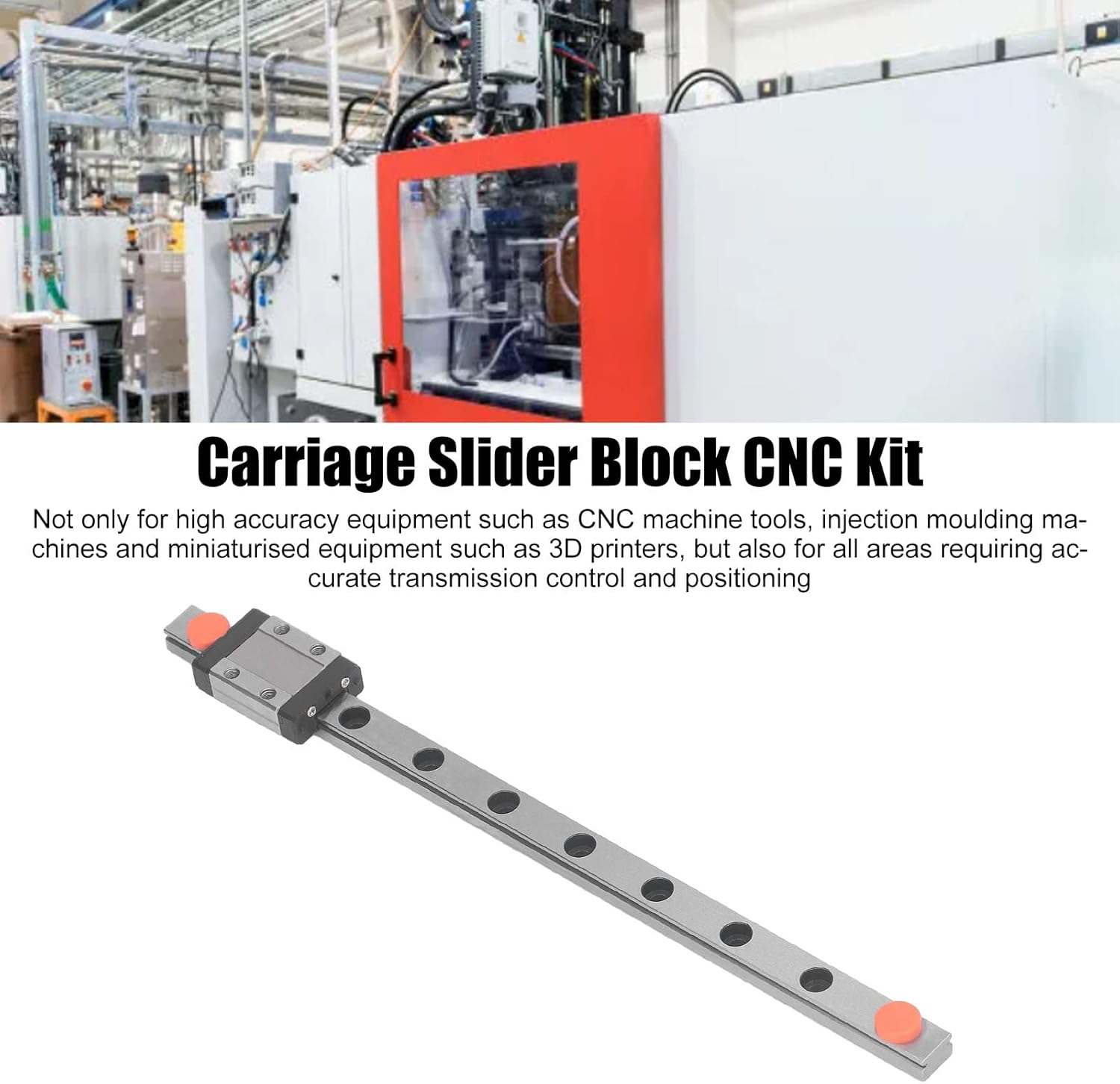

1. Good Compatibility: This sliding is not only suitable for CNC machine tools, injection molding machines and other high accuracy equipment, 3D printer equipment miniaturization equipment, all the fields requiring accuracy control and , especially suitable for miniaturized equipment.
2. Bearing Steel: This sliding rail is made of high accuracy bearing steel, which can bear high load and is not easy to break.
3. Self Aligning Ability: This sliding has self aligning function and it can achieve μm rank of accuracy.
4. Not Easy To Fall Off: The sliding block of this sliding adopts steel wire retainer structure, which can effectively prevent the steel ball from falling off.
5. Wear Resistant: This sliding block has a large number of steel beads, small friction, and is light and flexible, and of , and has a longer service life.
Spec:

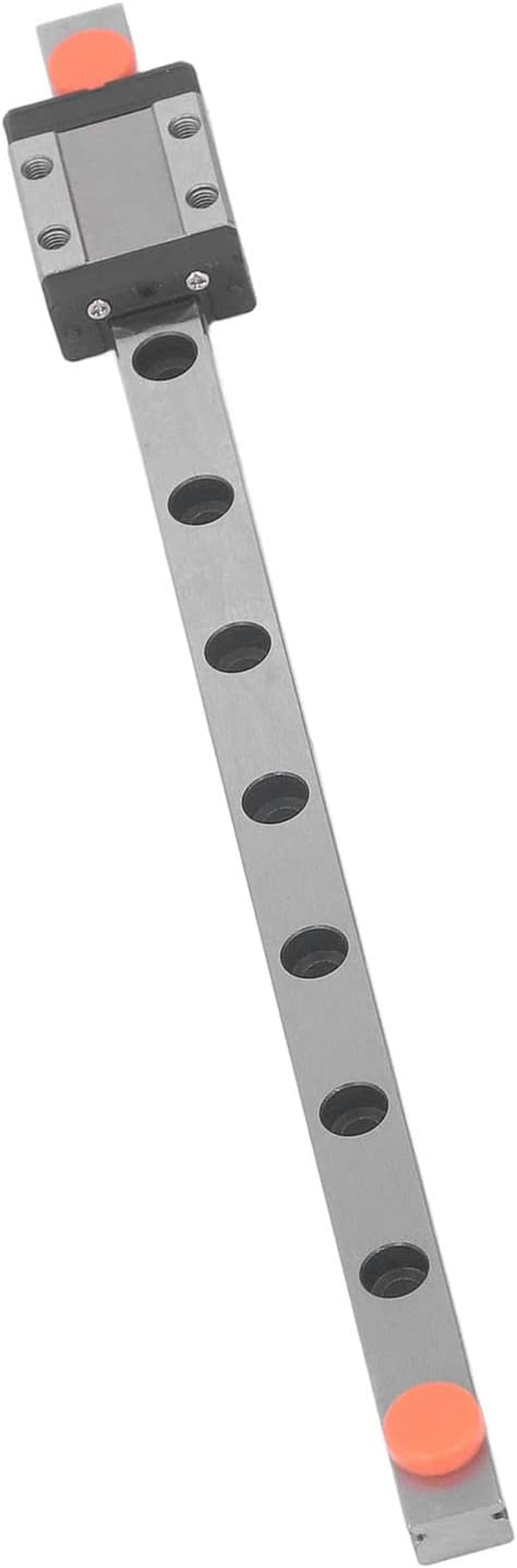

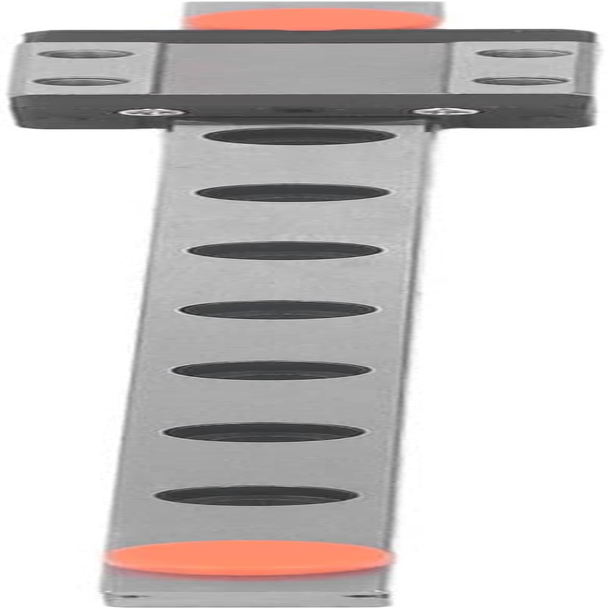

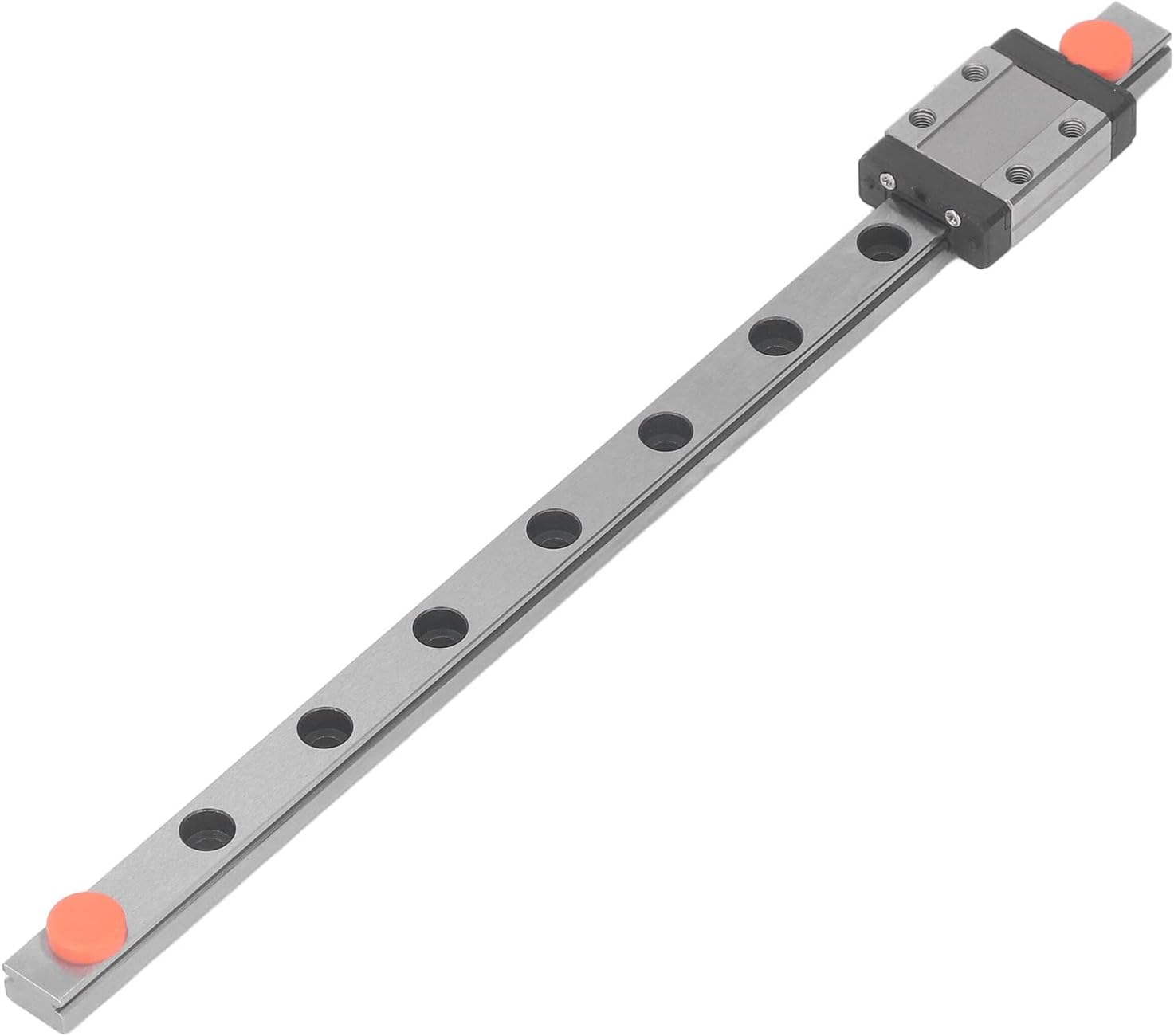

Item Type: Linear Rail
Model: MGN9C
Material: Bearing Steel
Basic Rated Load: C: 1.86 (k/N) C0: 2.55 (k/N)
Allowable Static Moment: MR: 11.769 (N-m) MP: 7.35 (N-m) My: 7.35 (N-m)
Sliding Trajectory: Linear Ruide Rail
Number Of Sliders: 1
Accuracy Rank: H
Slider Fixing Mode: Lock Type
Features:
1.MGN series is small in size and lightweight, which is especially suitable for miniaturized equipment.
2. The slide block and slide rail are made of bearing steel, which has the characteristics of bearing steel, anti slip and .
3. Gothic four point design is adopted, which can bear loads in all directions, with strong rigidity and high accuracy.
4. There is a steel ball holder design, with exchangeability under the accuracy permit.
How to Use:
Direct installation and use.
packing list:
1 x Linear Rail
