Clearhill 5Mm 2Pin 20Pcs Transparent Solderless LED Light Strip Connectors,Strip to Wire Connectors,For Single Color 5V/12V/24V LED Strips,No Soldering Required.

Clearhill 5Mm 2Pin 20Pcs Transparent Solderless LED Light Strip Connectors,Strip to Wire Connectors,For Single Color 5V/12V/24V LED Strips,No Soldering Required.

Brand: Clearhill
4.7
A$12.60 - A$18.90
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

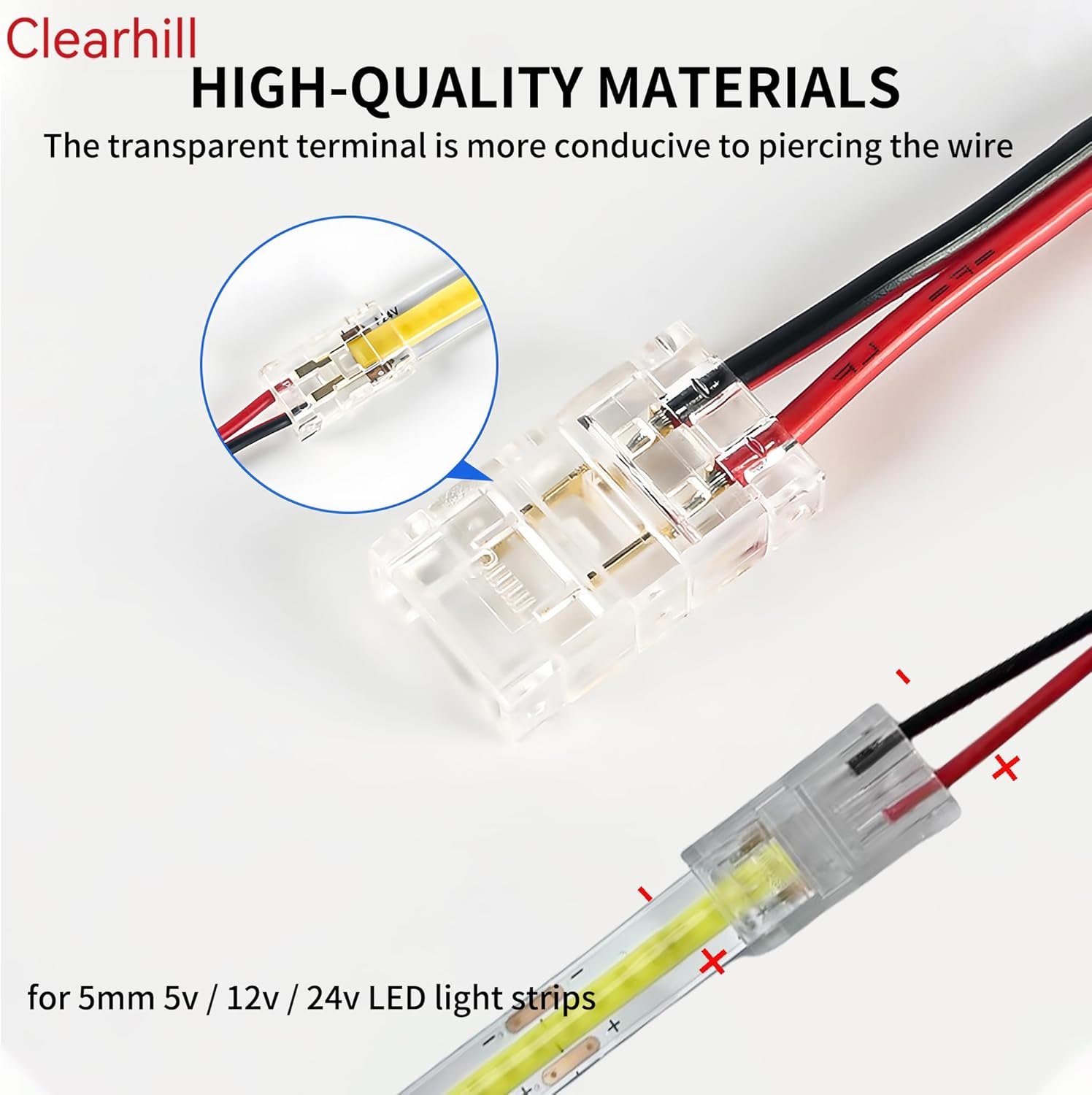

  • High-Quality Materials: The Clearhill 2Pin LED light strip connectors are meticulously fabricated from durable PVC plastic and plated copper cores, guaranteeing a stable and enduring connection. The sharp copper thorn design penetrates the wire sheath, obviating the need for soldering and ensuring a secure and safe connection each time. The transparent terminal is more conducive to piercing the wire, and the one-time success rate is higher.
  • Universal Compatibility: These connectors are engineered to be compatible with 5mm-wide single-color 5v, 12v, and 24v LED light strips, encompassing both waterproof and non-waterproof COB LED strips. You merely need to align the front side (led surface) of the light strip with the pins of the connector, and subsequently buckle the transparent cover to achieve a stable and favorable connection. Take note of the positive and negative poles.
  • Simple & Solderless Installation: The solderless connectors of Clearhill facilitate installation effortlessly. Simply insert one end to connect the 2-conductor 22 AWG flat extension cable and the other end for the led light strip. Ensure proper alignment and press down the cover for a secure connection, providing a trouble-free setup within minutes.Not work for 12mm or 10mm width led light strips.
  • Versatile Application: These 2-pin connectors are ideally suited for connecting 5mm-wide single-color LED light strips, solid wires, and multi-core wires. They are applicable to a variety of 22 awg 2-conductor wire, solid wire, and multi-core wire connections, offering flexibility in diverse LED lighting arrangements.
  • Complete Package & Long-Lasting Use: Each package encompasses 20packs Clearhill LED light strip connectors, providing an abundant supply for your daily usage or replacements. Connect the wire as needed, and utilize these COB 2pin led connectors with 22 gauge 2-conductor extension cable to obtain the lighting precisely where you desire.

Product Description

Clearhill 2Pin 5mm LED light strip connectors

The Clearhill 2Pin 5mm LED light strip connectors are meticulously fabricated from durable PVC plastic and plated copper cores, guaranteeing a stable and enduring connection. The sharp copper thorn design penetrates the wire sheath, obviating the need for soldering and ensuring a secure and safe connection each time. Only available for 5mm light strip.

Clearhill 2Pin 5mm LED light strip connectors

The solderless connectors of Clearhill facilitate installation effortlessly. You merely need to align the front side (led surface) of the light strip with the 2-pins on the connector. Then press down the transparent cover, making sure the + and - symbols align. providing a trouble-free setup within minutes. Take note of the positive and negative poles.

Clearhill's 2-pin 5mm connectors feature a transparent housing that blends seamlessly with your LED strip lights, allowing for concealed corner connections without sacrificing light output.

This 5mm connector is only suitable for 5mm light strips that can be welded on the front and is not suitable for 5mm light strips that can be welded on the back.Whether you're working with 12V or 24V single color LED strips, Clearhill connectors provide a versatile and reliable solution for all your lighting projects.

Note: These connectors are not suitable for 10mm, 8mm, or 12mm LED strips.

Strip to Strip Connectors

Strip to Wire Connectors

L-Shape Strip to Strip Connectors

To Strip Connectors with Wire10cm Cable

Strip to Strip Connectors Installation Tips

1. Open the connector casing.

2. Insert the LED strip, aligning the 2 solder pads on the light-emitting side with the 2 pins on the connector. Press down the transparent cover, ensuring the + and - markings are correctly aligned.

Important: Double check that the polarity nodes are matched properly with + to + and - to -.

Strip to Wire Connectors Installation Tips

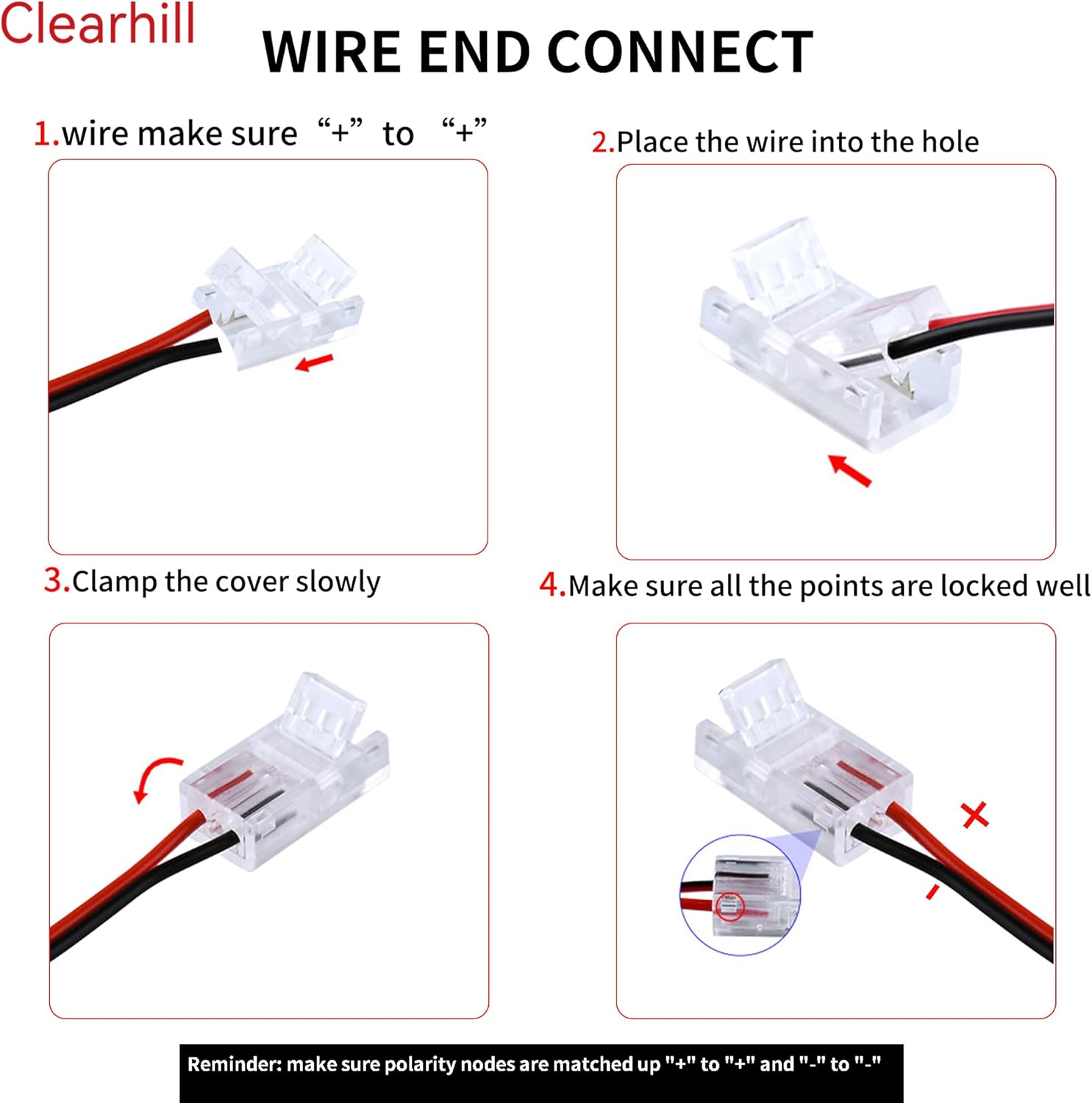

Wire End:

  1. Cut the desired wire length you need.
  2. Separate 2 wires and stripping around connection part.
  3. Insert wires into the connector guide slot, Avoid metal contact of the two wires. Close the transparent cap.

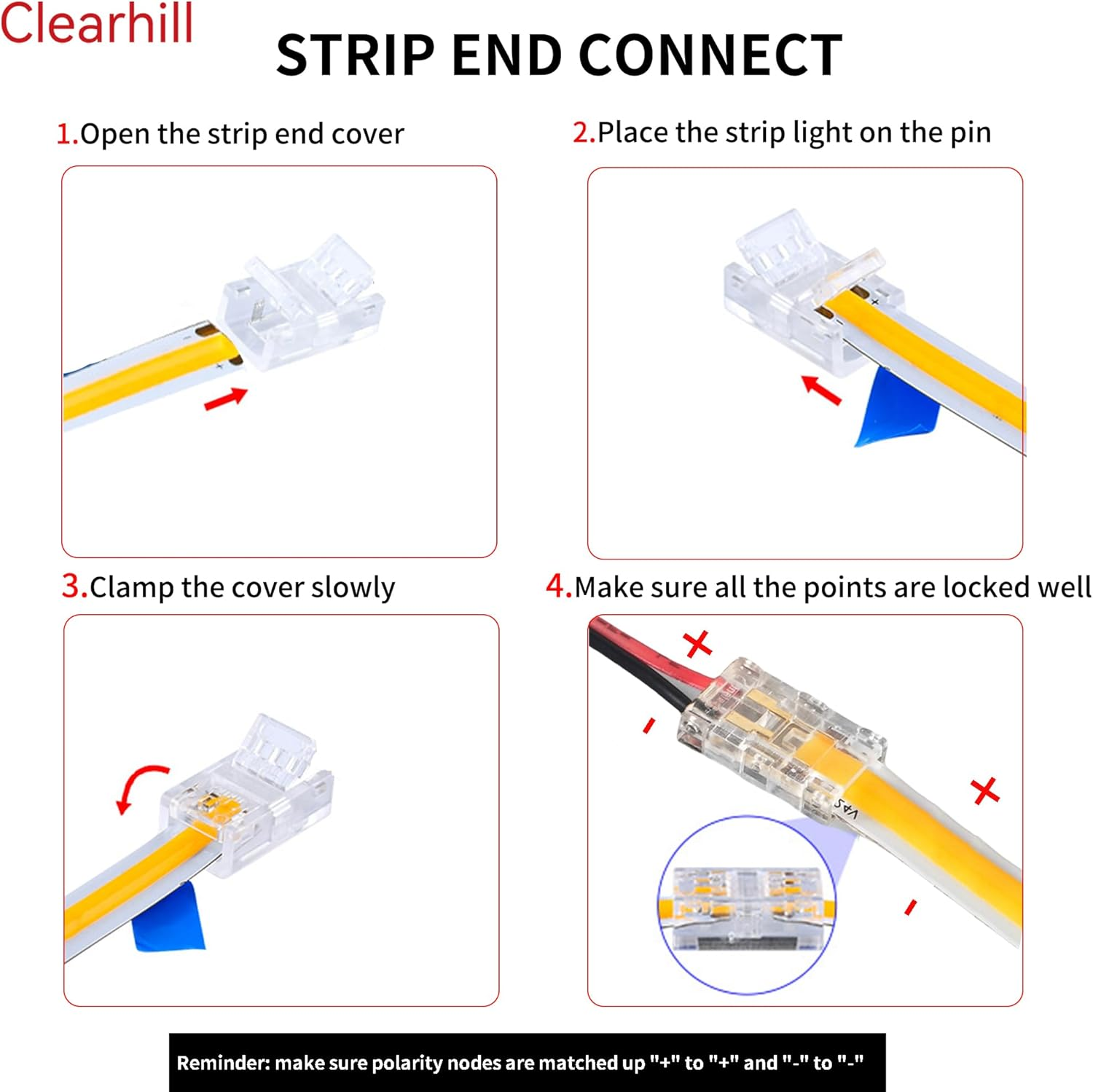

Strip End:

  1. Open the wire clip.
  2. Insert the light strip, align the 2 Soldering Pads of the light-emitting surface of the lights with the 2-pins on the connector. Then press down the transparent cover, making sure the + and - symbols align.

L-Shape Strip to Strip Connectors Installation Tips

1. Open the connector casing.

2. Insert the LED strip, aligning the 2 solder pads on the light-emitting side with the 2 pins on the connector. Press down the transparent cover, ensuring the + and - markings are correctly aligned.

Important: Double check that the polarity nodes are matched properly with + to + and - to -.

Notes

This 5mm connector is only suitable for 5mm

light strips welded on the front at the top and

is not suitable for 5mm light strips welded on

the back at the bottom.

Thickened and precise design, even in small spaces, suitable for Christmas, bedroom, kitchen, cabinet, car, living room, party or wedding, etc., to create a warm and festive atmosphere atmosphere.

  • Item Model Number: CON-5MM2PIN-STL20P
  • Part Number: CON-5MM2PIN-STL20P
  • Batteries Required?: No
  • Colour: White
  • Power Source: Corded Electric
  • Size Name: Strip to Wire 20PCS
  • Type of Bulb: LED
  • Brand: Clearhill
  • Country of origin: China
  • Item Weight: 10 g
  • Batteries Included?: No
  • Specific Uses: Indoor use only
  • Special Features: Corded
  • Manufacturer: Clearhill
  • Package Dimensions: 13.5 x 7.6 x 1.6 cm; 10 Grams
  • Included Components: pins
