BSIDE Thermal Imaging Camera 240 X 240 Resolution Handheld Infrared Camera, 15 Thermal Palettes with 320 X 240 Full-Viewing TFT LCD for Home Inspection HVAC Electrical, 25Hz Refresh Rate, -4℉~1022℉ - Hx3

BSIDE Thermal Imaging Camera 240 X 240 Resolution Handheld Infrared Camera, 15 Thermal Palettes with 320 X 240 Full-Viewing TFT LCD for Home Inspection HVAC Electrical, 25Hz Refresh Rate, -4℉~1022℉ - Hx3

Brand: BSIDE
5.0
A$273.00
Colour Name
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

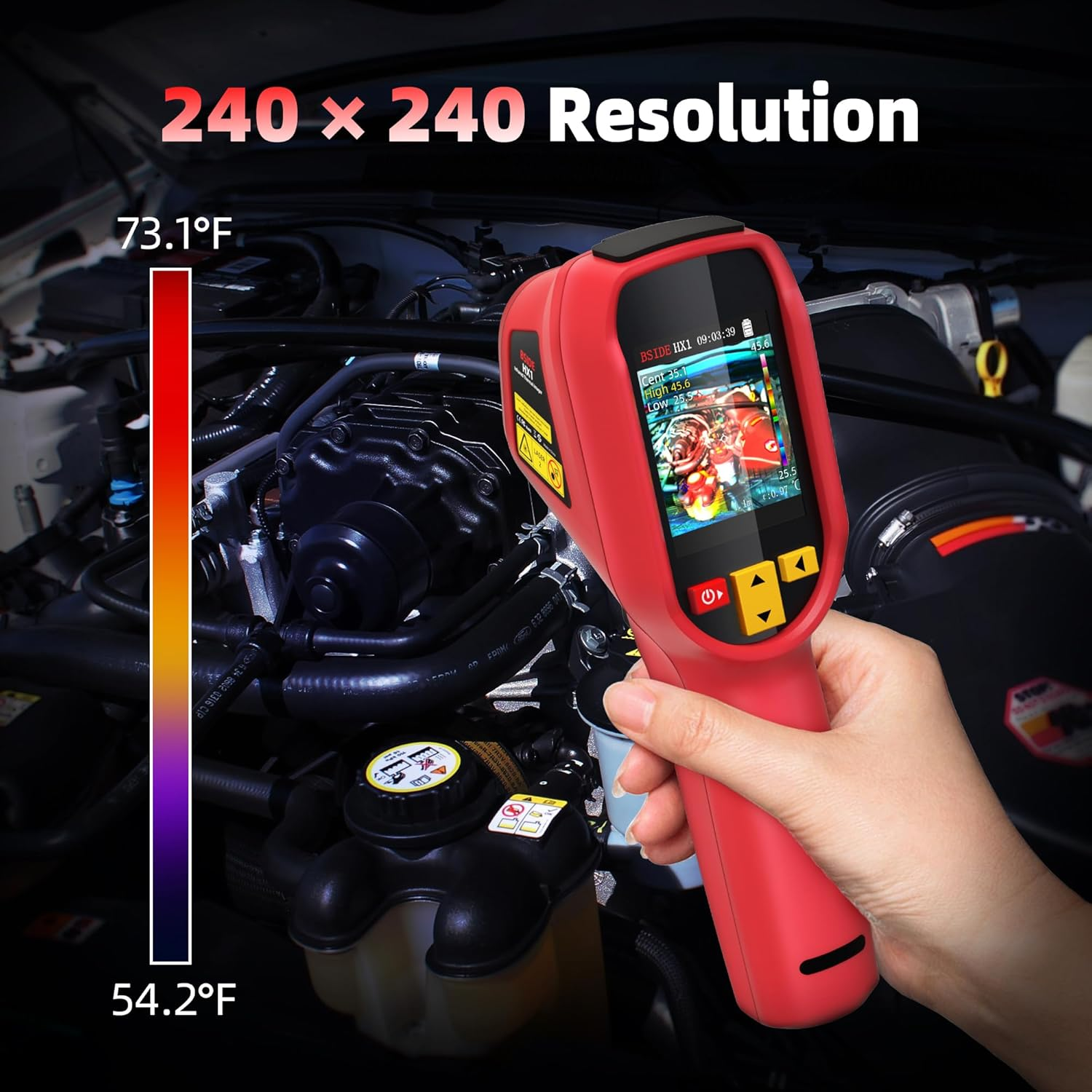

  • [240 x 240 Resolution]: BSIDE HX1 thermal imaging camera has 240 x 240 resolution, which could help you detect potential problems early and diagnose problems reliably.

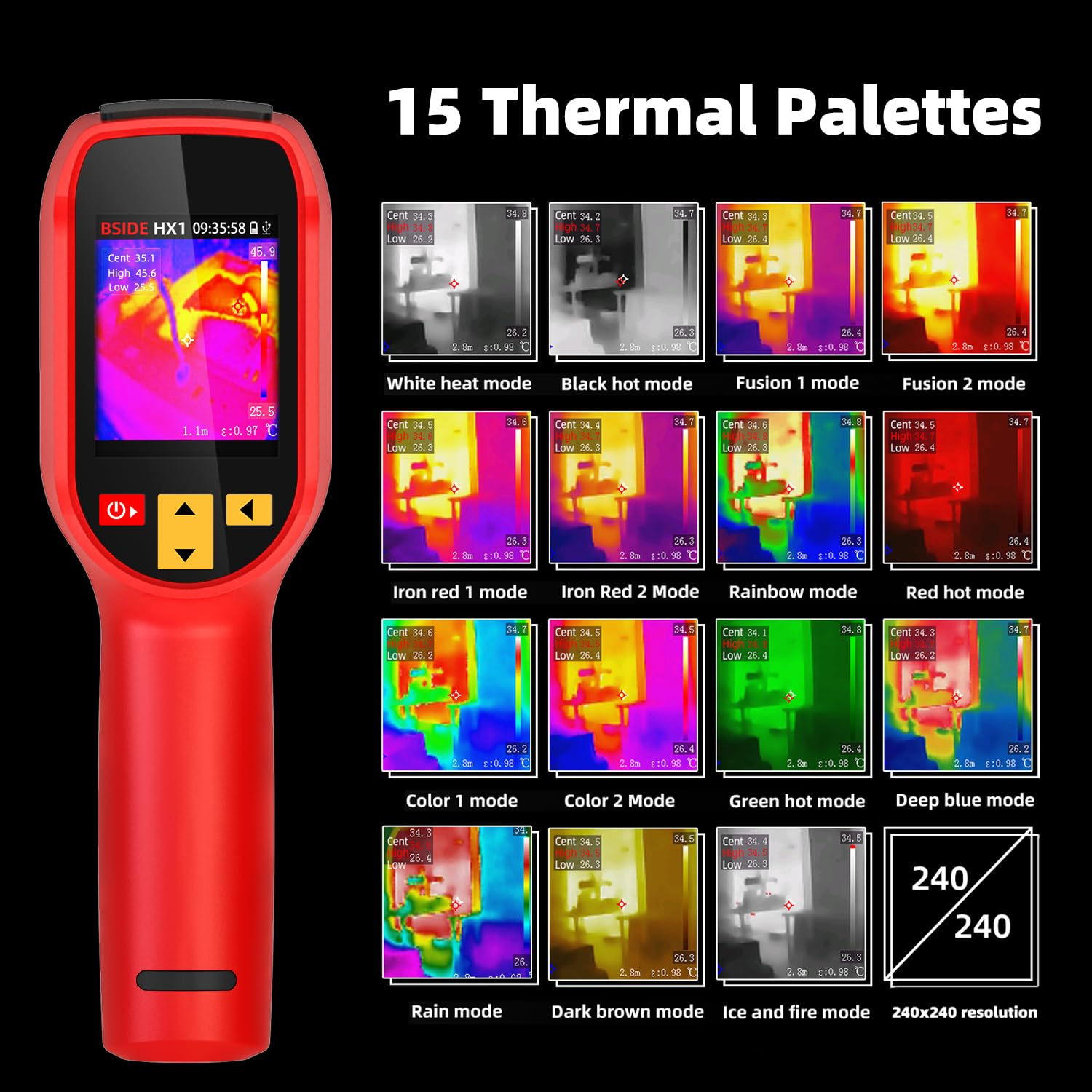

  • [15 Thermal Palettes]: Industrial infrared camera has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.
  • [Full-Viewing TFT LCD]: Handheld infrared camera equipped with 2.4 inch 320 x 240 full-viewing color screen, which provides you with best reading enjoyment, you could get the clear test results at wide angle.
  • [Accurate Measurement]: Thermal imaging camera enables a refresh rate of 25 Hz and a wide temperature range from -20℃to 550℃(-4℉ to 1022℉).
  • [Efficient Data Storage and Export]: The infrared imager can be connected to computer via USB for further analysis. The memory card can hold more than 30,000 images.

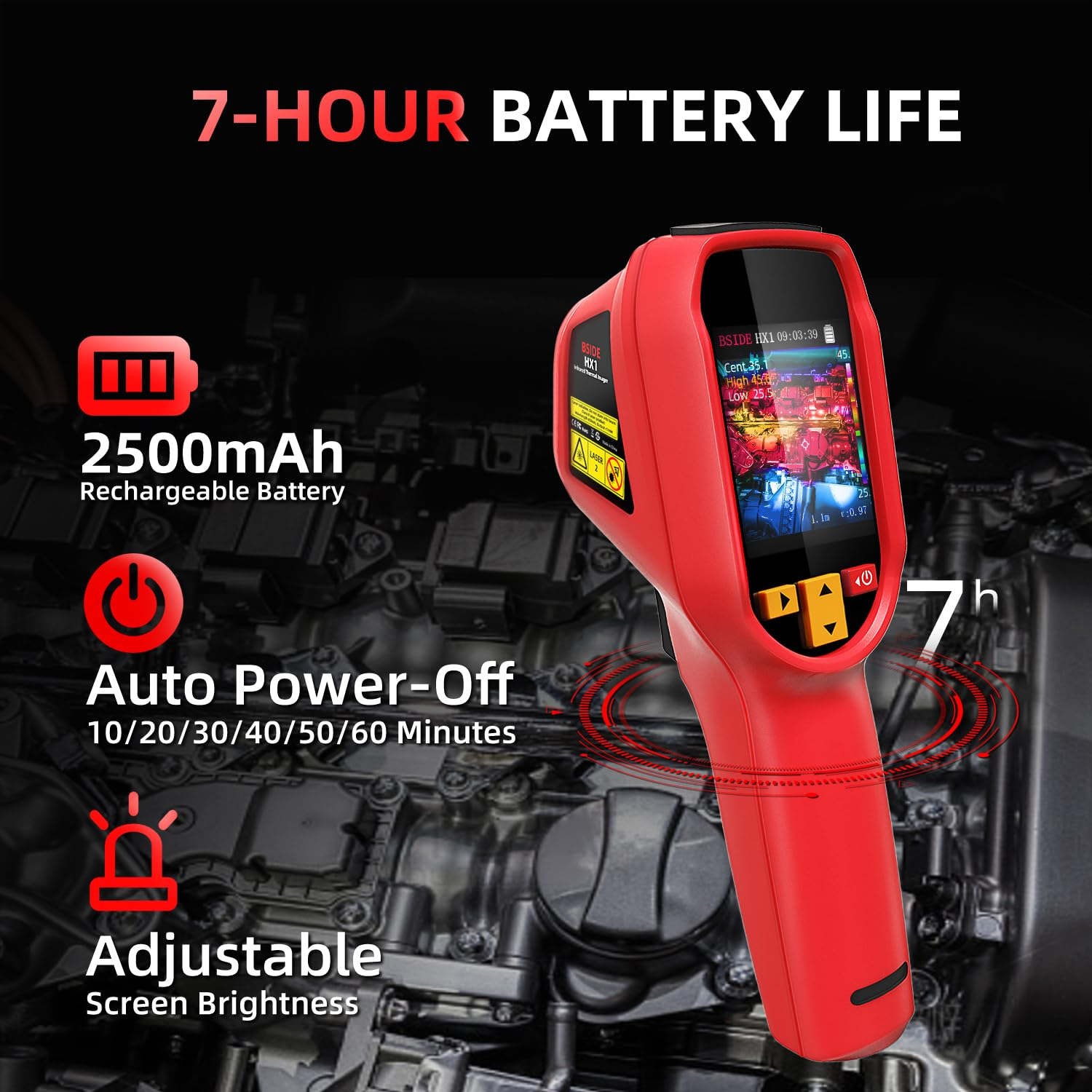

  • [Super Battery Life]: IR laser imager comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.

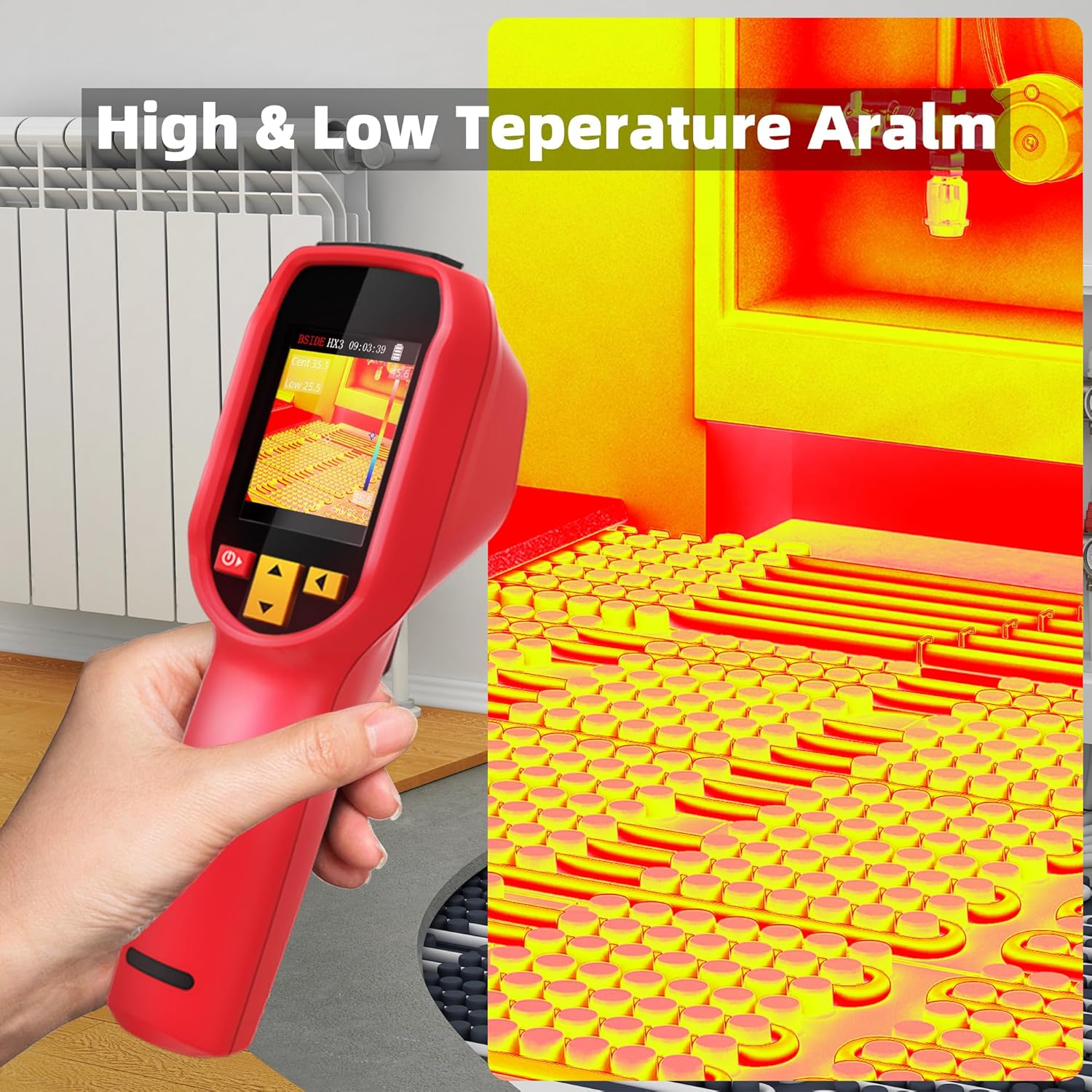

  • [High & Low Temperature Alarm]: The Infrared camera with high and low temperature alarm functions, the camera will give out alarm when the temp exceed or under the setting data.

Features:
Handheld thermal imaging camera
240 x 240 ir resolution thermal imaging camera
320 x 240 screen display resolution infrared camera

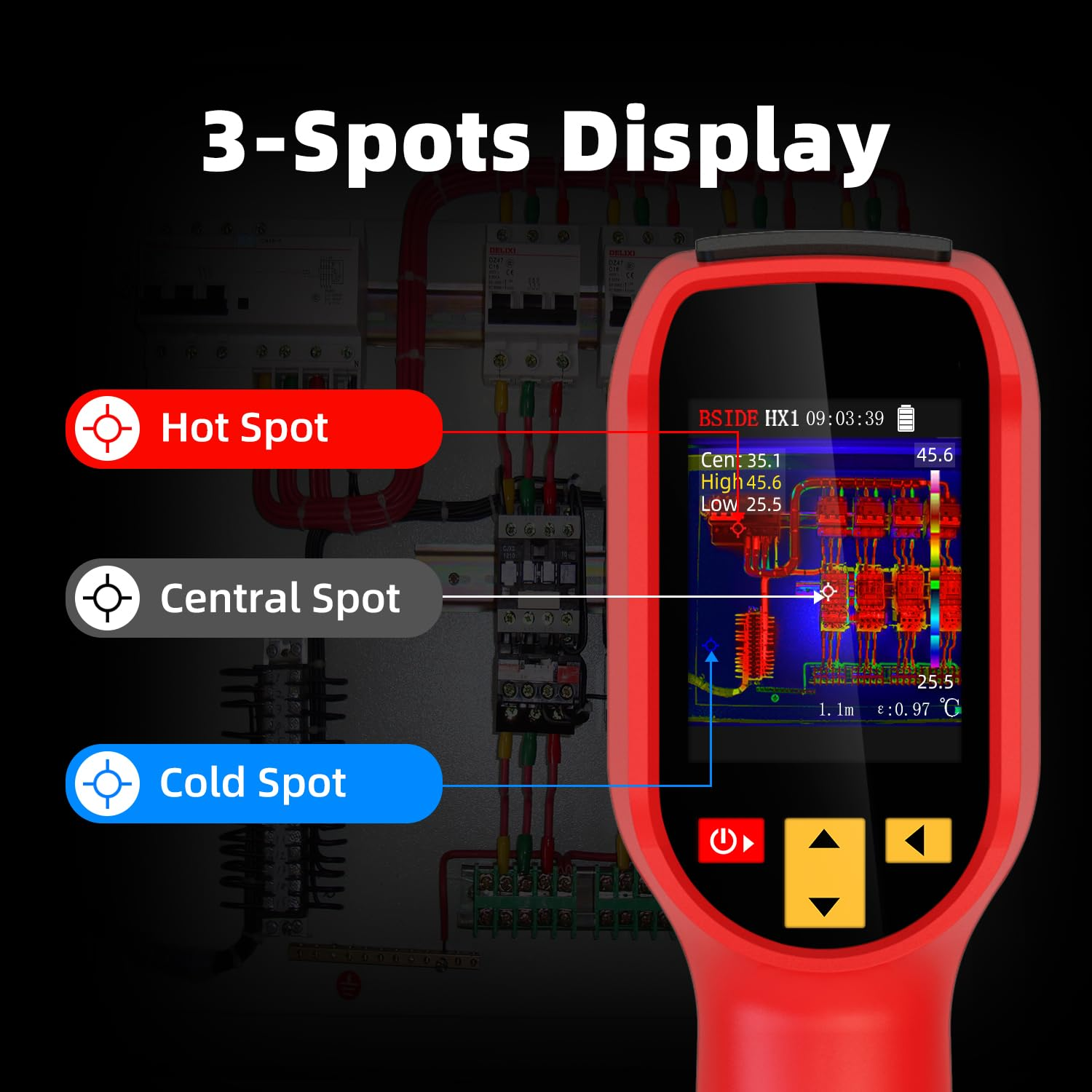

Display hot, cold and central spots temperature on the screen
The emissivity of infrared imager camera is adjustable
Rechargeable portable infrared camera with 15 thermal palettes
Tested data can be exported to your computer for analyzed
for home inspection, hvac electrical plumbing, boiler inspection
Specification:
Display Size: 2.4 Inch TFT LCD
IR Resolution: 240 x 240
Screen Resolution: 320 x 240
Angle of View (FOV): 50.0°(H)x 50.0°(V)/72.1°(D)
Spatial Resolution (IFOV): 8.89mrad
Temperature Range: -20℃-550℃(-4℉-1022℉)
Thermal sensitivity/NETD: Less 60mk
Refresh Rate: 25Hz
Distance Settings: 0.3-3 m
Emissivity: 0.01-1
Thermal Palettes: 15
Waterproof Level: IP54
Number of storage image: 30000
Power: 2500mAh rechargeable battery (built-in)
Size: 193.4*59.4*77.4mm
Weight: 277g
Package Includes:
1 x IR Imaging Camera
1 x Charging Cable
1 x Carrying Case
1 x Silicone Wrist Lanyard
1 x User Manual

  • Item Model Number: Thermal Imaging Camera
  • Batteries: 1 Lithium Ion batteries required. (included)
  • Product dimensions: 19.3 x 5.9 x 7.7 cm; 155 Grams
  • Colour Name: HX1
  • Manufacturer: BSIDE
