Wiim Vibelink Amp | 100W Power Amplifier with Premium ESS 9039Q2M DAC and TI TPA3255 | Compatible with Wiim Mini, Pro, Pro Plus, Ultra | RCA, Coax, and Optical Inputs | Space Gray

Wiim Vibelink Amp | 100W Power Amplifier with Premium ESS 9039Q2M DAC and TI TPA3255 | Compatible with Wiim Mini, Pro, Pro Plus, Ultra | RCA, Coax, and Optical Inputs | Space Gray

Brand: WiiM
3.7
A$523.95
Colour
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Unleash Premium Sound - Experience powerful, distortion-free amplification with 100W per channel at 8Ω and 200W per channel at 4Ω. Equipped with PFFB technology, a premium ESS 9039Q2M DAC, and TI TPA3255 amplifier chip, it delivers superior clarity, deep bass, and dynamic range for an immersive listening experience.
  • Sleek & Durable Aluminum Design - Built with a precision-crafted unibody aluminum chassis, this amplifier ensures maximum durability and peak performance. Its advanced thermal management system with a copper heat pipe and graphene heatsink keeps it cool under the most demanding conditions.
  • Seamless Integration with WiiM Streamers - Designed for perfect compatibility with WiiM Mini, Pro, Pro Plus, and Ultra, the Vibelink Amp offers low-latency, high-resolution playback for a flawless streaming and audio experience.
  • Pure Analog Input (no ADC conversion) - For analog purists, the direct analog input bypasses Analog-to-Digital Conversion (ADC), preserving the purest, most natural sound.

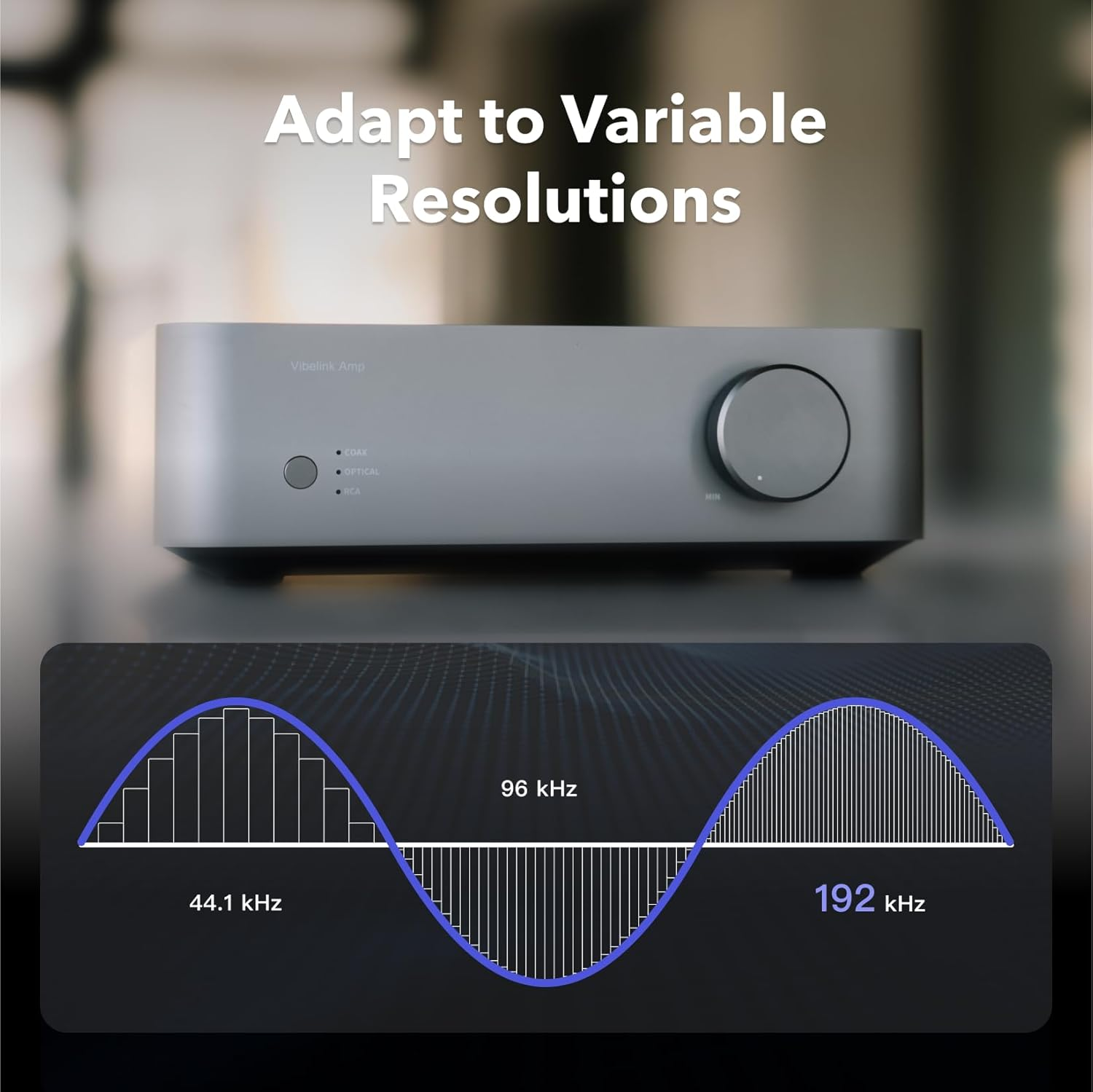

  • True High-Resolution Playback - Unlike standard amps, the WiiM Vibelink Amp supports variable sample rates and bit depths, preserving lossless, high-fidelity sound for streaming, FLAC, and vinyl rips. Enjoy bit-perfect 192kHz/24-bit playback via Optical and Coax inputs with zero signal loss.
  • Smart, Energy-Efficient Operation - 12V Trigger In & Auto Standby Mode provide hands-free convenience and power savings.
  • Anti-Pop Noise Design – Enjoy smooth, uninterrupted audio with advanced anti-pop noise technology. The WiiM Vibelink Amp ensures seamless transitions across variable sample rates and bit depths, eliminating unwanted pops or clicks when switching tracks, sources, or playback resolutions for a flawless listening experience.
  • NOTE: This device is a pure power amplifier and does not support streaming functions, unlike other WiiM devices. It delivers 60W output when using the RCA input and 100W when using a digital input.

Product Description

Power. Precision. Pure Performance.

Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision.

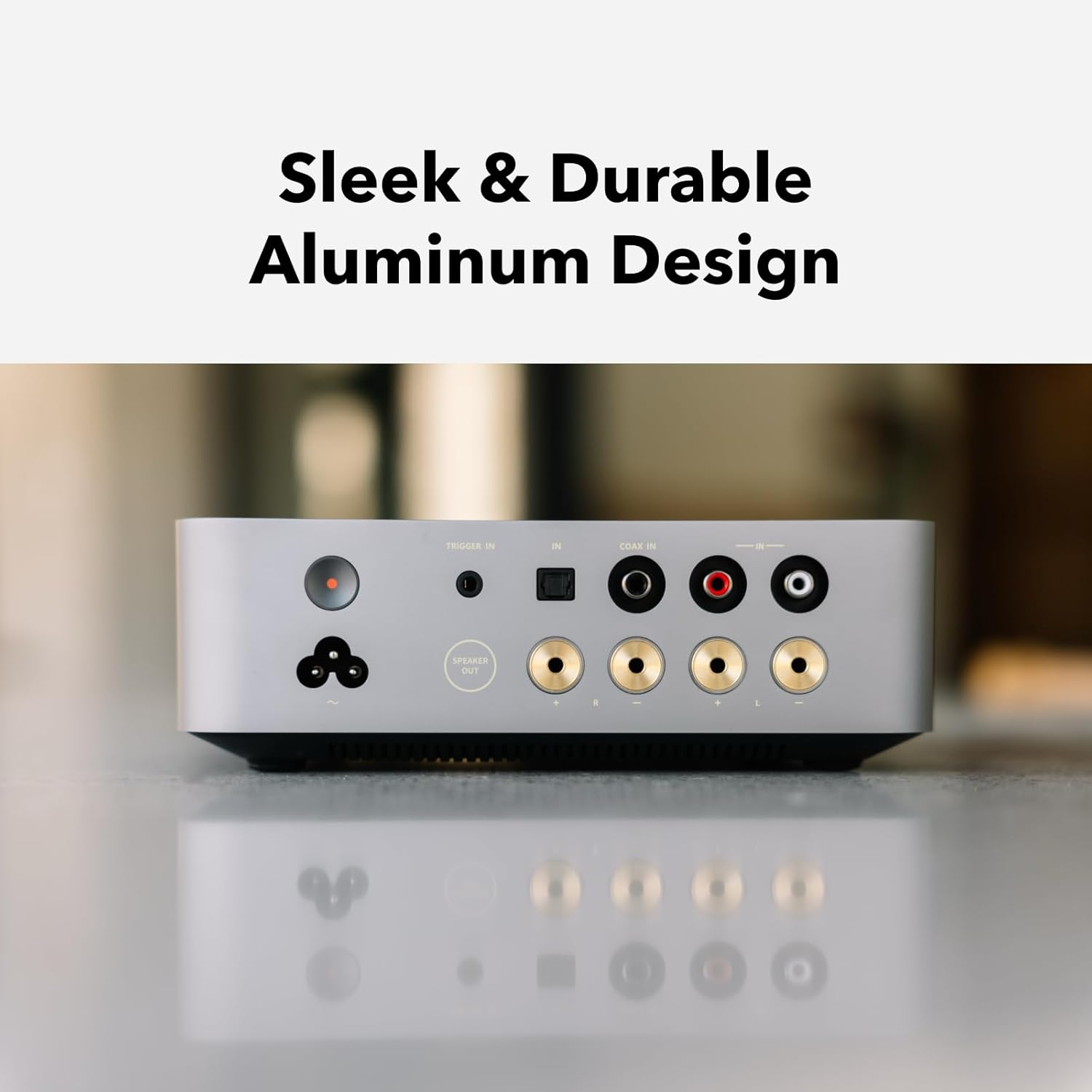

Premium Build, Modern Aesthetic

The WiiM Vibelink Amp features a unibody aluminum chassis for exceptional durability and peak performance. Its minimalist design fits any setup, while advanced thermal management with a copper heat pipe and aluminum heatsink ensures efficient cooling and long-term reliability.

Post Filter Feedback Technology

WiiM Vibelink Amp's Post-Filter Feedback (PFFB) tech reduces distortion, boosts clarity, and maintains consistent sound across speakers by dynamically compensating for load variations. Outperforms traditional amps with wider soundstage, nuanced details, and precision depth for true-to-source audio.

High-Fidelity Audio with Premium Components

Featuring an ESS 9039Q2M DAC, TI TPA3255 amplifier chip, and six TI OPA1612 op-amps, the WiiM Vibelink Amp delivers ultra-low distortion and noise, preserving every detail. With 192kHz/24-bit high-resolution audio, it ensures a rich, immersive listening experience.

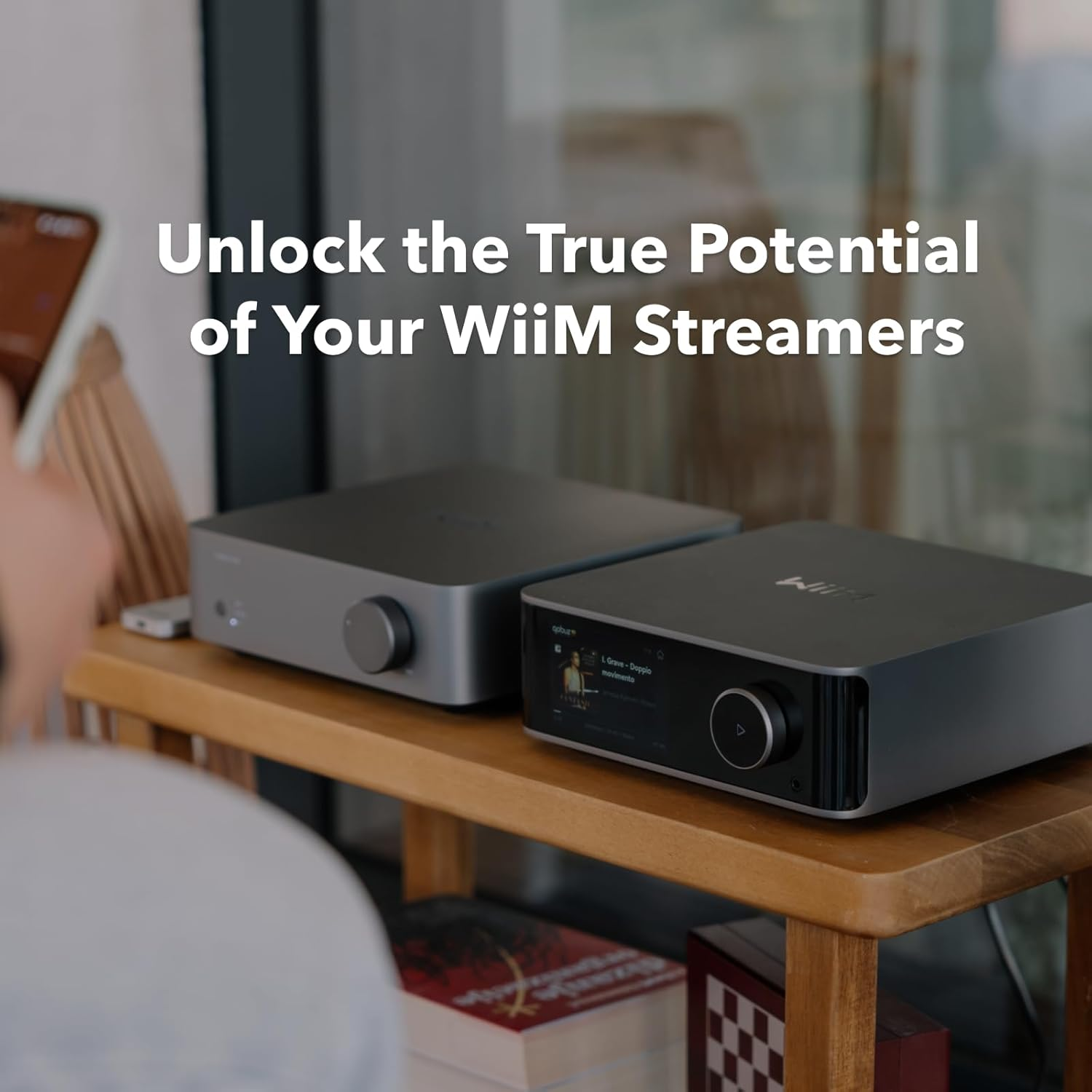

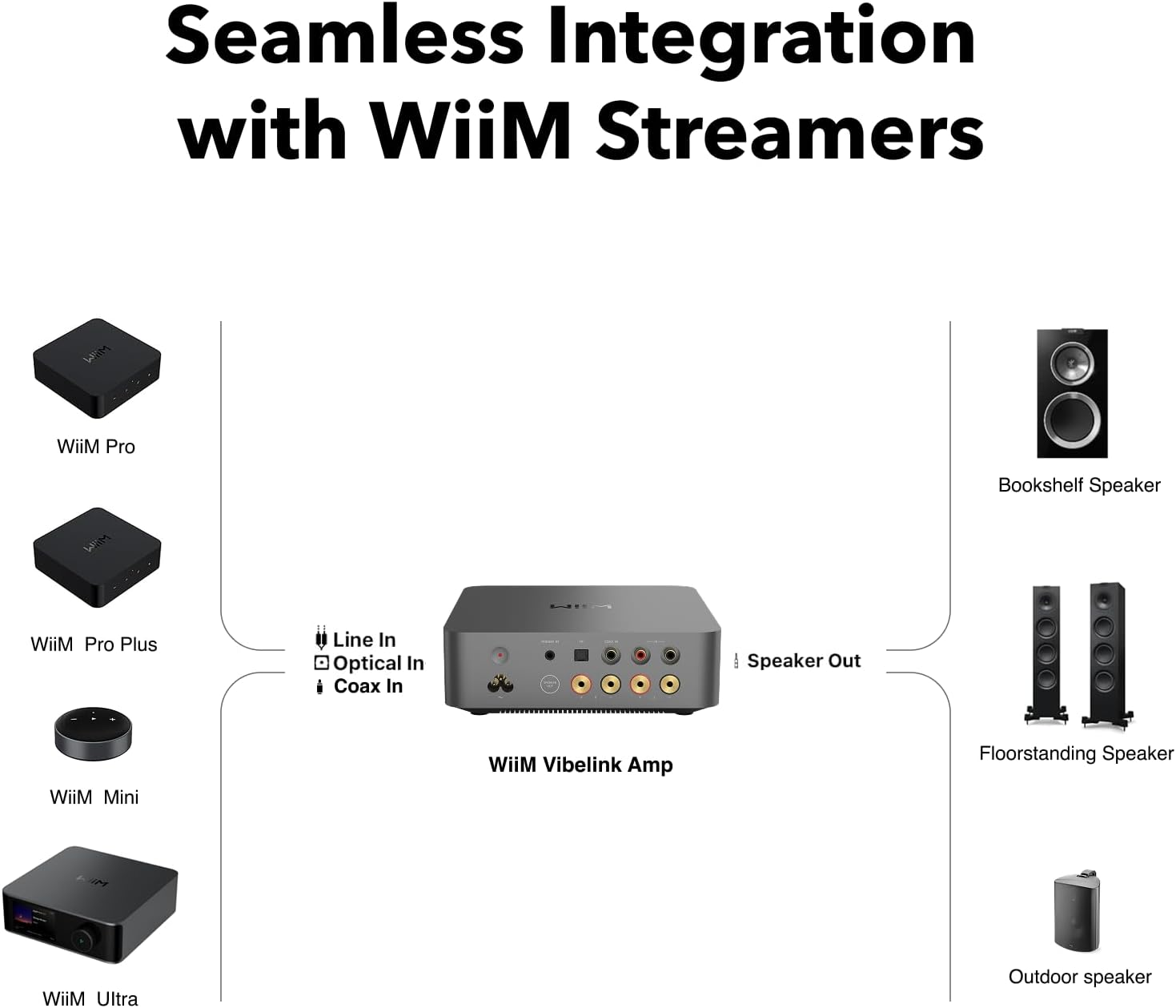

The Perfect Match for WiiM Streamers

Designed for seamless integration with WiiM Mini, Pro, Pro Plus, and Ultra, the Vibelink Amp offers plug-and-play connectivity, ultra-low latency, and studio-grade sound. With digital (Optical/Coaxial) and analog (RCA) inputs, it delivers bit-perfect clarity, deep bass, and immersive audio.

  1. High-Resolution Audio

    Experience bit-perfect playback up to 192kHz/24-bit, preserving every detail of your music.

  2. Pure Analog Input

    Unlike many amps, the WiiM Vibelink Amp's pure analog input bypasses ADC for unaltered, warm sound.

  3. Anti-Pop Noise Design

    Ensures smooth transitions across variable sample rates and bit depths, preventing unwanted noise.

  4. Auto Sleep & 12V Trigger

    The Vibelink Amp features auto sleep and 12V trigger for energy savings and seamless power control.

Dimensions and Weight 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm) 2.05 kg (4.5 lbs)
Power Supply 100-240V, 50/60Hz AC, 3A Max
Colors Space Gray, Silver
Finish Anodized Unibody Aluminum
Controls Volume knob, input select, and power on/off
LED Input mode, device status
Power 100 Watts/channel at 8 ohms; 200 Watts/channel at 4 ohms
Amplifier Technology Class-D with PFFB (Post-Filter Feedback) technology
Speaker Output Stereo or dual mono sound; Gold-plated binding posts (supports banana plugs or bare wire connections)
Audio Output Quality SNR - 120 dB; THD+N - 0.0005% (-105 dB)
Optical and Coaxial Format Stereo PCM up to 192 kHz/24-bit
Audio Input RCA, Optical, Coaxial
Trigger & Power Management 12V Trigger In: Auto power-on with compatible devices; Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Which WiiM product is right for you?

Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars 99
4.5 out of 5 stars 1,424
4.5 out of 5 stars 1,424
4.6 out of 5 stars 1,699
Price
$499.00$499.00 — $699.00$699.00 $599.00$599.00
Connected Device for Streaming
Passive Speaker Passive Speaker Passive Speaker Amplifier or Powered Speaker
Wireless Connectivity
- Wi-Fi 5, BT 5.0 Wi-Fi 6, BT 5.3 Wi-Fi 6, BT 5.3
Audio Input Port
RCA, Coax, Optical HDMI ARC, Line In, Optical HDMI ARC, Line In, Optical HDMI ARC, Optical, Line, Phono
Audio Output Port
Speaker HP Terminals, Subwoofer HP Terminals, Subwoofer RCA Optical Coax USB Headset
DAC IC
ESS 9039Q2M ESS 9018 K2M ESS ES9038 Q2M ESS ES9038 Q2M
Pair with a Sub
- Y Y Y
Analog Out SNR
120 dB 98 dB 120 dB 121 dB
THD+N (Analog Out)
0.0005% (-105 dB) -92dB (0.0025%) at 5W -105 dB (0.0005%) at 5W -116 dB (0.00015%)
Analog Input (ADC)
Pure analog input without ADC Up to 192k, 24 bit Up to 192k, 24 bit Up to 192k, 24 bit
AirPlay
- Y - -
Alexa Multiroom with UHD
- Y Y Y
Google Cast Audio
- Y Y Y
  • Item Model Number: V-AMP-001
  • Product dimensions: 20.07 x 20.07 x 6.55 cm; 2.04 kg
  • Country of origin: China
  • Item Weight: 2.04 kg
  • Colour: Space Gray
  • Manufacturer: Linkplay Technology Inc.
