SMLIGHT SLZB-06M – a Zigbee 3.0 to Ethernet, USB, and Wifi Adapter with Poe Support, Works with Zigbee2Mqtt, Home Assistant, ZHA

SMLIGHT SLZB-06M – a Zigbee 3.0 to Ethernet, USB, and Wifi Adapter with Poe Support, Works with Zigbee2Mqtt, Home Assistant, ZHA

Brand: LOAMLIN
5.0
A$106.35 - A$188.15
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

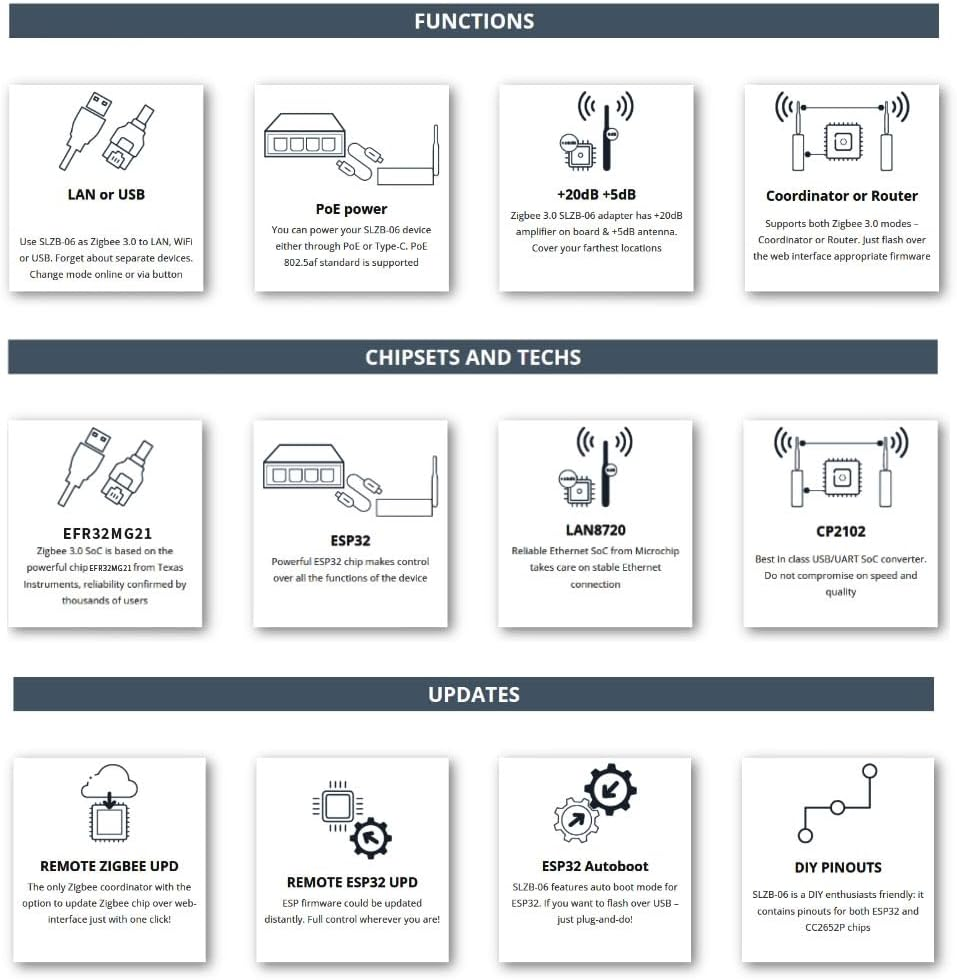

  • 1.SLZB-06M is a Zigbee to Ethernet/USB/WiFi adapter with POE support, comes pre-flashed and ready to use. Can be used as a Zigbee 3.0 gateway in the open source automation platforms – Zigbee2MQTT, Home Assistant, ZHA.
  • 2.Works in both modes – LAN and USB. Mode can be changed in firmware or via button.

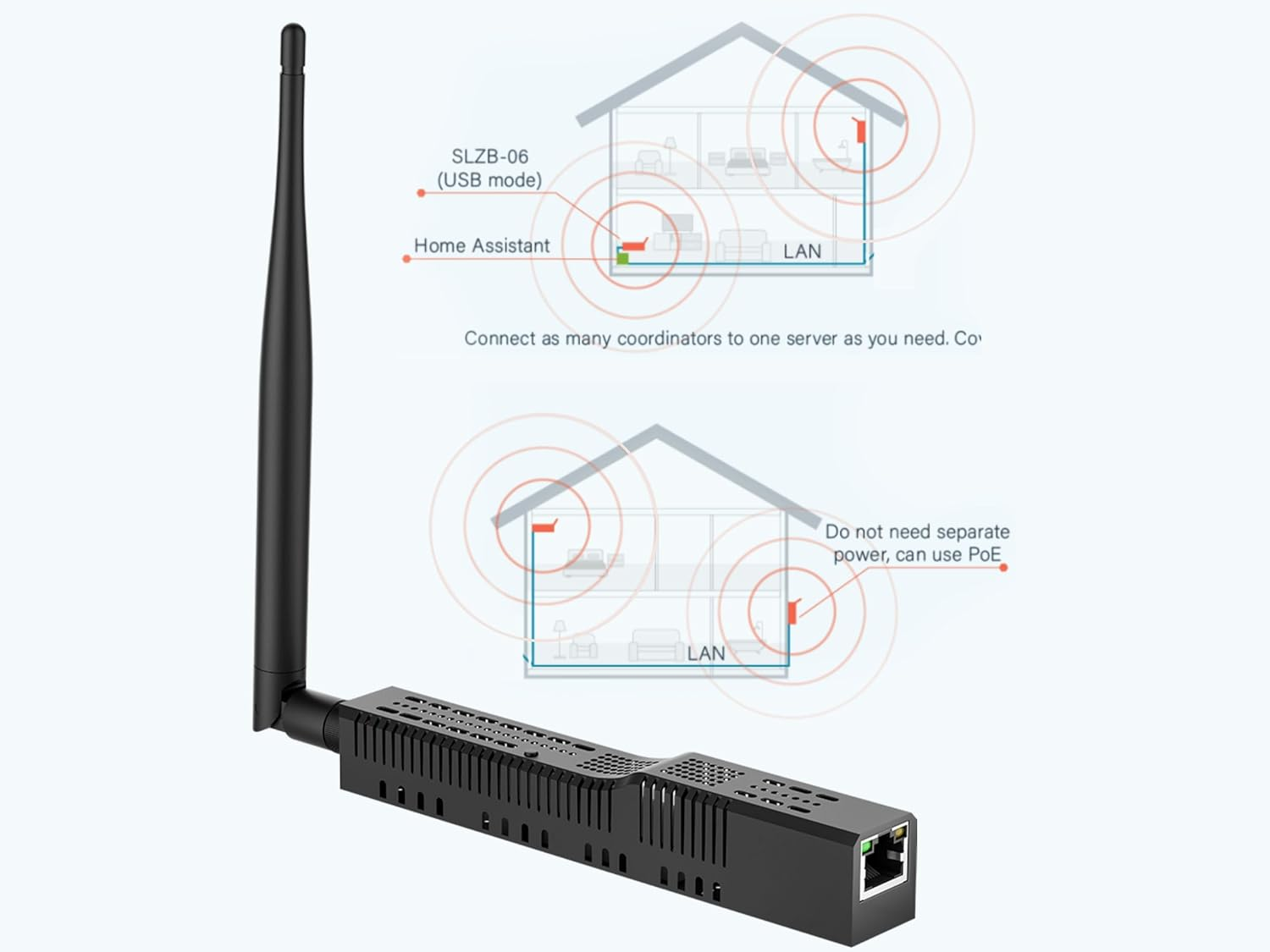

  • 3.Can add as many Zigbee coordinators to one server as you want. So you can easily cover different rooms, buildings and connect them to the same Home Assistant instance.

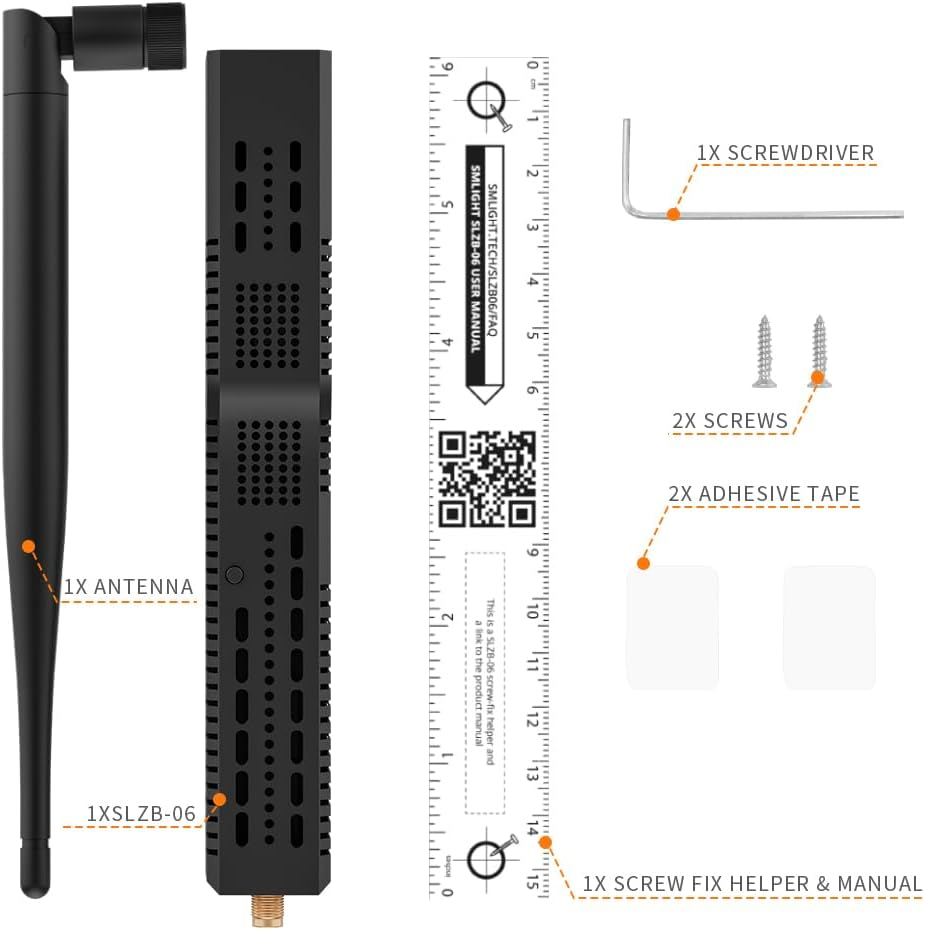

  • 4.You can power the device through POE or type-C. microUSB-typeC adapter is included in the package as well.
  • 5.Zigbee SoC EFR32MG21 features +20dB gain, +5dB antenna included.
  • 6.EFR32MG21 and ESP32 can be updated distantly, without physical access to the device.
  • 7.ESP32 can be flashed over USB as well, autoflash feature is integrated. Just plug type-C and flash.
  • 8.Login to the web-interface can be secured by the password.

SLZB-06M specifications:
●Wireless SoCs
○Silicon Labs EFR32MG21 Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios
○Espressif Systems ESP32-DOWDQ5-V3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity
●Connectivity
○Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet controller
○2.4 GHz WiFi up to 100 Mbps
○Zigbee 3.0 support
○+5dB SMA antenna included
●USB – USB Type-C port for data and power

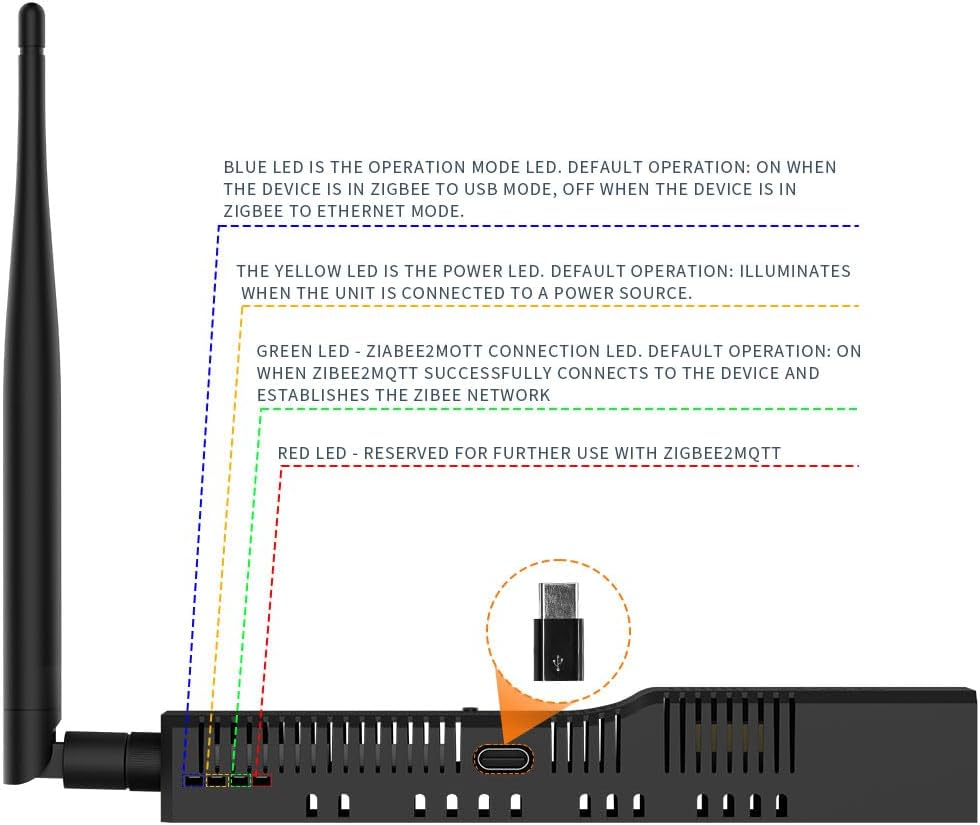

●Misc – 4x user LEDs, 1x button
●Power Supply
oInput – 5V/200mA via USB or PoE
●Dimensions – 160 x 26 x 22mm
●Operating temperature: +5◦C - +35◦C
Note:
●SLZB-06M designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.

  • Includes Rechargeable Battery: No
  • Part Number: SLZB-06M
  • Data Transfer Rate: 100 Megabits Per Second
  • Item Model Number: SLZB-06M
  • Data Link Protocol: Bluetooth, USB, Ethernet, IEEE 802.3af
  • Batteries Included: No
  • Batteries Required: No
  • Brand: LOAMLIN
  • Compatible Devices: Laptop, Smart TV, Desktop, Tablet, Internet Protocol Camera, Smartphone
  • Product dimensions: 16 x 2.6 x 2.2 cm; 90 Grams
  • Connector Type: Ethernet
  • Item Weight: 90 g
  • Model: SLZB-06M
  • Hardware Interface: Ethernet, USB 3.0 Type C
  • Size Name: SLZB-06M: EFR32MG21 Chip
  • Manufacturer: SMLIGHT
