Trailer Vision 175A Anderson Connector Protective Covers - SB 175A Amp Dust Cover Assembly - UV Insulated Protection Compatible with Solar, Marine, Mobile, Industrial, Battery Boxes - 175AA Black
Trailer Vision 175A Anderson Connector Protective Covers - SB 175A Amp Dust Cover Assembly - UV Insulated Protection Compatible with Solar, Marine, Mobile, Industrial, Battery Boxes - 175AA Black
Brand: Trailer Vision
A$25.15
-
A$41.80
Availability:
-
Select Styles for Availability
Shop with confidence

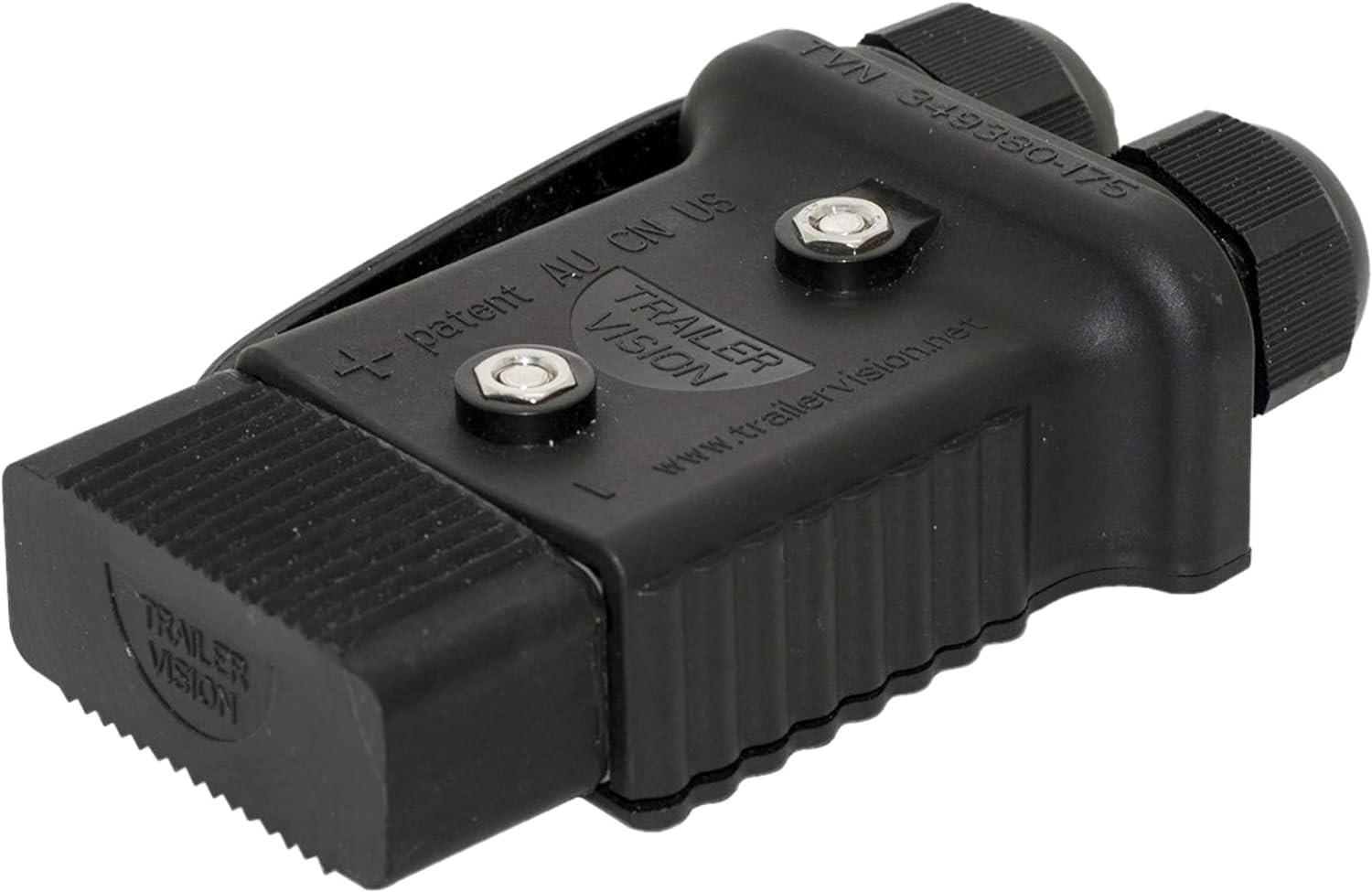

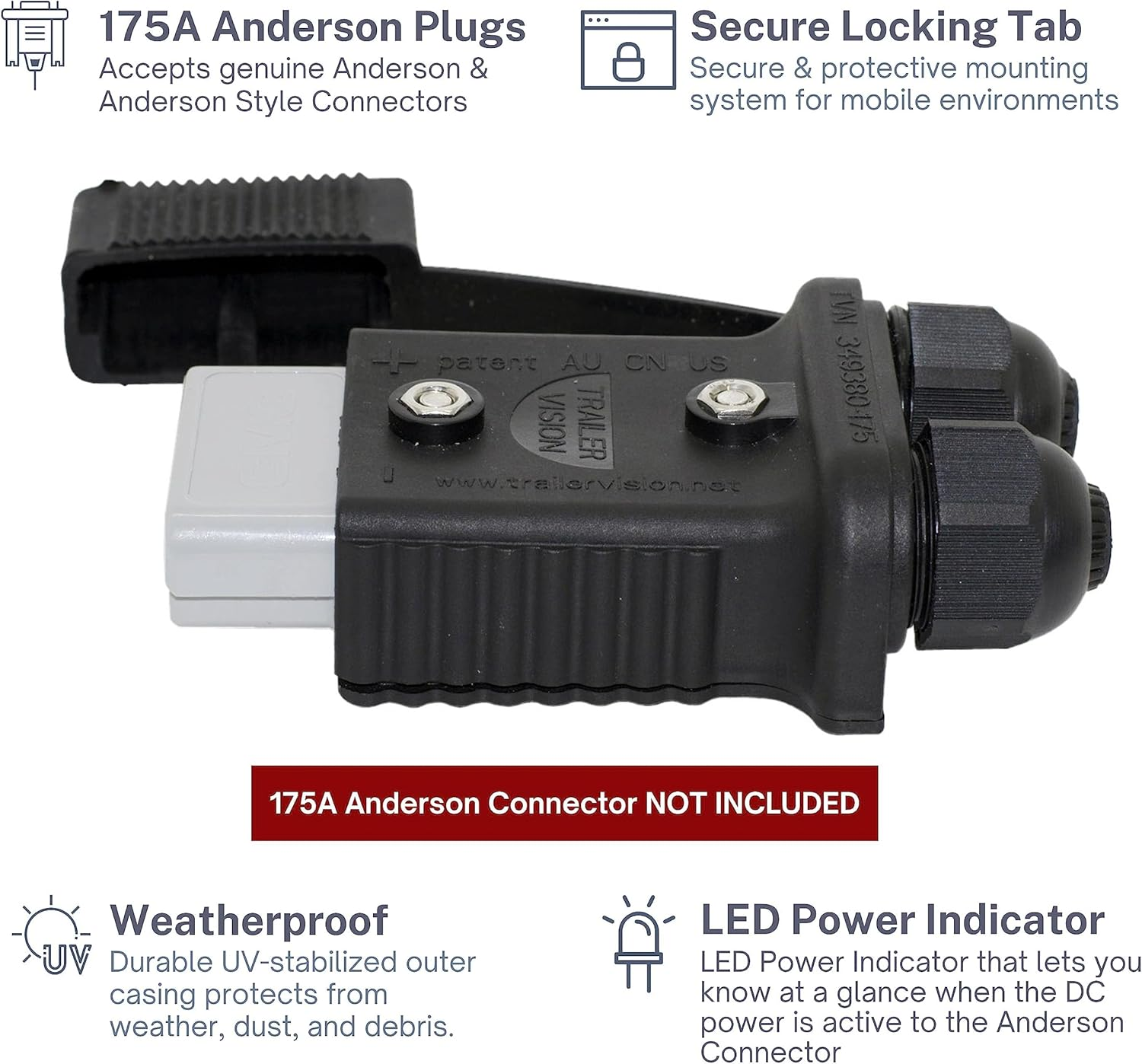

- 175A Anderson connector cover. Featuring a UV protection rubber case with a retractable locking tab, this innovative design ensures a secure connection for 175 Amp Anderson plug cable installs.
- The durable UV-stabilized rubber seal dust cap protects SB 175 Anderson connector terminals from weather, dust and debris – for connection reliability and longevity.
- Trailer Vision’s rubber 175A Anderson connector mounting kit is designed for mobile motion applications. The gland nut with rubber insert provides a tight seal for securing the cable to the connector and protects terminals from jolting and compression when towing over uneven ground.
- Compatible with genuine 175A Anderson connector & Anderson-style plugs. Suitable for mating with Trailer Vision connector protective cover socket series such as TV-201426-175 or TVNU-0582-175
- Trailer Vision products are tested and manufactured to Australian safety standards and harsh conditions. Patented in Australia, US, and China. 175A Anderson connector is not included.
Product Description
TRAILER VISION
A Trusted Australian Brand Established in 1988 Providing Unique Power Connector Accessories
The great architecture of the Trailer Vision product range stems from our most important asset – our people who are skilled in the art of making innovative creations and pride themselves on the Trailer Vision name.
Today, Trailer Vision has secured worldwide patents and designs for its creative ideas in the automotive field and has continued research and development projects in the interests of road safety.
The Covers are compatible with Genuine SB 120, SB 175 or SB 350 Anderson Connectors
Rear Weather Seals
The Rubber seals at the back of the housing assembly fit tightly around the protruding wires.
It may be necessary to slightly modify the holes in the rubber if the wire used is slightly larger than the precut holes.
Durable Cable Mount Rubber Case
Trailer Vision’s black rubber Anderson connector cover is designed for mobile motion applications and protects terminals from jolting and compression when towing over uneven ground. Tested and manufactured to Australian safety standards and harsh conditions.
***Anderson Power Connector NOT included
Soft UV Protective Cover
The UV protection cable gland protects the plug against dust and grime.
Trailer Vision is committed to road safety, innovation, and quality of our technologies.
Wide Applications
- Trailers and Trucks
- Charging Auxiliary Batteries
- Battery Boxes
- Solar Panels
- Marine Equipment
- Industrial Applications
- 4x4, 4WD Vehicle

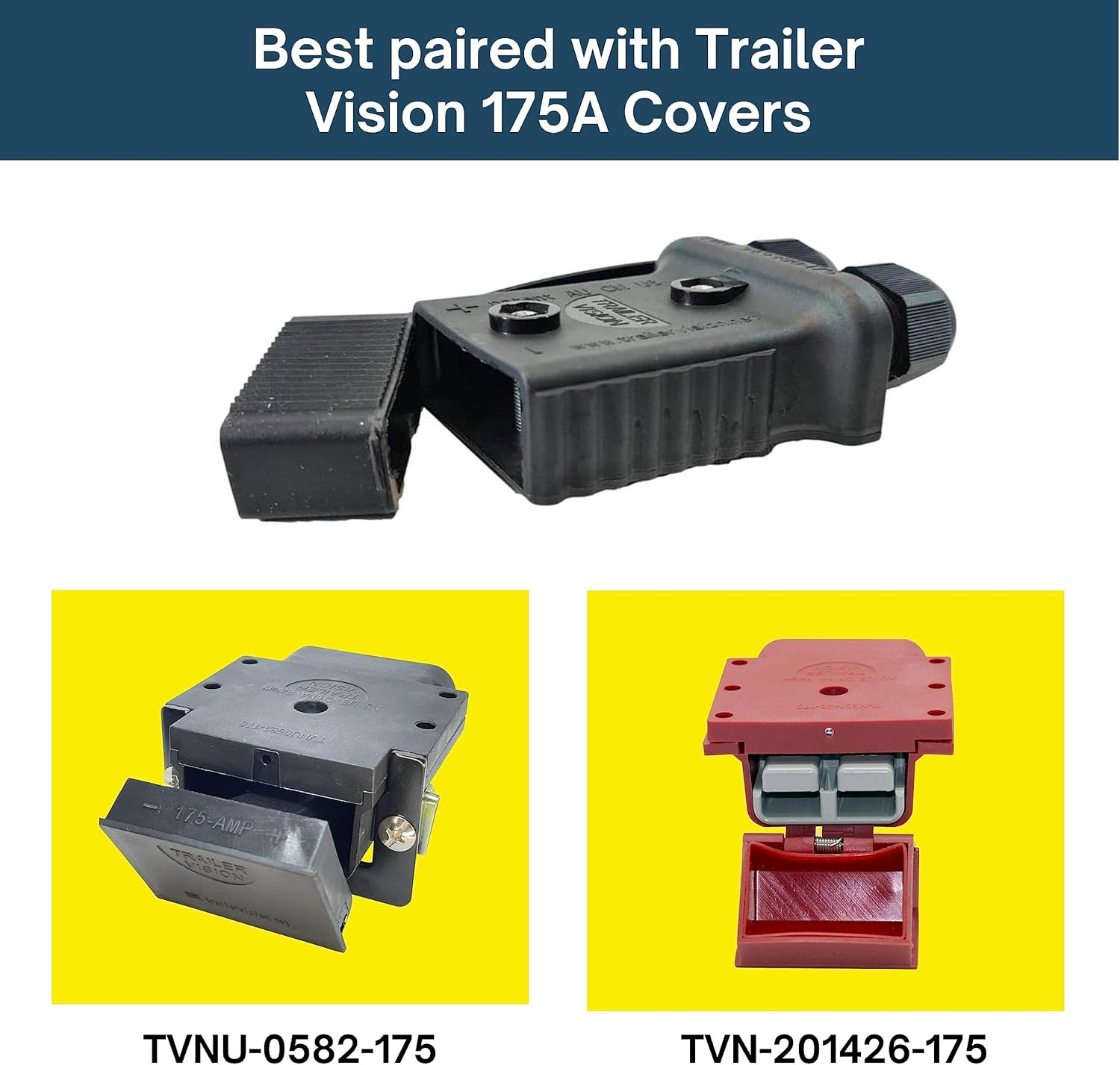

Best paired with other Trailer Vision products
For complete protection and reliability of your Anderson Connectors, TVN-349380 models are best paired with TVNU-0582 and TVN-201426 models. All come in 120A, 175A and 350 sizes.

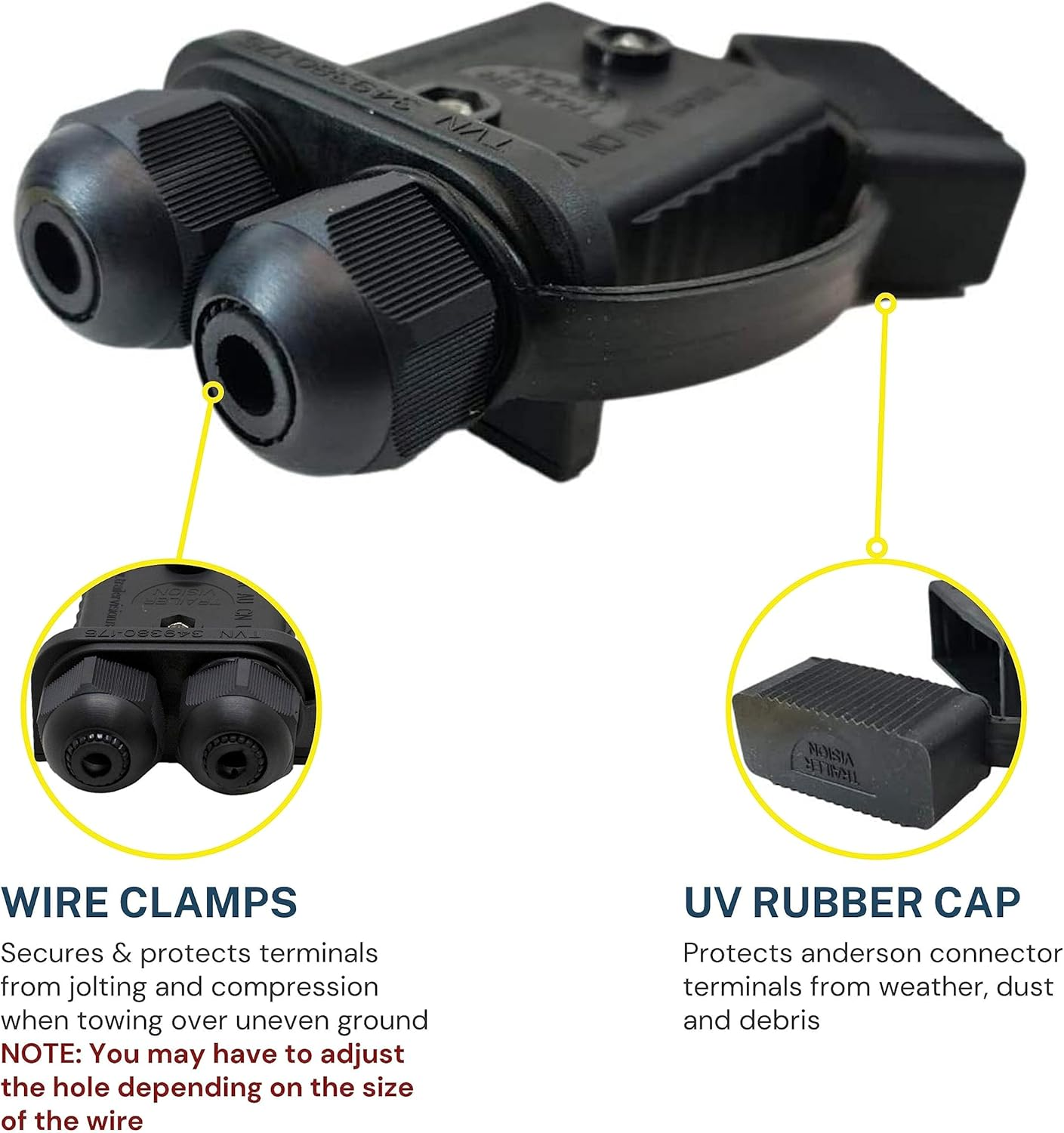

Professional Mounting
Durable rubber housing and dust caps. The gland nut with rubber insert provides a tight seal for securing cable to the connector.
Designed for Mobile Environments
Trailer Vision Anderson connector cover is designed for mobile motion applications and protects terminals from jolting and compression when towing over uneven ground.
3 Available Sizes - 120A, 175A and 350A
TVN-349380-120 Amp Black
- 120 Amp Anderson Cover
- 12V to 36V compatible voltage
- Fits a 6 to 2 AWG wire
- Compatible with TVN-201426-120A cover, TVNU-0582-120A
- 120 Amp Anderson plug is purchased separately
TVN-349380-175 Amp Red/Black
- 175 Amp Anderson Cover
- 12V to 48V compatible voltage
- Fits a 6 to 1/0 AWG Wire
- Compatible with TVN-201426-175A cover, TVNU-0582-175A
- 175 Amp Anderson plug is purchased separately
TVN-349380-350 Amp Red/Black
- 350 Amp Anderson Cover
- 12V to 48V compatible voltage
- Fits a 1/0 to 4/0 AWG Wire
- Compatible with TVN-201426-350A cover, TVNU-0582-350A
- 350 Amp Anderson plug is purchased separately
How to Assemble the Anderson Connector Cover
Step 1
- To assemble, clamp wiring with the voltmeter and LED, positive - RED and negative - BLACK leads to screw connector contacts. Place connector into the bottom assembly.
- Place top cover over the bottom assembly and screws, together with the stainless screws and nuts.
- Slide cable gland weather seal over the main wiring and tighten gland nut to secure wire entry.
UV Rubber Cover
When not in use, place the rubber cover over the connector to protect from the dusts, dirts and other elements.
Locking Device
The locking device assembly is designed to prevent both connectors from separating & mates with cover assemblies.
The Anderson Connector assembly comes with all necessary components including:
- Power Connector housing assembly
- UV protection cable gland
- Stainless steel mounting screws and nuts
- Assembly Information on Back of Packaging
Using TVN-201426-120 and TVN-349380-120 to protect 120A Anderson Connectors
FEATURES:
Heavy duty PA Nylon construction.
Compatible with most power connector brands.
Quick and easy installation.
TVN-349380-120
- 2-Pin/holes (resizable) weatherproof connector cover
- Designed with a locking tab molded in the cover to prevent the connectors from separating and is designed to mate and lock
TVN-201426-120
- Unique locking tab system which ensures mating connectors are secure
- Retractable access cover
- Item Model Number: TVN-349380-175B
- Amperage: 175 Amps
- Bulb Type: LED
- Brand: Trailer Vision
- Manufacturer Part Number: TVN-349380-175
- Item Weight: 183 g
- Voltage: 12 Volts
- Model: 175A Anderson Connector Protective Cover Black
- Manufacturer: Trailer Vision
- Is discontinued by manufacturer: No
- Product dimensions: 12.98 x 8.99 x 4.98 cm; 183 Grams
- Size: 175A Black Cover
