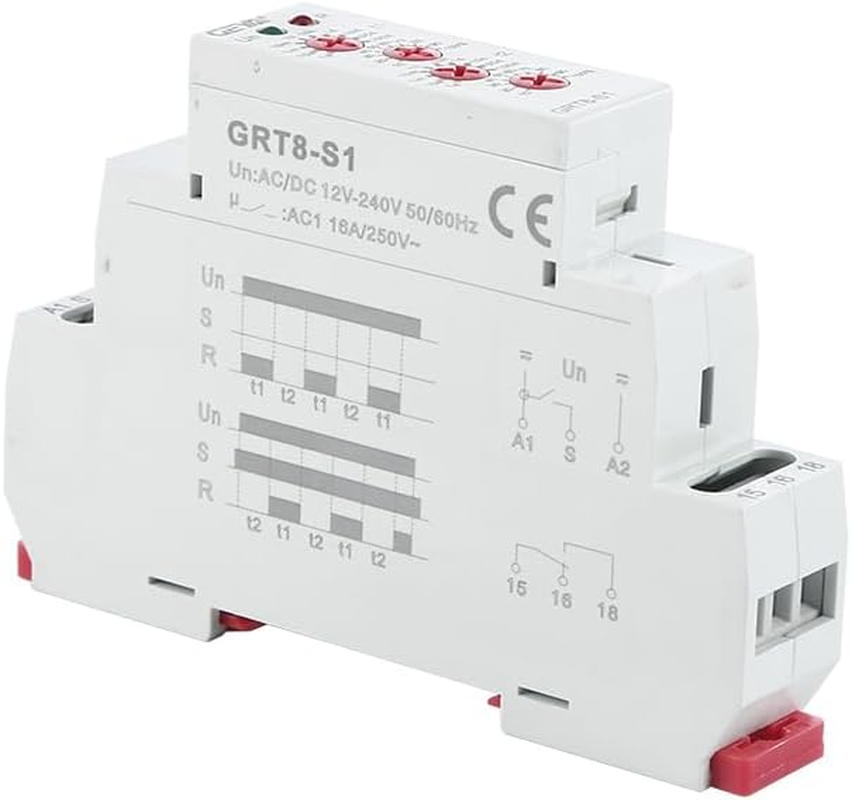

GAEYAELE Asymmetric Cycle Timer 1SPDT Relay 16A AC/DC12V-240V Electronic Repeat Relay(Grt8-S1,Ac/Dc12V-240V)

GAEYAELE Asymmetric Cycle Timer 1SPDT Relay 16A AC/DC12V-240V Electronic Repeat Relay(Grt8-S1,Ac/Dc12V-240V)

Brand: GAEYAELE
4.6
A$30.05 - A$38.85
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

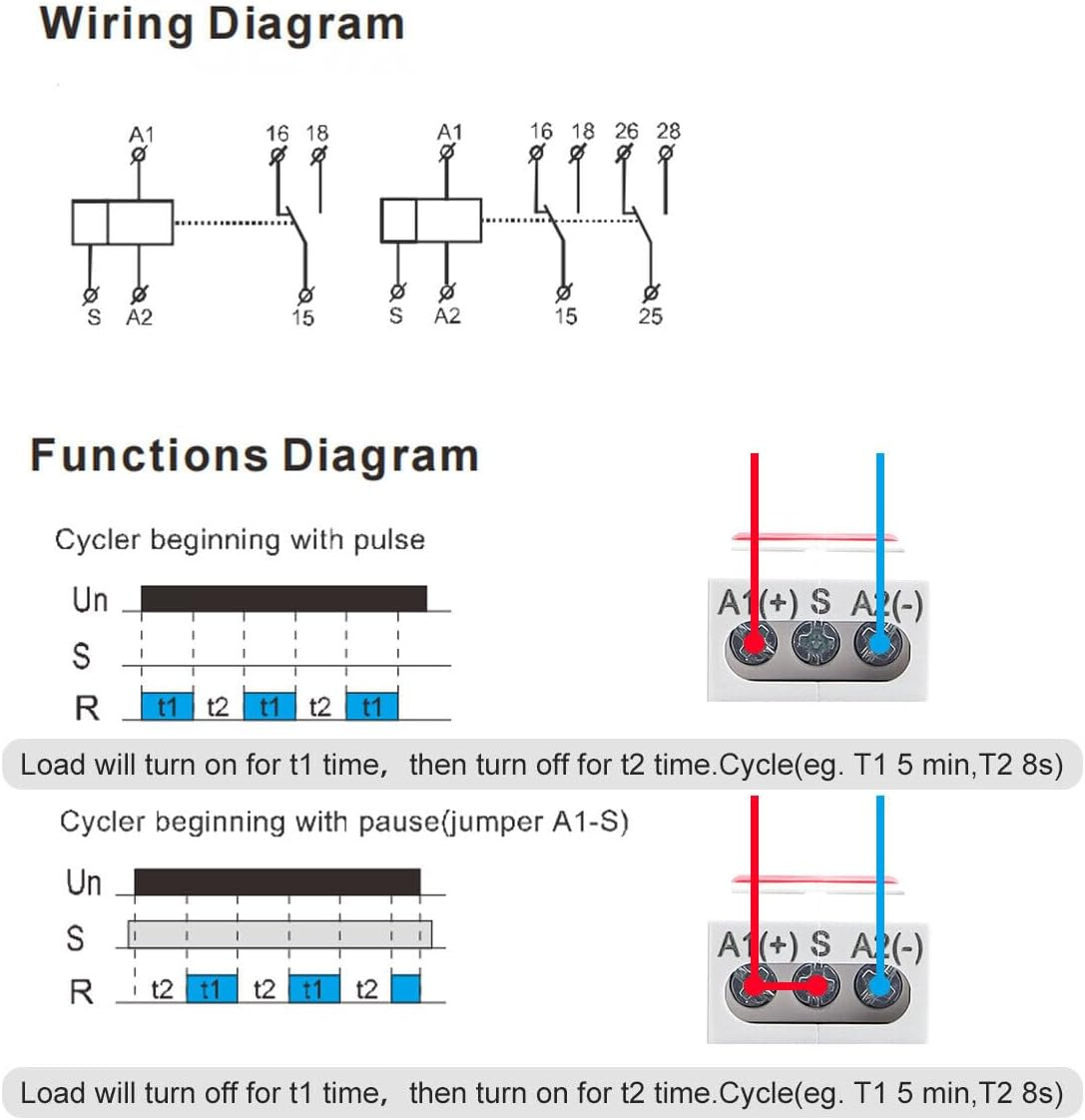

  • 2 Time Functions:Cycler beginning with pulse or Cycler beginning with pause.
  • Function Choice:It is done by an external jumper of terminals S-A1.

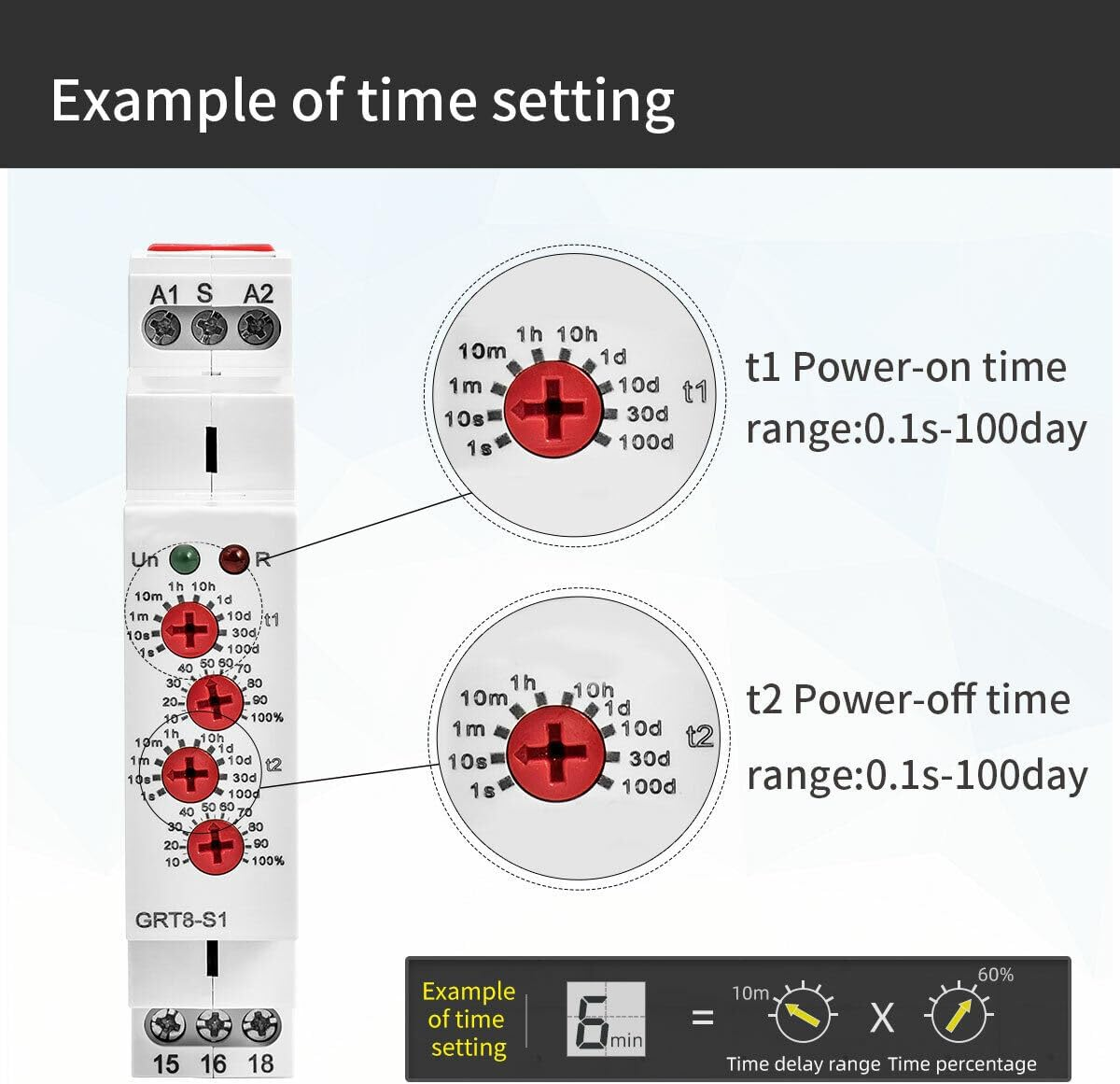

  • Time Scale:0.1s-100days are devided into 10time ranges.(0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1hrs - 1h/ 1hrs - 10hrs / 0.1day - 1day /1day - 10days /3days - 30days /10days - 100days).

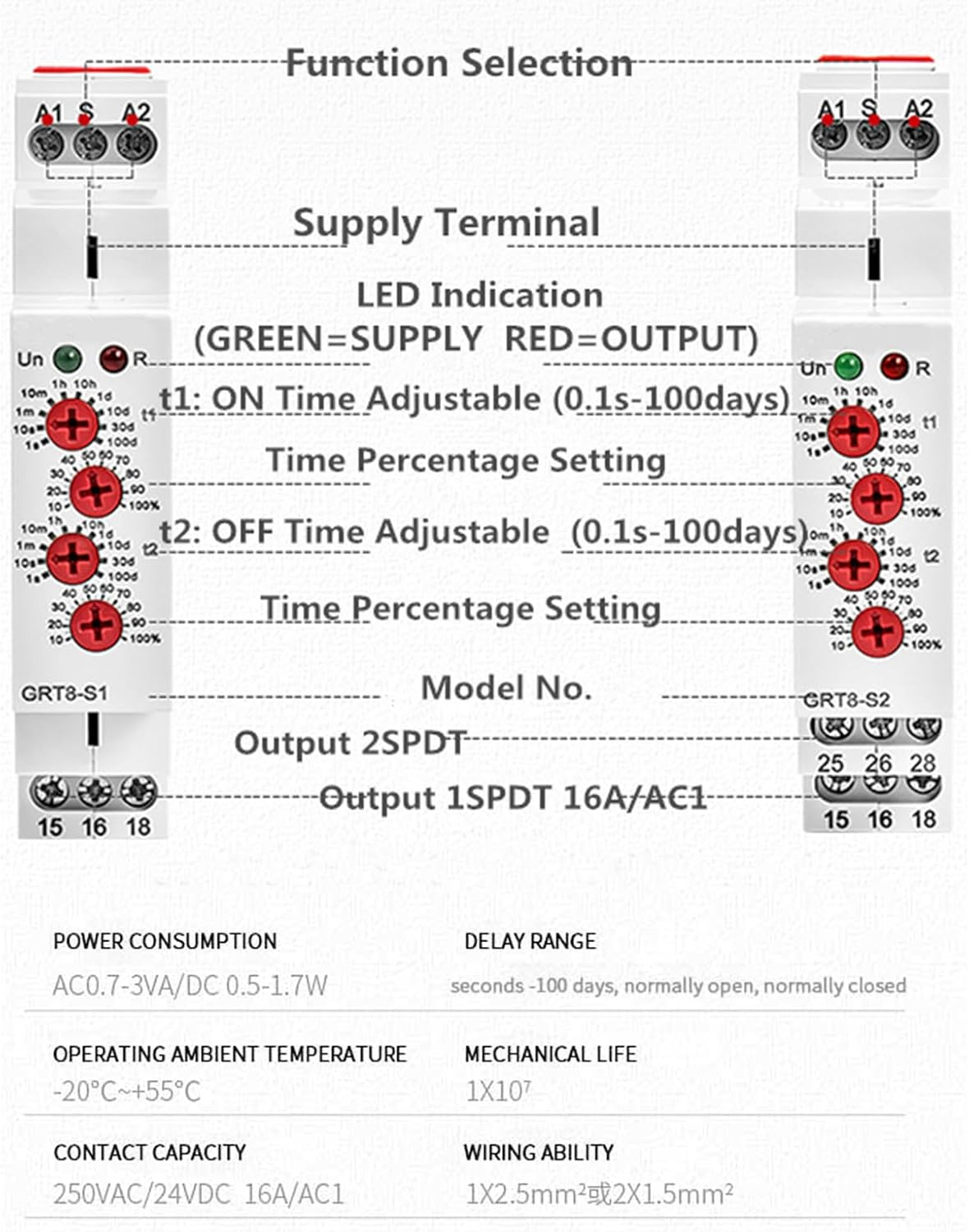

  • Relay Status:Status is indicated by the LED indicators.
  • Product Size:Ultra-small size, only 18mm width, 35mm rail mounting.

Product Description

It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.

GRT8-S: one group or two groups of contacts working in a cycle at the same time"

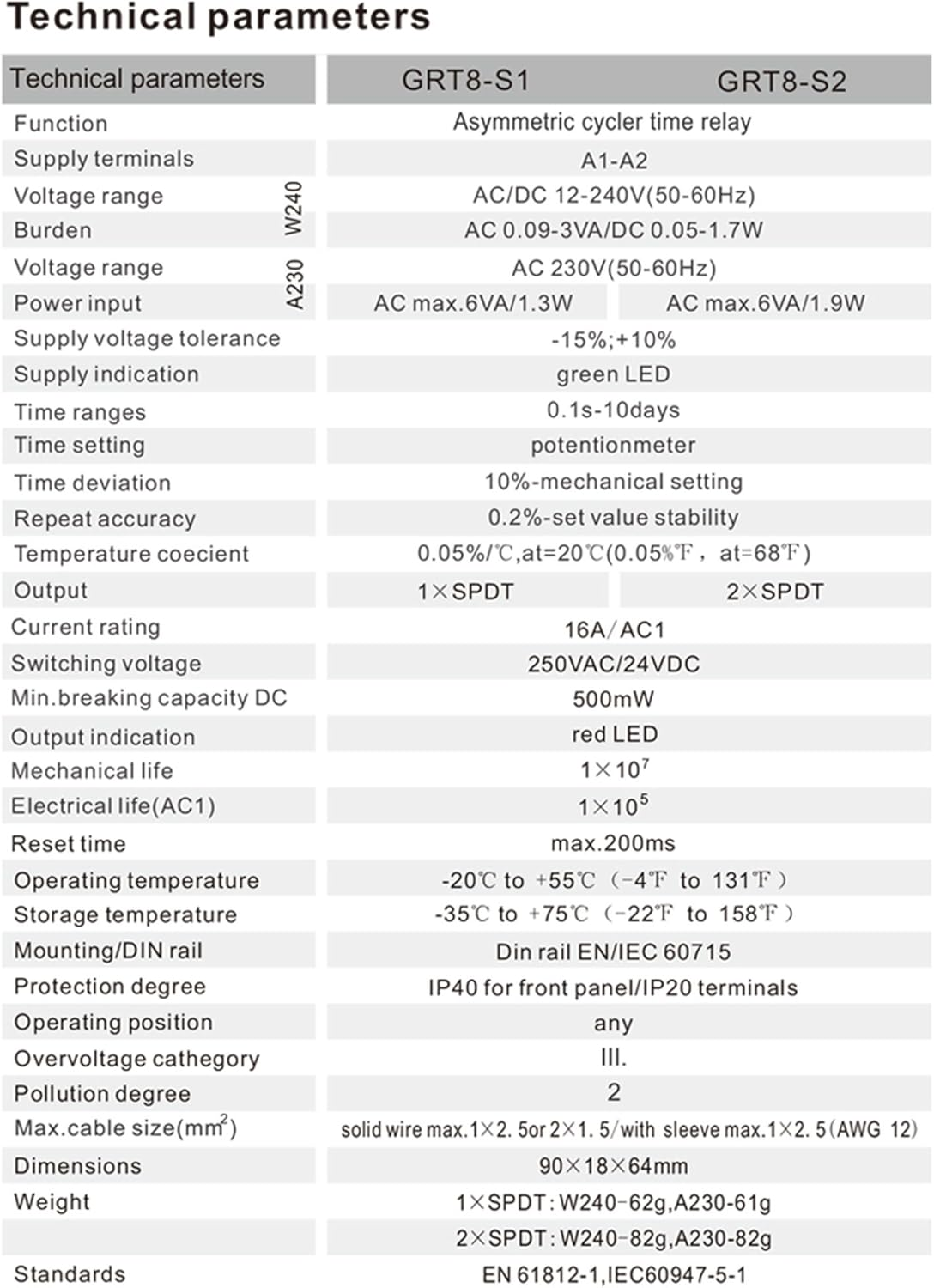

Voltage AC230V or AC/DC12V-240V

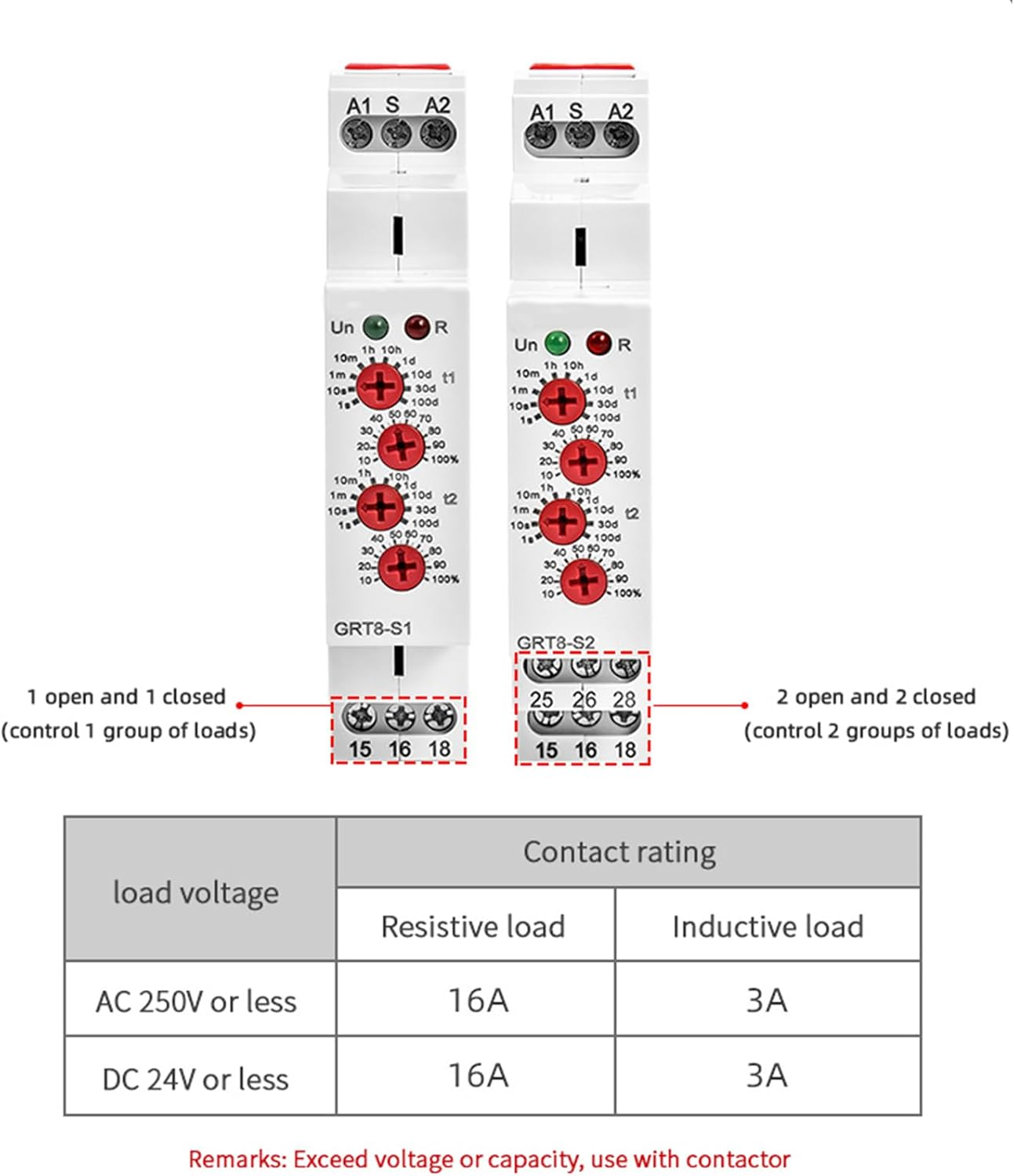

Output 1SPDT or 2SPDT (16A/AC1)

  • Size Name: AC/DC12V~240V
  • Colour Name: GRT8-S1
  • Colour: GRT8-S1
  • Model Number: LE
  • Item Weight: 54 g
  • Brand: GAEYAELE
  • Product dimensions: 9 x 1.8 x 6.4 cm; 54 Grams
