YIFUOK 1/2 X 1/2-20 Heim Joints Rod End Kit Economy with Jam Nuts, Heim Joints Panhard Bar Kit .065 Bungs Rod End Heim Joint LH and Rh(1Set), CM12-XM10
YIFUOK 1/2 X 1/2-20 Heim Joints Rod End Kit Economy with Jam Nuts, Heim Joints Panhard Bar Kit .065 Bungs Rod End Heim Joint LH and Rh(1Set), CM12-XM10
Brand: YIFUOK
A$55.45
-
A$396.80
Availability:
-
Select Styles for Availability
Shop with confidence
- 【1/2x1/2-20 heim joints Kit】 Right hand thread and Left hand thread Heim set with Lock Nut Bushing Assembly,Easily transform suspensions with ease using the heim joint rod end kit, designed for easy installation through welding and additional hardware, ensuring a seamless and effective mating process.

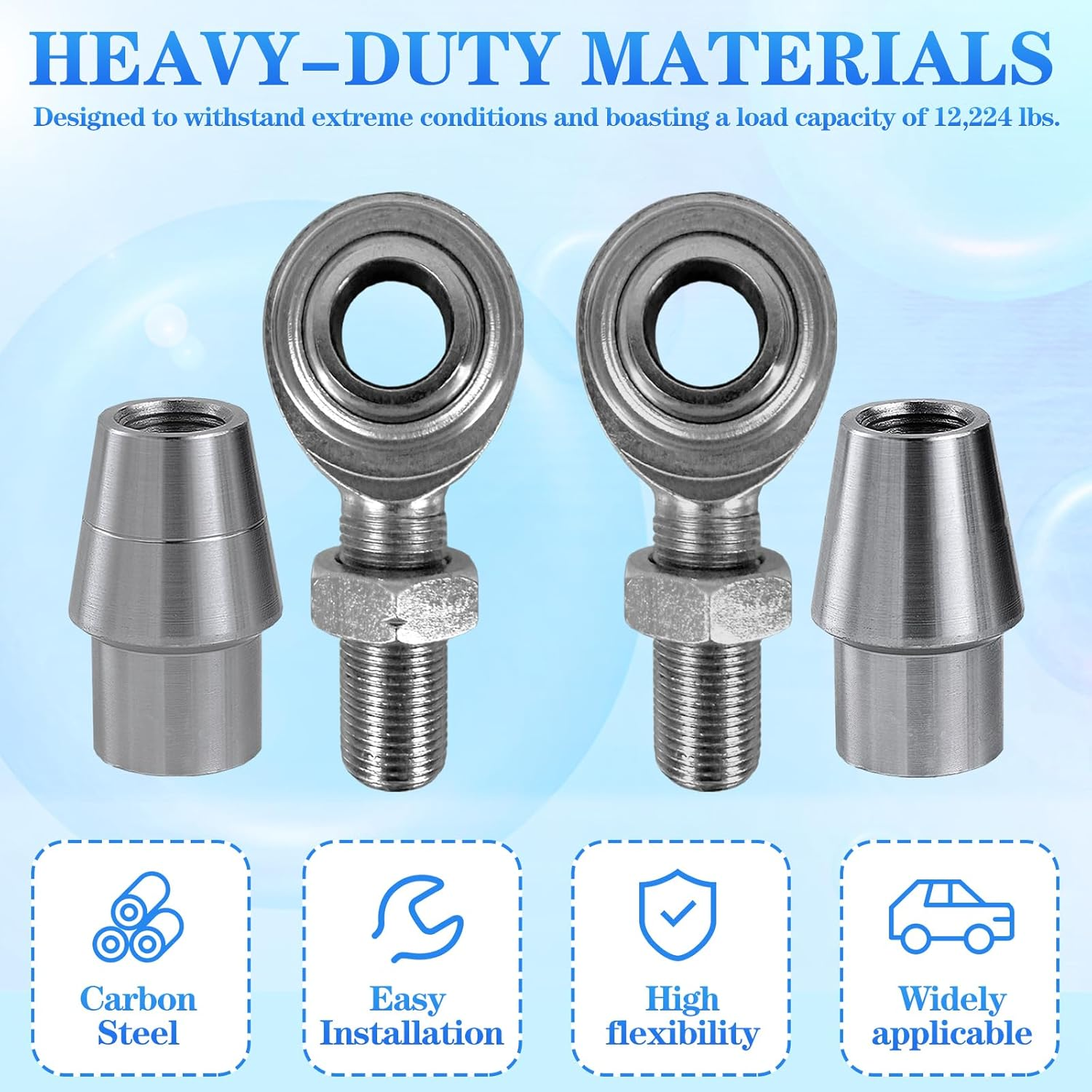

- 【Heavy-Duty Materials】The heim joints rod end kit is heat-treated C1045 steel, silver-zinc plated; and precision ground heat-treated for durability,designed to withstand extreme conditions and boasting a load capacity of 12,224 lbs.
- 【Specification】Rod end is with 1/2” shaft. Lock Nut: Thread 1/2-20.1/2” bore hold is the strongest way to make this heim.Fits Tube Size:1" OD. x .065" Wall x 0.855" ID.note: please confirm the size specification before purchasing.

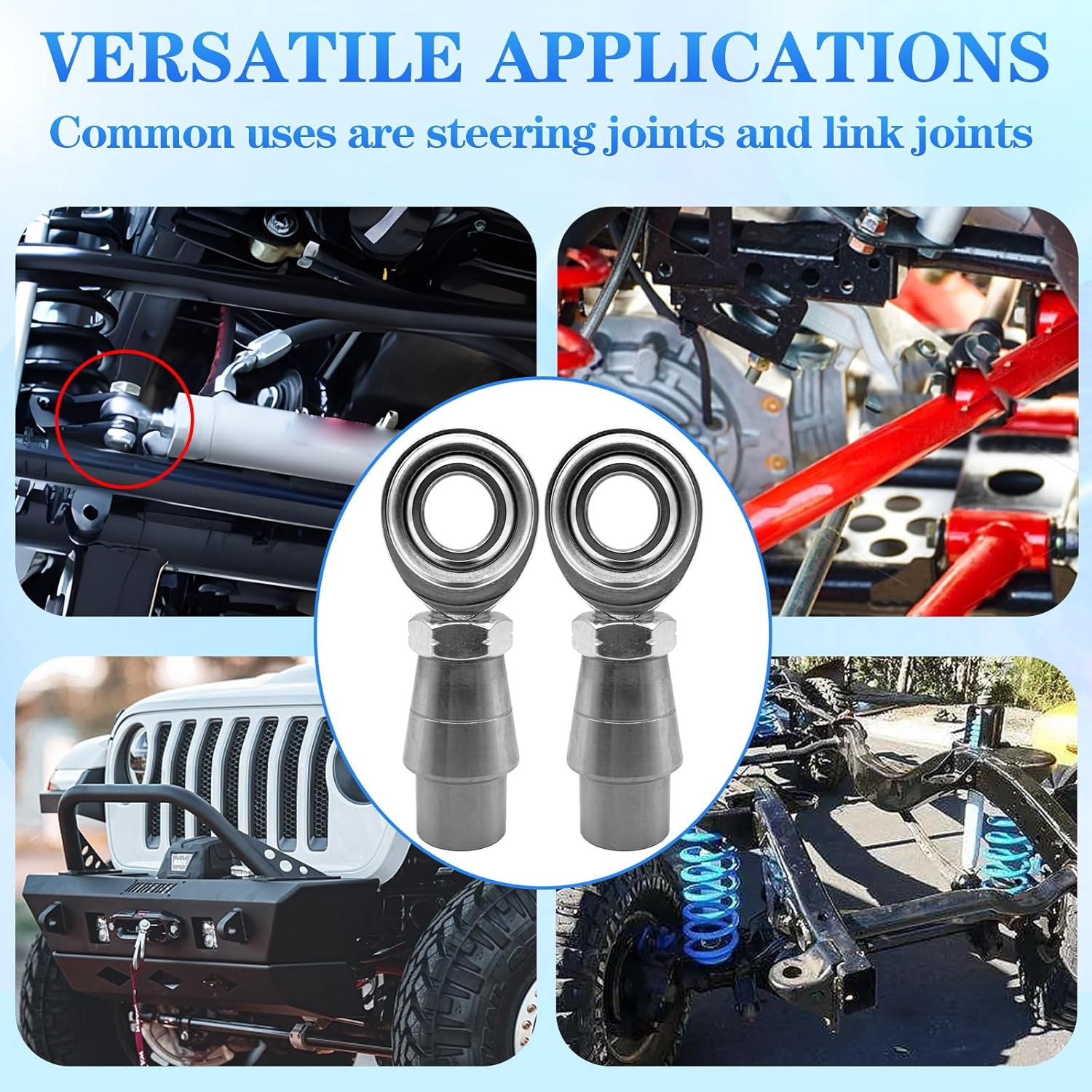

- 【Wide Applications】Our heim joints extreme load rating make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more.provide exceptional performance for steering and linkage joints on hot rods.
- 【Easy to install】Our heim joints for 1/2” rod end can be welded with additional hardware for mating installation.The design allows for quick and hassle-free installation, saving time and effort during setup.
YIFUOK1/2 X 1/2-20 Economy Panhard Bar Kit complete with 1/2" x 1/2" heat treated heim joint, jam nuts. Fits Tube Size: 1" OD. x .065 Wall.
Our heim joints for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more.

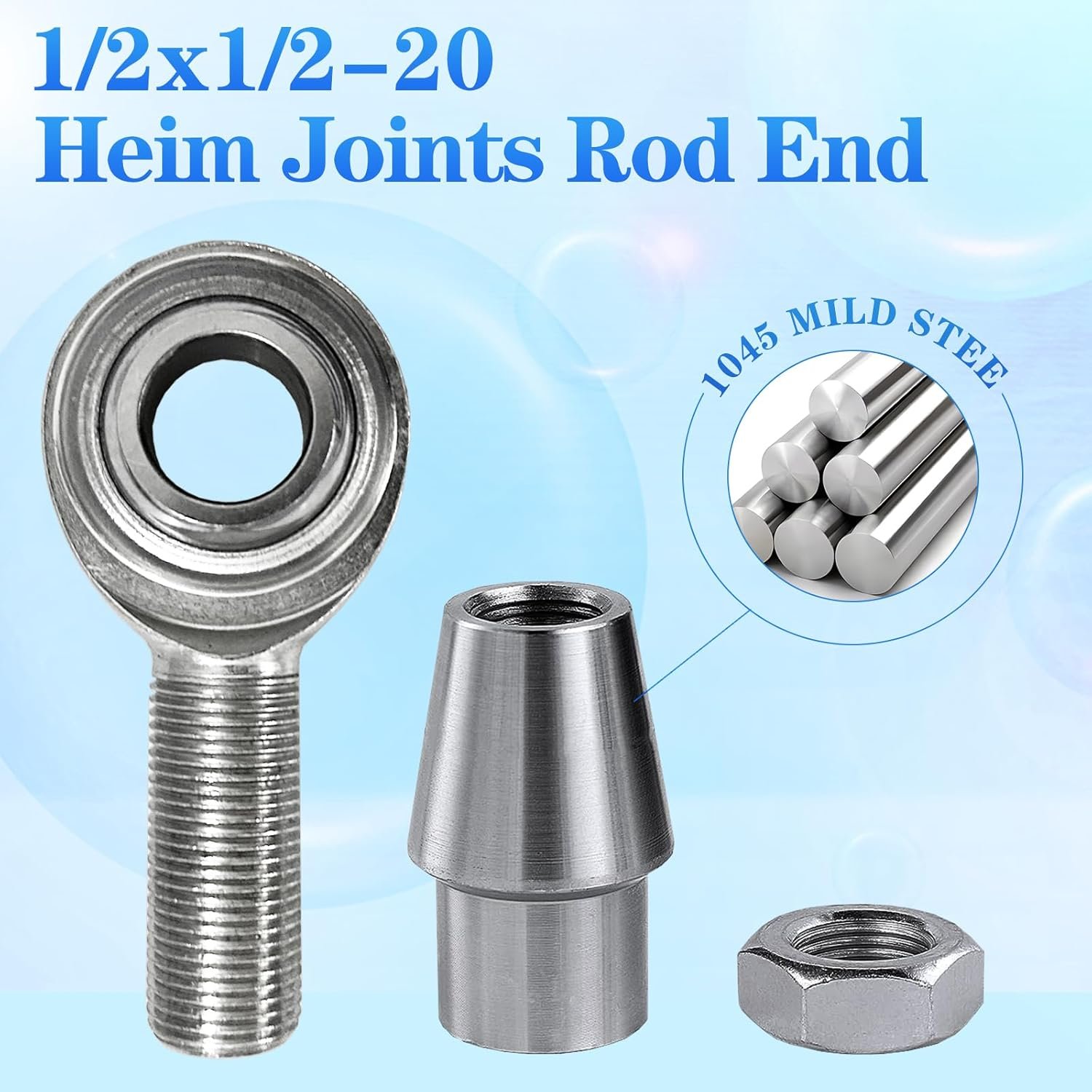

Rod End Body Material: C1045 Steel Heat Treated, Silver Zinc Plated
Rod End Ball Material: 52100 Bearing Steel Precision Ground Heat Treated, Hard Chrome Plated

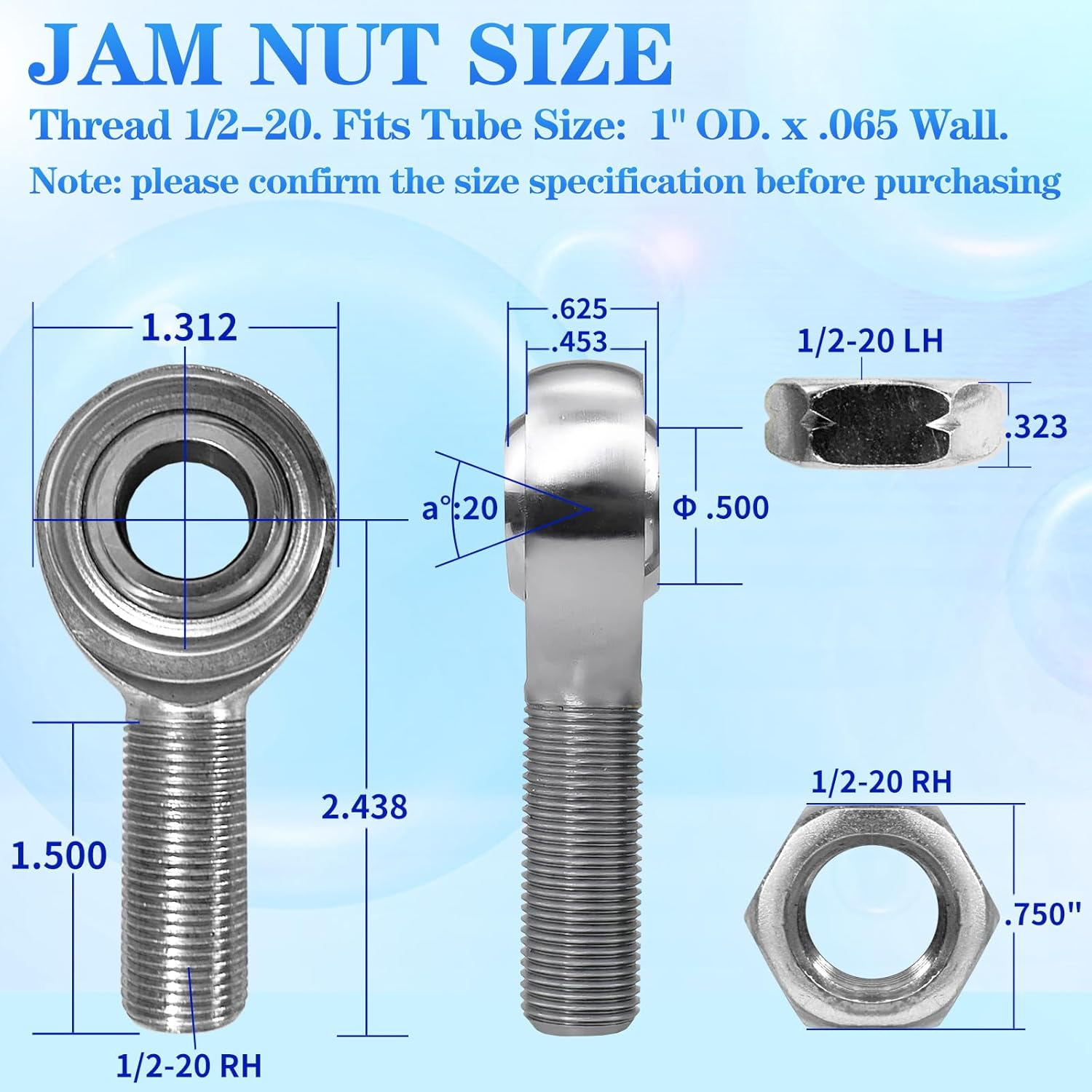

Specifications
Rod End
Thread Size: 1/2"-20
Ball Bore: 0.500"
Ball Width: 0.625"
Centerline Length: 2.438"
Thread Length: 1.500"
Load Capacity: 12,224 lbs

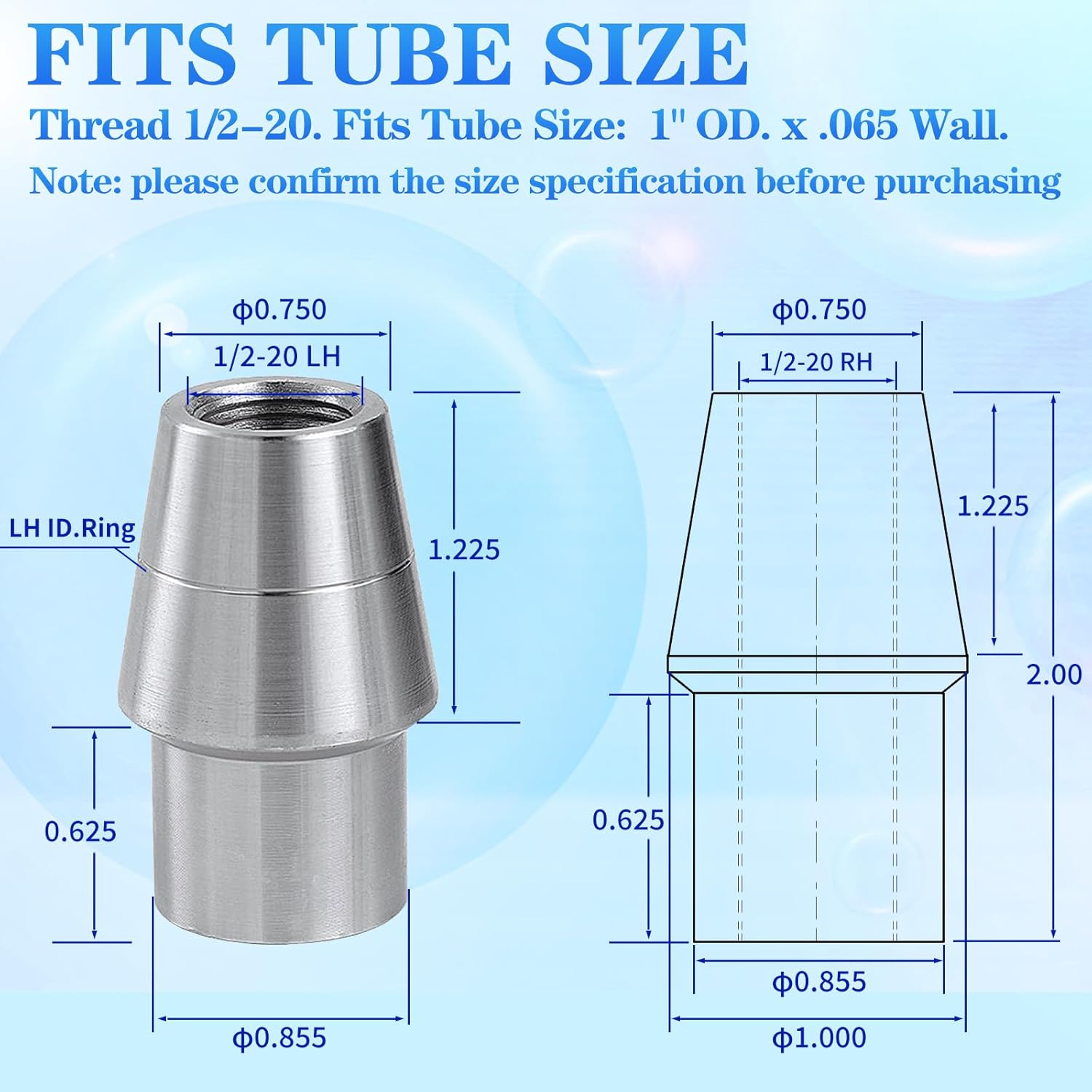

Bung
Material: 1045 Steel
Thread Size: 1/2"-20
Fits Tube Size: 1" OD. x .065" Wall x 0.85" ID
Jam Nut
Thread Size: 1/2"-20
Width: 0.302-0.323
Height: 0.736-0.750
- Item Model Number: CM12-XM10
- Brand: YIFUOK
- Manufacturer Part Number: 1089
- Item Weight: 470 g
- Exterior: Chrome
- Model: YFIUR
- Package Dimensions: 12.7 x 9.7 x 3.3 cm; 470 Grams
- Manufacturer: YIFUOK
