SZ305 Multimeter Capacitor Testers Professional 1999 Counts Smart Voltmeter Ohm Meter Fast Accurately Measures Voltage Current Resistance Capacitor Frequency Diode Hfe

SZ305 Multimeter Capacitor Testers Professional 1999 Counts Smart Voltmeter Ohm Meter Fast Accurately Measures Voltage Current Resistance Capacitor Frequency Diode Hfe

Brand: HUANQIN
4.0
A$28.15 - A$28.25
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

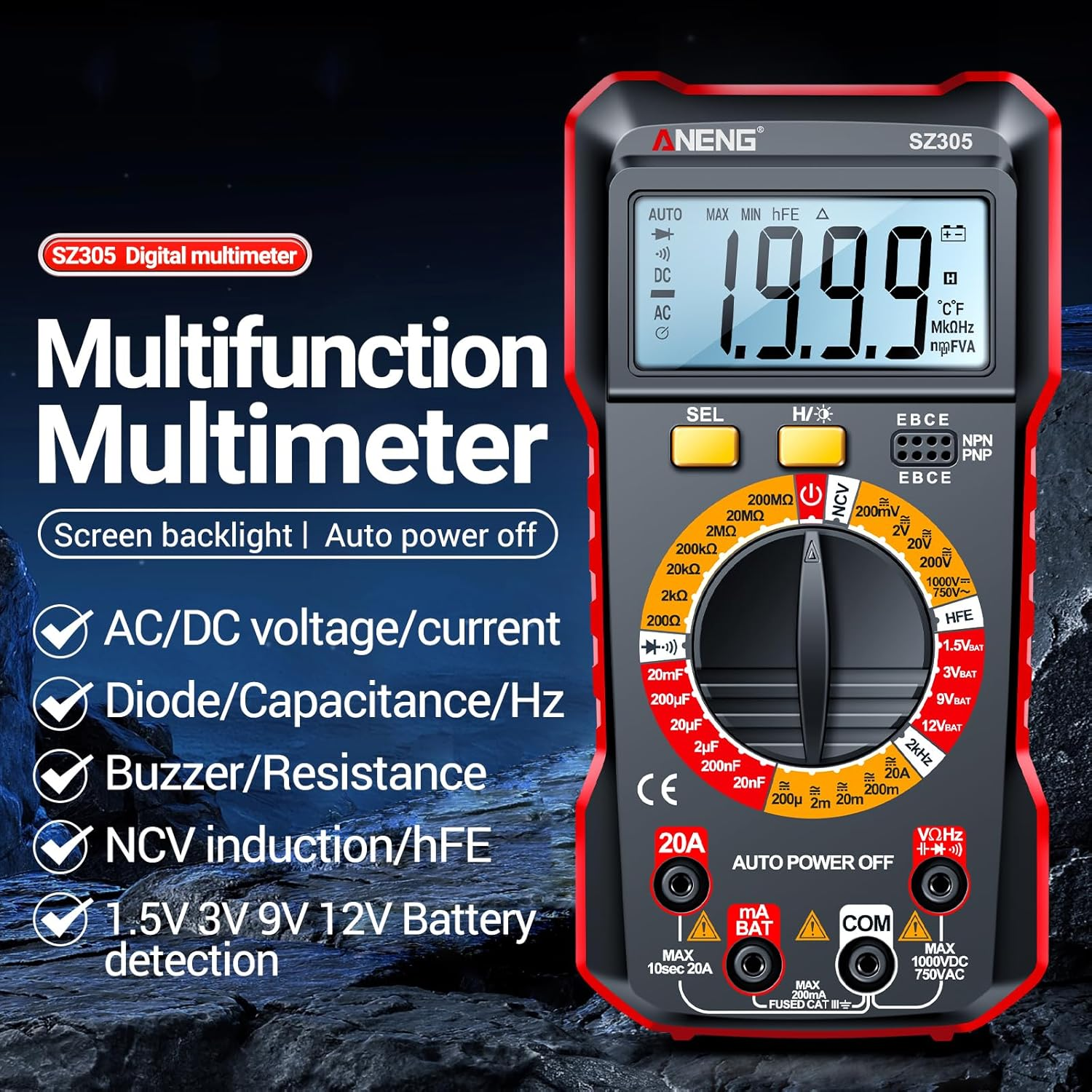

  • Multifunction: This digital multimeter can test AC/DC voltage, AC/DC current, diode, resistance, capacitance, buzzer, frequency, hFE Triode measurement.

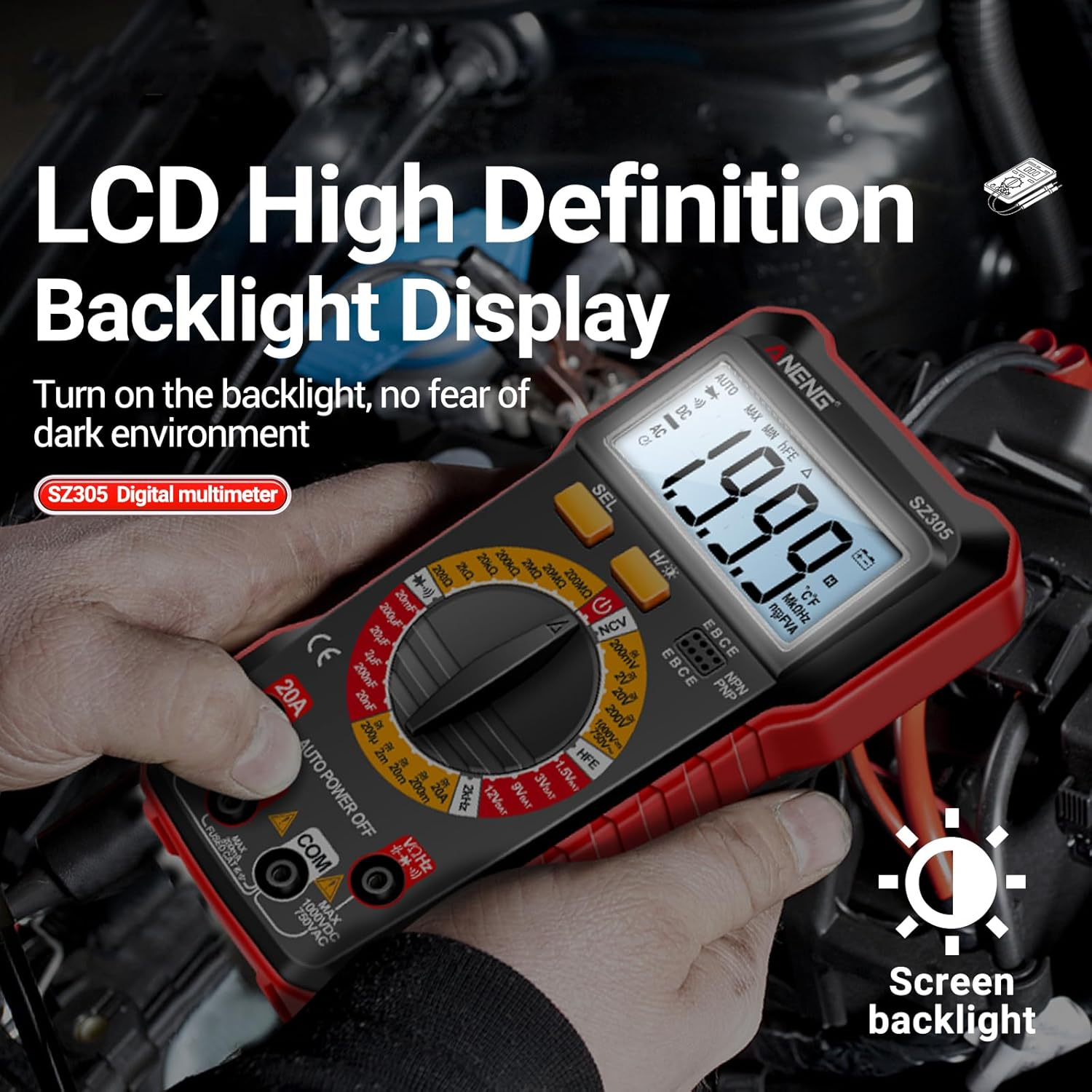

  • LCD High Definition Backliaht Screen: Long press the backlight button to turn on the backlight, and the screen value can be seen clearly in a dark environment.

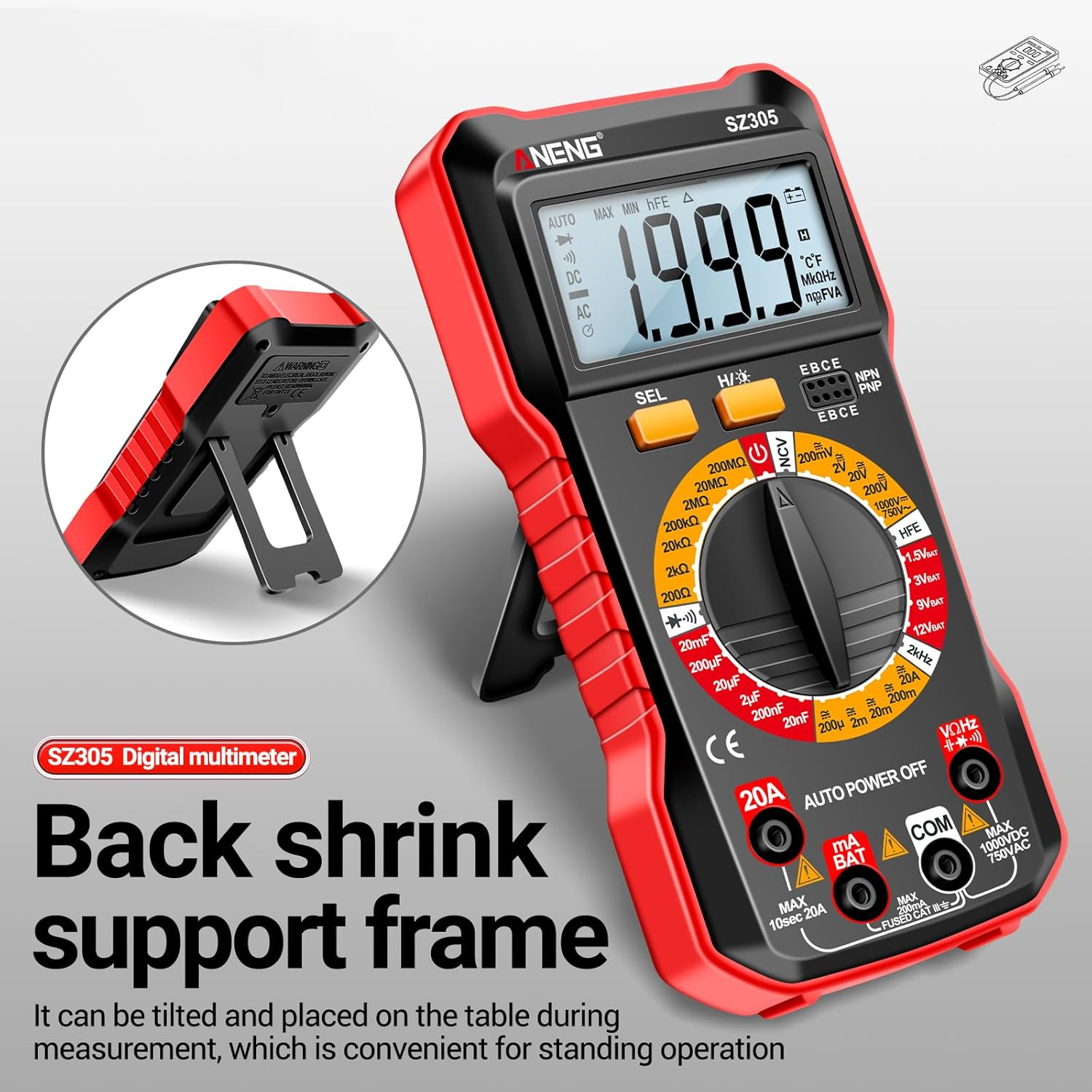

  • Back Shrink Support Frame: It can be tilted and placed on the table during measurement, which is convenient for standing operation.

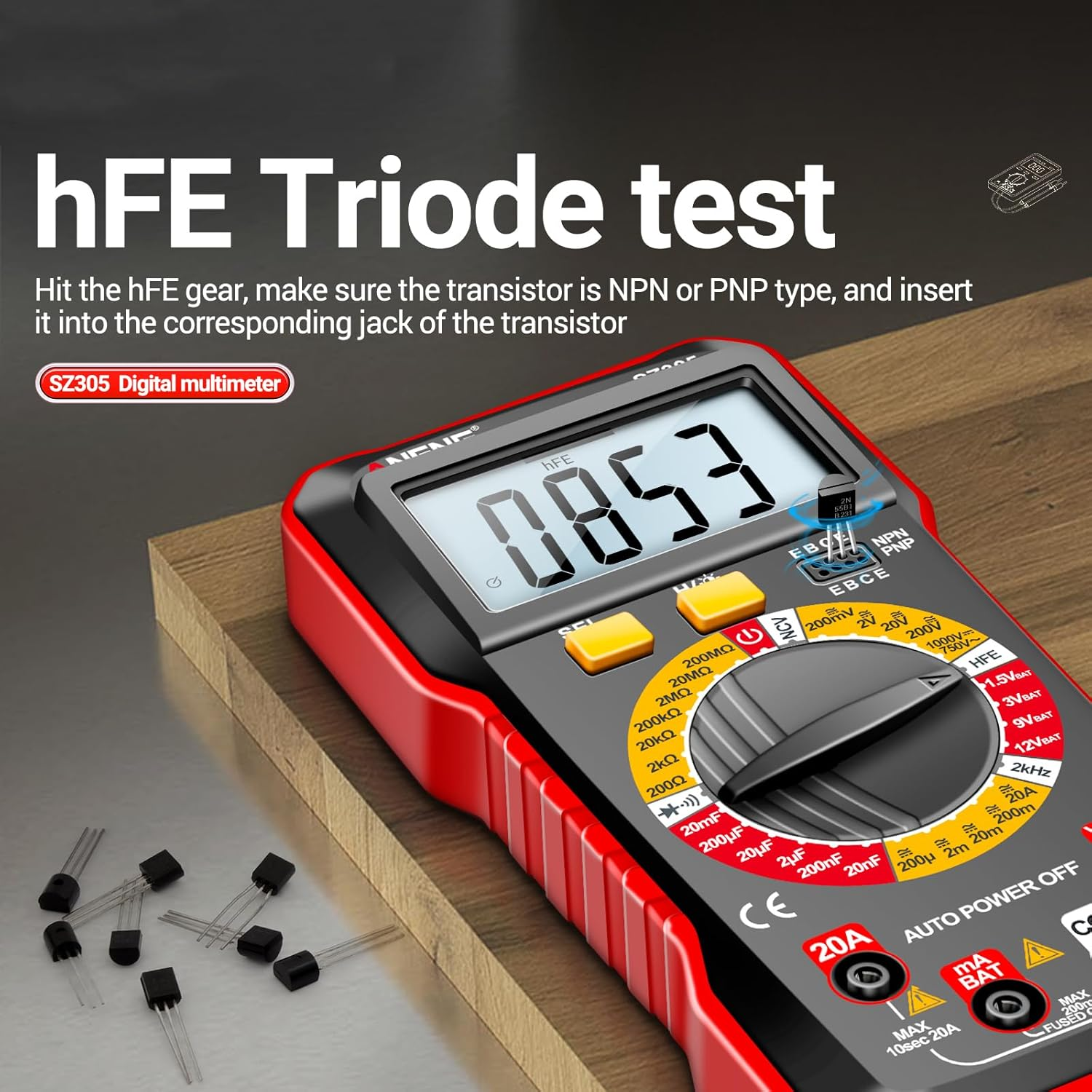

  • HFE Triode test: Hit the HFE gear, make sure the transistor is NPN or PNP type, and insert it into the corresponding jack of the transistor.
  • NCV Non-contact Voltage Sensing: When the AC voltage is detected, there is an alarm sound, and the closer the power supply is, the more urgent the alarm will be.

SZ305 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and other functions.
Specifications:
Color: Black / Red (Optional)
Model: SZ305
Material: ABS
AC Voltage: 200mV-750V, 0.1mV-1V, ±(1.5%+5d)
DC Voltage: 200mV-1000V, 0.1mV-1V, ±(1.5%+10d)
AC Current: 200uA-10A, 0.1uA-10mA, ±(2.5%+10d)
DC Current: 200uA-10A, 0.1uA-10mA, ±(2.0%+10d)
Resistance: 200MΩ, 0.1Ω-100kΩ, ±(5.0%+10d)
Capacitor: 20mF, 0.01nF-10uF, ±(6.0%+20d)
Hz Frequency: 2kHz, 0.1Hz-1Hz, ±(1.5%+8d)
Diode: Yes
hFE Triode: Yes
Buzzer: Yes
NCV Voltage: Yes
Screen Backlight: Yes
Data Retention: Yes
Auto Power Off: Yes
Low Battery Indication: Yes
Max Cpunt: 1999 counts
Power Supply: 2 * AAA batteries (Not included)
BAT Battery: 1.5V / 3V / 9V / 12V battery detection
Item Size: 188 * 91 * 38mm / 7.40 * 3.58 * 1.49in
Item Weight: 158g / 5.57oz
Package Weight: 240g / 8.46oz
Package Size: 19.2 * 12.8 * 3.8cm / 7.56 * 5.04 * 1.49in
Package List:
1 * Multimeter
2 * Test Leads
1 * Packing Box
1 * User Manual (English)

  • Item weight: 158 Grams
  • Colour Name: Red
