INJORA Fat Viper 2204 2400KV Brushless Outrunner Motor & Transmission for TRX4M 1/18 RC Upgrade

INJORA Fat Viper 2204 2400KV Brushless Outrunner Motor & Transmission for TRX4M 1/18 RC Upgrade

Brand: INJORA
5.0
A$75.60
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Smooth and linear at low speeds, powerful and aggressive at high speeds.
  • Runs more quietly than brushed systems, producing virtually no noise.
  • 2204 Fat Viper Outrunner Motor will give your car a better driving performance.
  • 3S batteries are highly recommended for high torque.
  • Note: Compatible with INJORA 370 transmission. Not compatible with stock transmission! Compatible with INJORA MBL32 brushless ESC. Not compatible with stock ESC!

Note:

Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial.

2400KV Motor Specifications:

Model Number: 2204

Motor Type: Sensorless Brushless Outrunner

RPM/Volt: 2400KV

Motor Poles: 14

Sine Mode Power: 7

Max Power: 2500W

No-Load Current: 0.7A

Max Peak Current: 50A

Motor Connectors: PH2.0 3Pin

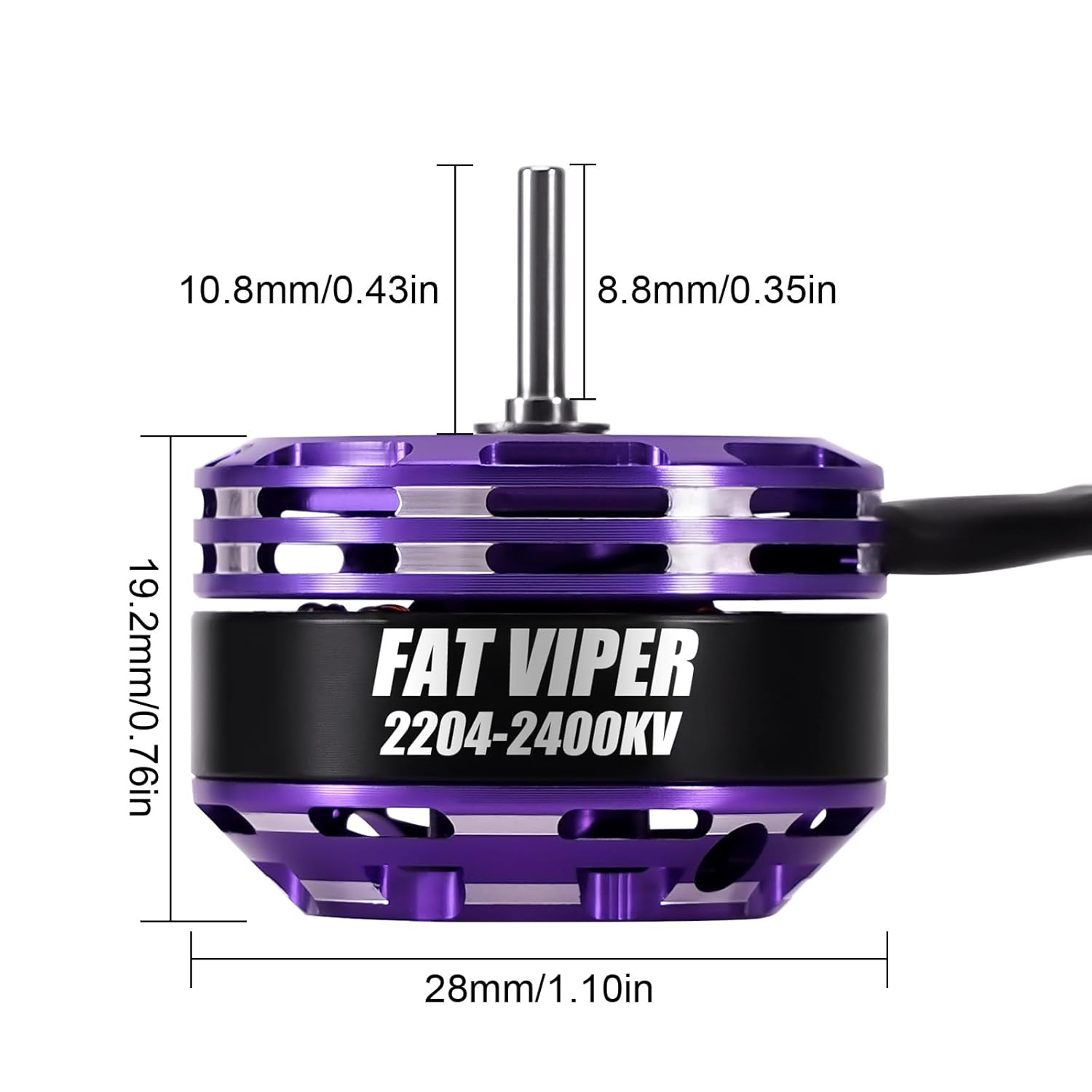

Dimensions: 28*19.2mm

Motor Output Shaft: 2mm

Motor Pinion: 0.4mod 11T

Weight: 28g

Transmission Specifications:

Housing Material: Aluminum

Gears Material: Stainless Steel

Internal Gears: 24.4:1 gear set, underdrive 32%

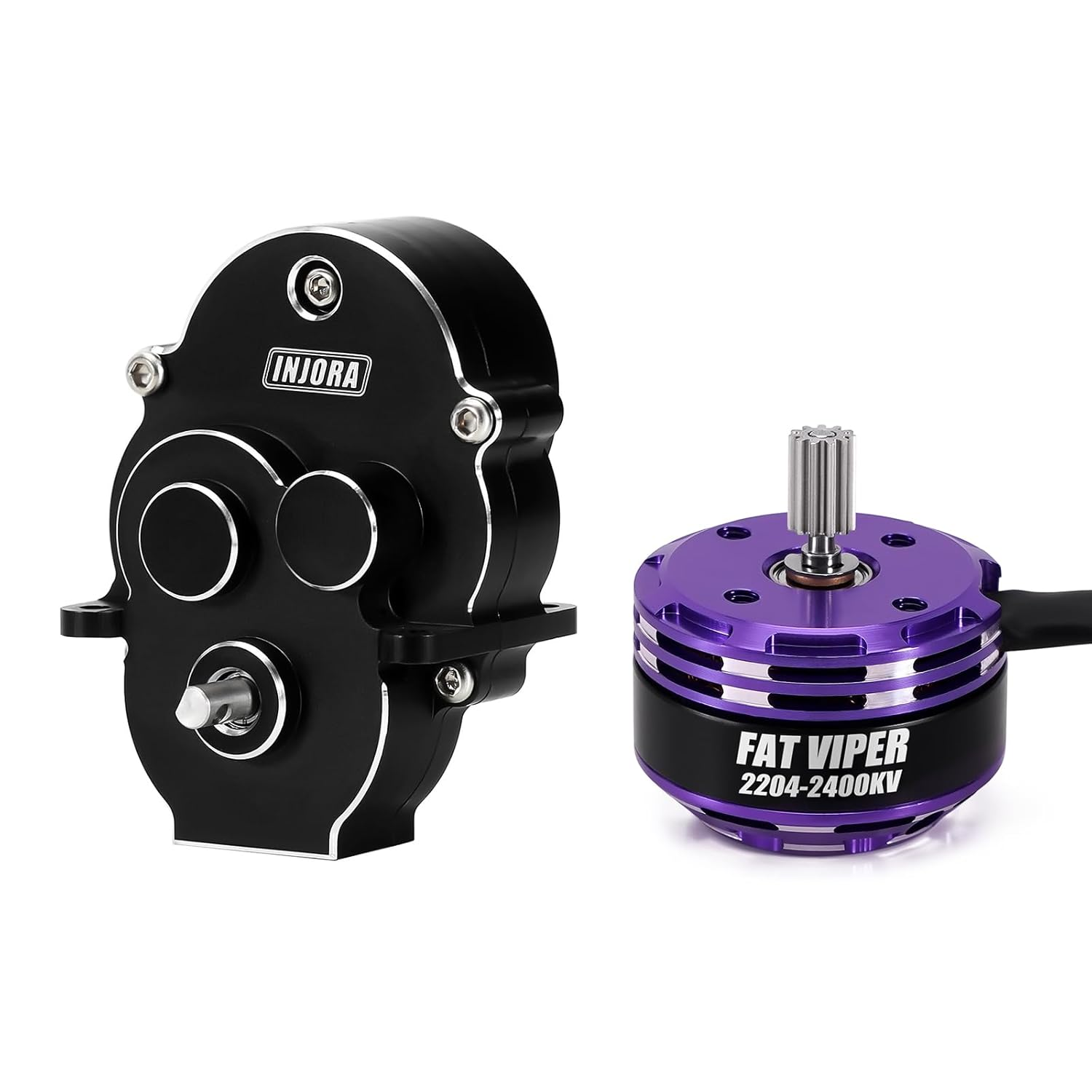

Package List:

1 * Fat Viper 2204 Brushless Motor

1 * Motor Pinion 11T

1 * 370 Transmission

  • Item Model Number: INM17-2400KV-99BK
  • Size Name: 2400KV Motor & Transmission
  • Product dimensions: 2.79 x 2.79 x 1.91 cm; 28 Grams
  • Manufacturer: INJORA
