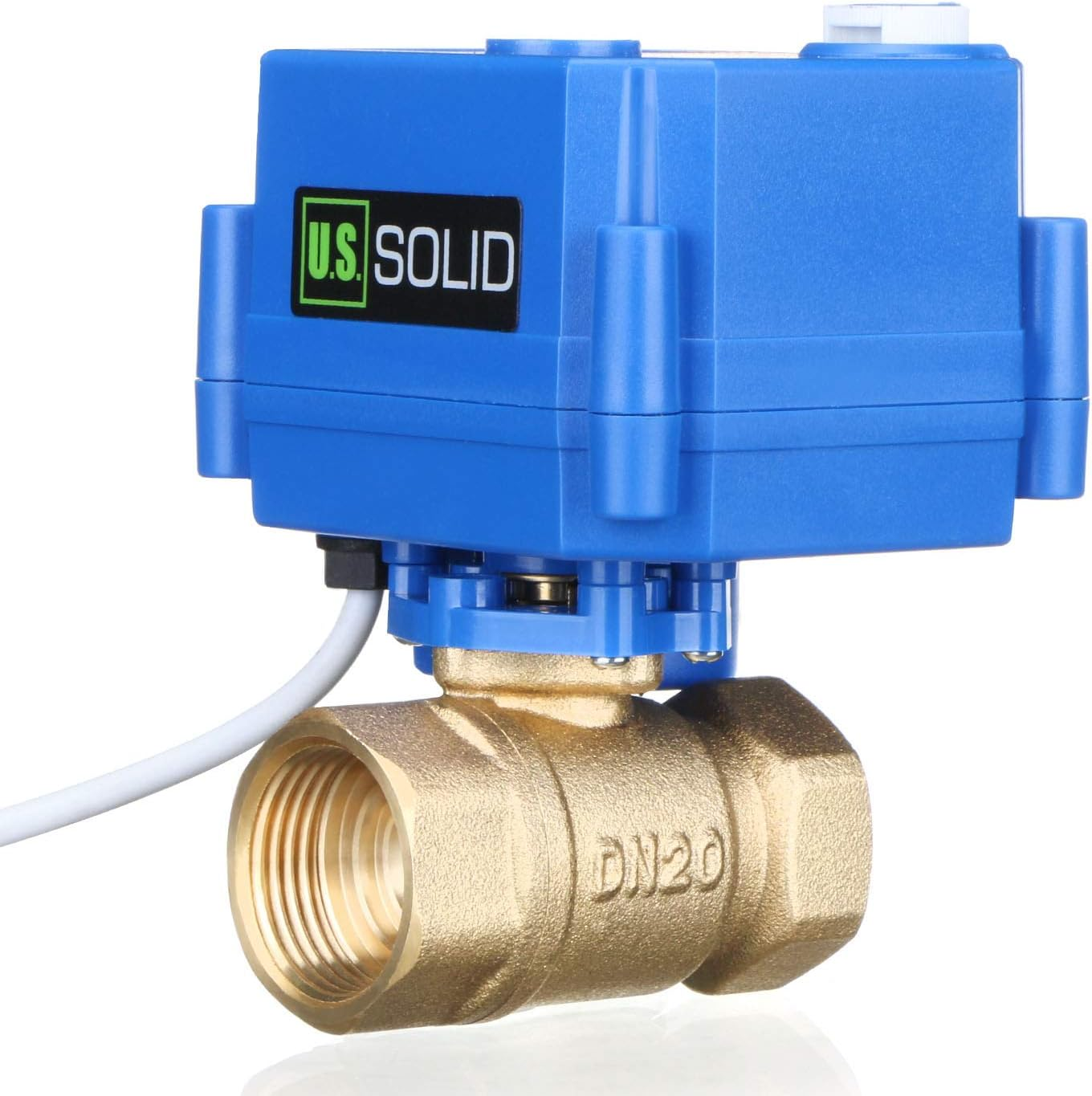

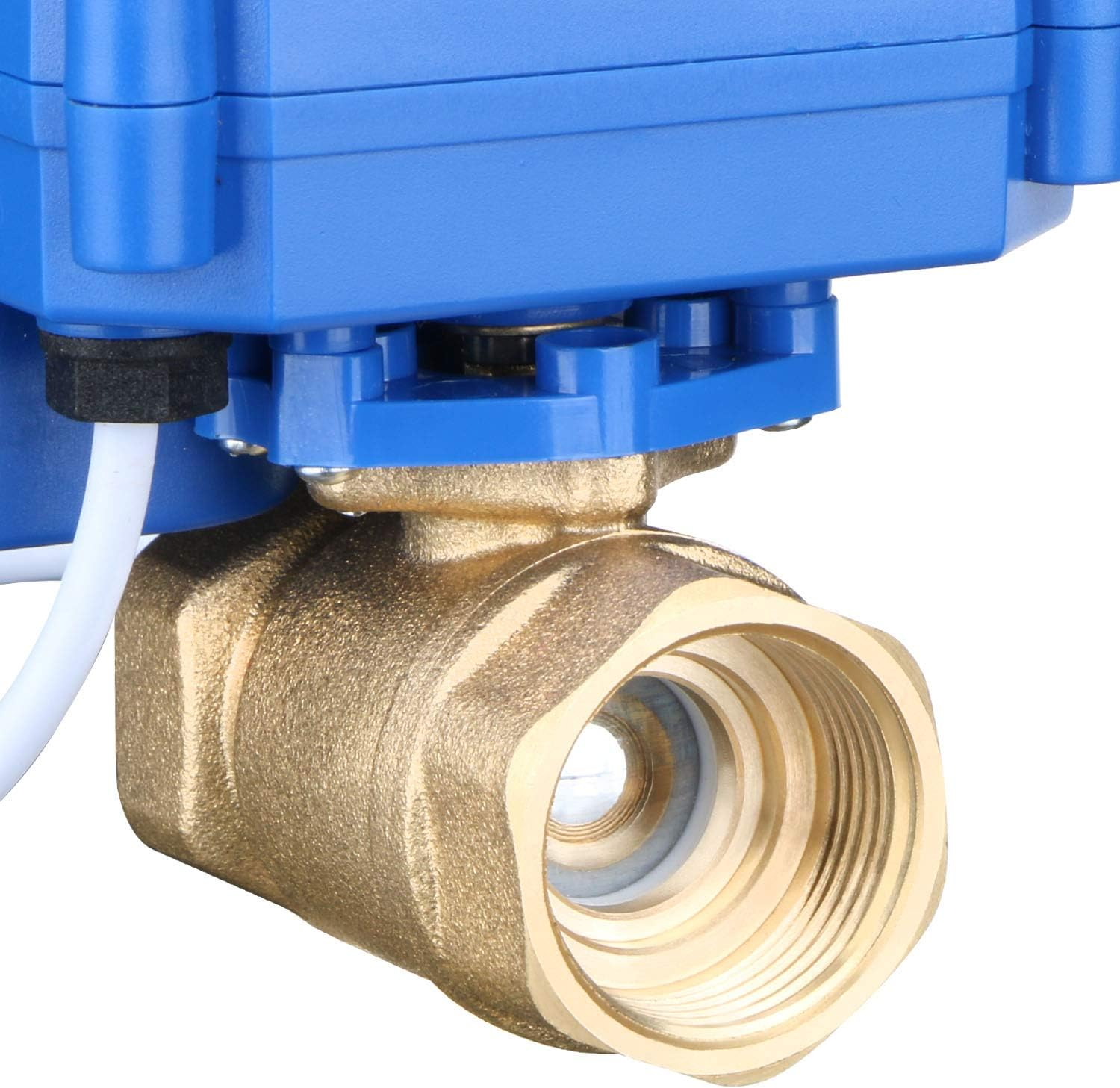

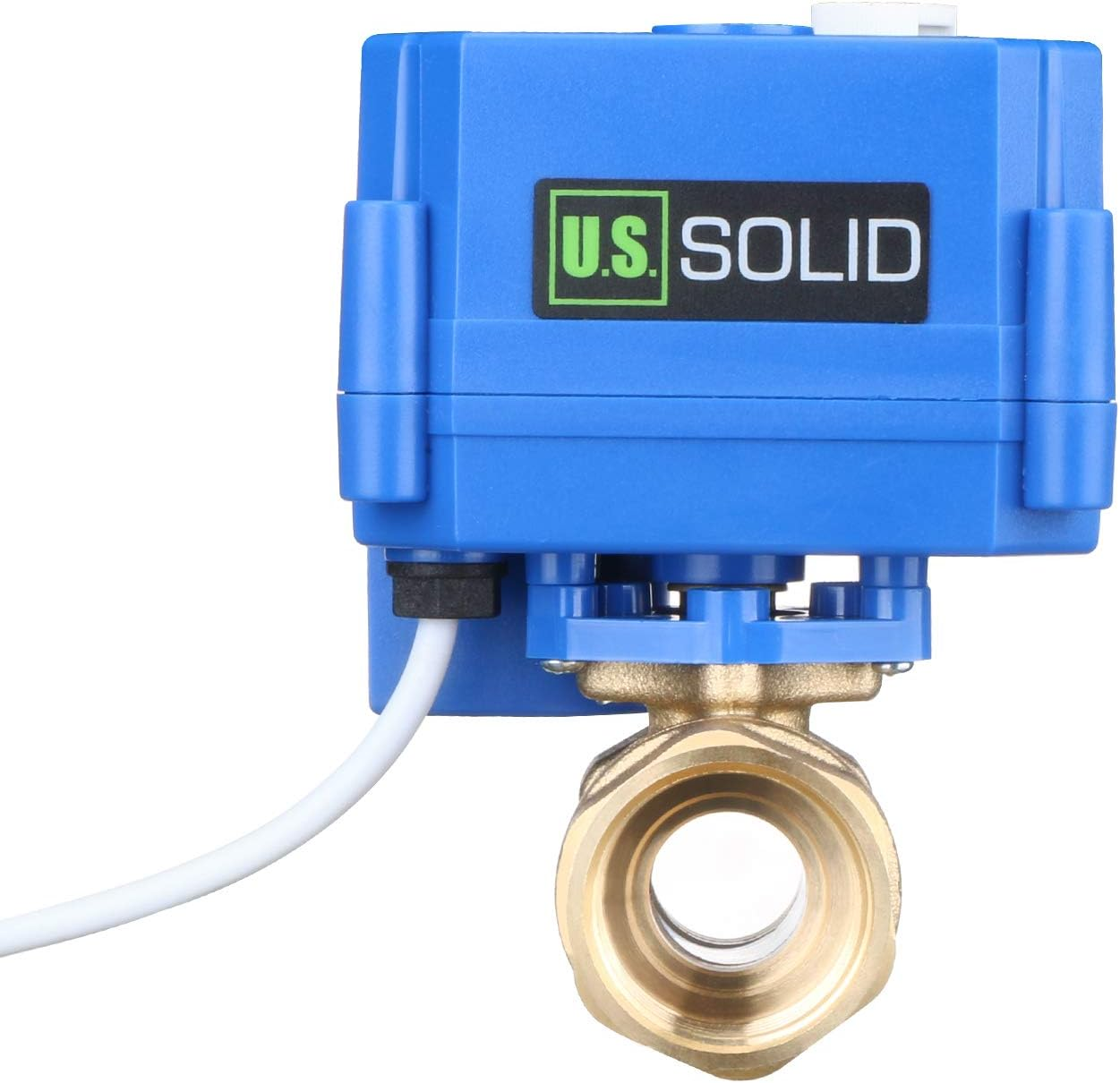

U.S. Solid Motorized Ball Valve- 3/4 Brass Ball Valve with Manual Function, Standard Port, 9-24V AC/DC and 2 Wire Auto Return Setup By

U.S. Solid Motorized Ball Valve- 3/4 Brass Ball Valve with Manual Function, Standard Port, 9-24V AC/DC and 2 Wire Auto Return Setup By

Brand: U.S. Solid
3.4
A$87.05 - A$125.25
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • NPT THREADING- 3/4” quality brass thread, manufactured and measured according to tiol Pipe Thread standards.
  • 9V-24V AC/DC- Works effectively over entire voltage range, this motorized ball valve will open or close valve in 6~8 seconds.
  • 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, limit switch minimizes power after valve is fully open, and the valve returns to fully closed if power is removed, Ideal for projects where an automatic return is necessary.
  • ALTERTIVE TO SOLENOID VALVES- Automatically minimizes power after valve is fully open, this reduces likelihood of overheating, making it a great altertive to solenoid valve for projects where a valve needs to be open for an extended period of time.
  • SAFE AND RELIABLE- Made of durable brass, this valve is safe and reliable. The estimated life expectancy of 80,000 to 100,000 cycles means it is built to last..Please Note: The solenoid valve may experience leaks as a result of impurities accumulated over multiple uses. This issue can be resolved by disassembling the valve and thoroughly cleaning it..If permanently installed outdoors, it is recommended to place it under a shelter or in a protective box to prevent prolonged exposure to rain.

This 3/4 inch motor ball valve made of brass automatic return is a blessing for many DIY enthusiasts. The body and shaft of this valve are made of brass. The valve is activated when 9V to 24V AC/DC power is supplied. The valve is normally closed. When activated, it will open in 6-8 seconds. After that, the limit switches keep the energy output at a negligible level. When the power supply is interrupted, the valve returns to a closed position. Most solenoid valves are fully energized when open, which can lead to overheating. This valve absorbs so little energy after being fully opened that it never overheats.

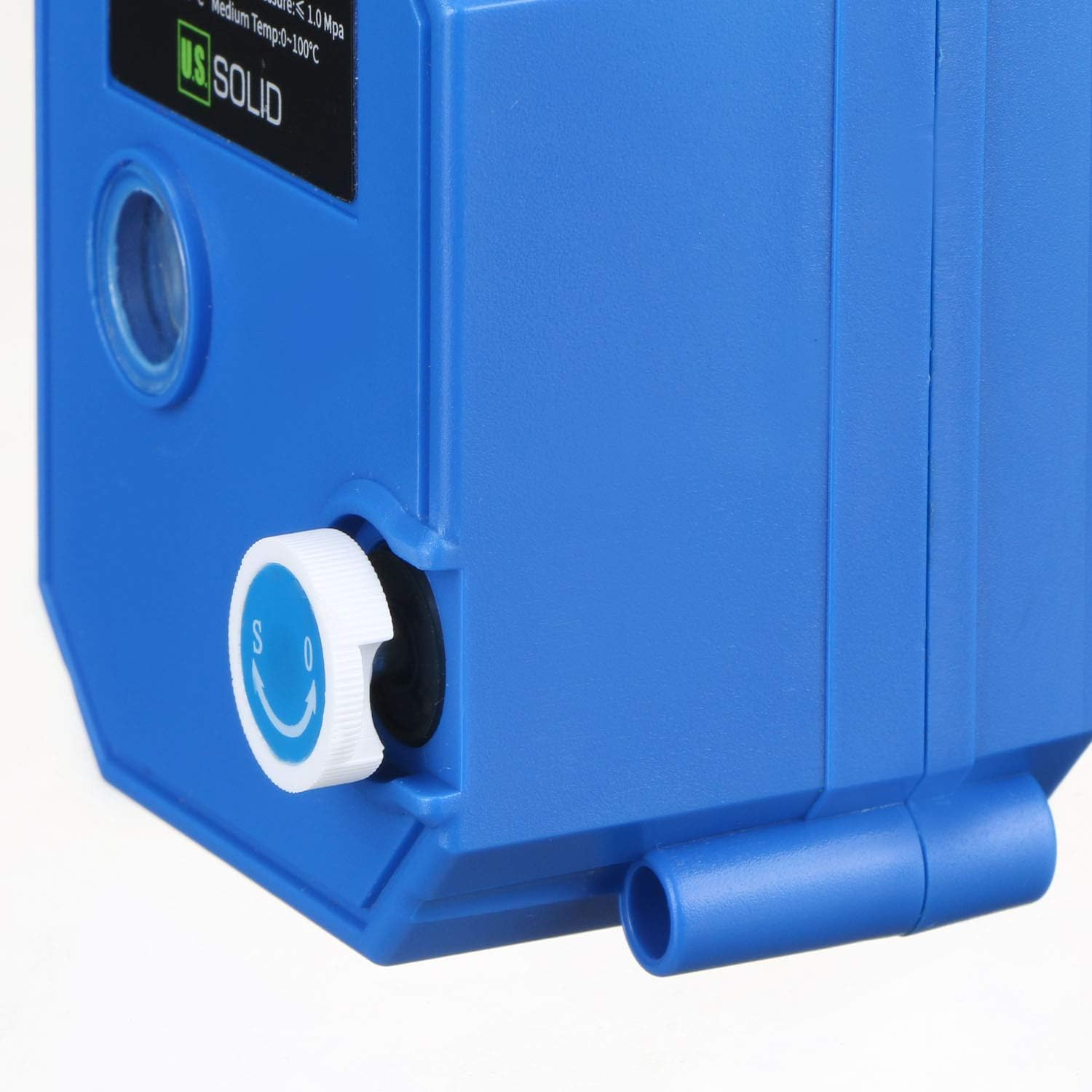

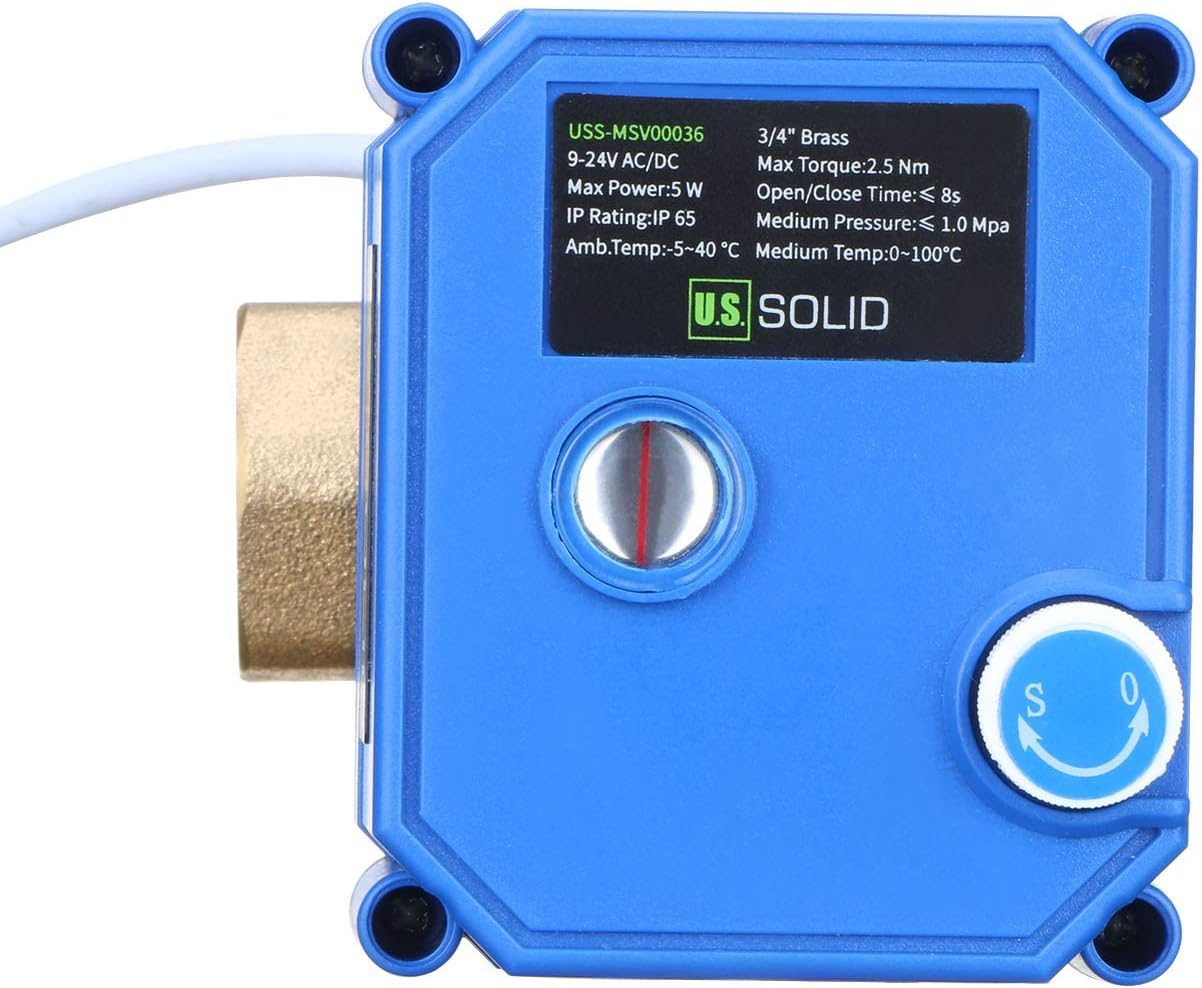

The position indicator at the top of the actuator can help you detect the on/off state of the valve. In addition, the valve has a manual function that can be manually adjusted when the valve is locked. Or if the power supply is interrupted, the valve can be opened manually if necessary.
Specifications
Material: brass.
Ball seat: PTFE.
Seal: silicone rubber.
Closing / opening time: 6-8 seconds.
Voltage: 9-24V AC/DC.
Max. Power: 5W
Max. Torque: 2.5 N m.
Max. Pressure: 1.0 MPa.
Temperature range for flow medium: 0 °C to 100 °C.
Ambient temperature range: -5 °C to 40 °C.
Housing rating: IP65.
Life expectation: 80,000-100,000 cycles.
Thread: G
Bore Type: Standard
Cannot be used in strong acid, strong base, sewage, industrial gas and other media with many impurities.
Warning: Lead content ~ 3.05% It cannot be used on drinking water.

  • Item Model Number: USS-MSV00036
  • Part Number: USS-MSV00036
  • Style: 9-24 V AC/DC
  • Colour Name: Brass
  • Item Package Quantity: 1
  • Colour: Brass
  • Material: Brass
  • Batteries Required?: No
  • Certification: BSPT
  • Item Weight: 400 g
  • Maximum Pressure: 1000 Kilopascal
  • Size Name: 0.75 Inch
  • Batteries Included?: No
  • Manufacturer: U.S. Solid
  • Product dimensions: 9 x 11.5 x 9 cm; 400 Grams
  • Size: 0.75 Inch
