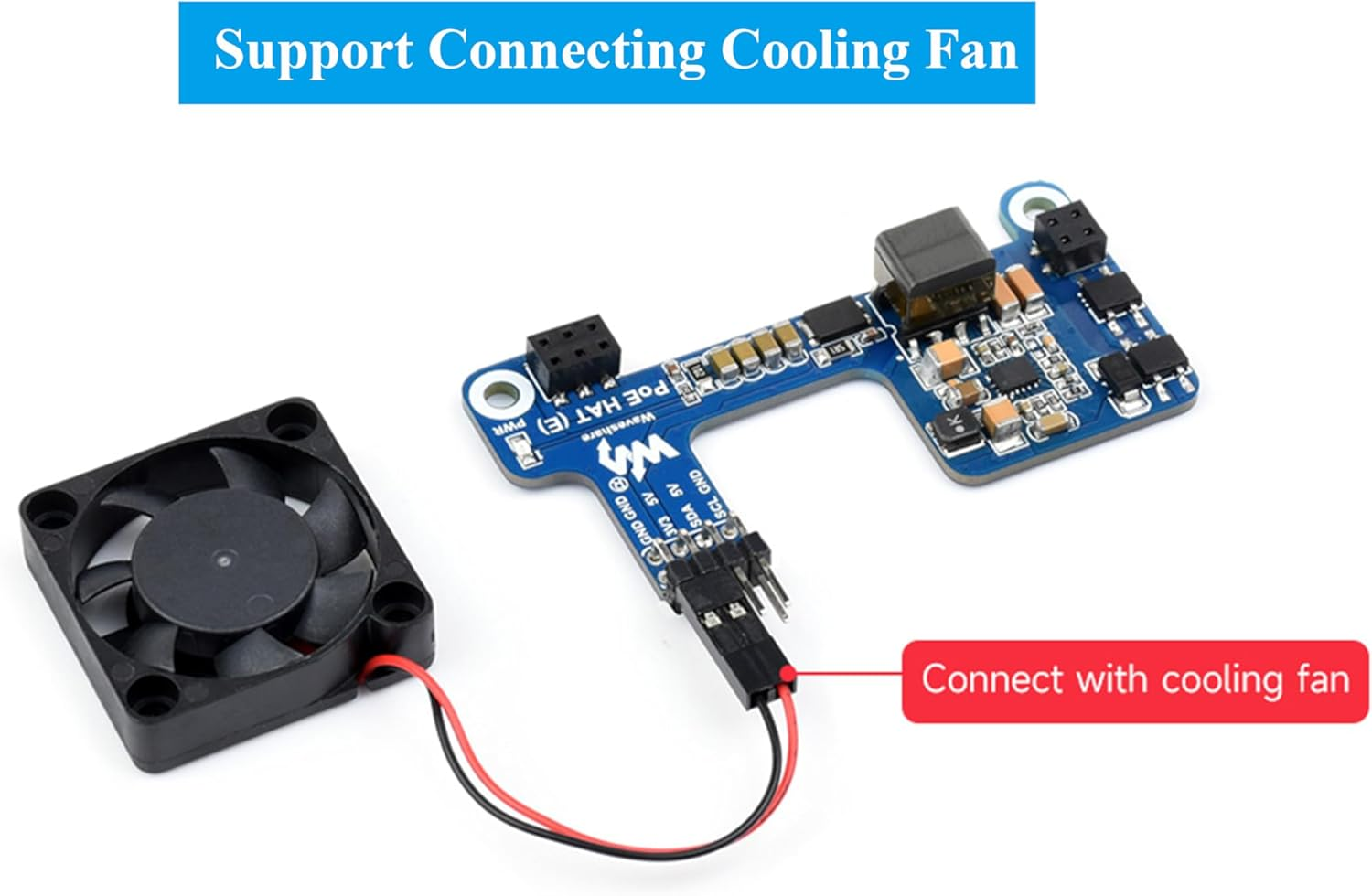

Waveshare Poe HAT E for Raspberry Pi 4B/3B+, Power over Ethernet (Poe) Support 802.3Af, Compatible with Raspberry Pi Official Case, Support Connecting Cooling Fan

Waveshare Poe HAT E for Raspberry Pi 4B/3B+, Power over Ethernet (Poe) Support 802.3Af, Compatible with Raspberry Pi Official Case, Support Connecting Cooling Fan

Brand: Waveshare
3.7
A$36.30 - A$55.55
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Power Over Ethernet HAT for Raspberry Pi 3B+/4B, compatible with official case,support connecting cooling fan.
  • PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • Smaller and more flexible with a more compact component layout
  • POE Power Input: 37V~57V DC. POE Power Output: 5V/2.5A DC. Network Standard: 802.3af PoE-compliant. Dimensions: 65.00 × 32.00mm.

Overview

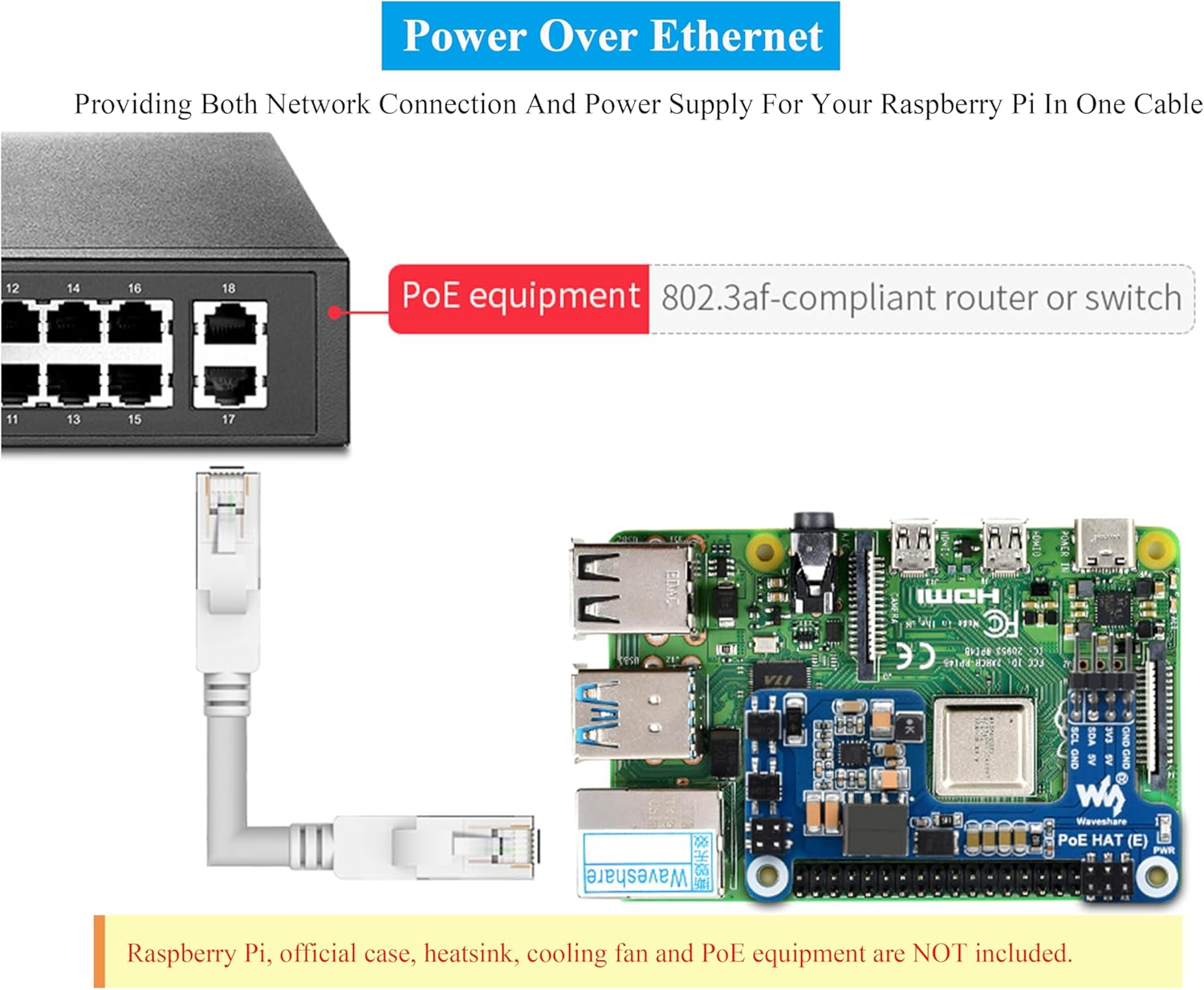

This is a mini IEEE 802.3af-compliant PoE HAT for Raspberry Pi 3B+/4B. If you already have an IEEE 802.3af-compliant PoE router or switch, with this HAT you can provide both network connection and power supply for your Raspberry Pi in one cable.
Feature

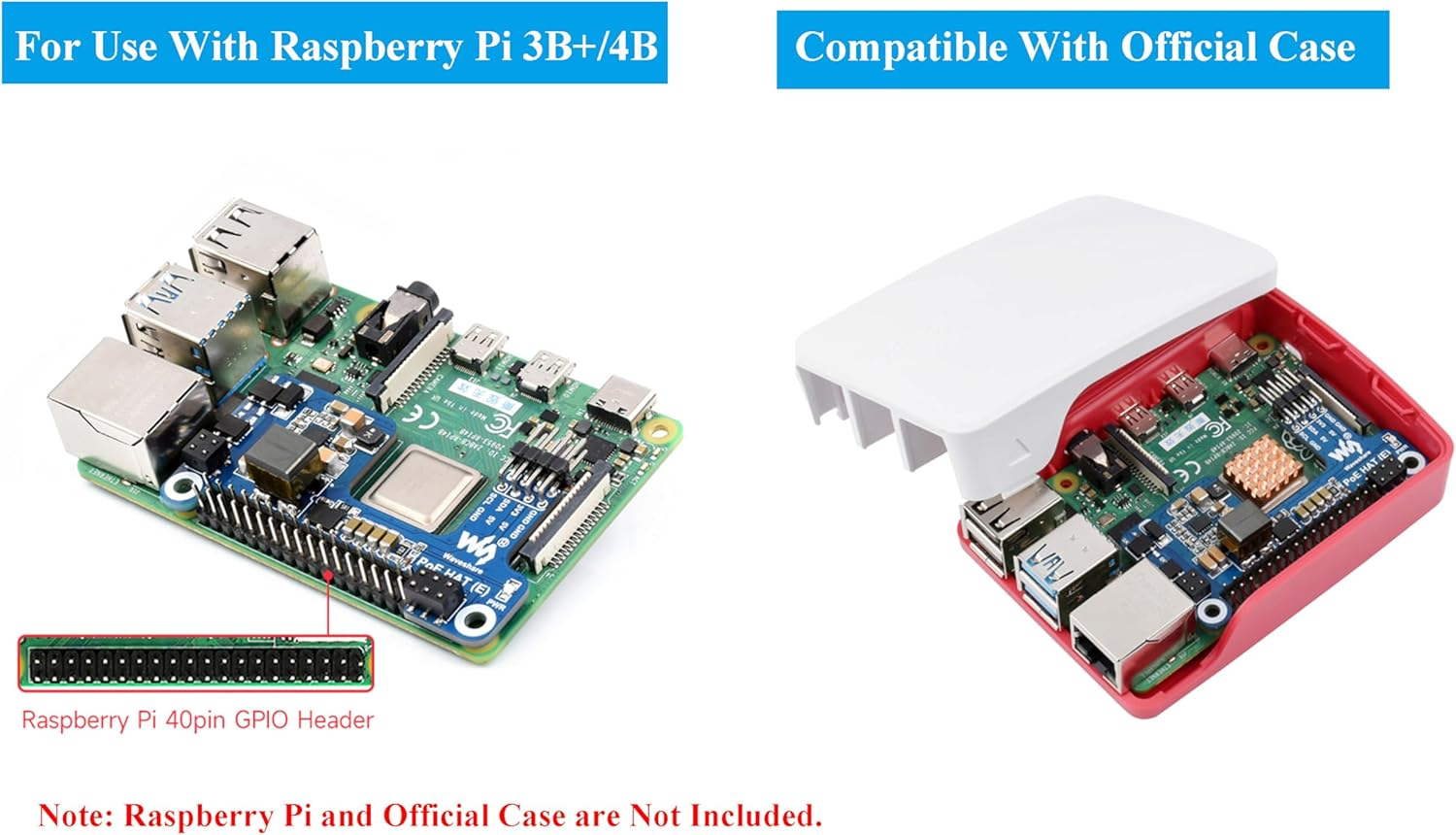

Suitable for the Raspberry Pi 3B+/4B, it can be used with the official Raspberry Pi case without taking up more space
PoE (Power Over Ethernet) capability, IEEE 802.3af-compliant
Fully isolated switched-mode power supply (SMPS)
Smaller and more flexible with a more compact component layout

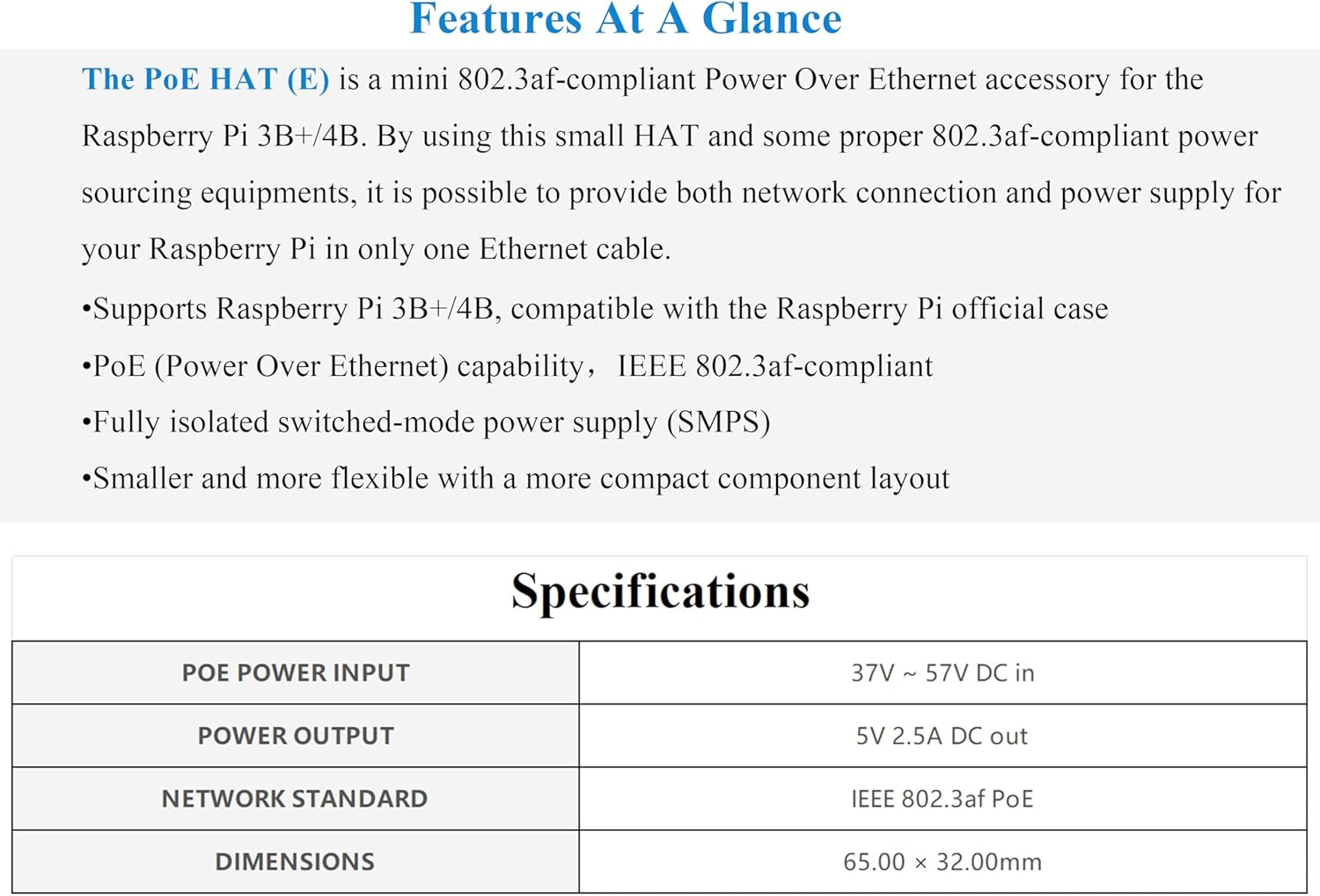

Specifications
POE Power Input: 37V~57V DC
POE Power Output: 5V/2.5A DC
Network Standard: 802.3af PoE-compliant

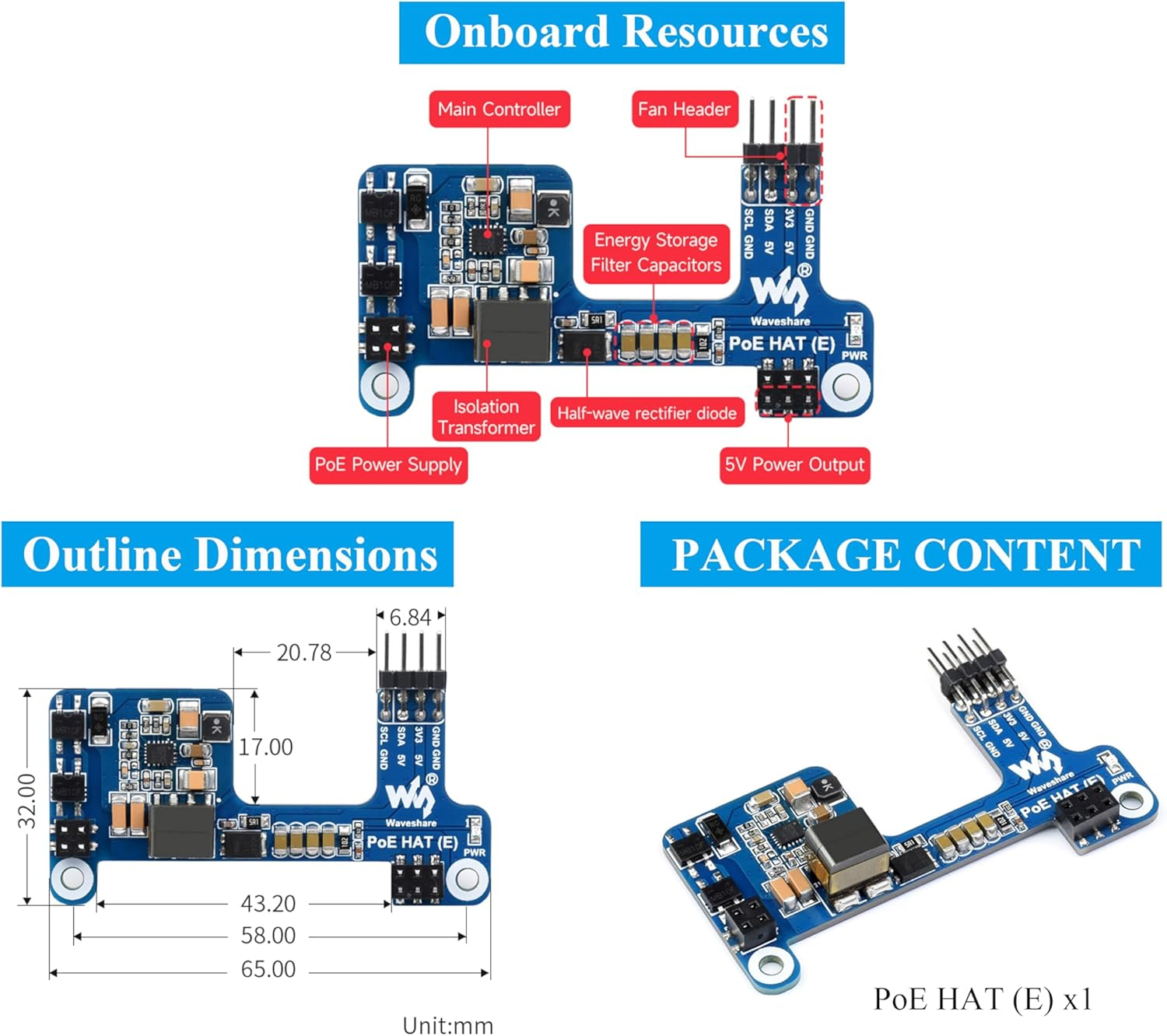

Dimensions: 65.00 × 32.00mm
Package Content
PoE HAT (E) x1

  • Item Model Number: BC-Official POE+ HAT for RPi-C
  • Part Number: BC-Official POE+ HAT for RPi-C
  • Total USB ports: 4
  • Operating System: Raspberry Pi OS
  • Colour Name: Official PoE+ HAT
  • Mounting Hardware: PoE HAT (E) x1
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Compatible Devices: Raspberry Pi 3B+, Raspberry Pi 4B
  • Connector Type: Ethernet
  • Item Weight: 9 g
  • Ram Memory Technology: LPDDR4
  • Processor Count: 1
  • Model: BC-Official POE+ HAT for RPi-C
  • Model Name: PoE HAT
  • Processor Brand: Broadcom
  • Product dimensions: 4 x 3 x 2 cm; 9 Grams
  • Manufacturer: Waveshare
