Wiim Ultra Music Streamer & Digital Preamp | 3.5" Touchscreen, Compatible with Google Cast & Alexa, Stream Spotify, Amazon Music, Tidal & More | HDMI ARC, Phono Input & Headphone Output | Silver

Wiim Ultra Music Streamer & Digital Preamp | 3.5" Touchscreen, Compatible with Google Cast & Alexa, Stream Spotify, Amazon Music, Tidal & More | HDMI ARC, Phono Input & Headphone Output | Silver

Brand: WiiM
4.4
A$628.95
Colour
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

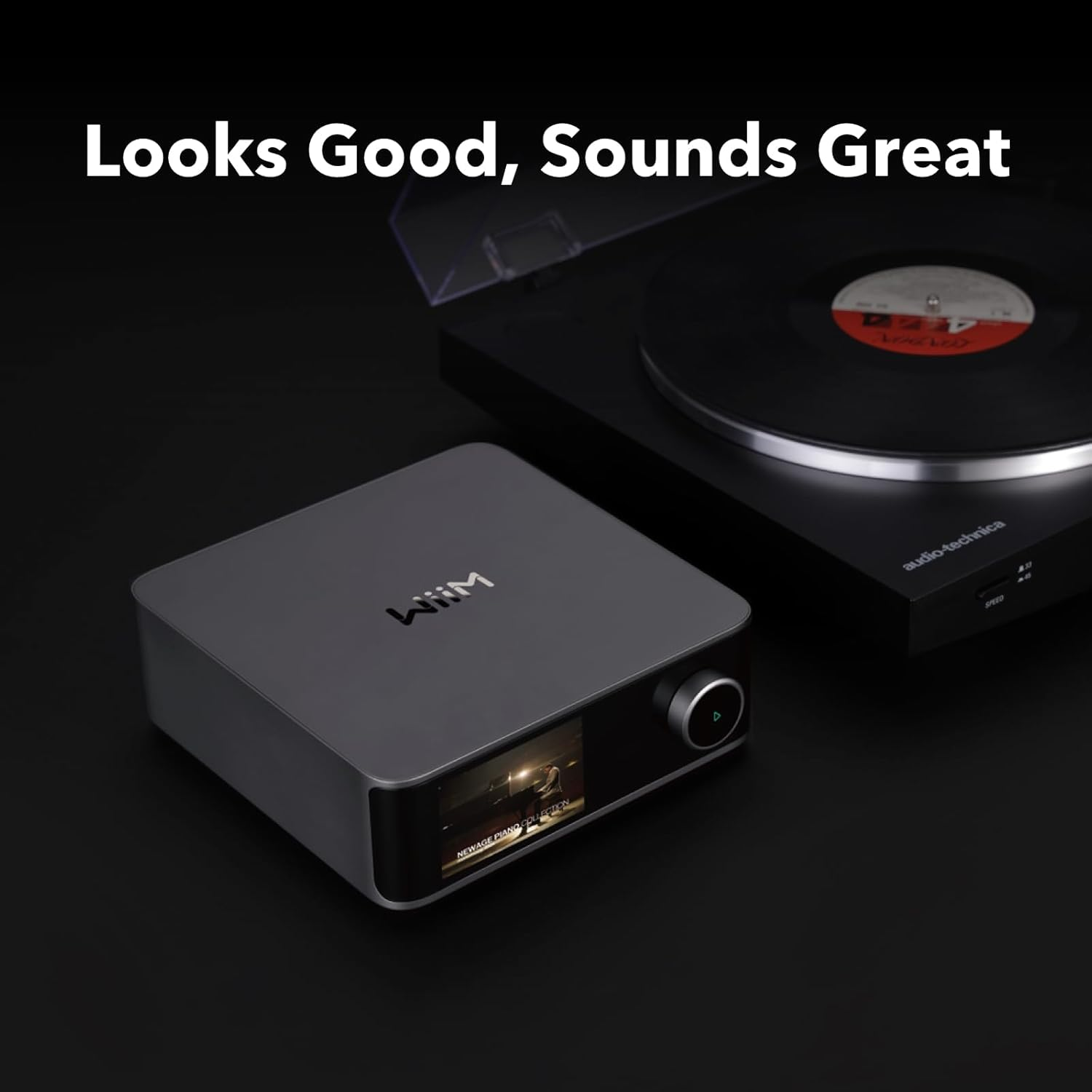

  • Looks Good, Sounds Great: The WiiM Ultra redefines your audio experience with its sleek aluminum design and premium components. This all-in-one music streamer boasts a ESS ES9038 Q2M DAC, a vibrant 3.5” touchscreen, state-of-the-art Wi-Fi 6E, and Bluetooth 5.3 connectivity. Engineered for excellence, it delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121dB, making it a perfect addition to any sound system.

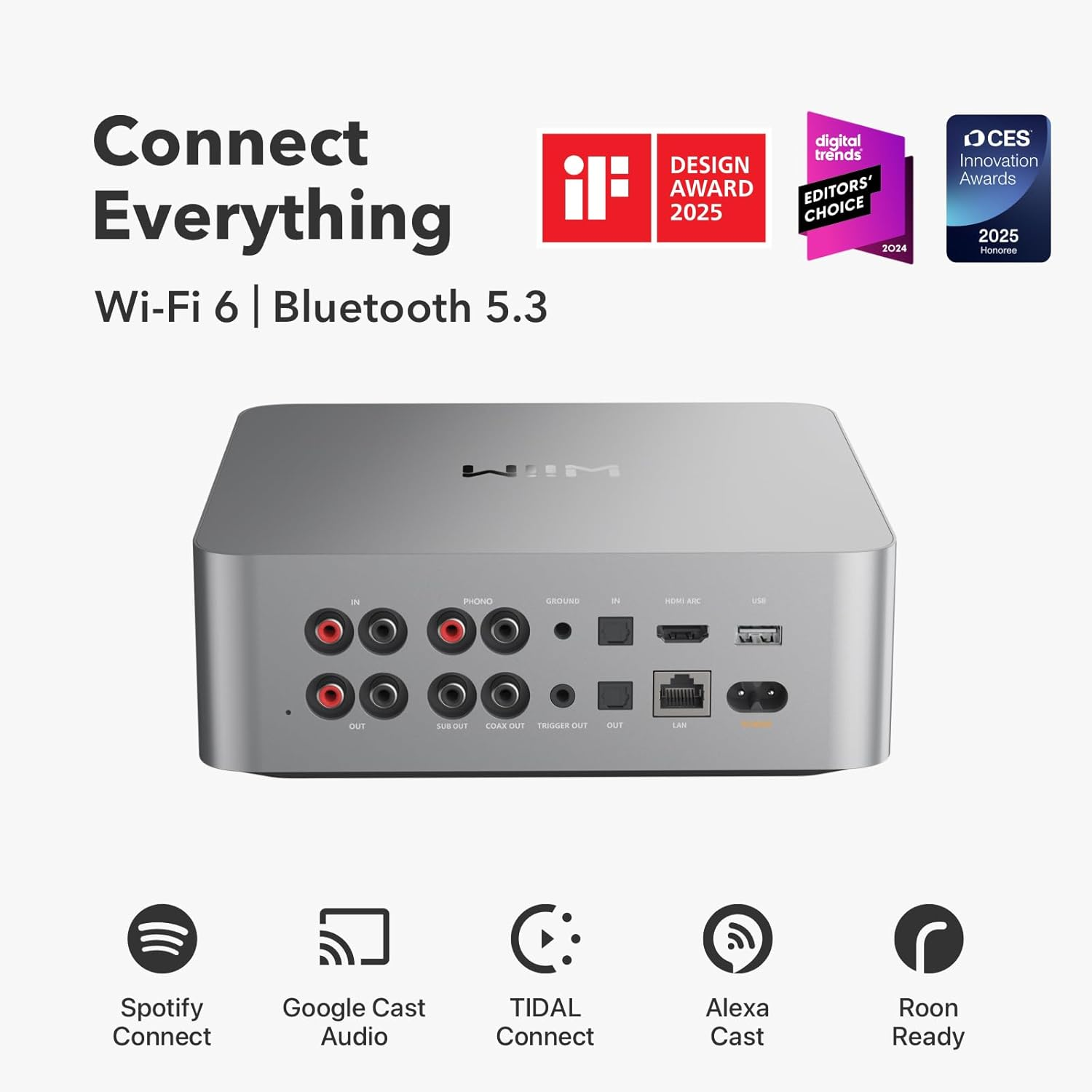

  • Versatile Connectivity Options: The WiiM Ultra offers versatile audio integration with its wide array of connection options. It features USB, Optical, Coaxial, RCA, a dedicated headphone output; HDMI ARC, and inputs for RCA, Phono, and Optical. It seamlessly integrates with both digital and analog sources, offering unparalleled flexibility for any audio setup.
  • Home Theater Magic, Made Easy: Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.

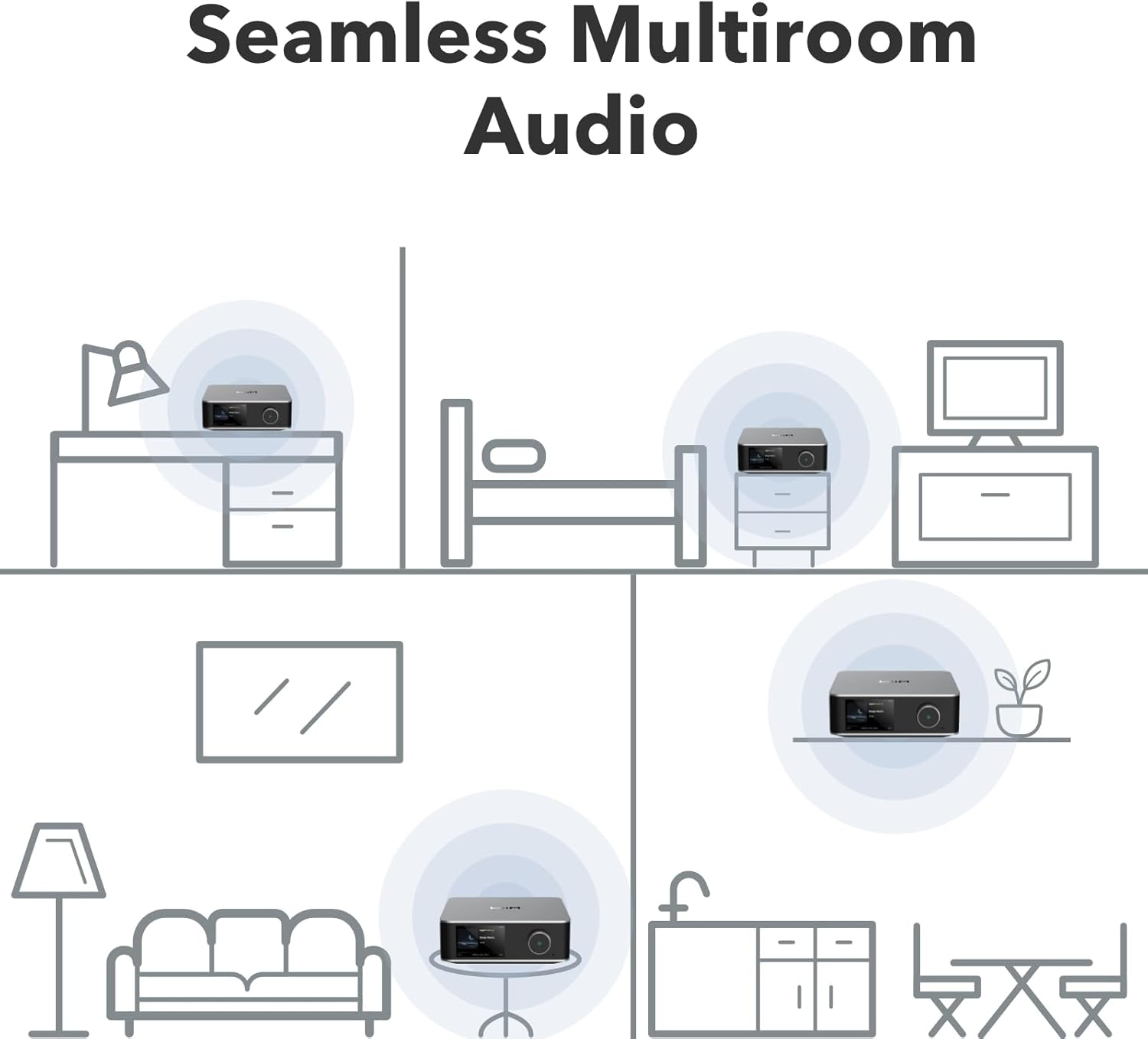

  • Seamless Multiroom Audio: Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.
  • Hi-Res Sound Shaped by You: Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.
  • NOTE: This device is incompatible with AirPlay and cannot function as an AirPlay receiver.

Product Description

Digital Hub for Your Music

The WiiM Ultra redefines your audio experience by bringing Hi-Res streaming capabilities, advanced room correction, and smart home integration to your existing setup, be it powered speakers or amplifiers. It seamlessly connects with a wide range of devices, offering a versatile audio solution.

Sleek Design, Superior Build

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5” glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.

Superior Sound Quality

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

Home Theater Magic, Made Easy

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

hero-video

Merchant video

  1. Stream Everything You Love

    No more app-hopping. WiiM Home App connects you to a plethora of popular music streaming services.

  2. Cutting-Edge Wireless Tech

    Features latest Wi-Fi 6 and BT 5.3 with dual antennas for rock solid Hi-Res audio streaming.

  3. Sound Shaped by You

    Built-in room correction measures your room's acoustics and customizes audio for your speakers.

  4. 3.5" Vibrant Touch Display

    Features large album art, UV meter, instant feedback, music playback, and customizable displays.

Easy to Set Up and Use

Step 1

Connect your speaker to WiiM Ultra.

Step 2

Plug in WiiM Ultra and connect to your network with the WiiM Home App.

Step 3

Pair your voice remote.

Step 4

Configure your device and music account, and play Hi-Res music.

Dimensions and Weight 8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm), 3.13 lbs (1.42 kg )
Colors Space Gray, Silver
Touch Display Displays App widgets, large album pictures, playback control, playing queue.presets, EQ, audio input and output, and device settings; Guides users through the OOBE and OTA; Provides feedback when there's a change in the play mode.
Controls Volume knob, play/pause, and more
LED 4 Color RGBW LED indicates the device status
Speaker Output Stereo or dual mono sound
Home Theatre Audio Formats Stereo PCM, Dolby Digital (DTS are not supported)
Audio Input HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/192 kHz
Audio Output RCA, Headphone, Coax, Optical, USB, BT, or DLNA receiver
Audio Format MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
EQ 24 preset EQ settings, 10-band Graphics EQ, 10-band Parametric EQ
Subwoofer Output Comprehensive bass management; Adjustable crossover frequency, level, phase, and latency.
Power Supply 100-240V AC input, 50/60 Hz, 0.5A Max
Connectivity Network - Wi-Fi 6, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands. 10M/100 Mbps LAN; Bluetooth - BT 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.
Supported Streaming Protocol Spotify Connect, TIDAL Connect, Roon Ready, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite
External Storage Access personal media library and use it as a media server for other WiiM and DLNA devices, Support FAT32, NTFS, and EXT4 file systems.

Which WiiM product is right for you?

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.6 out of 5 stars 1,322
4.5 out of 5 stars 1,308
4.5 out of 5 stars 1,308
4.6 out of 5 stars 4,977
4.6 out of 5 stars 4,977
4.4 out of 5 stars 3,917
Price
$599.00$599.00 $699.00$699.00 — $329.00$329.00 $186.15$186.15 $139.00$139.00
Connected Device for Streaming
Amplifier or Powered Speaker Passive Speaker Passive Speaker Amplifier or Powered Speaker Amplifier or Powered Speaker mplifier or Powered Speaker
Wireless Connectivity
Wi-Fi 6, BT 5.3 Wi-Fi 6, BT 5.3 Wi-Fi 5, BT 5.0 Wi-Fi 5, BT 5.0 Wi-Fi 5, BT 5.0 Wi-Fi 5, BT 5.0
Audio Input Port
HDMI ARC, Optical, Line, Phono HDMI ARC, Line In, Optical HDMI ARC, Line In, Optical Line-in, Optical Line-in, Optical AUX 3.5mm jack
Audio Output Port
RCA Optical Coax USB Headset HP Terminals, Subwoofer HP terminals / Subwoofer Line-Out, Optical, Coax Line-Out, Optical, Coax AUX 3.5mm jack, Optical
DAC IC
ESS ES9038 Q2M ESS ES9038 Q2M ESS 9018 K2M AKM 4493SEQ TI PCM 5121 TI PCM 5121
Pair with a Sub
Y Y Y - - -
Analog Out SNR
121 dB 120 dB 98 dB 121 dB 106 dB 106 dB
THD+N (A-weighted)
-116 dB (0.00015%) -105 dB (0.0005%) at 5W - 92dB (0.0025%) at 5W -113dB (0.00023%) -92dB (0.0025%) -92dB (0.0025%)
Analog Input (ADC)
Up to 192k, 24 bit Up to 192k, 24 bit Up to 192k, 24 bit Up to 192k, 24 bit Fixed 48k, 16 bit Fixed 48k, 16 bit
Airplay
- - Y Y Y Y
Alexa Multiroom with UHD
Y Y Y Y Y -
Google Cast Audio
Y Y Y Y Y -
  • Country/Region of origin: China
  • Memory Storage Capacity: 512 MB
  • Product dimensions: 21.08 x 19.99 x 7.19 cm; 1.42 kg
  • Media Format: Multiple Formats
  • Special Features: Spotify Connect, Works with Alexa, Google Voice and Google Cast Audio, TIDAL Connect, Roon Ready, NAS, DLNA, Home Media Server
  • Brand: WiiM
  • Batteries Included: No
  • Model Name: Ultra
  • Does it contain liquid?: No
  • Manufacturer: Linkplay Technology Inc.
  • Item Model Number: ASR004
  • Part Number: ASR004
  • Batteries Required: No
  • Colour: Silver
  • Connector Type: Bluetooth, Wi-Fi, Ethernet
  • Item Weight: 1.42 kg
  • Model: ASR004
  • Speaker Surround Sound Channel Configuration: 2.0
  • Mounting Hardware: Quick Start Guide, 100-240V AC power cable, HDMI cable, phono earth adapter, RCA audio cable, optical audio cable, WiiM Ultra, Bluetooth Voice Remote (AAA batteries not included)
  • Compatible Devices: Speaker, DAC, Amplifier, Mobile phone, Tablet, Echo, Google Home
  • Audio Output Type: RCA, Optical, Coaxial, HDMI ARC
  • Audio output mode: Stereo
