1. CLEAR IMAGES: The backup camera adopts high performance chip, which ensures a high frame rate while providing clear images, truly high definition and .
2. INSTALLATION AREA: The car reversing camera can be installed in the front, rear, left and right visual blind zones of the vehicle for real time monitoring.
3. IP67 WATERPROOF: The reversing camera is responsive and IP67 waterproof, easily presenting clear and stable images at night or in rainy days.
4. 150 DEGREE HORIZONTAL: This rear view cameras has a larger viewing angle, with better night vision, providing more comprehensive protection.
5. WIDELY USED: Reversing camera can be applied to RVs, yachts, boats, cars, SUVs, campers, trucks, buses and so on, indoor and outdoor can be used.
Spec:
Item Type: Suspension Camera
Material: Metal
Triple Switching: (Scale Line, Mirror Image, System Switching)
Image Sensor: PC B030
Front View and Rear View Switchable (Blue Line)
Scale Line Switchable (White Line)
Standard: PAL, NTSC Switchable (Green Line)
Effective Pixels: 720x488
Horizontal Resolution: 1000 TV Lines
Horizontal Angle: 150 Degrees
Sensing Area: 3.8mm x 2.9mm
Shutter Speed: 1-1/12000
Gamma Value: 0.45
Minimum Illumination: 0.01 Lx/F=1.2 (0 Lx, IR On)
Video Output: Connector/CVBS
Power Consumption: 130mA
Power Supply: DC12-24V
Operating Temperature: -20℃ To 75℃, Relative Humidity 95% MAXIMUM
Storage Temperature: -40℃-80℃ RH95% MAXIMUM
Waterproof Rating: IP67
Night Vision Color Camera
Applicable Models: Universal products, can be applied to caravans, yachts, boats, cars, SUVs, campers, trucks, buses, etc.

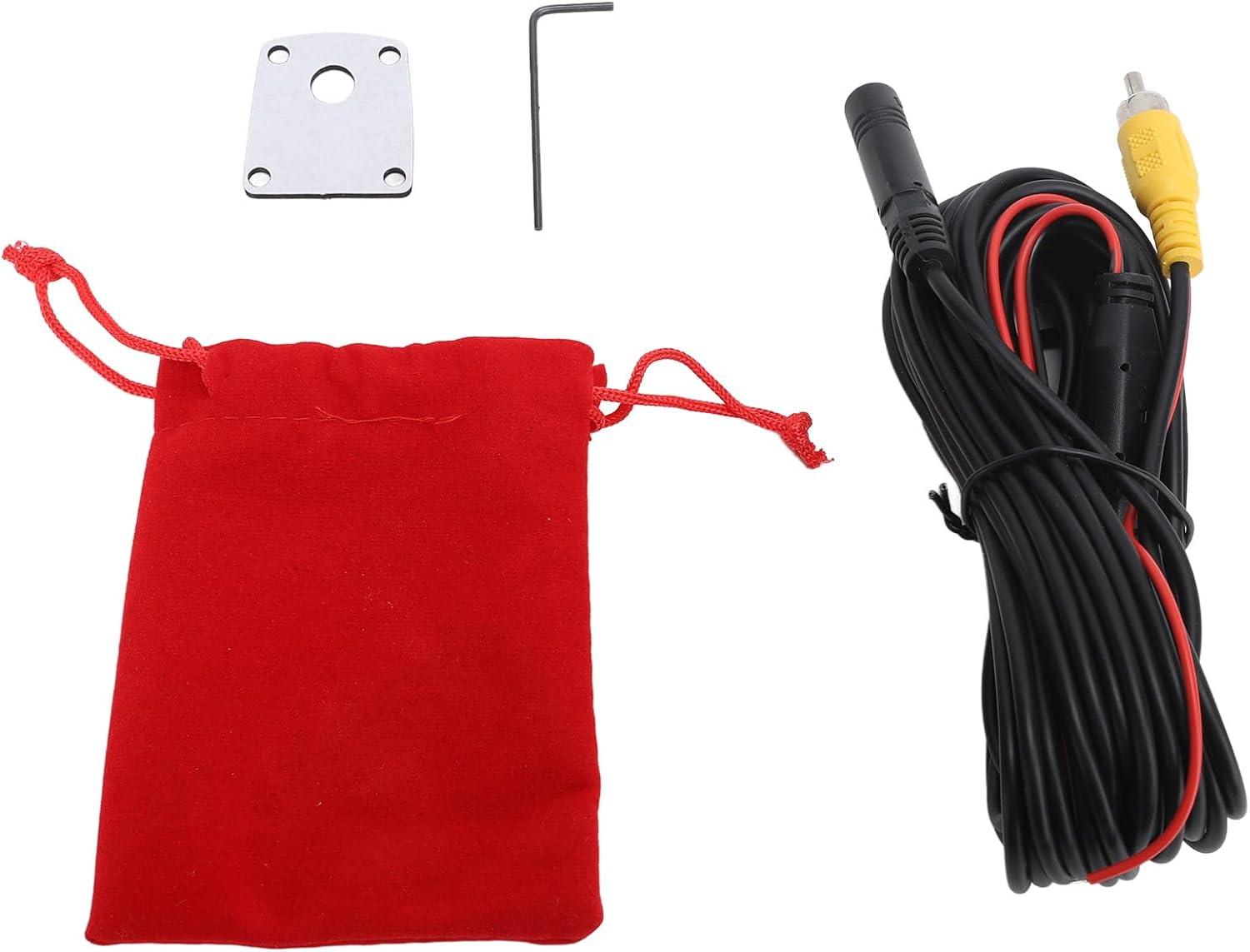

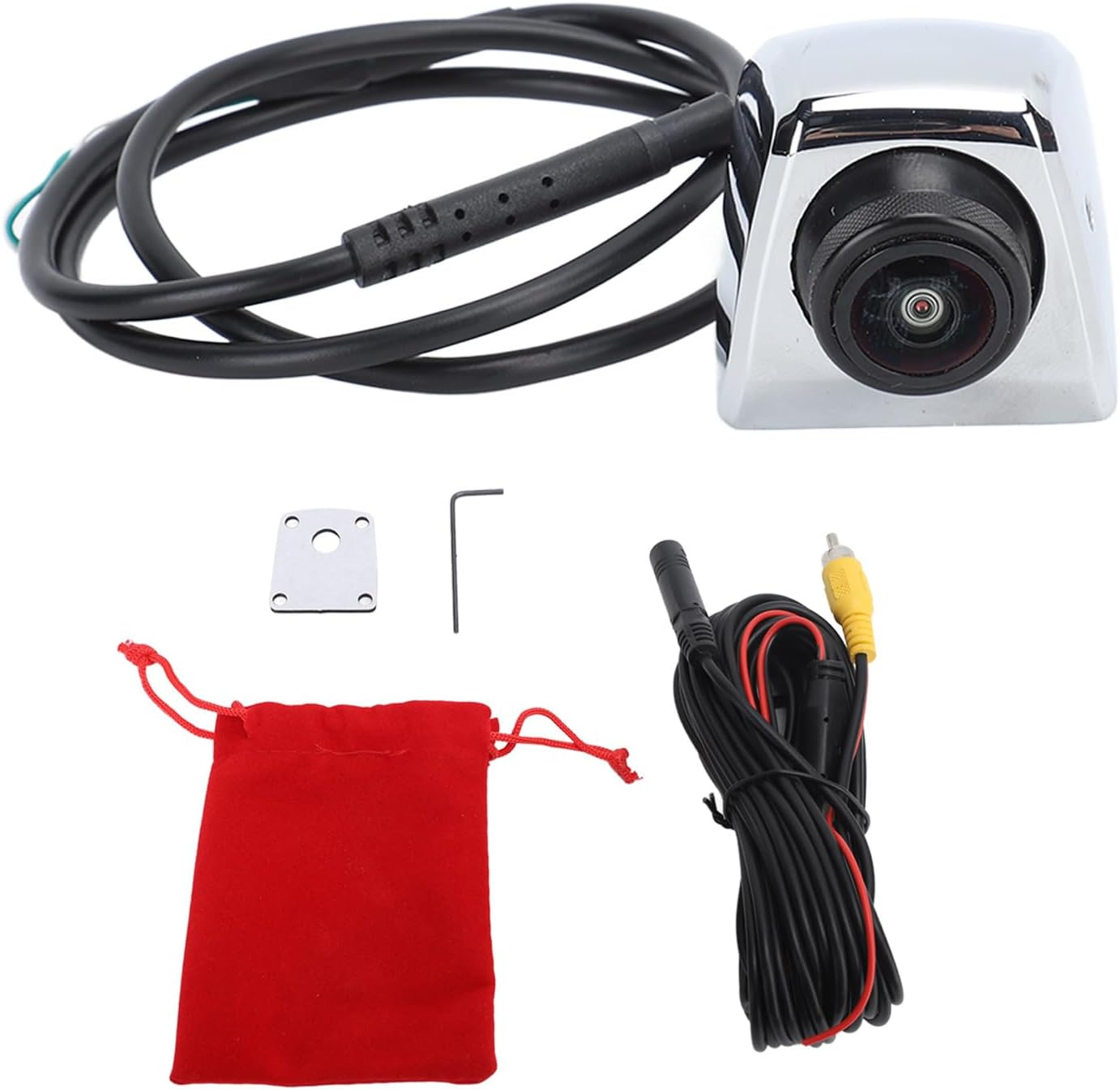

packing list:
1 x Camera
1 x Storage Bag
1 x Wire Harness
1 x Instruction Manual
1 x Double Sided Adhesive Tape
1 x Mounting Accessory
or
1 x Camera
1 x Storage Bag
1 x Wire Harness
1 x Instruction Manual
1 x Double Sided Adhesive Tape
1 x Pack of Mounting Accessories
