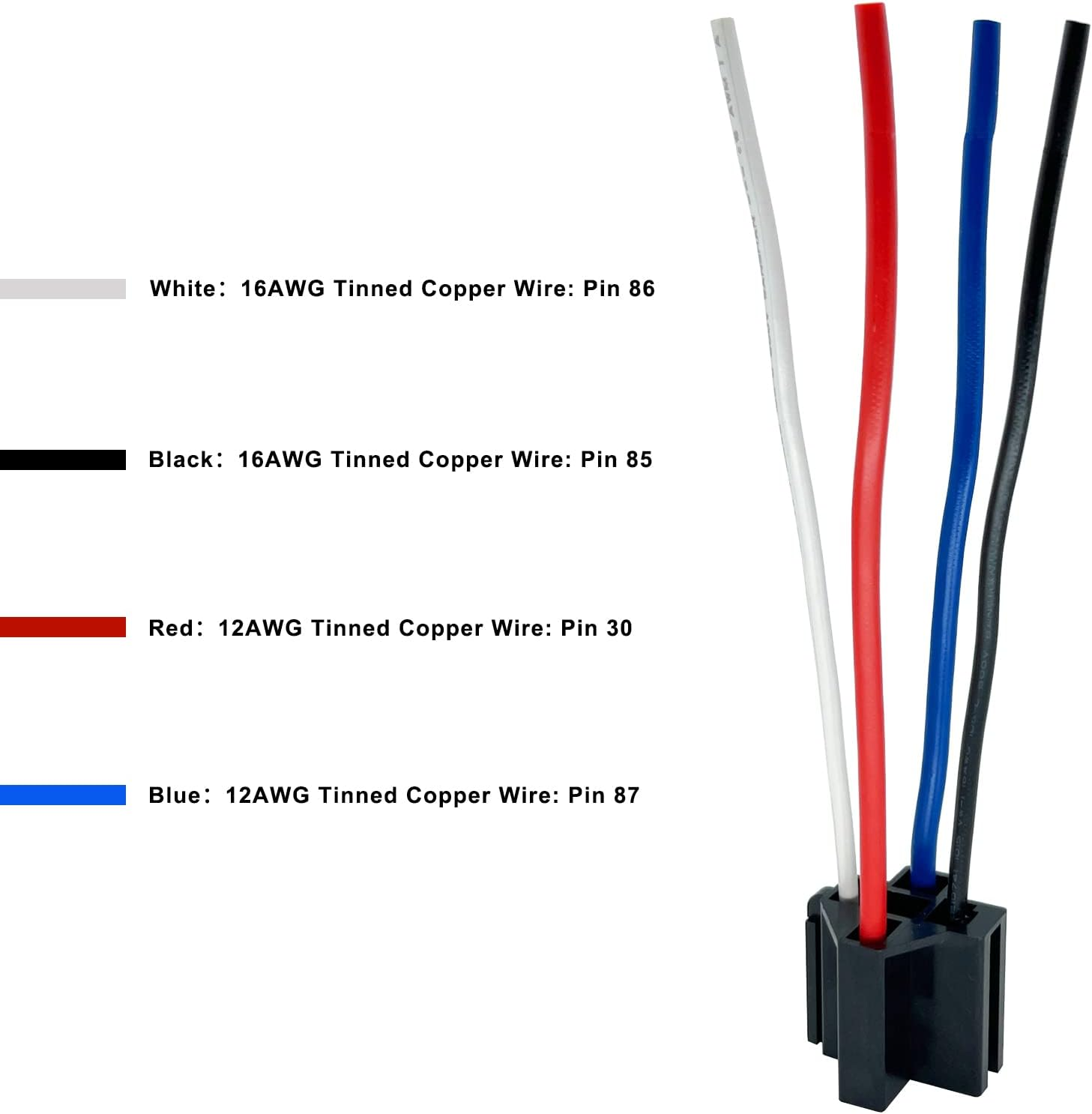

12AWG Tinned Copper Wire: Pin 87 Blue
12AWG Tinned Copper Wire: Pin 30 Red
16AWG Tinned Copper Wire: Pin 85 Black
16AWG Tinned Copper Wire: Pin 86 White
Nominal Coil Voltage: 12 V DC
Coil Power: 1.8 W
Coil Resistance: 80 Ω
Must Operate Voltage: 6~8 V DC
Must Release Voltage: 0.6~3.6 V DC
Maximum Applied Voltage: 15.6 V DC
Contact Ratings: NO 40A 14V DC
Contact Resistance: 100mMAX (at6VDC 1A)
Max Switching Current: 40A
Max Switching Power: 560 W
Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
Life Expectancy Machanical: 10,000,000 Operations
Temperature Range: -30 ~ +80 degrees Celsius
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
Hunidity: 40% ~ 85%
Insulation Resistance: 100mΩ Min at500VDC
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contactw and coil: 750AC (for one minute/sec)
Operate Tice: 7ms
Release Tice: 5ms

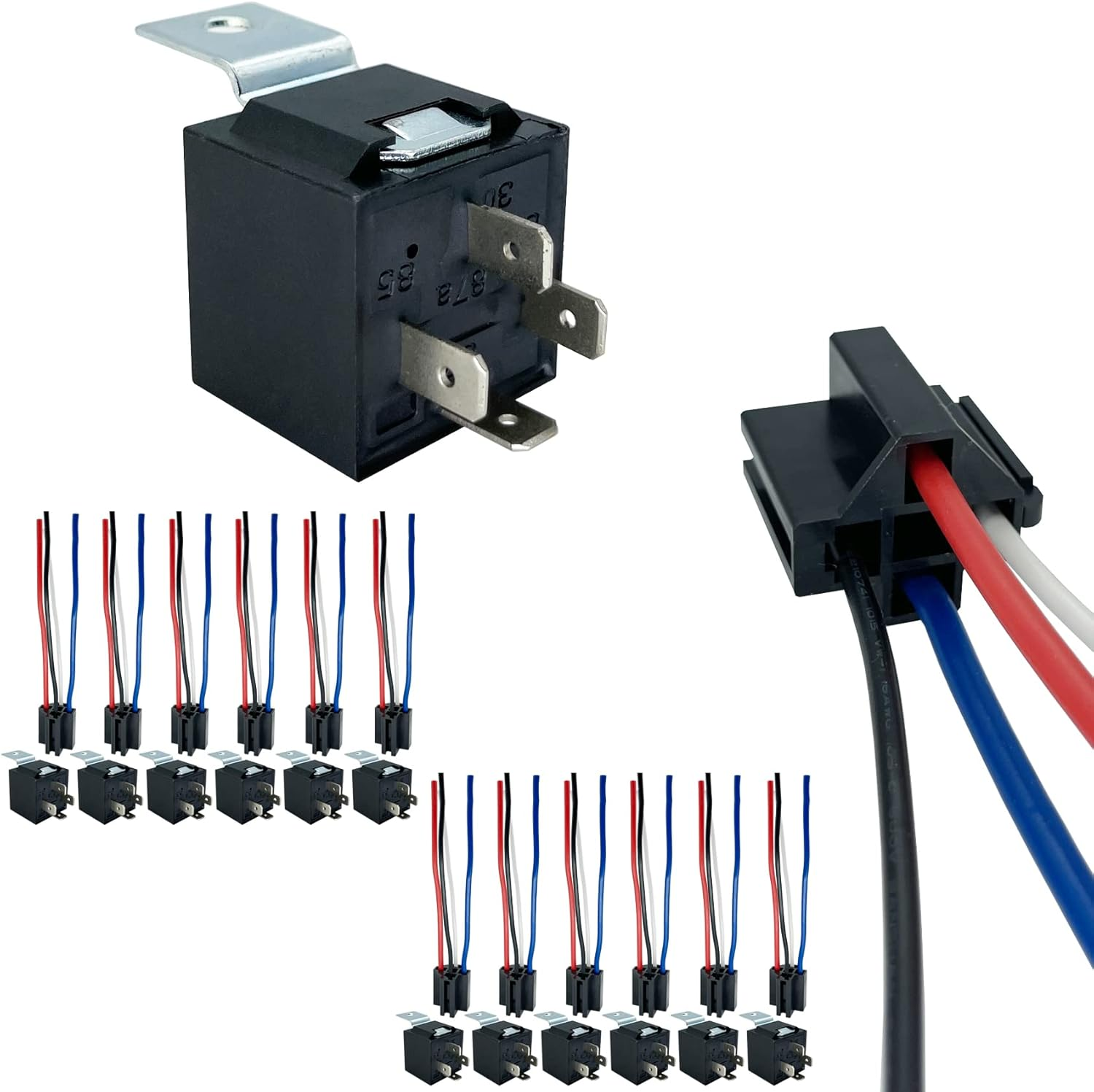

Package Content: 6 x 12 V DC relay and harness
One year performance warranty, all products sold by IRHAPSODY have a 90-day money back guarantee
Note:
1, Easy to mount - No instructions were included - You do need to know a little about electrical
2, For your and others' safety, let professional technicians to install the equipment
