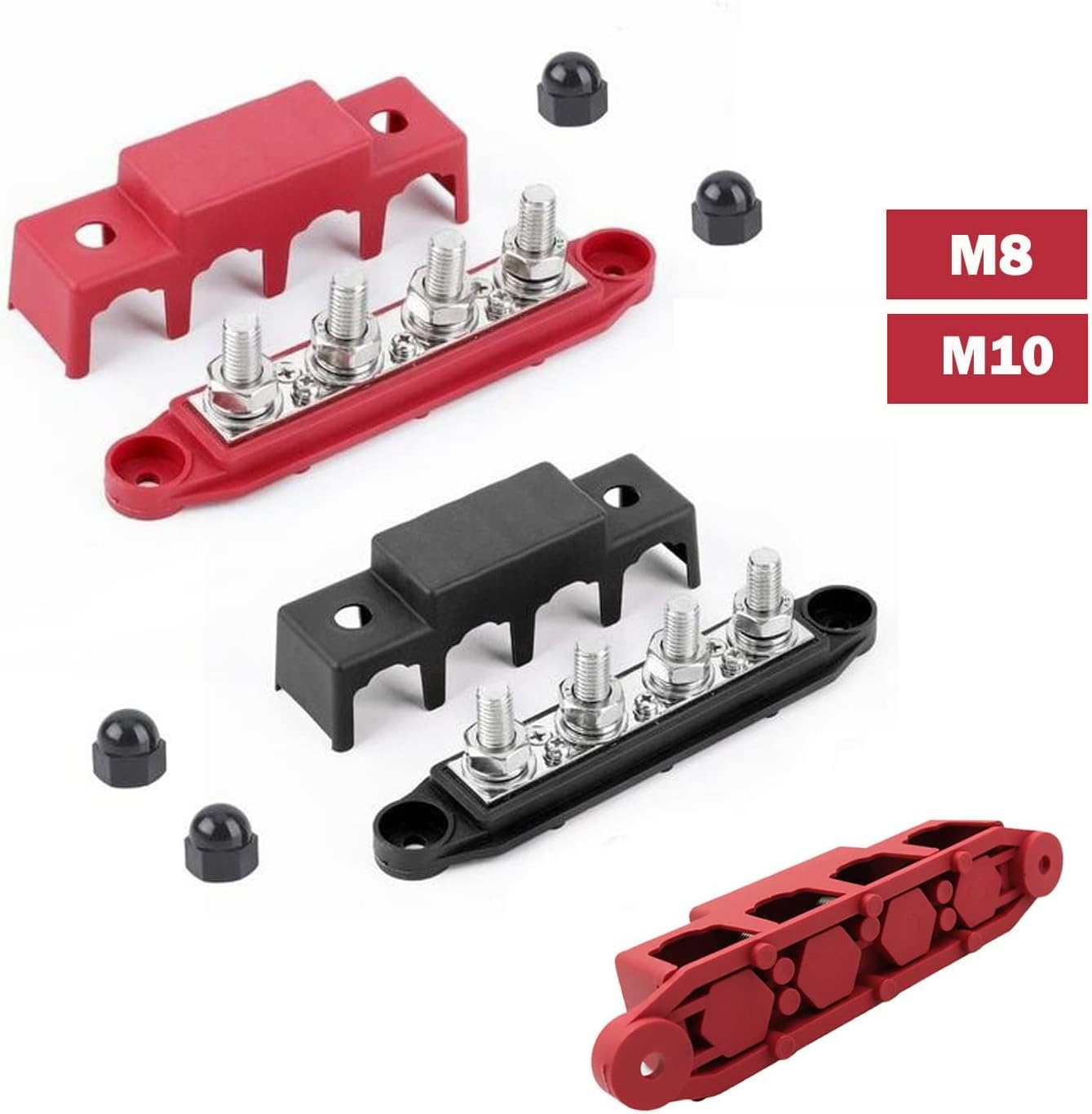

AULESSE 12V-48V DC Bus Bar Power Distribution Block 5/16" (M8) 4 Studs Heavy Duty Busbar Stud Terminal Junction Block with Cover and Ring Terminals 250 Amp for Cars Rvs Ships Yachts (Red+Black)

AULESSE 12V-48V DC Bus Bar Power Distribution Block 5/16" (M8) 4 Studs Heavy Duty Busbar Stud Terminal Junction Block with Cover and Ring Terminals 250 Amp for Cars Rvs Ships Yachts (Red+Black)

Brand: AULESSE
3.3
A$23.10 - A$42.00
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

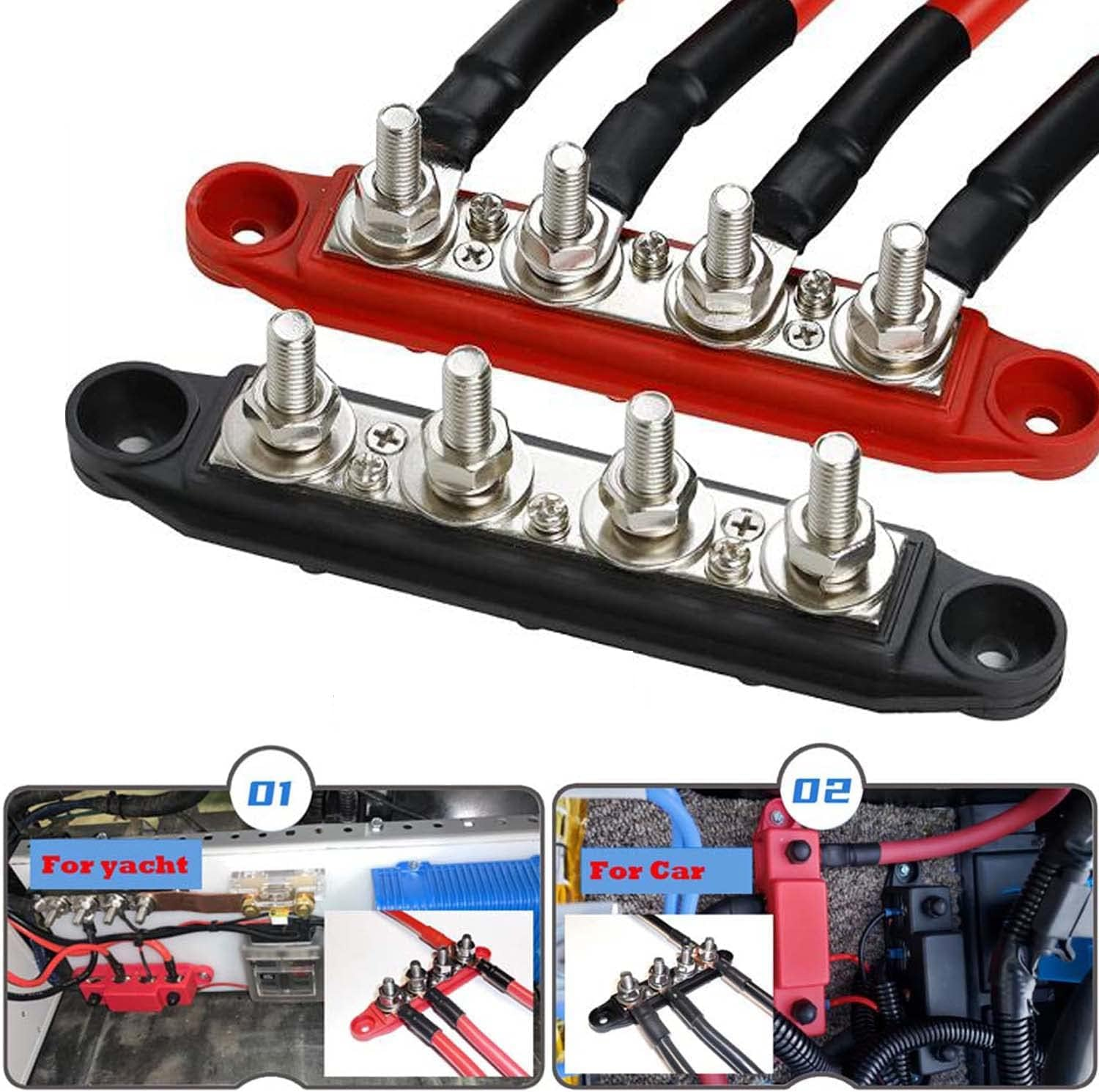

  • 【Wide Applications】The power distribution block busbar is widely used in 12‑48V automotive and marine wiring, trucks, RVs, boats, trailers and other industrial equipment. The BusBar provides a neat and clean finish to any installation on your boat or car and is perfect for all your electrical wiring projects.
  • 【Size & Function】Stud Size: 5/16". Battery bus bar measures 6.7" x 1.3" x 1.73". The maximum amplifier for each circuit is determined by the wires connected. The maximum working voltage is DC 48V, up to 250 amps.
  • 【Excellent Performance】The bus bar is made of zinc alloy and brass, which has good electrical conductivity. Insulated nylon base is flame retardant. The power distribution block busbar with protective cover can protect the connection parts from damage and corrosion; it is not easy to rust and can be used in humid environments such as the ocean.
  • 【Simple operation】The wiring is simple, just fix the ring terminal of the corresponding size on the terminal, and the conductive output current can flow stably. There are 4 binding posts to help keep the wiring tidy.
  • 【After-Sales Service】If you have any questions, please feel free to contact us. As a reliable seller, you can buy our products with confidence, hoping to bring you a perfect shopping experience.

Product Description

AULESSE 48V Power Distribution Block 250A Bus Bar Terminal Block Studs M8/M10 High Current Wiring Stud Battery Junction Block for Cars RV Ships Yachts

Heavy-Duty Terminal Studs 5/16'' (M8) or 3/8'' (M10)

The battery distribution block rated 250A when work in 12v circuit, and the battery terminal block can handle MAX 48V,suitable for cars, RVs, ships, yachts, etc.

  1. Allow terminating of heavy-duty cables for one or more connections
  2. Red and Black color allowing easy and clear color coding for wiring
  3. Nickel-plated brass bus bars and zinc alloy hardware for increased current transfer.
  4. Glass Fiber reinforced Nylon base ensures great mechanical strength and durability
  5. The outside is equipped with a dust cover, which is not easily disturbed by external factors.

About The Item:

48V power distribution block, includes 4 x 3/8" stud terminals and 4 x 5/16'' screw terminals, rated 250A when work with 48V dc supplier, each battery distribution block will come with a protect cover and 2 nuts.

  • Maximum Voltage: 48V DC
  • Rated Current of The Whole Block : 250A
  • Auxiliary Terminal Screw Current: 20A

Specifications

Product Name: terminal stud bus bar
Product Material: ABS, zinc alloy, brass
Color: red and black
Maximum Working Voltage: DC 48V, Up to 250 Amp

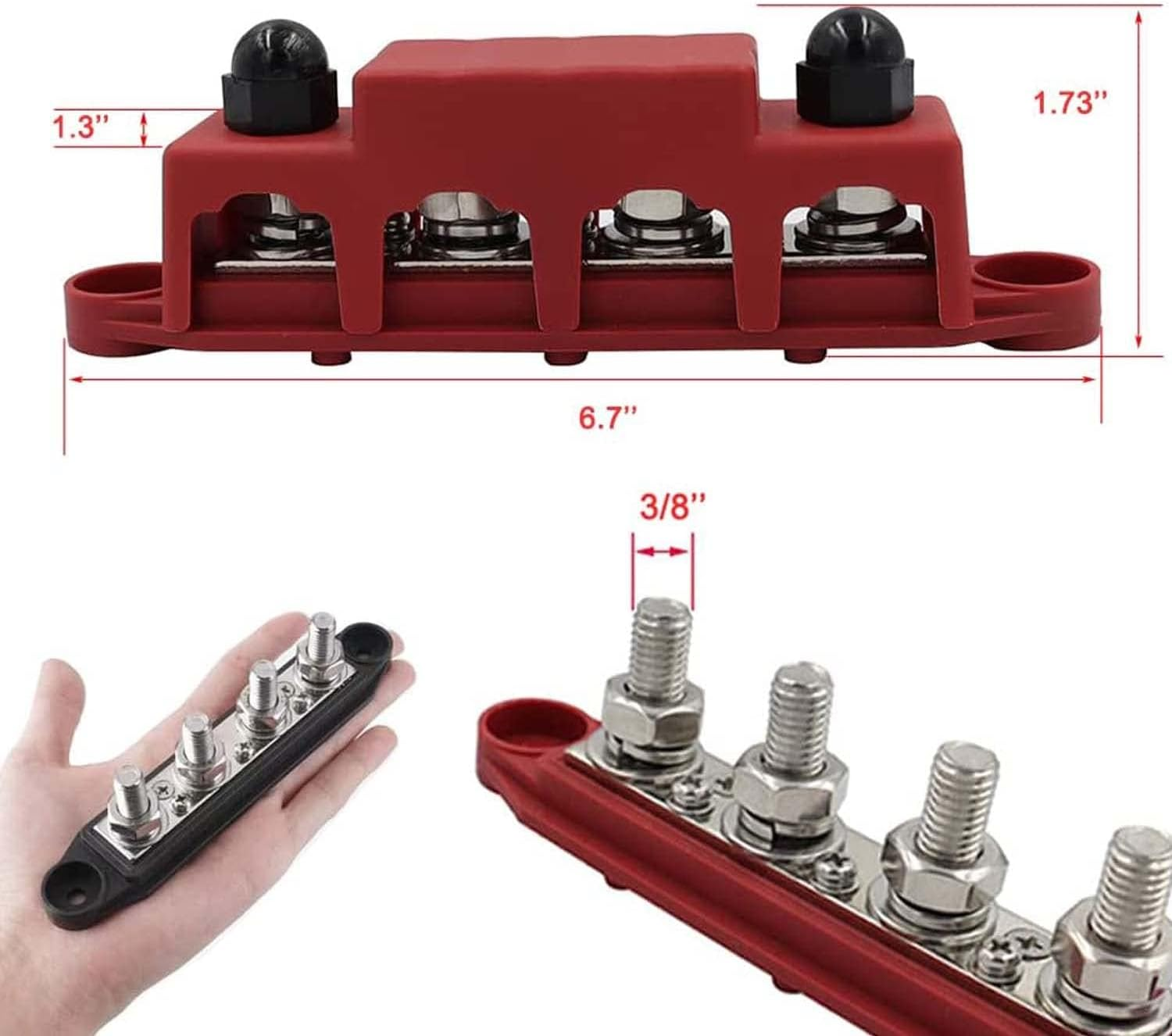

Product Size: 6.7 x 1.7 x 1.3"
Power Stud Size: 5/16‘’ or 3/8''
Product Function: gather the wire harnesses together, and reasonably store the wires inside the car and ship
Scope of Application: power supply systems for automobiles, RVs, ships, yachts, etc.
Package Includes: 2 X terminal stud bus bar (red+black)

5/16" Stud Terminal

The 48v bus bar is 4 x M8 (5/16") stud and 4 x M10 (3/8'') screw terminal design, can allow max 250A current pass through the battery terminal block.

High Quality Material

The bus bar terminal block made of glass fiber reinforced nylon material, ensures great mechanical strength and durability.

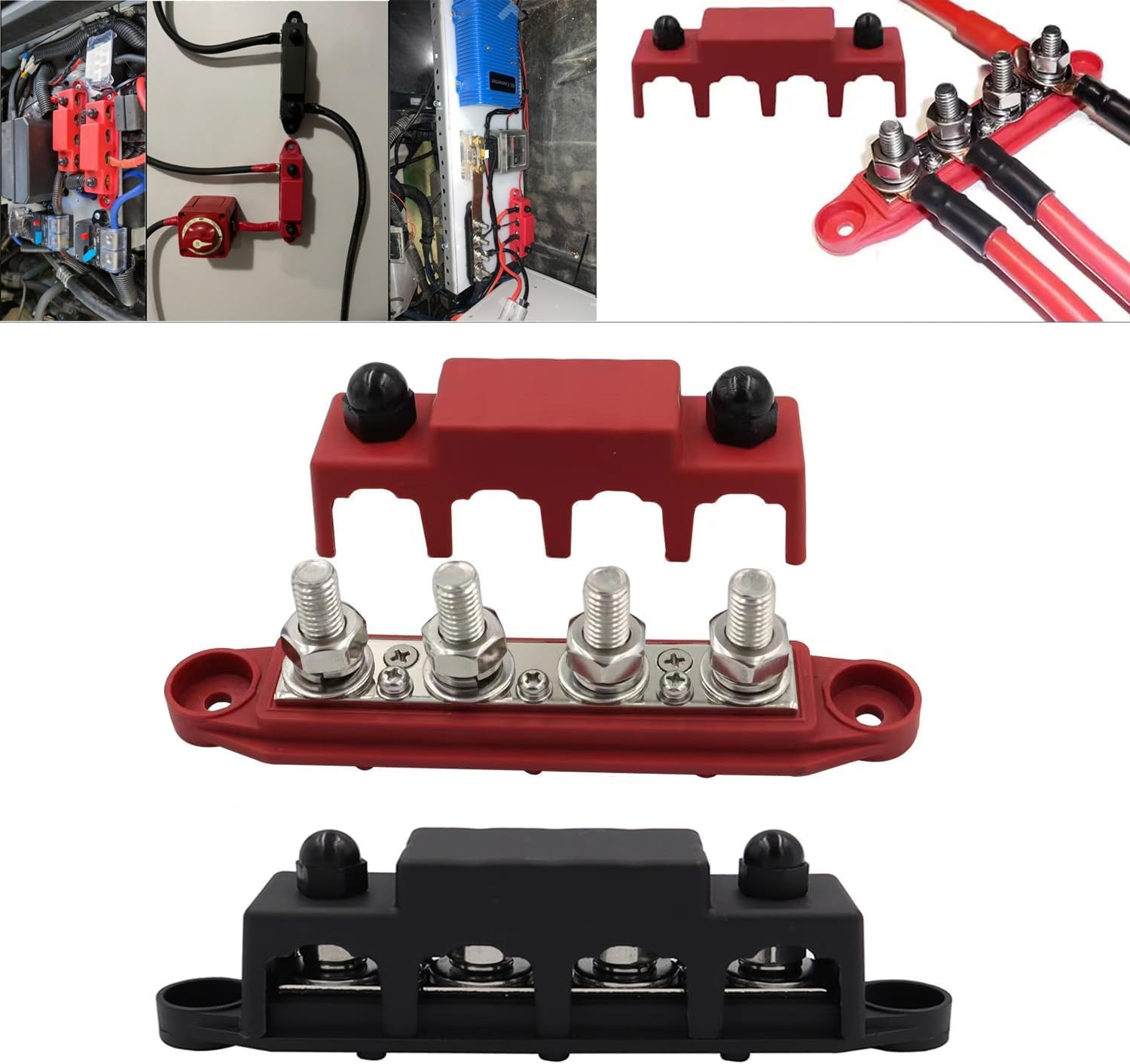

Protect Cover & Nuts

Each junction block will come with a cover and two nuts, which will shelter most exposed contact areas to reduce the risks of short circuit or touch.

Easy to Install

Surface screw fixed installation, two mounting holes make this terminal block easier to be mounted in any orientation.

  • Manufacturer: ysamzeu1694
  • Voltage: 12 Volts (DC)
  • Brand Name: AULESSE
  • Size: 5/16" (M8) 4 Stud Busbar 250A
