LINOVISION Industrial 8 Ports Full Gigabit Poe Switch Support DC 8~57V Input, 24V / 12V Poe Switch for Solar or RV UPS System, 2 High Poe+ Ports for Big PTZ Cameras or Wireless Aps. NDAA Compliant
LINOVISION Industrial 8 Ports Full Gigabit Poe Switch Support DC 8~57V Input, 24V / 12V Poe Switch for Solar or RV UPS System, 2 High Poe+ Ports for Big PTZ Cameras or Wireless Aps. NDAA Compliant
Brand: LINOVISION

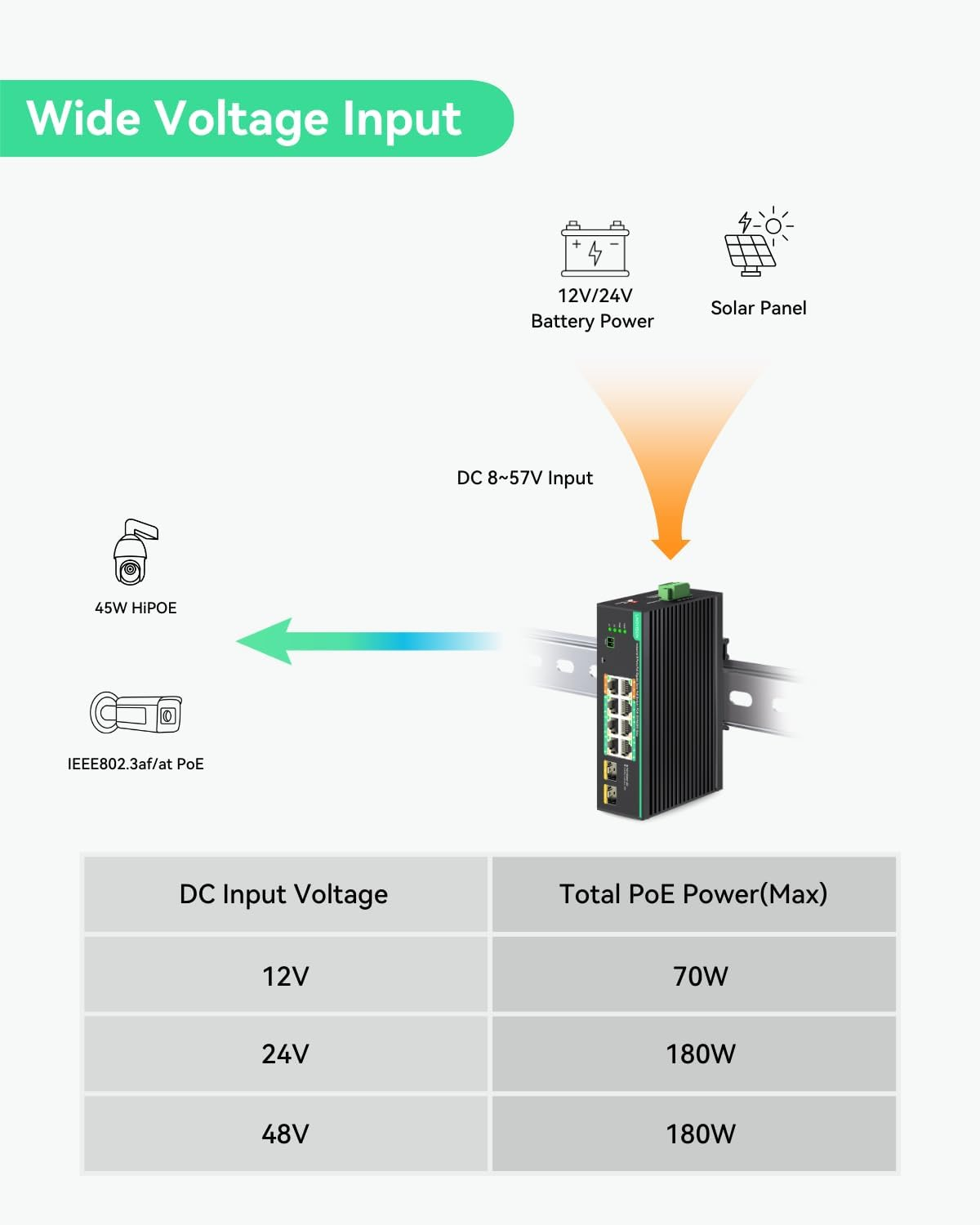

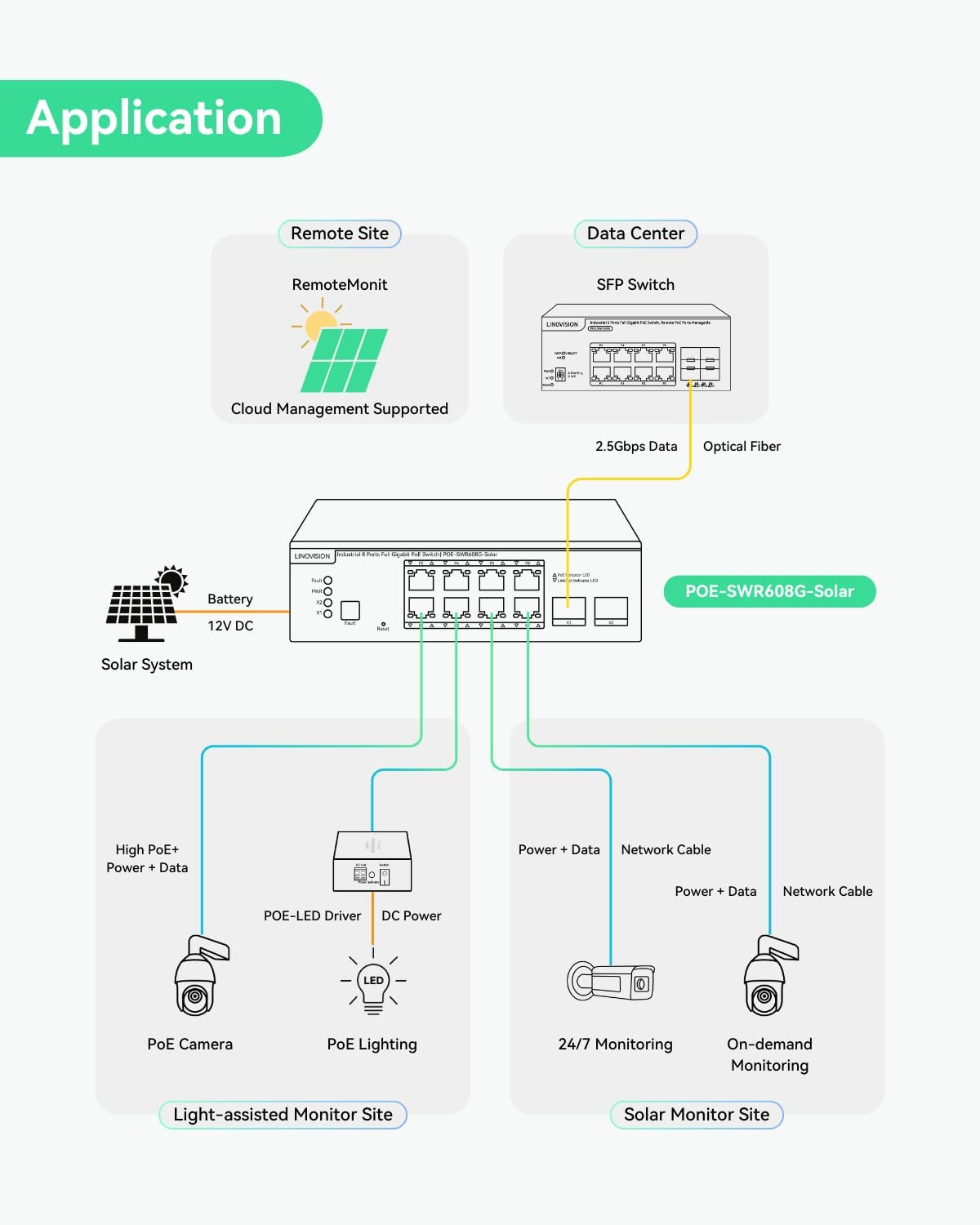

- SOLAR PoE SWITCH: Support DC 8~57V voltage input, featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras.
- 10 FULL GIGABIT PORTS: 2x 2.5G SFP ports, 6x IEEE802.3af/at PoE Ports and 2x 45W High PoE+ Ports.
- 45W HIGH PoE+ OUTPUT: Optimized for big PTZ cameras, such as multiple-lens PTZ cameras, high speed dome cameras, cameras with big white LED light.

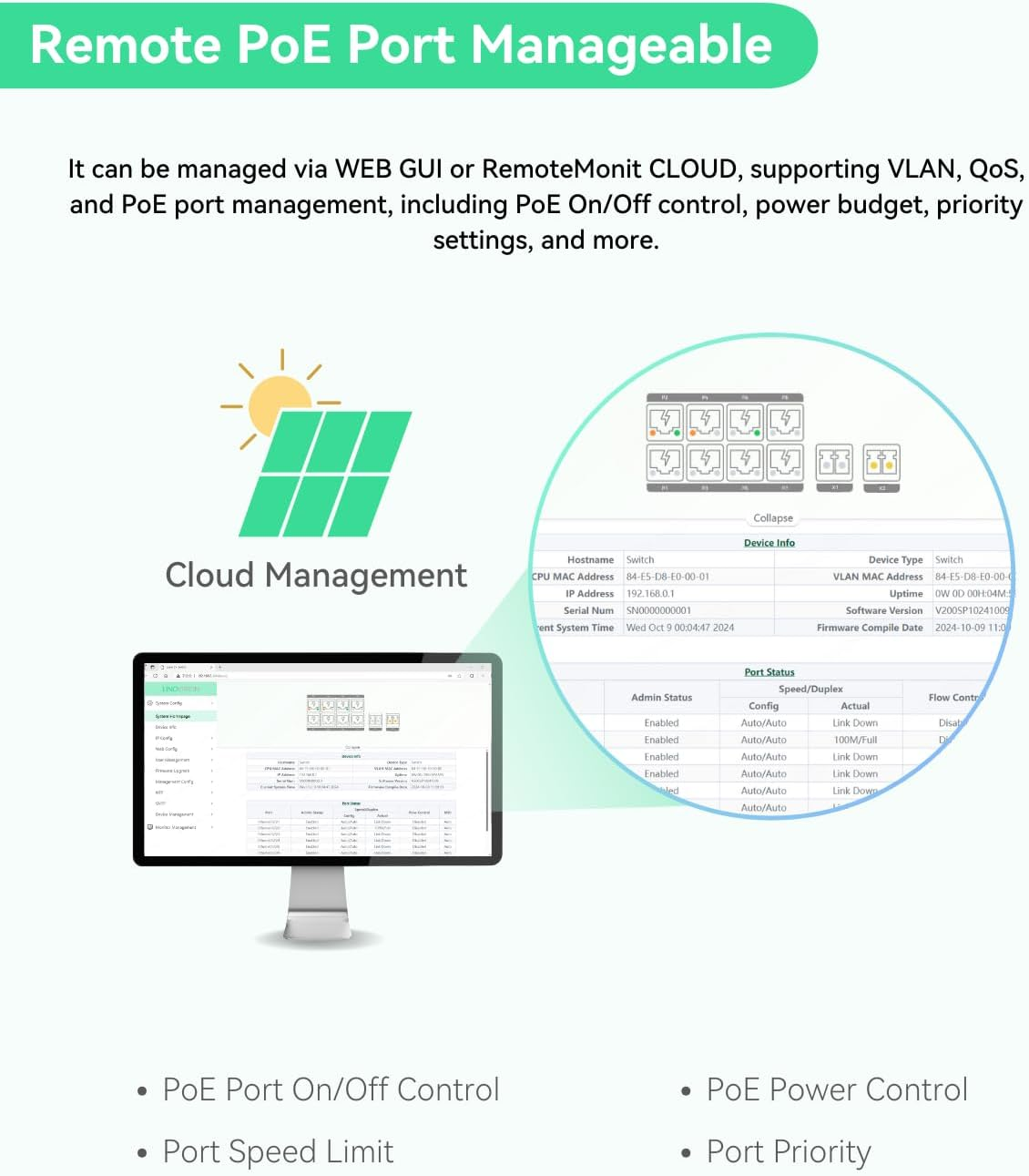

- REMOTELY CLOUD MANAGED: via WEB GUI or RemoteMonit CLOUD. It supports VLAN, QOS and PoE port management, including PoE On/Off control, Power budget, priority, etc.
- TOTAL PoE BUDGET: 180W (DC24V/48V input) or 70W (DC12V input).
- REDUNDANT POWER INPUT: Support 2 channel DC8～57V independent power inputs, ensure high reliability networking system.

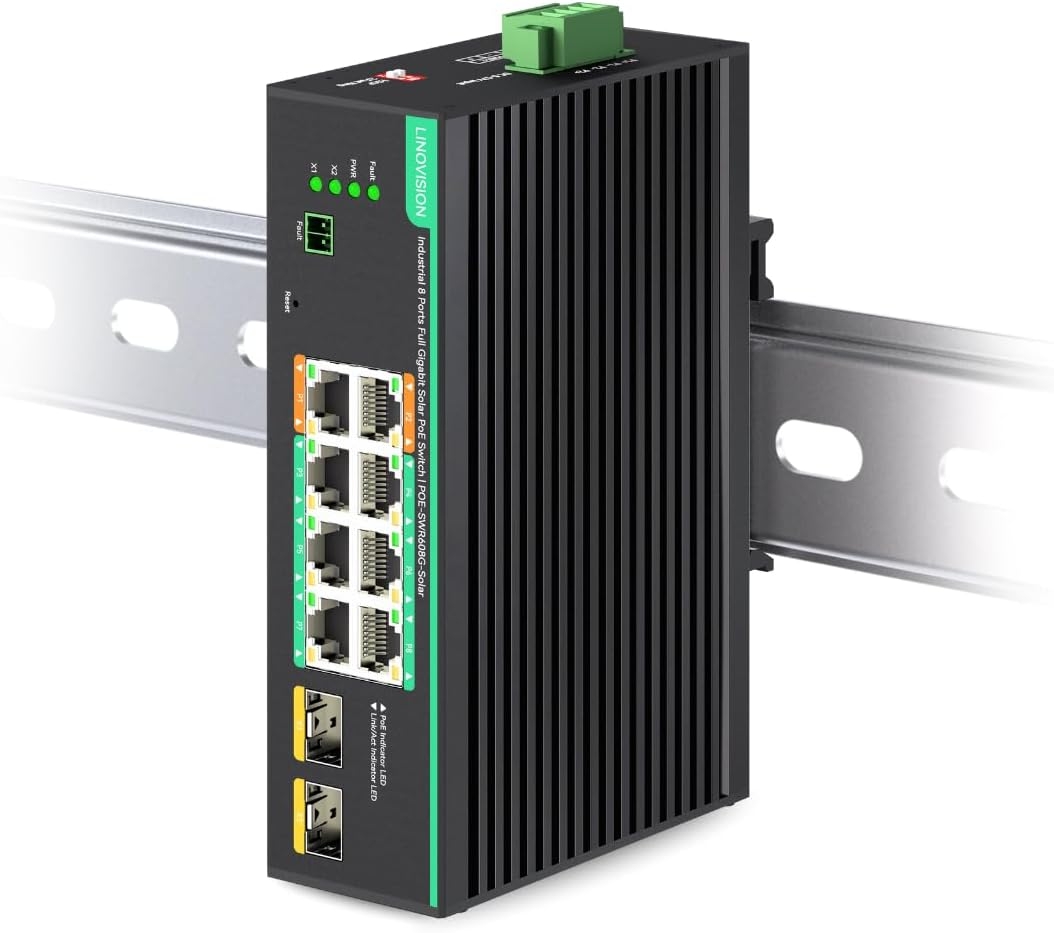

- INDUSTRIAL DESIGN: Support DIN rail mount and Wall mount. Wide working temperature (-20°C ~ 60 °C or -4°F~140 °F) and 4KV surge protection.
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
solar poe switch

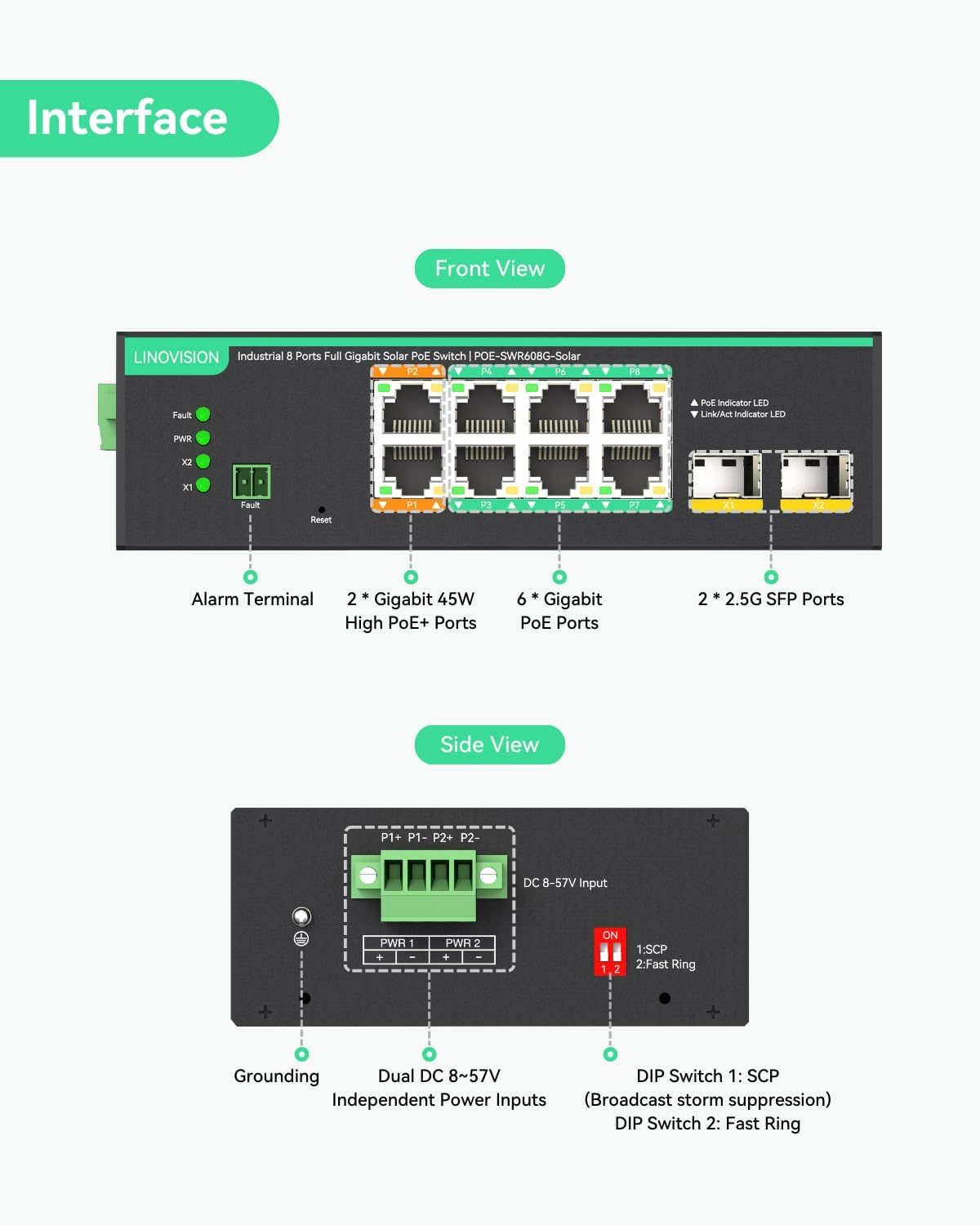

Merchant videoInterface
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Alarm Terminal （Fault）
Merchant videoLINOVISION Wide Voltage Input POE Switch for your choice！
| Customer Reviews | — | 4.7 out of 5 stars 4 | — | 4.4 out of 5 stars 116 | 5.0 out of 5 stars 1 | 3.8 out of 5 stars 7 | 3.4 out of 5 stars 4 |
| Price | $339.00$339.00 | $399.00$399.00 | $249.99$249.99 | $149.99$149.99 | $149.99$149.99 | $189.99$189.99 | $299.99$299.99 |
| Model | POE-SWR608G-Solar | POE-SWR612GM-Solar | POE-SW506GD-BT | POE-Switch0504GD | POE-Switch0504GDF | POE-SW504GD | POE-SW805G5U-Solar |
| Input | Dual DC Input: 8V~57V | Dual DC Input: 8V~57V | Dual DC Input: 9V~54V DC | Dual DC Input: 9V~54V DC | POE-Switch0504GDF | DC 9V~57V | Solar&Batt 12/24V, Ext DC12V |
| POE Standard | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt, Passive PoE | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at, Passive PoE | IEEE802.3af/at/bt, Passive PoE |
| Uplink Ports | 2 * 2.5G SFP | 2 Gigabit SFP+ 2 Gigabit RJ45 | 1 Gigabit SFP | 1 Gigabit Uplink | 1 Gigabit SFP | Any PoE port can be Uplink | 1 * 1.25G SFP |
| POE Ports | 8 * Gigabit PoE Ports | 8 Gigabit PoE Ports | 4 Gigabit PoE Ports | 4 Gigabit PoE Ports | 4 Gigabit PoE Ports | 2 * Gigabit PoE Ports | 5 * Gigabit PoE Ports |
| POE++ Ports | 2 * 45W High PoE+ Port | / | 4 * BT90W PoE++ Ports | / | / | 1 * 45W High PoE+ Port | 1 * BT 60W Port (Port 1) |
| Passive 24V PoE | / | / | 1 * Passive 24V PoE | / | / | 1 * Passive 24V PoE | P4-5 Switch to 24V Passive PoE |
| POE budget | 180W@DC24V/48V, 70W@DC12V | 240W@48V, 180W@24V, 70W@12V | 240W@DC48V, 180W@DC24V | 120W (DC24V/48V), 60W (DC12V) | 120W (DC24V/48V), 60W (DC12V) | 100W@DC24V/48V, 50W@DC12V | 65W |
| L2/L3 Management | / | L2+ | / | / | / | / | / |
| Remote PoE Port Control | PoE Port Remote Cloud Control | PoE Port Remote Cloud Control | / | / | / | / | / |
| Installation Method | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail | Wall-Mount |
- Item Model Number: POE-SWR608G-Solar
- Part Number: POE-SWR608G-Solar
- Data transfer rate: 1000 Megabits Per Second
- Number of items: 1
- Country/Region of origin: China
- Batteries Included: No
- Batteries Required: No
- Upper temperature rating: 60 Degrees Celsius
- Item Weight: 1.3 kg
- Interface type: SFP, SFP+, PoE
- Model: POE-SWR608G-Solar
- Manufacturer: LINOVISION

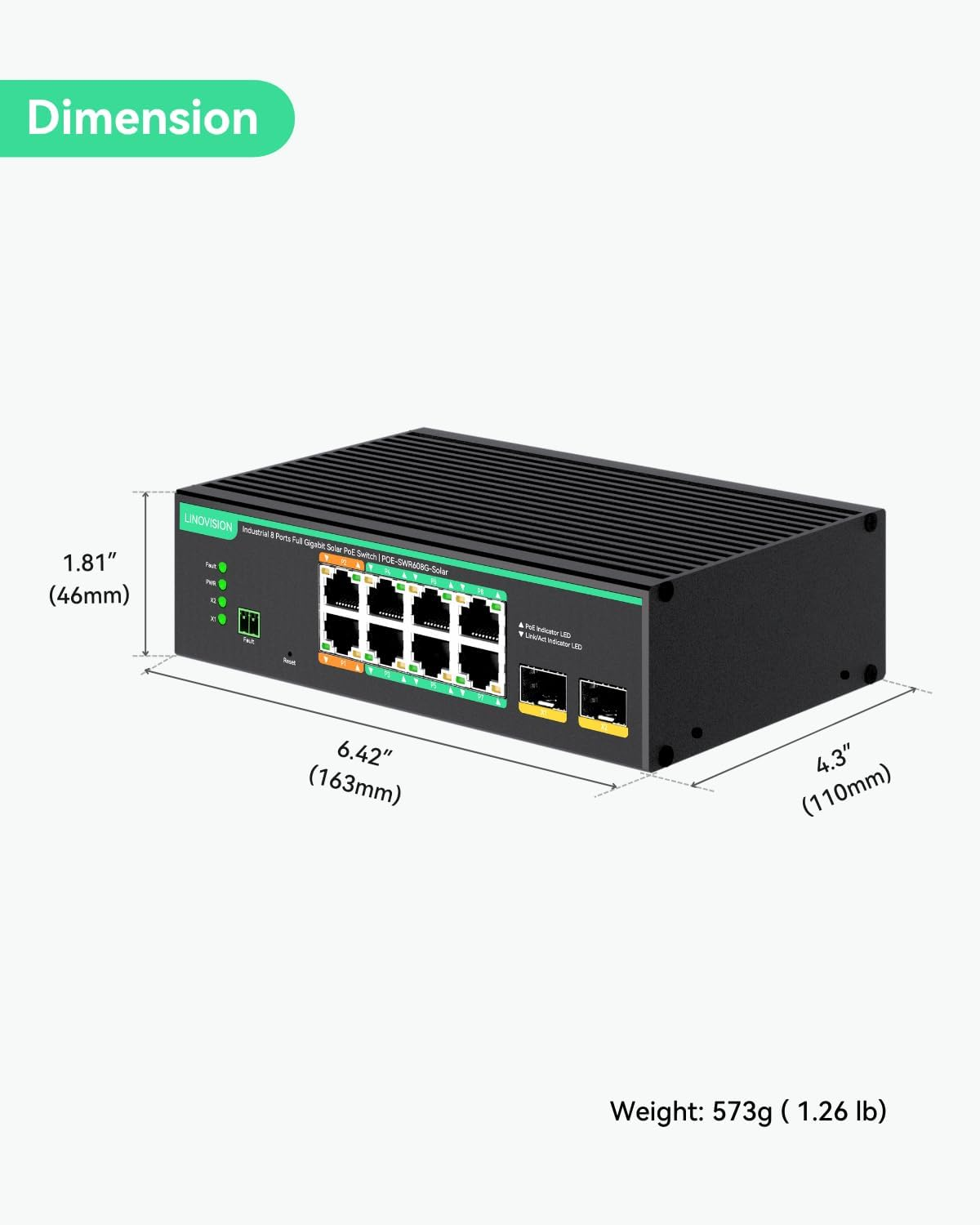

- Package Dimensions: 23 x 19.3 x 9.3 cm; 1.3 kg
- Voltage: 48 Volts
