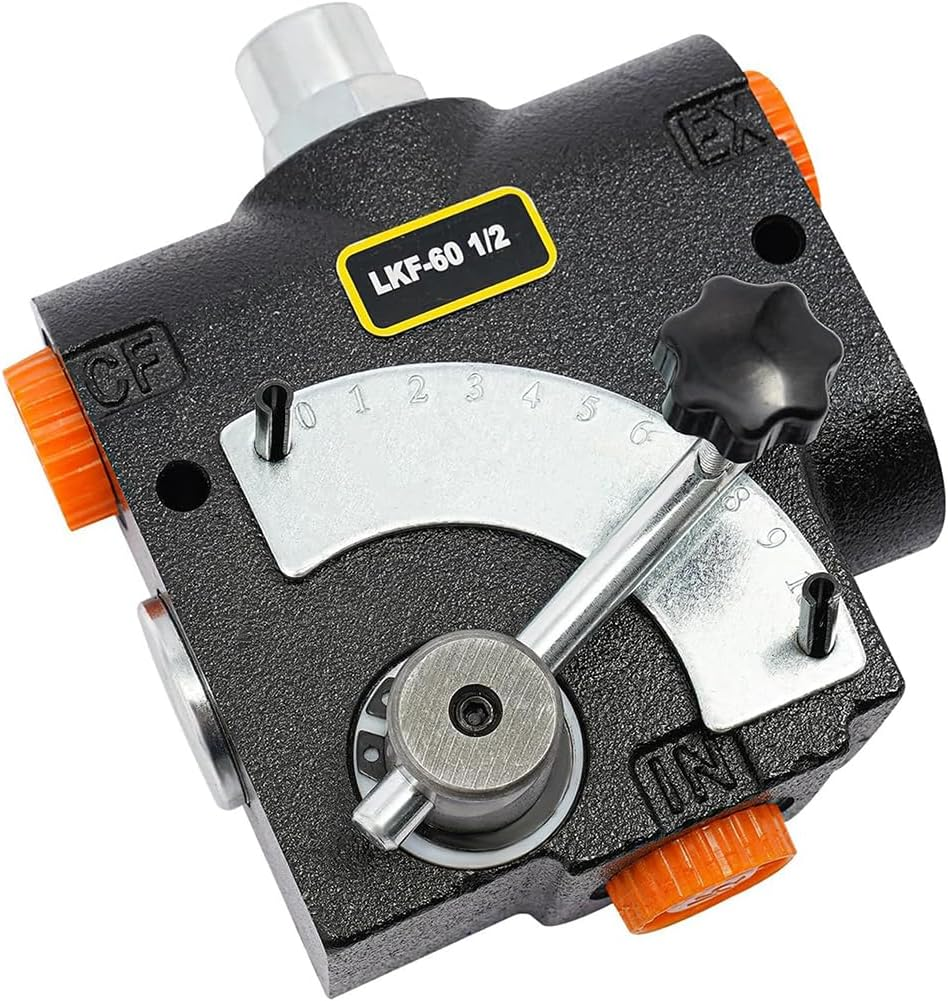

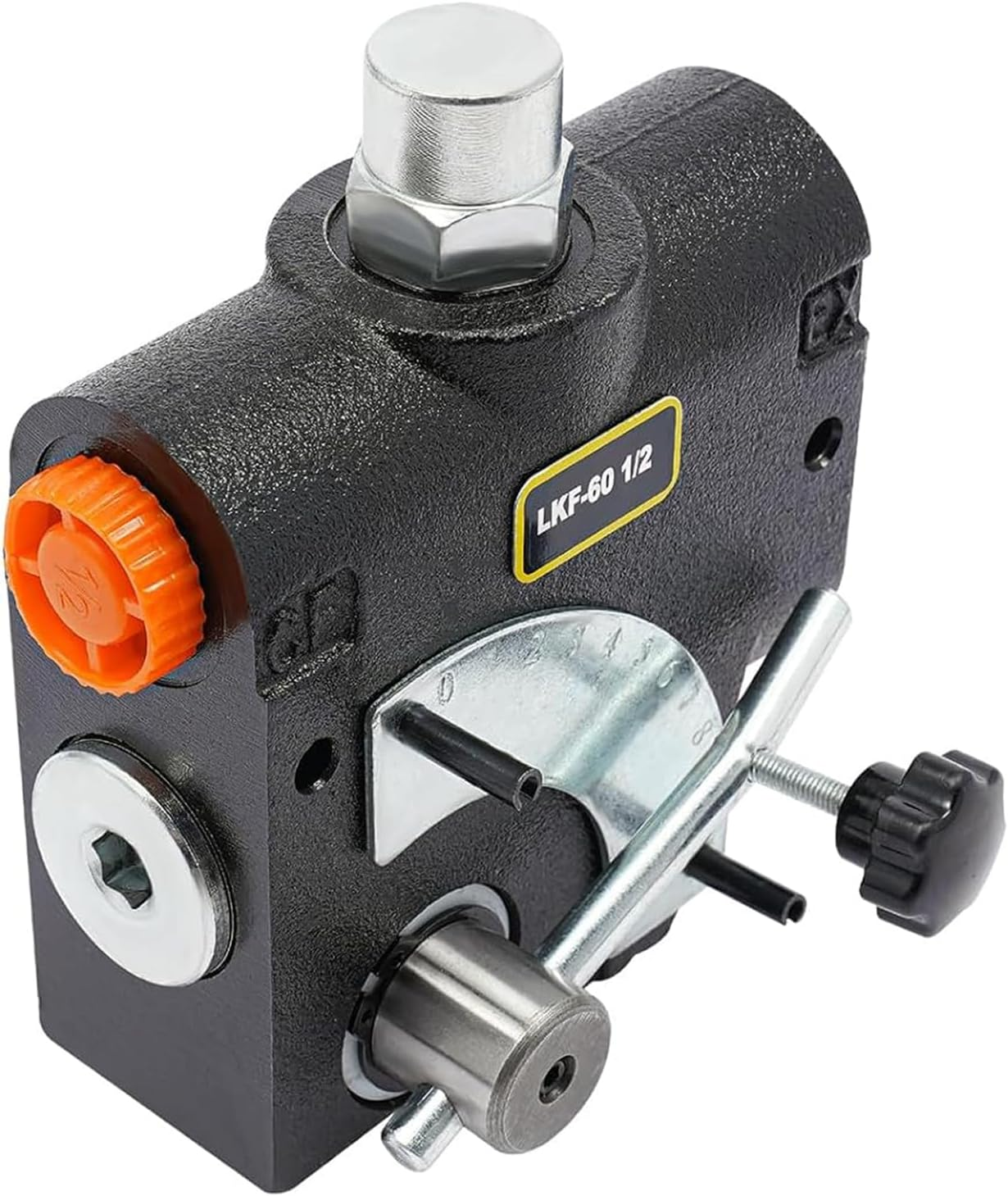

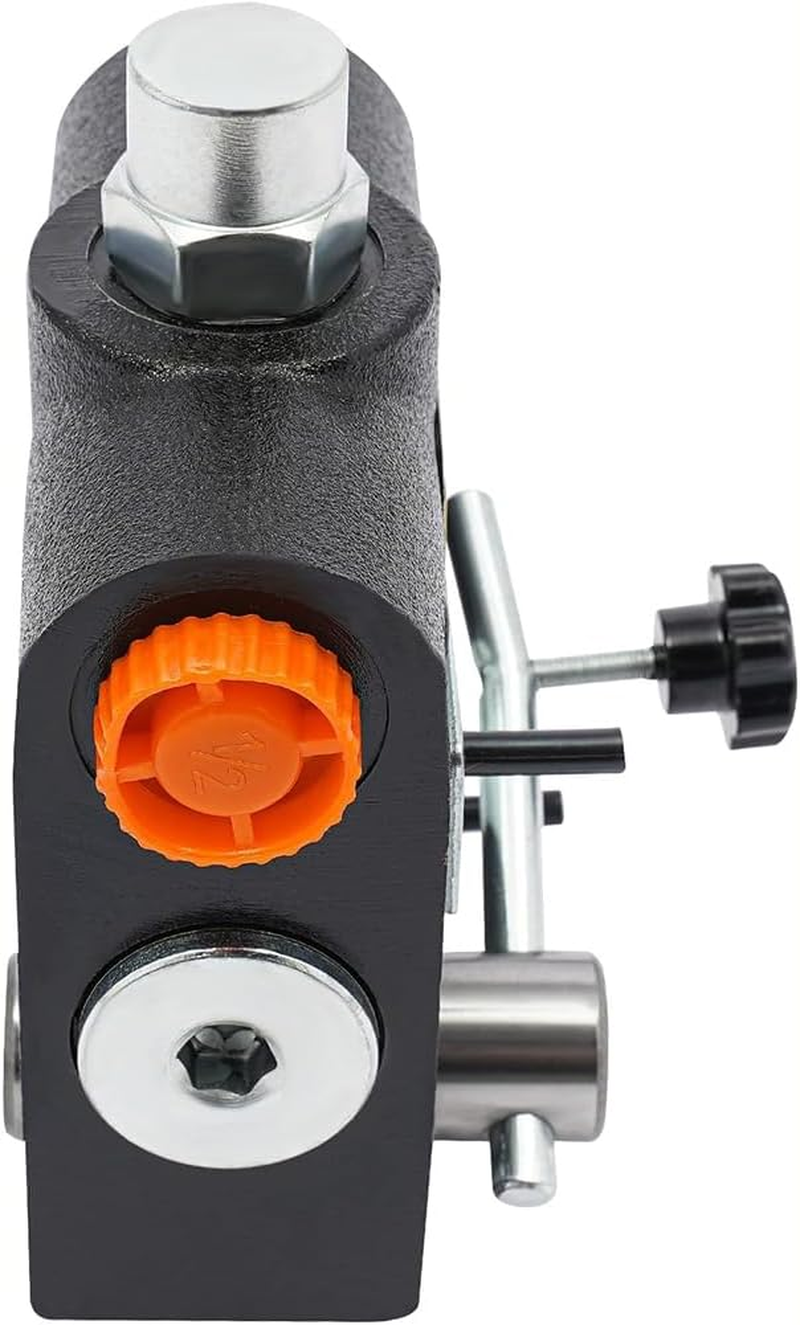

Hydraulic Adjustable Variable Flow Control Valve, 0-16 GPM Directional Control Valve, 500-3000 PSI Pressure Relief Valve, 1/2 Inch NPT Port, LKF-60 Black,1
Hydraulic Adjustable Variable Flow Control Valve, 0-16 GPM Directional Control Valve, 500-3000 PSI Pressure Relief Valve, 1/2 Inch NPT Port, LKF-60 Black,1
Brand: JechenSweet
- Build to Last: The hydraulic acting valve is made of high-quality vermicular graphite cast iron with a phosphating process, which is durable and lightweight, and not easy to rust and corrode, so it can withstand the test of time.
- Powerful Function: The hydraulic flow control valve can adjust the flow rate from 0-16 GPM to optimize system efficiency and avoid overload or energy waste. Additionally, it can speed up or slow down the motor, adapting to your needs and convenience.
- Economical and Practical: With this adjustable flow control valve, you can prevent system overload and reduce energy consumption by limiting the maximum flow rate as well as precisely controlling the flow rate, helping improve overall energy efficiency.
- Convenient to Use: Once you receive the hydraulic valve, you can install it directly into the tractors without additional assembly, which is very convenient and time-saving. Additionally, the pressure can be increased or decreased by 300 PSI by turning the set screw one turn.

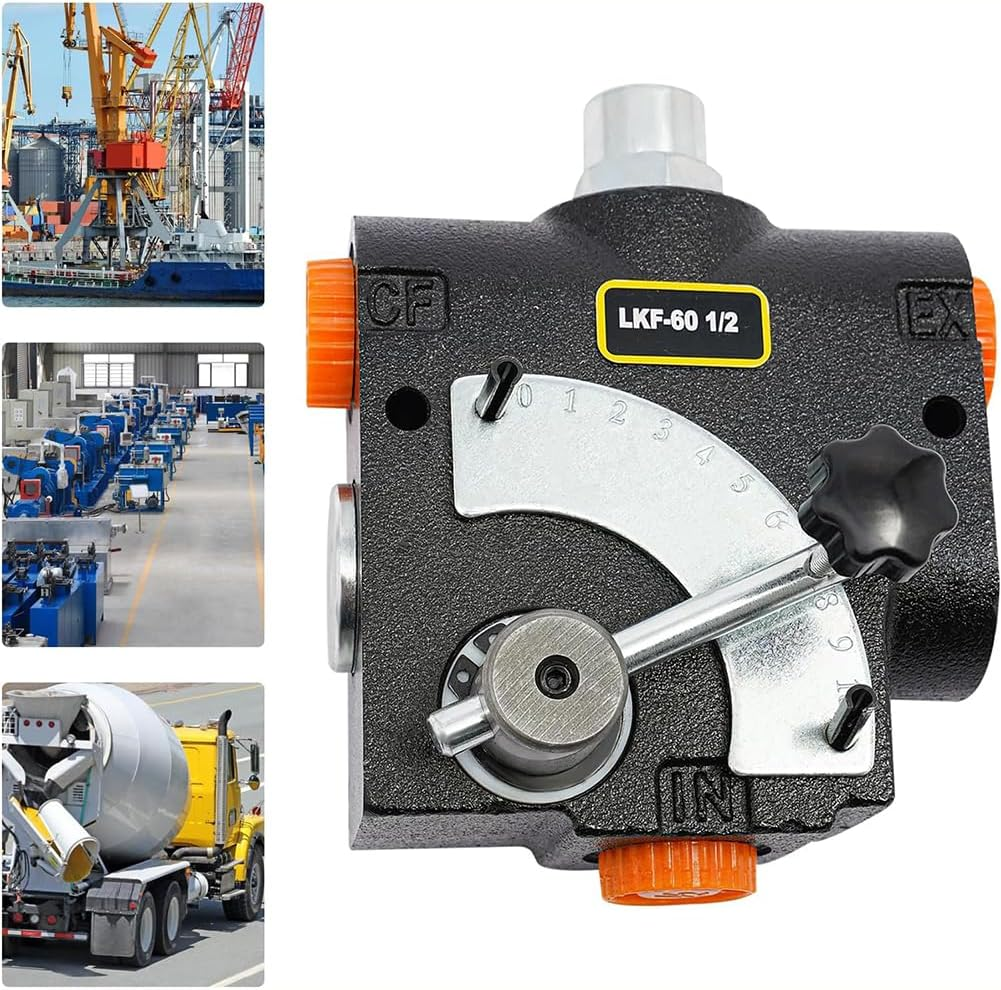

- Application: The hydraulic control valve is suitable for small tractors, tractor loaders, log splitters, light-loading machines, and so on. It is used to stop or start a hydraulic motor or cylinder. Smooth edges are not only comfortable to touch, but also care for your skin. Practical knob helps you to regulate the flow more easily.
The hydraulic control valve is suitable for small tractors, tractor loaders, log splitters, light-loading machines, and so on. It is used to stop or start a hydraulic motor or cylinder. Smooth edges are not only comfortable to touch, but also care for your skin. Practical knob helps you to regulate the flow more easily.

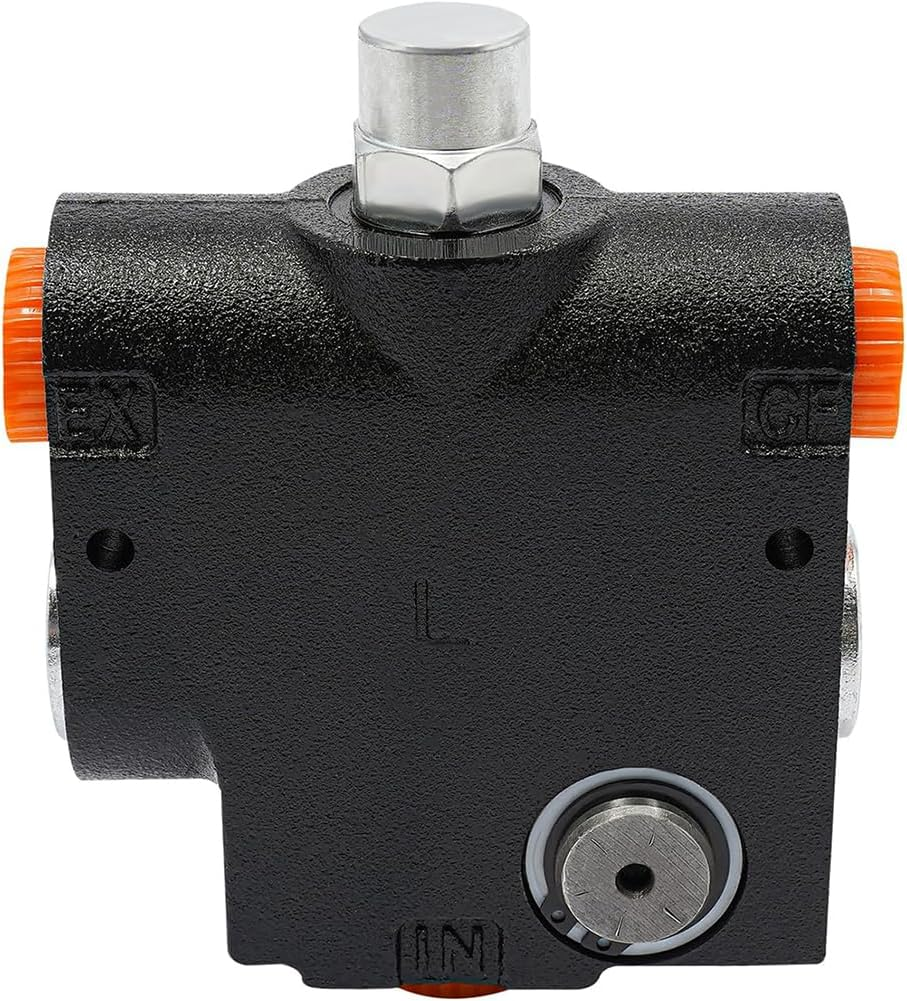

Ports
IN: Inlet Port
CF (Controlled Flow): Flow coming from this port is pressure compensated and proportional. Flow can vary from closed to fully open depending on the position of the lever.
EX (Excess Flow): Flow coming from this port is pressure compensated. If the lever is set to 0 all flow will exit the valve from this port.
Specification
Material: Vermicular Graphite Cast Iron
Surface Treatment: Phosphating
Color: Black
Model: LKF-60
Assembly Required: No
Nominal Diameter: 15mm/0.59in
Nominal Pressure: 21MPa
Nominal Flow Rate: 0-60L/15.85Gal/min
Adjustable Flow Rate: 0-16 GPM
Port Size: 1/2" NPT
Maximum Working Pressure: 3000 PSI

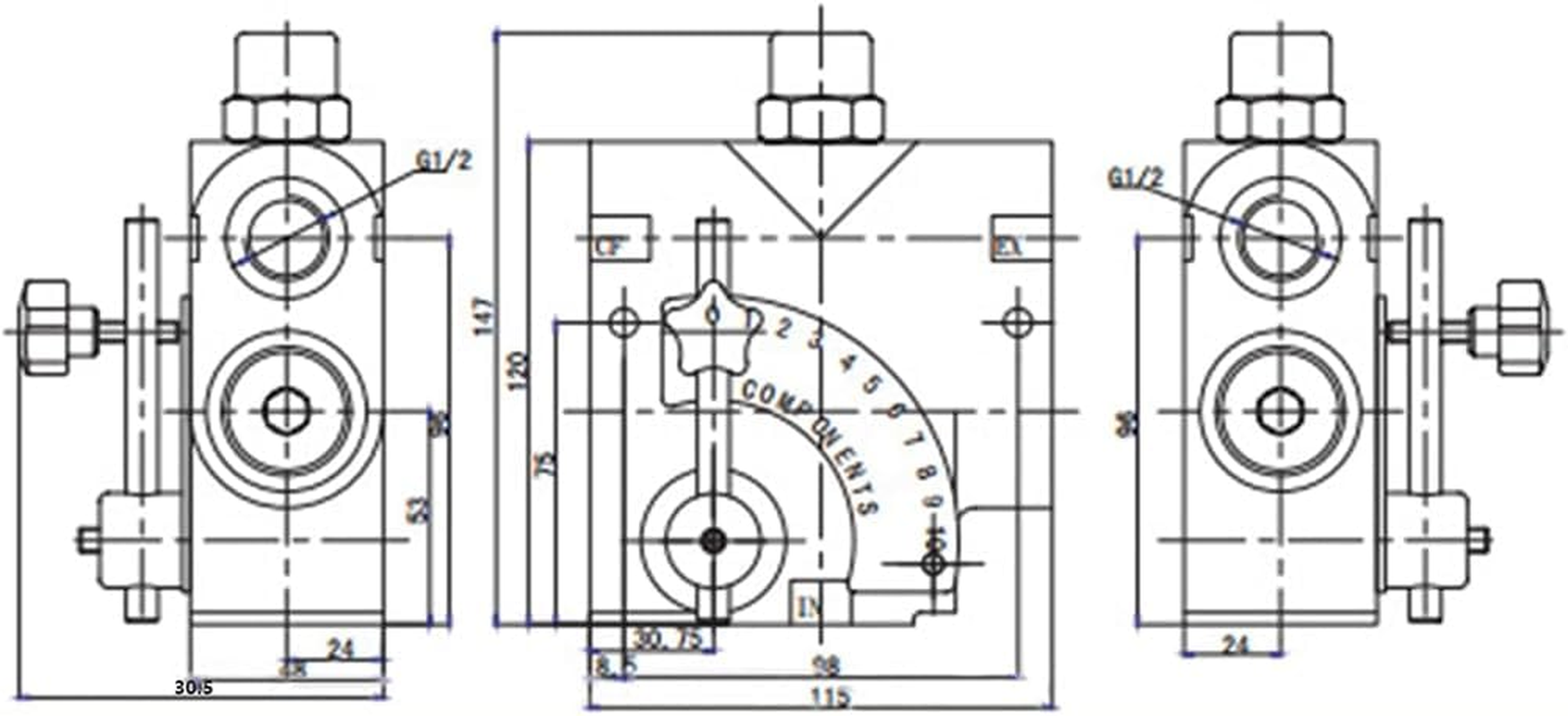

Product Size: 11.5*4.8*14.7cm/4.53*1.89*5.79 in
Gross Weight: 3.9kg/8.6lbs
Package Included
1* Hydraulic Adjustable Variable Flow Control Valve
Package Included
1* Hydraulic Adjustable Variable Flow Control Valve
- Batteries required: No
- Size Name: 1
- Colour Name: Black
