Product Description:

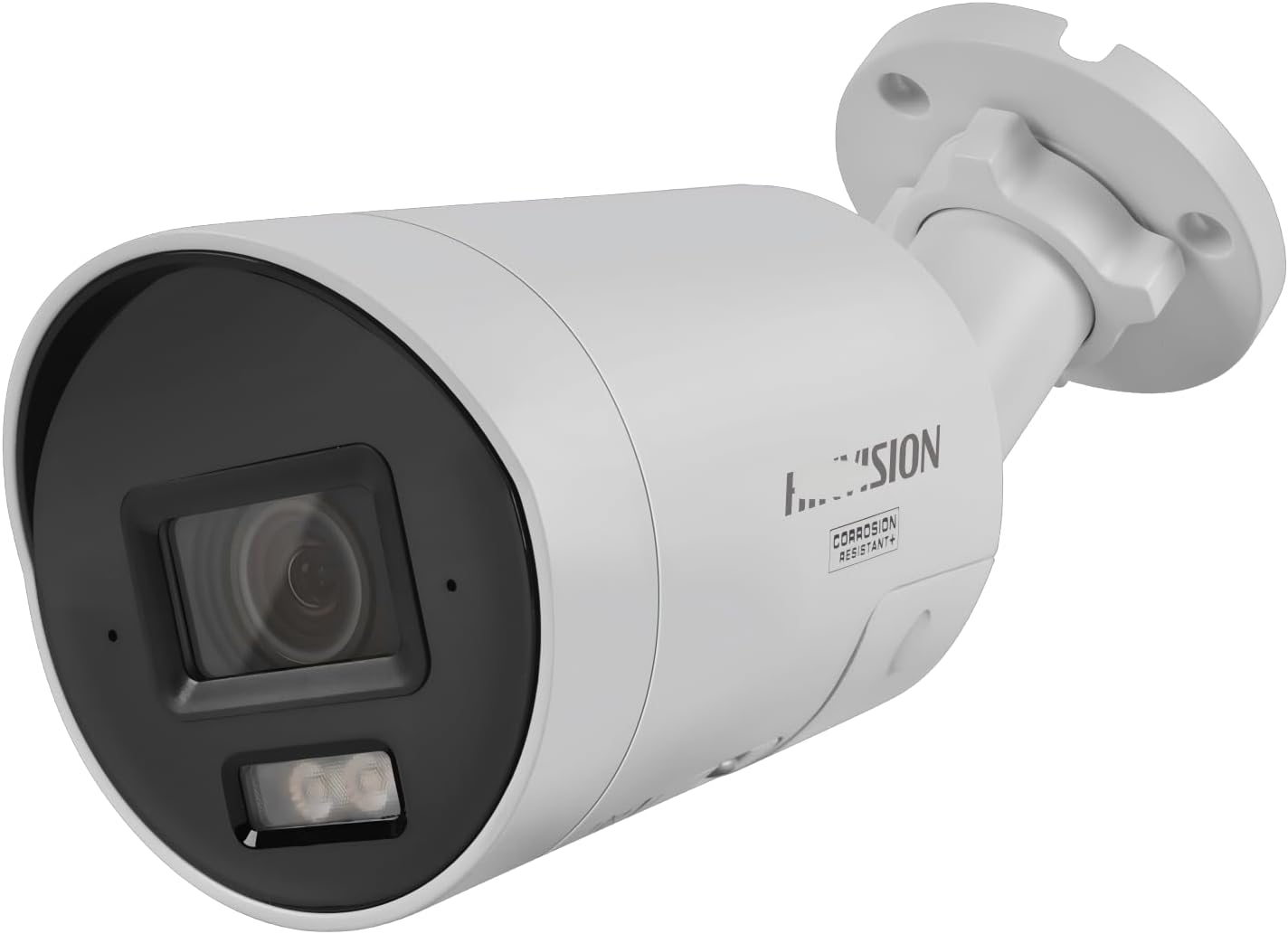

Elevate your security with the Ⲏikvision DS-2CD2087G3-LI2UY/S(L)(RB) 8MP Smart Hybrid Light Bullet Camera. Engineered for 24/7 surveillance, this outdoor-ready camera leverages ColorView technology to deliver full-color video in near darkness (0.0005 Lux) and HikAI-ISP for crystal-clear imaging with minimal noise. Its deep learning algorithms accurately distinguish people and vehicles, reducing false alarms, while the dual-microphone system and two-way audio let you interact in real time.
Built to last, the IP67 and anti-corrosion design ensures durability in rain, dust, or extreme temperatures. The Smart Hybrid Light offers three modes (IR, white light, or hybrid) for optimal visibility up to 40m, paired with a deterrent strobe and alarm. Store footage locally via microSD (up to 512GB) or on NAS devices, and enjoy seamless integration with existing security systems. Ideal for homes, warehouses, and commercial sites, this 4K camera combines cutting-edge AI, rugged construction, and user-friendly features for unmatched peace of mind.
Technical Specifications:
Camera
Image Sensor：1/1.8" Progressive Scan CMOS
Max. Resolution：3840 × 2160
Min. Illumination：Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time：1 s to 1/100,000 s
Day & Night：IR cut filter
Angle Adjustment：Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Focal Length & FOV：2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
Lens Mount：M16
Iris Type：Fixed
Aperture：F1.0
Depth of Field：2.8 mm: 3.3 m to ∞
Lens Type：Fixed focal lens, 2.8mm
DORI
DORI：2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Illuminator
Smart Supplement Light：Yes
IR Wavelength：850 nm
Supplement Light Type：White Light,IR
Supplement Light Range：Up to 40 m
Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate：32 Kbps to 16 Mbps
H.264 Type：Baseline Profile,Main Profile,High Profile
H.265 Type：Main Profile
Bit Rate Control：CBR,VBR
Scalable Video Coding (SVC)：H.264 and H.265 encoding
Region of Interest (ROI)：1 fixed region for main stream
Audio
Audio Type：Mono sound
Audio Compression：G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate：64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate：8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering：Yes
Network
Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View:Up to 6 channels
API：ONVlF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host：Up to 32 users
3 user levels: administrator, operator, and user
Network Storage：NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client：iVMS-4200,Hik-Connect,Hik-Central
Web Browser：Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch：Yes
Image Settings：Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch：Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)：130 dB
SNR：≥ 52 dB
Image Stabilization：EIS
Image Enhancement：BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask：4 programmable polygon privacy masks
Interface
Ethernet Interface：1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker：Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Audio：Built-in Microphone: Arrayed dual-microphone
Reset Key：Yes
Event
Basic Event：Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event：Scene change detection
Linkage：Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing
Deep Learning Function
Face Capture：Yes
Perimeter Protection：Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Package Dimension：234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Material：Front cover: Metal, body: Metal, bracket: Metal
Power：12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
Weight：Approx. 530 g (1.2 lb.)
With Package Weight：Approx. 815 g (1.8 lb.)
Dimension：Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function：Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
