RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/Wh/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/Wh/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Brand: UeeKKoo
4.1
A$26.60
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W,etc.

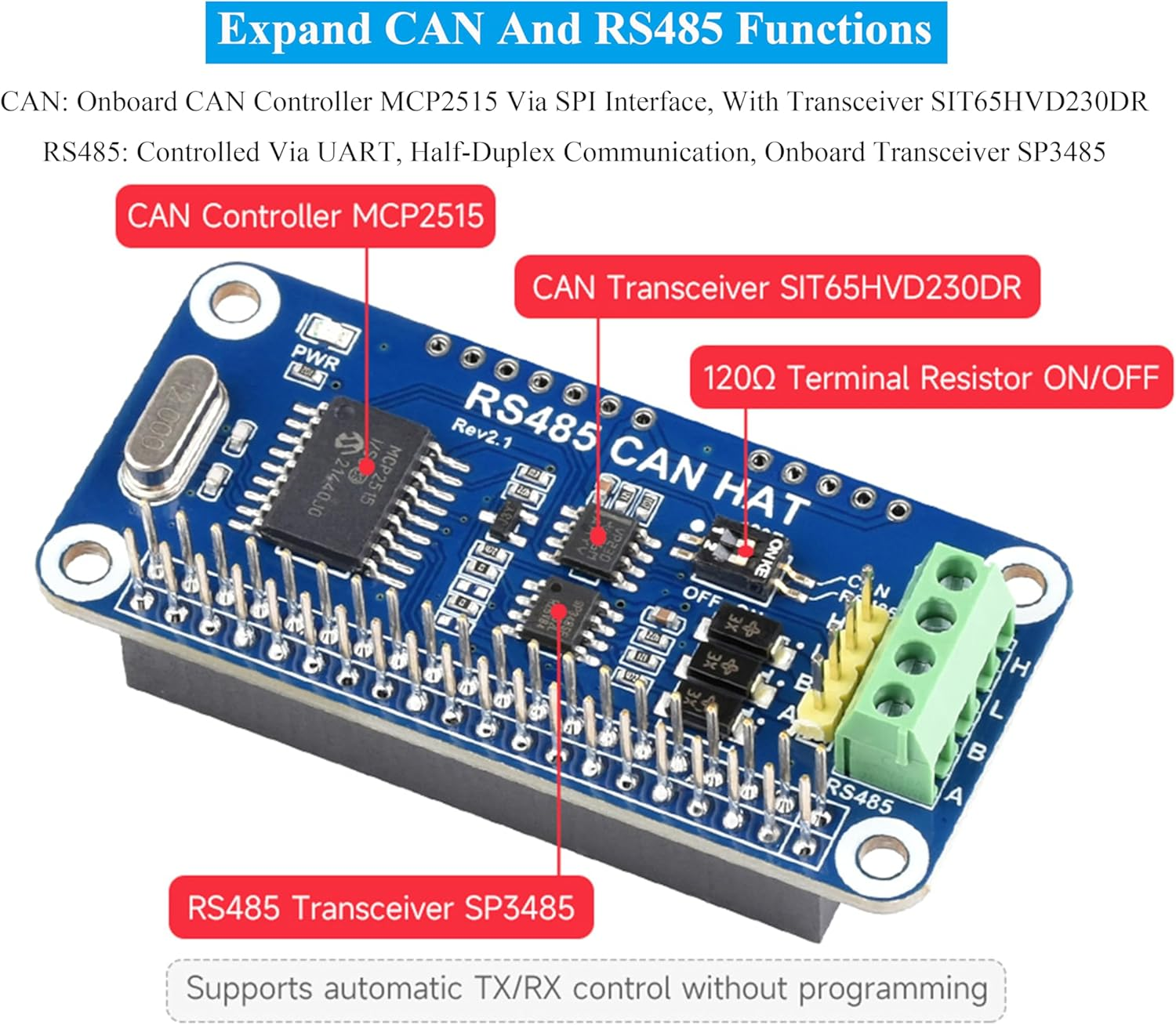

  • Expand CAN and RS485 functions. CAN: onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR; RS485: controlled via UART, half-duplex communication, onboard transceiver SP3485.

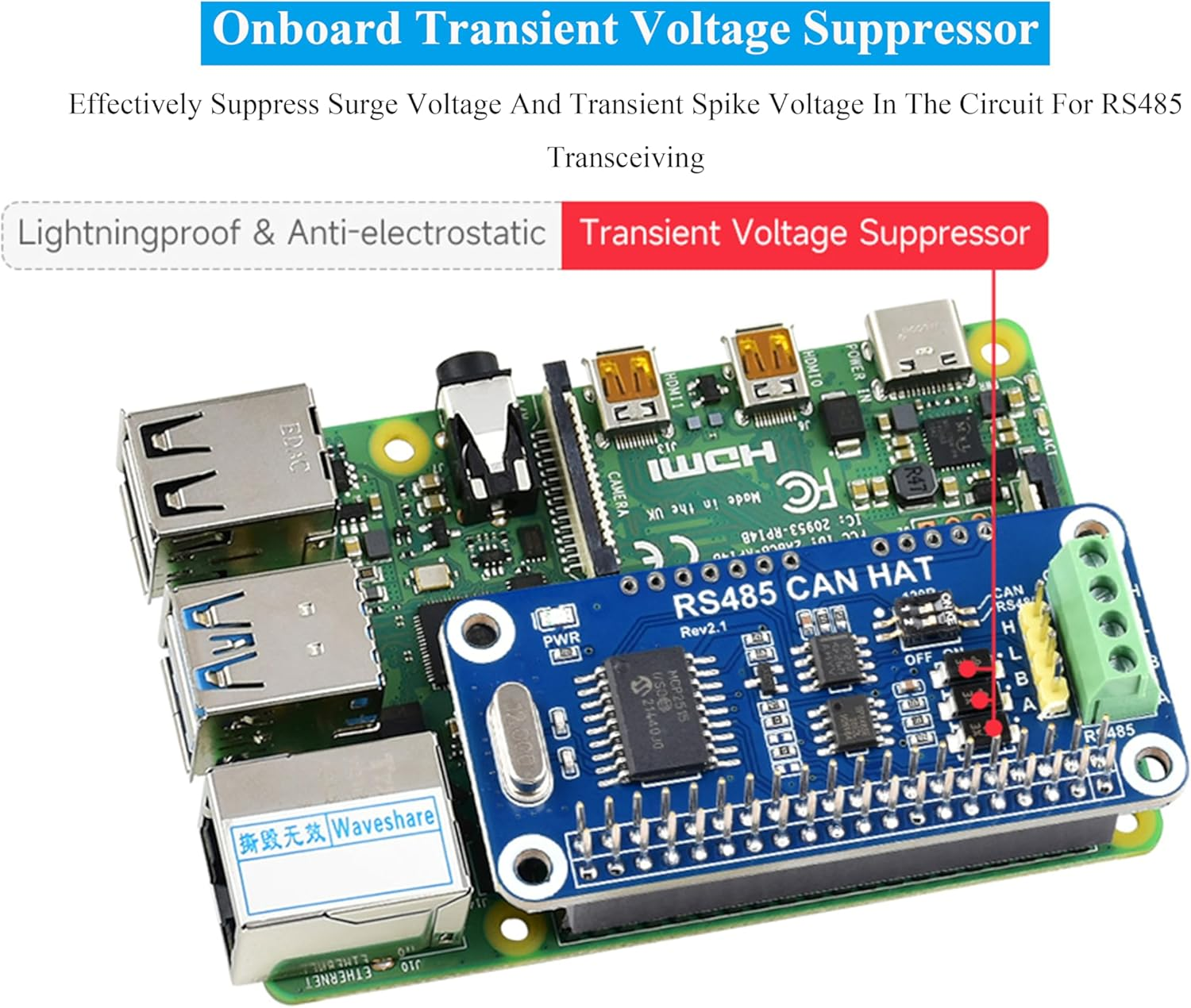

  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, light-ning proof & anti-electrostatic.

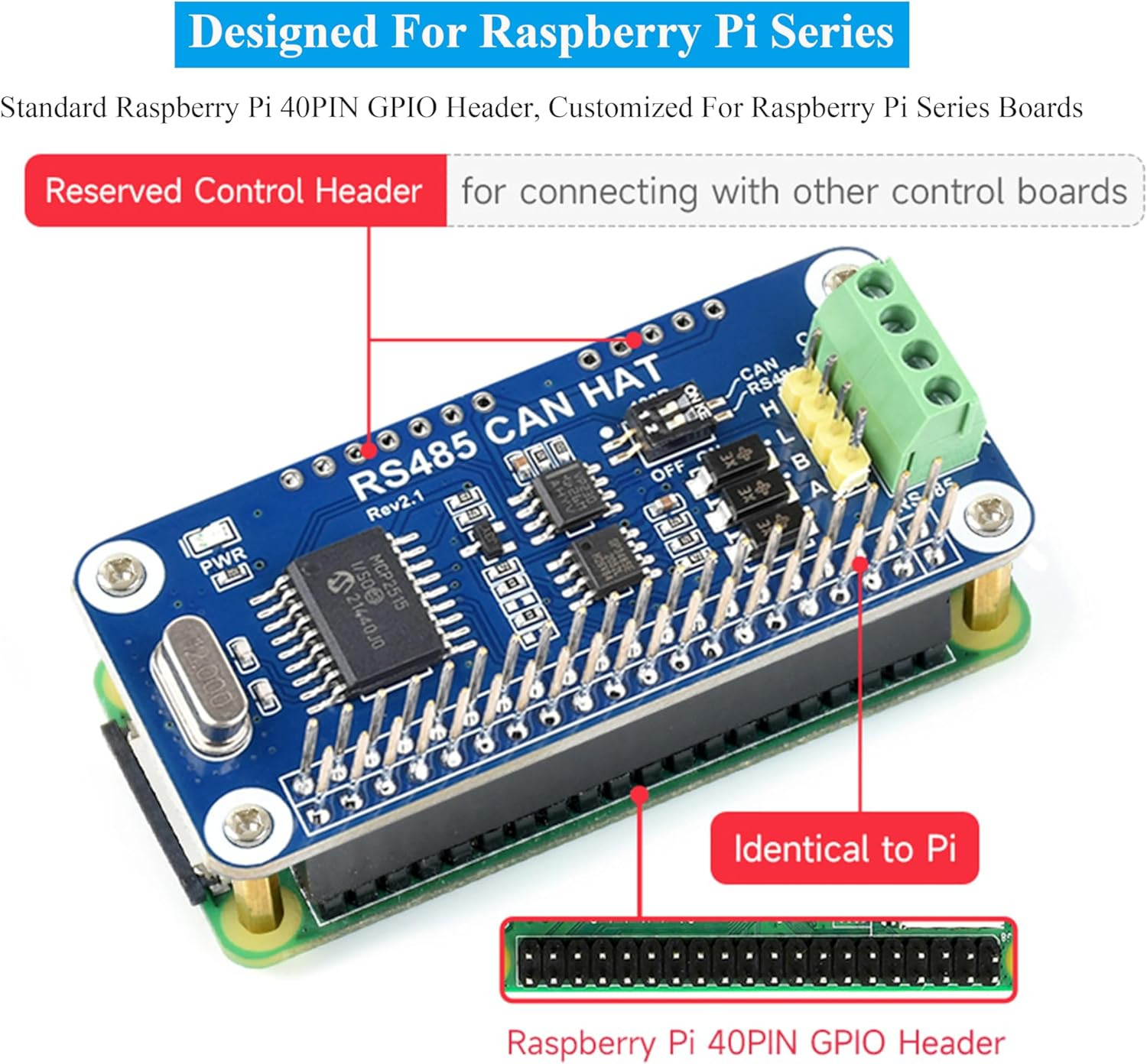

  • Onboard 120Ω terminal resistor for RS485 and CAN interfaces, enabled via DIP switch. Reserved control header, allows working with other control boards.
  • Comes with Online Development Resources /User Manual, please follow there: bit.ly/3mC64mA

Product Description

  • Item Model Number: RS485 CAN HAT For RPi
  • Part Number: RS485 CAN HAT For RPi
  • Total USB ports: 2
  • Operating System: Linux
  • Model Name: RS485 CAN HAT

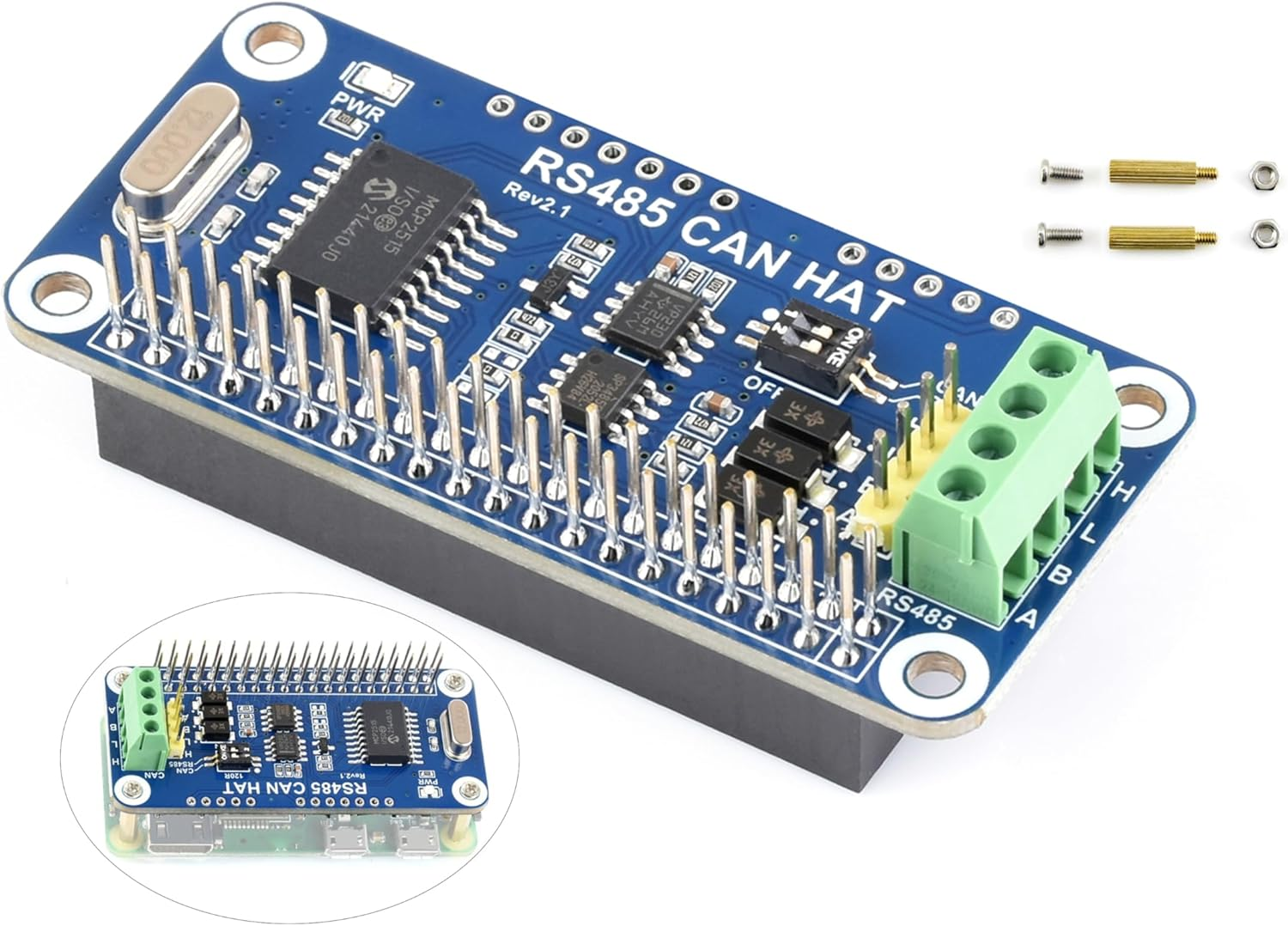

  • Mounting Hardware: RPi screws pack (2pcs) x1, RS485 CAN HAT x1
  • Batteries Included: No
  • Batteries Required: No
  • Brand: UeeKKoo
  • Compatible Devices: RPi 5, RPi 4B, RPi 3B+, RPi 3B, RPi Zero, RPi Zero W, RPi WH, RPi Zero 2W
  • Connector Type: CAN, RS485, SPI, UART, Ethernet, Wi-Fi
  • Item Weight: 9.07 g
  • Processor Count: 1
  • Model: RS485 CAN HAT For RPi
  • Processor Brand: Broadcom
  • Package Dimensions: 1.52 x 0.51 x 0.51 cm; 9.07 Grams
  • Manufacturer: UeeKKoo
