Waveshare ESP32-S3 2Inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 32-Bit LX7 Dual-Core Processor, up to 240Mhz Frequency, NOT Include OV560 Camera
Waveshare ESP32-S3 2Inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 32-Bit LX7 Dual-Core Processor, up to 240Mhz Frequency, NOT Include OV560 Camera
Brand: Waveshare
A$49.35

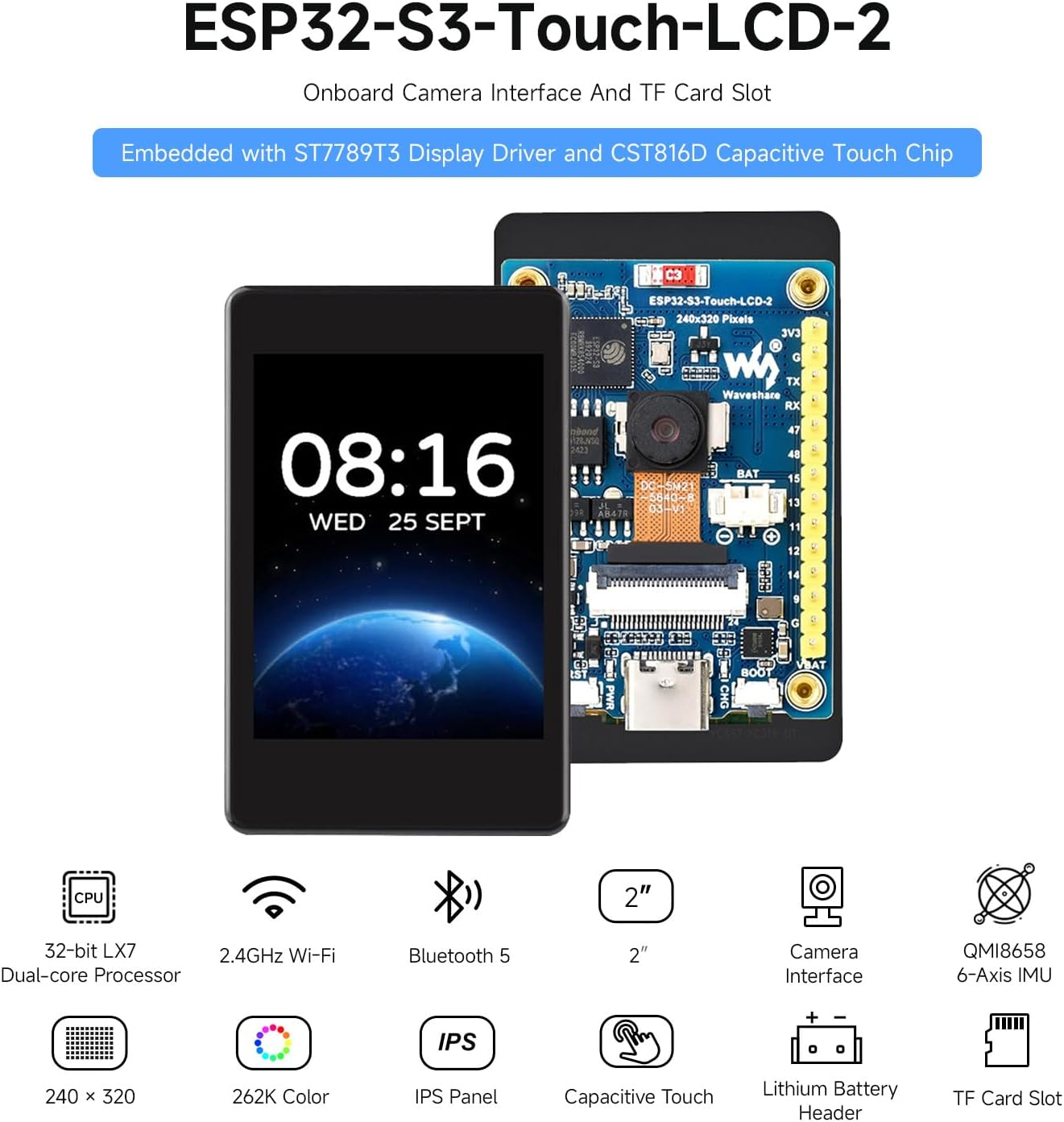

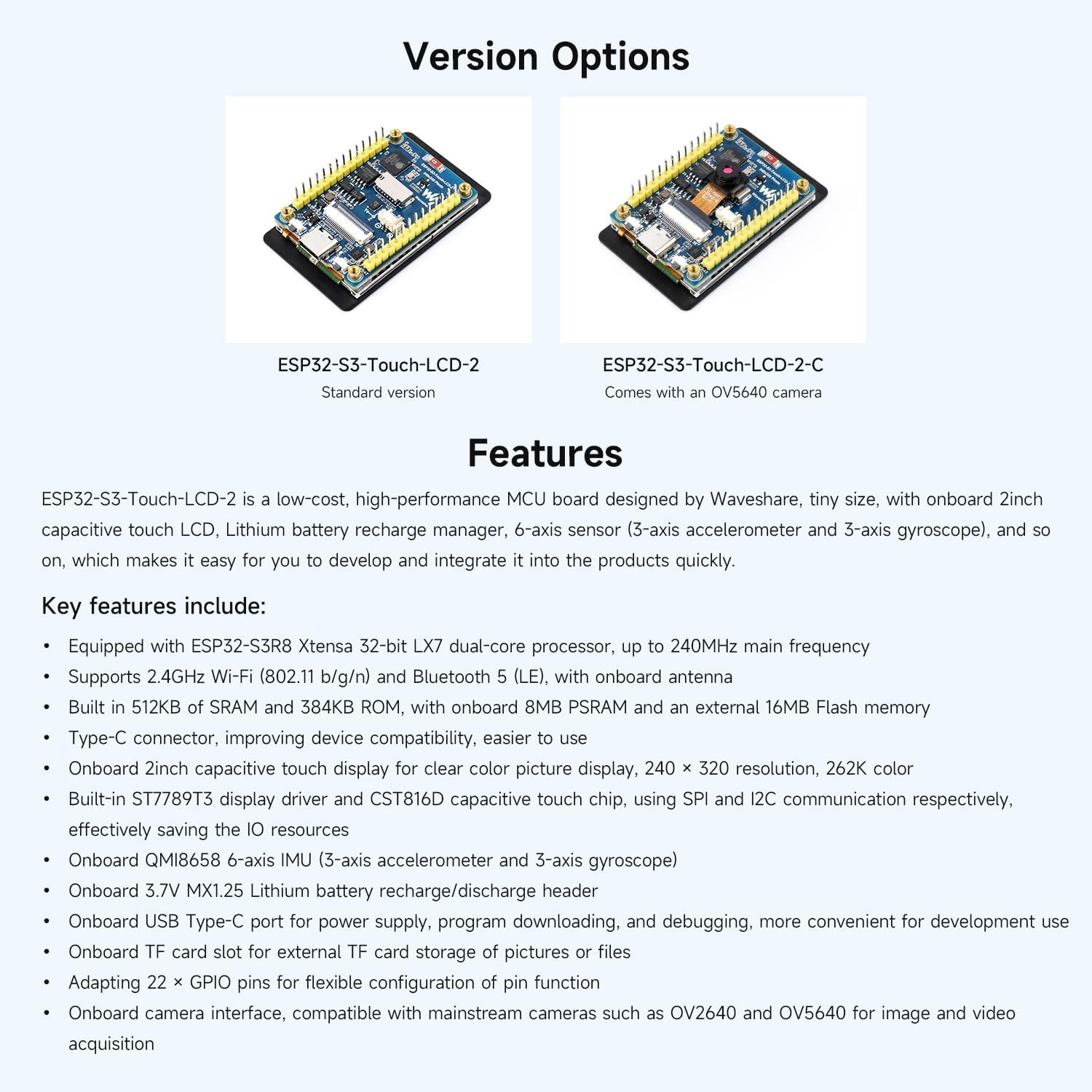

- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources；ESP32-S3-Touch-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into the products quickly.
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, improving device compatibility, easier to use

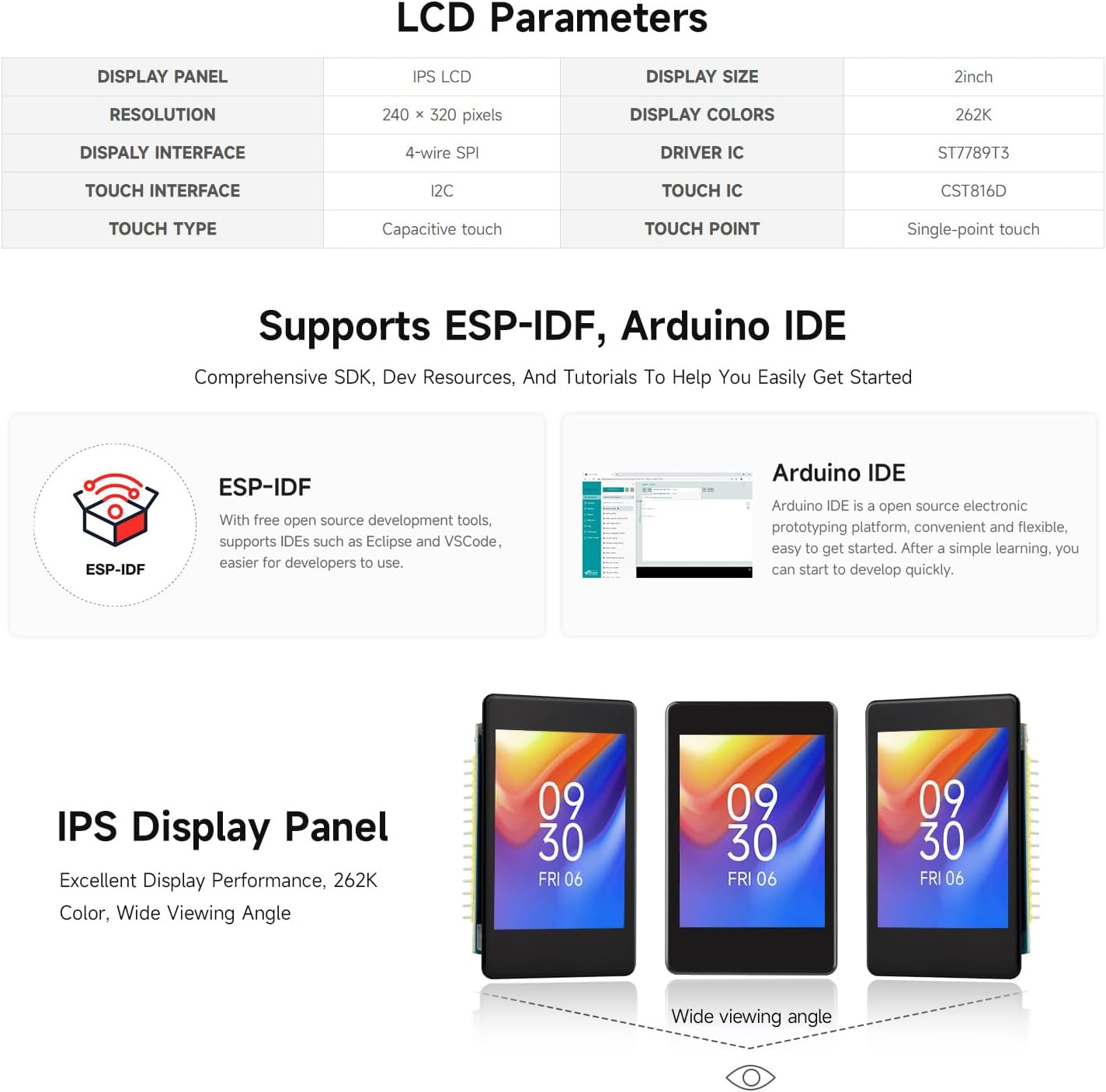

- Onboard 2inch capacitive touch display for clear color picture display, 240 × 320 resolution, 262K color. Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard TF card slot for external TF card storage of pictures or files

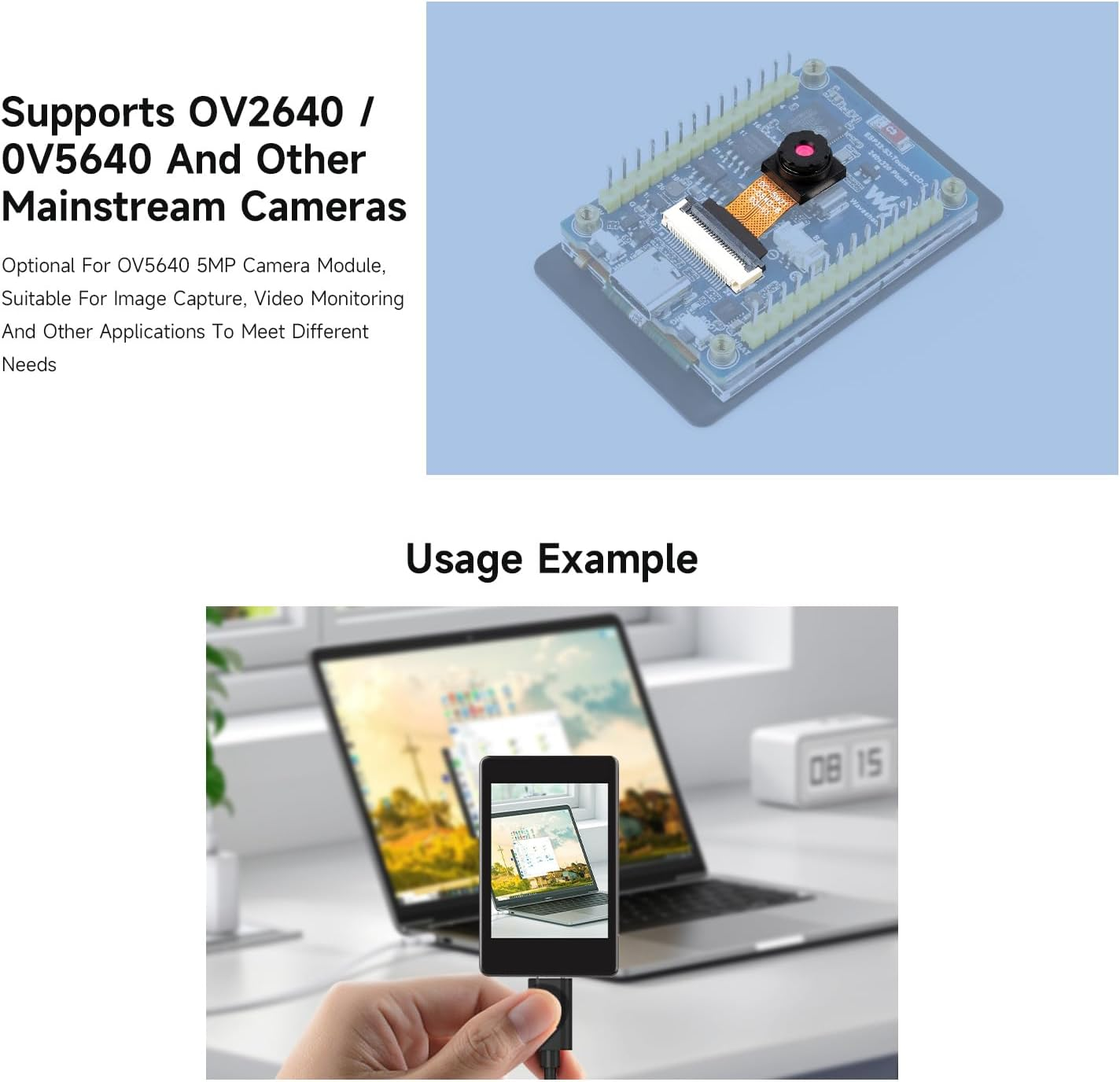

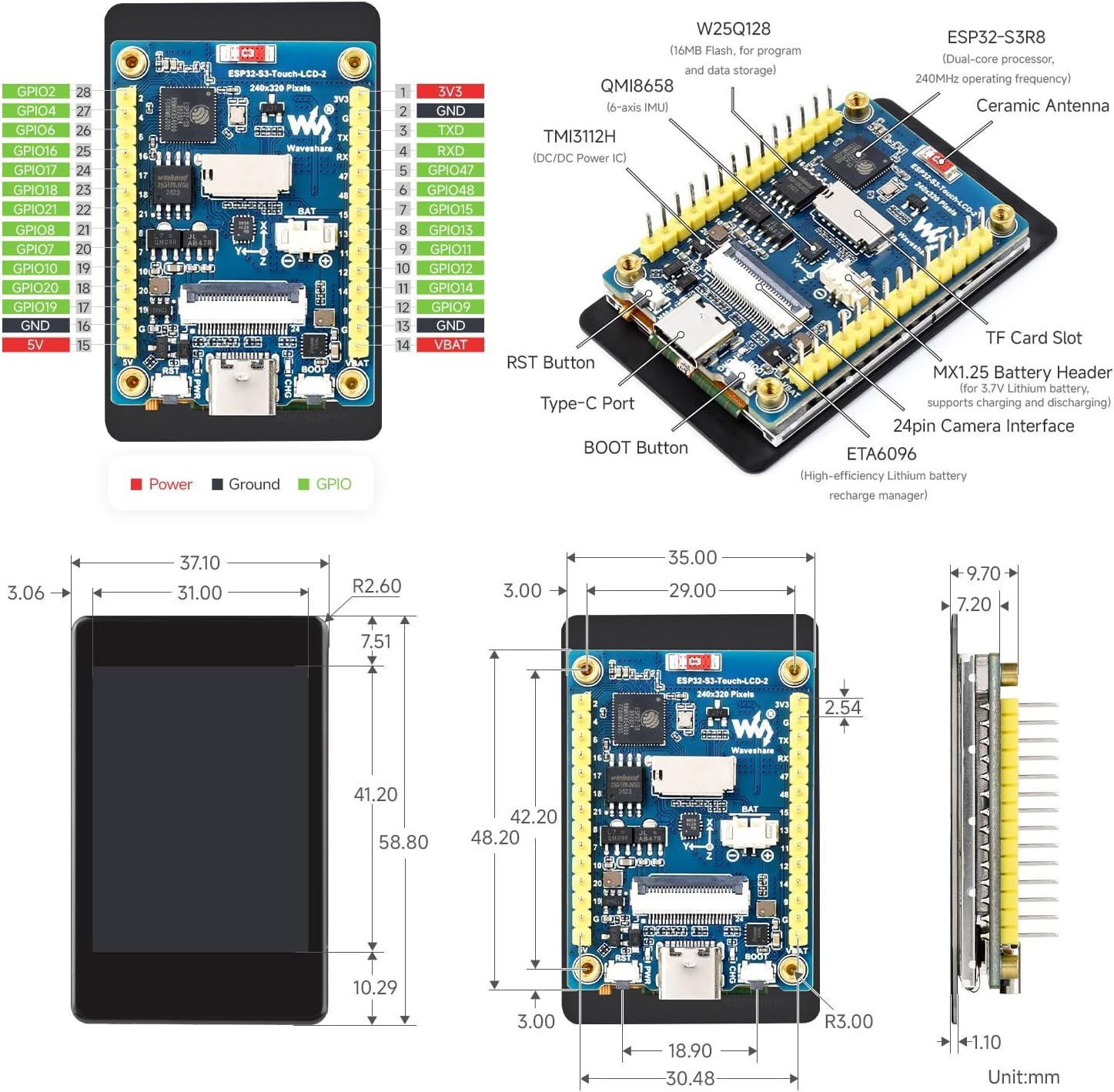

- Adapting 22 × GPIO pins for flexible configuration of pin function. Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition
- Item Model Number: ESP32-S3-Touch-LCD-2
- Part Number: ESP32-S3-Touch-LCD-2
- Total USB ports: 1
- Operating System: Linux
- Model Name: Waveshare ESP32-S3 2inch Capacitive Touch Display Development Board
- Mounting Hardware: ESP32-S3-Touch-LCD-2
- Batteries Included: No
- Batteries Required: No
- Memory Storage Capacity: 8 MB
- Brand: Waveshare
- Ram Memory Installed Size: 8 MB
- Processor Speed: 0.24 GHz
- Compatible Devices: OV2640, OV5640
- Connector Type: Wi-Fi, Bluetooth, USB, SPI, I2C
- Item Weight: 40 g
- Ram Memory Technology: LPDDR3
- Processor Count: 2
- Model: ESP32-S3-Touch-LCD-2
- Processor Brand: Espressif
- Package Dimensions: 7 x 5 x 1.8 cm; 40 Grams
- Manufacturer: Waveshare
