Spec:

Item Type: RFID Electronic Cabinet Lock

Material: ABS

Battery: 1.5V AAA Battery x 4 ( Shipped Without Battery )

Static Current: Operating Current: Card Standard: M1, NFC

User Card Capacity: 18

Operating Temperature: -10℃-60℃

Operating Humidity: 10%RH-90%RH

How To Use:

1. Reset To Factory Default:

Press the button for about 2 seconds, and the buzzer will sound one time. At this time, all cards are cleared and reset to factory default.

2. Double Mode:

Press the button for about 2 seconds, and the buzzer will sound one time. Then keep button pressed for another 3 secunds for double mode with sound Di Di” indication.

At this time, all cards are cleared. You must to set cards again and unlock with two user cards.

3. Manager Card:

1) The first manager card can be set directly in default state.

2) Add other manager cards: Read manager card 3 times, then read cards to add for manager card.

3) The maximum quantity of manager cards is 5. (Include the first manager card)

4) The manager cards is used to add, delete, configure and unlock.

4. Add User Card:

1) Read manager card one time, then read cards to add for user card.

2) The maximum quantity of user cards is 13.

5. Add User Card:

Read manager card 5 times and wait for 5s, then sound Di Di Di Di Di, and all user cards be deleted.

6. Normal Open When Battery Low

Read manager card 9 times, Di” indicate this function is disabled and Di Di indicate function is enabled. (Default is enable)

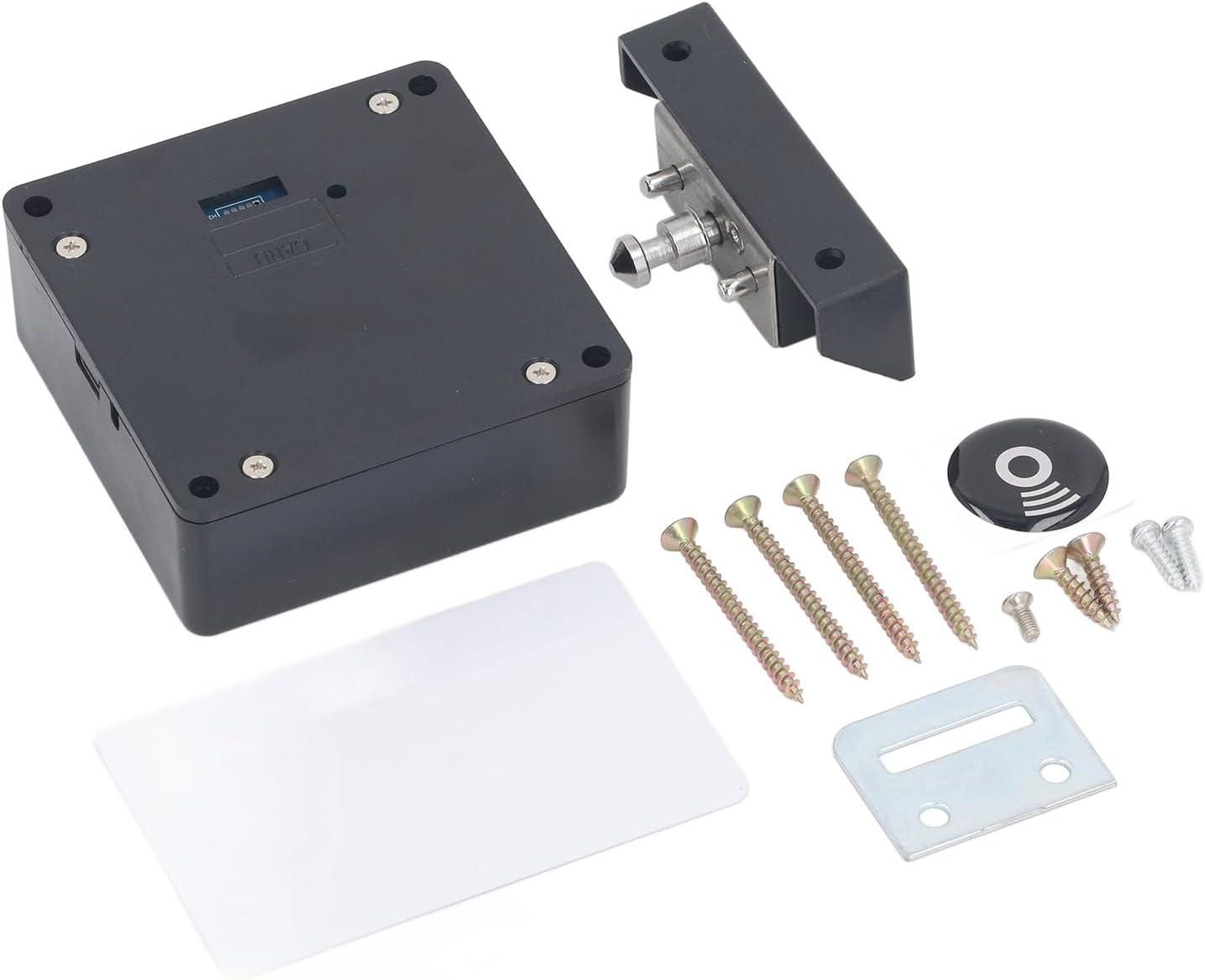

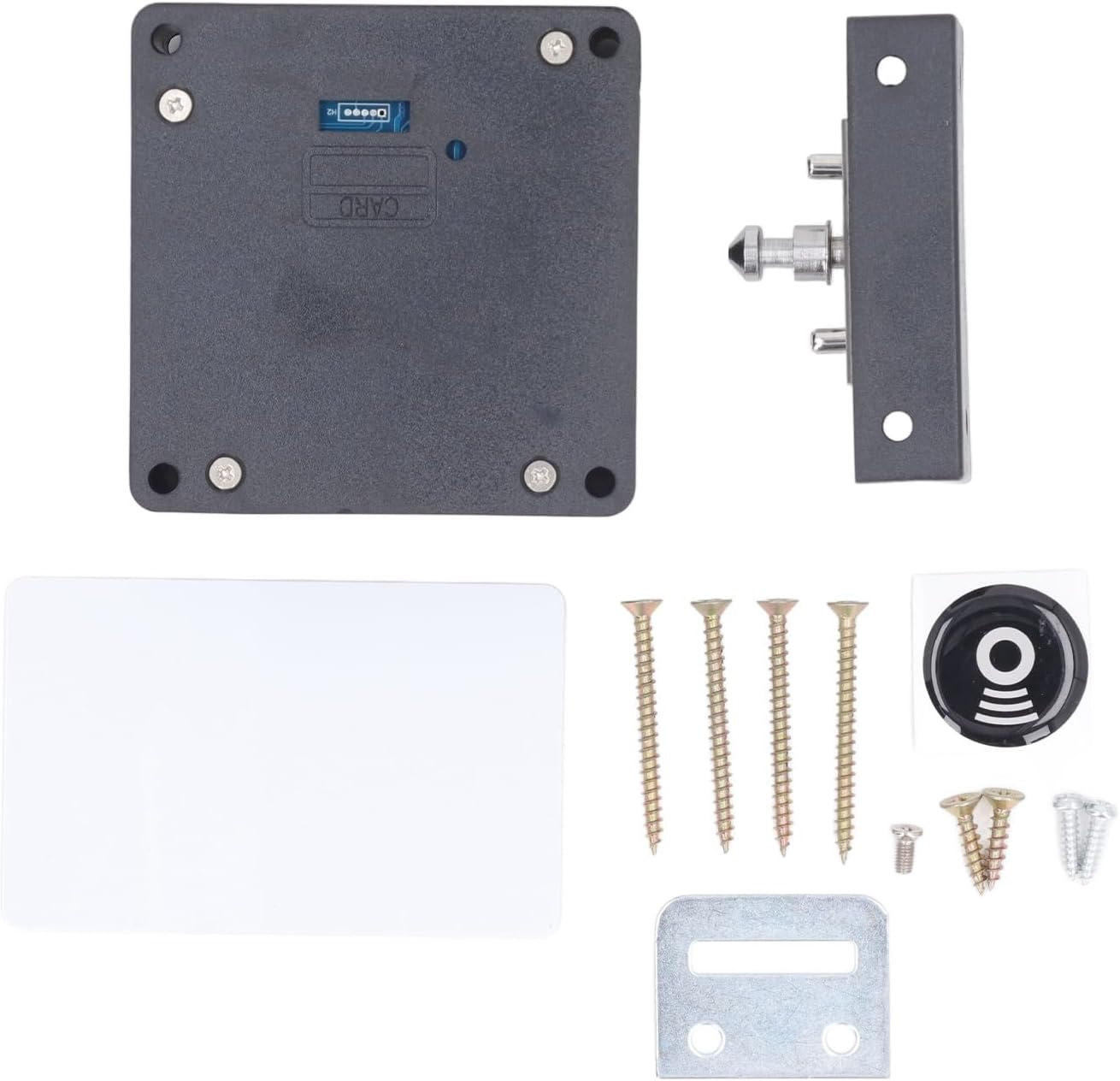

Package List:

1 x RFID Electronic Cabinet Lock

1 x Lock Head

1 x Accessory

9 x Screws

1 x Sticker

1 x Sensor Card

1 x Manual
