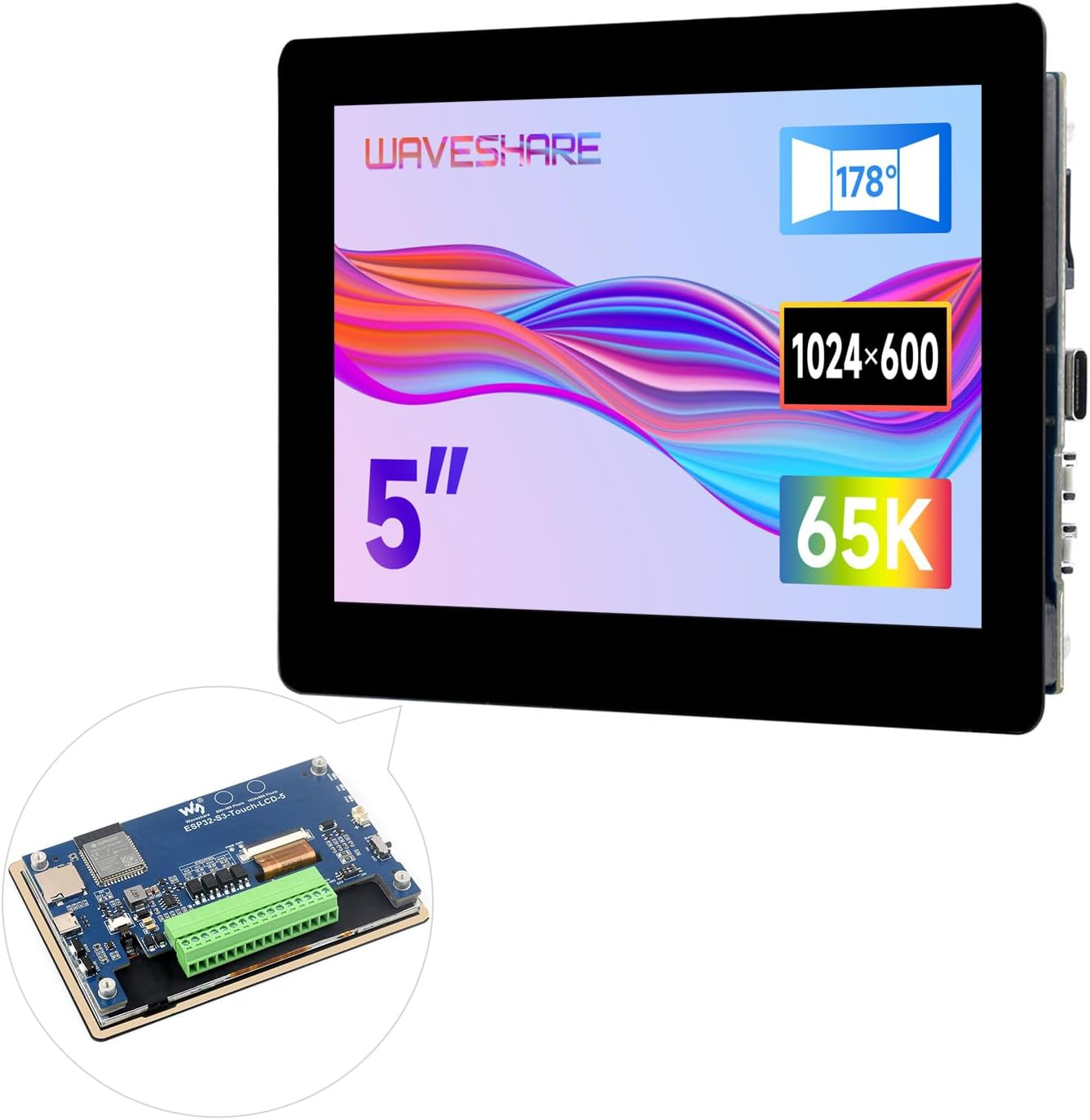

Waveshare ESP32-S3 5Inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support W-F & Blue-T, with Onboard Antenna, 1024X600 Display Resolution
Waveshare ESP32-S3 5Inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support W-F & Blue-T, with Onboard Antenna, 1024X600 Display Resolution
Brand: Waveshare
A$89.25
- Rich WiKi Resources: We provide official Wiki resources, please contact us for more information. ；Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

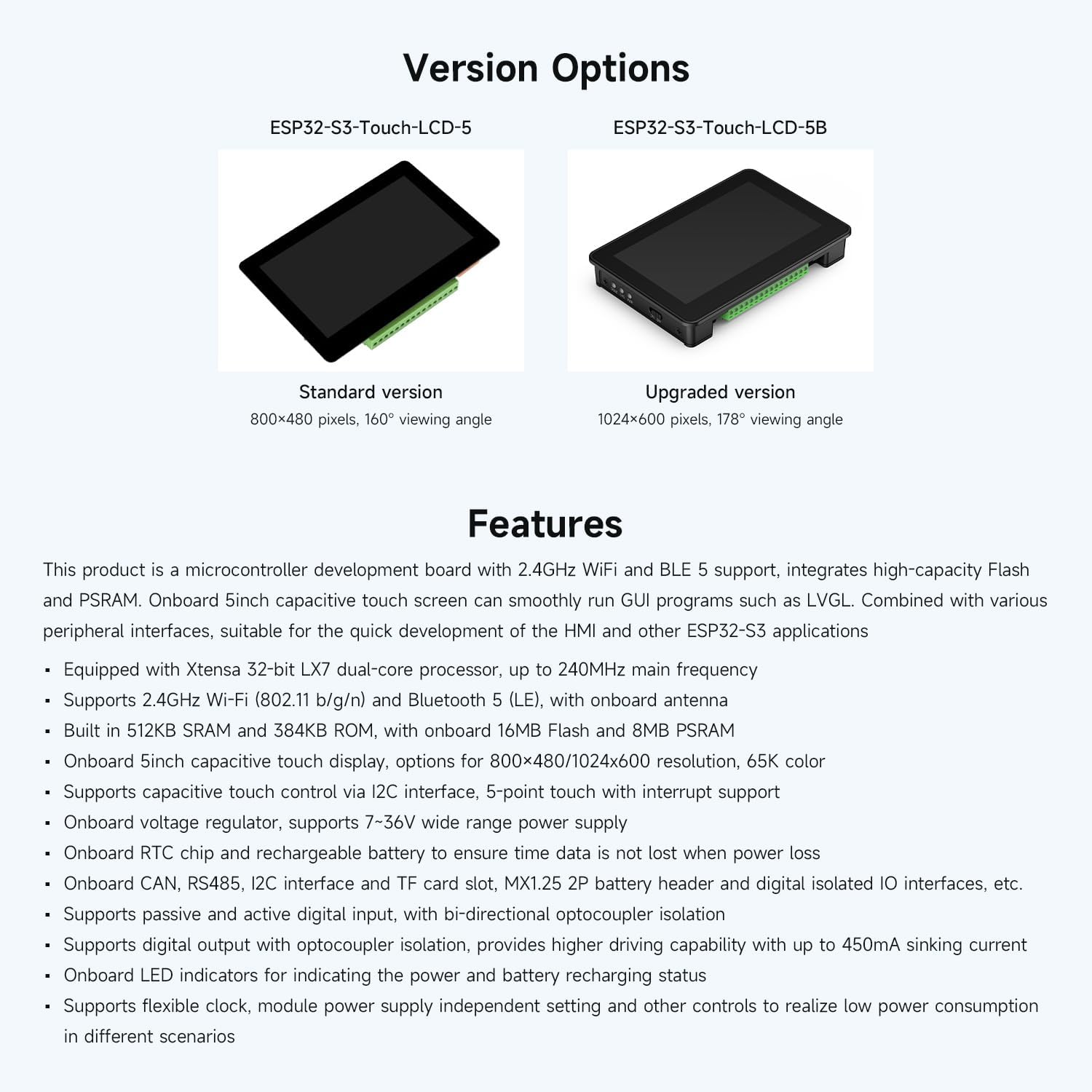

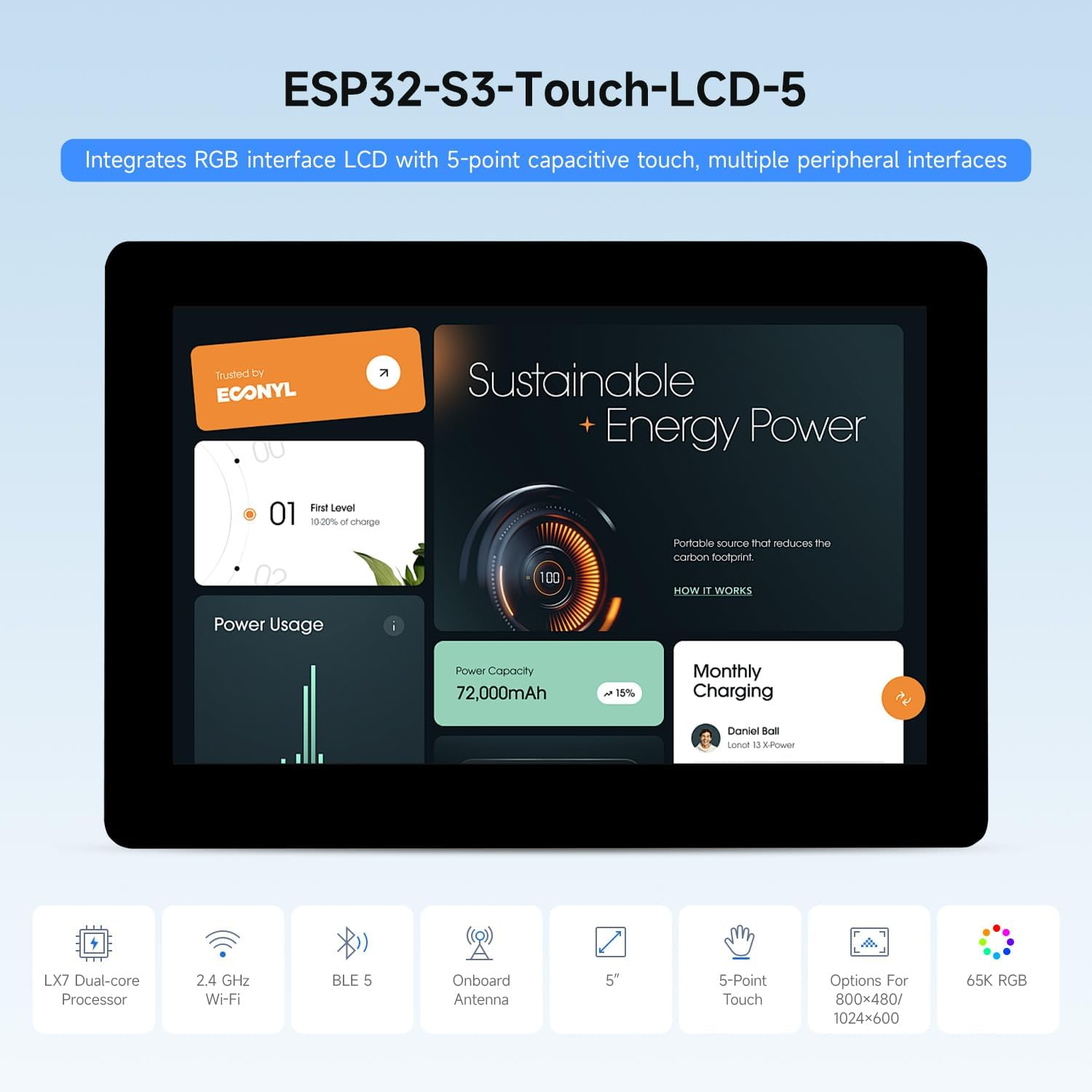

- Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 5inch capacitive touch display, options for 800×480/1024x600 resolution, 65K color
- Supports capacitive touch control via I2C interface, 5-point touch with interrupt support Onboard voltage regulator, supports 7~36V wide range power supply

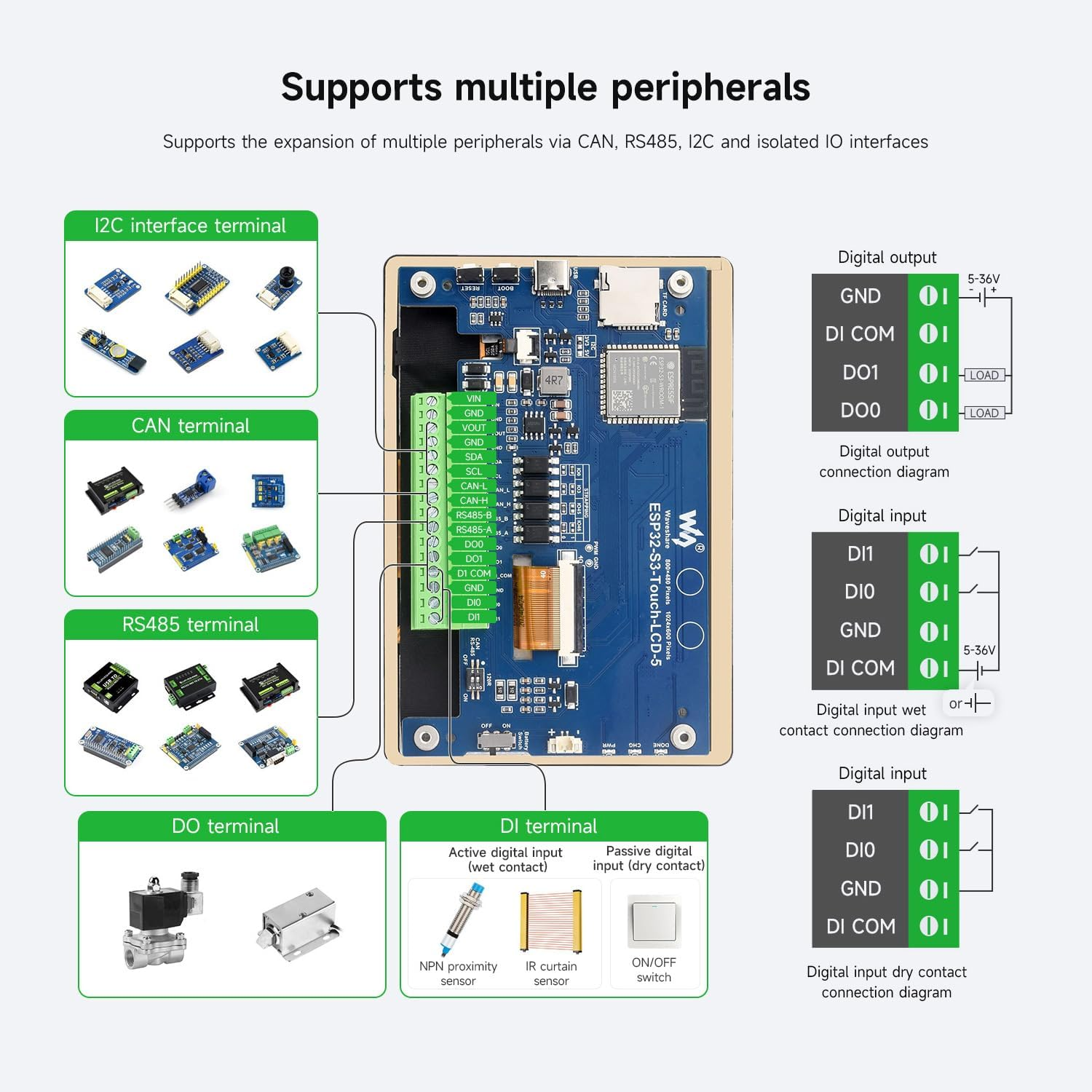

- Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss Onboard CAN, RS485, I2C interface and TF card slot, GH1.25 2P battery header and digital isolated IO interfaces, etc.Onboard LED indicators for indicating the power and battery recharging status Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
- Supports passive and active digital input, with bi-directional optocoupler isolation Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
Product Description
| Customer Reviews | 3.6 out of 5 stars 27 | 3.4 out of 5 stars 60 | 3.6 out of 5 stars 21 | 3.9 out of 5 stars 21 | 5.0 out of 5 stars 3 | 4.2 out of 5 stars 9 | 4.0 out of 5 stars 81 |
| Price | $73.99$73.99 | $66.99$66.99 | $72.00$72.00 | $99.99$99.99 | $79.99$79.99 | $84.99$84.99 | $79.75$79.75 |
| Flash/PSRAM | 16MB Flash + 8MB PSRAM | 8MB Flash + 8MB PSRAM | 16MB Flash + 8MB PSRAM | 16MB Flash + 8MB PSRAM | 16MB Flash + 8MB PSRAM | 16MB Flash + 8MB PSRAM | 8MB Flash + 8MB PSRAM |
| Power Supply | TypeC 5V + DC 7-36V | TypeC 5V | TypeC 5V + DC 7-36V | TypeC 5V + DC 7-36V | TypeC 5V + DC 7-36V | TypeC 5V + DC 7-36V | TypeC 5V |
| Resolution | 480x480 | 800x480 | 800x480 | 800x480 | 800x480 | 1024×600 | 800x480 |
| Display Interface | RGB | RGB | RGB | RGB | RGB | RGB | RGB |
| Display Panel | IPS | IPS | IPS | IPS | IPS | IPS | IPS |
| Viewing Angle | 160° | 160° | 160° | 160° | 160° | 178° | 170° |
| Touch Type | capacitive | capacitive | capacitive | capacitive | capacitive | capacitive | capacitive |
| Touch Panel | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass |
| Dimensions (L×W) | 84.2×84.2mm | 106.1×67.8mm | 112.4×75.1mm | 116.3×79mm | 127.7x87.45mm | 127.7x87.45mm | 192.96×110.76mm |
| Operating Temperature | 0℃ ~ 65℃ | 0℃ ~ 65℃ | 0℃ ~ 65℃ | 0℃ ~ 65℃ | 0℃ ~ 65℃ | 0℃ ~ 65℃ | 0℃ ~ 65℃ |
- Item Model Number: ESP32-S3-Touch-LCD-5B
- Part Number: ESP32-S3-Touch-LCD-5B
- Total USB ports: 1
- Operating System: Linux
- Model Name: ESP32-S3
- Batteries Included: No
- Batteries Required: No
- Memory Storage Capacity: 16 MB
- Brand: Waveshare
- Ram Memory Installed Size: 512 KB
- Processor Speed: 240 MHz
- Compatible Devices: Camera, Microcontroller (Arduino, Raspberry Pi models), Personal Computer
- Wireless Type: 802.11b, Bluetooth
- Item Weight: 145 g
- Connector Type: I2C
- Ram Memory Technology: LPDDR
- Processor Count: 2
- Model: ESP32-S3-Touch-LCD-5B
- Processor Brand: Espressif
- Product dimensions: 1.4 x 12.77 x 8.75 cm; 145.15 Grams
- Manufacturer: Waveshare
