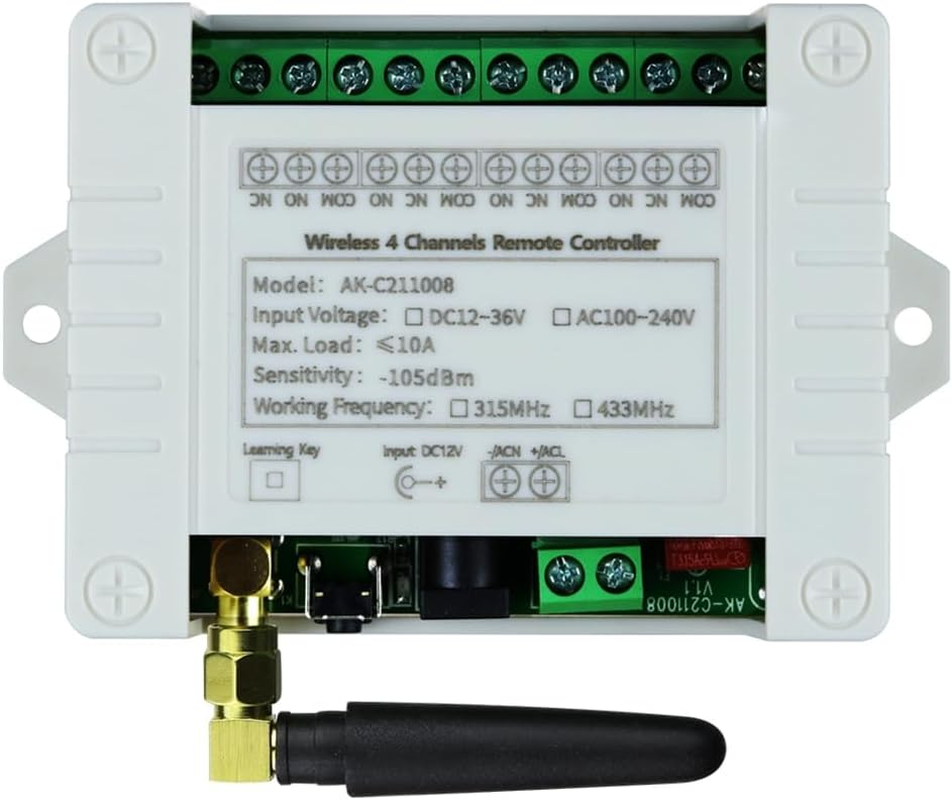

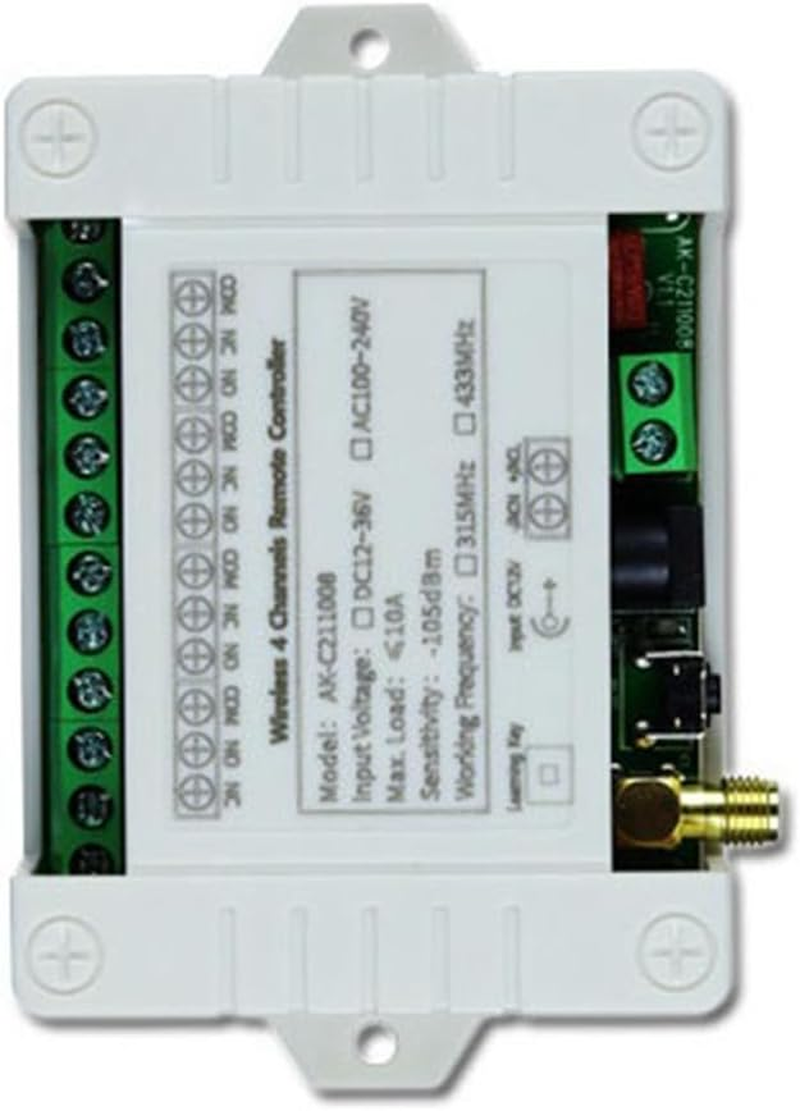

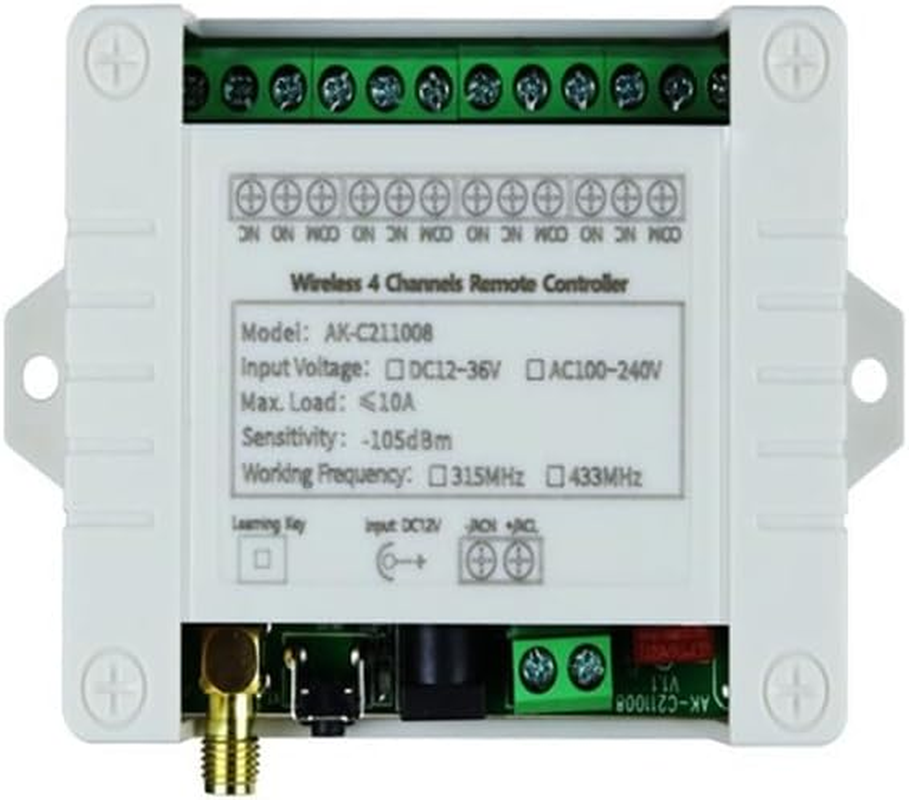

Aribrnten About Receiver:
Model No.: -C211008
1. Working voltage: DC12V-36V
2. Quiescent condition: Less than 6mA
3. Working temperature: -40℃ - + 80℃
4. Receiver sensitivity: more than -105dBm
5. Working frequency: 433mhz
6. Max load current: 10A

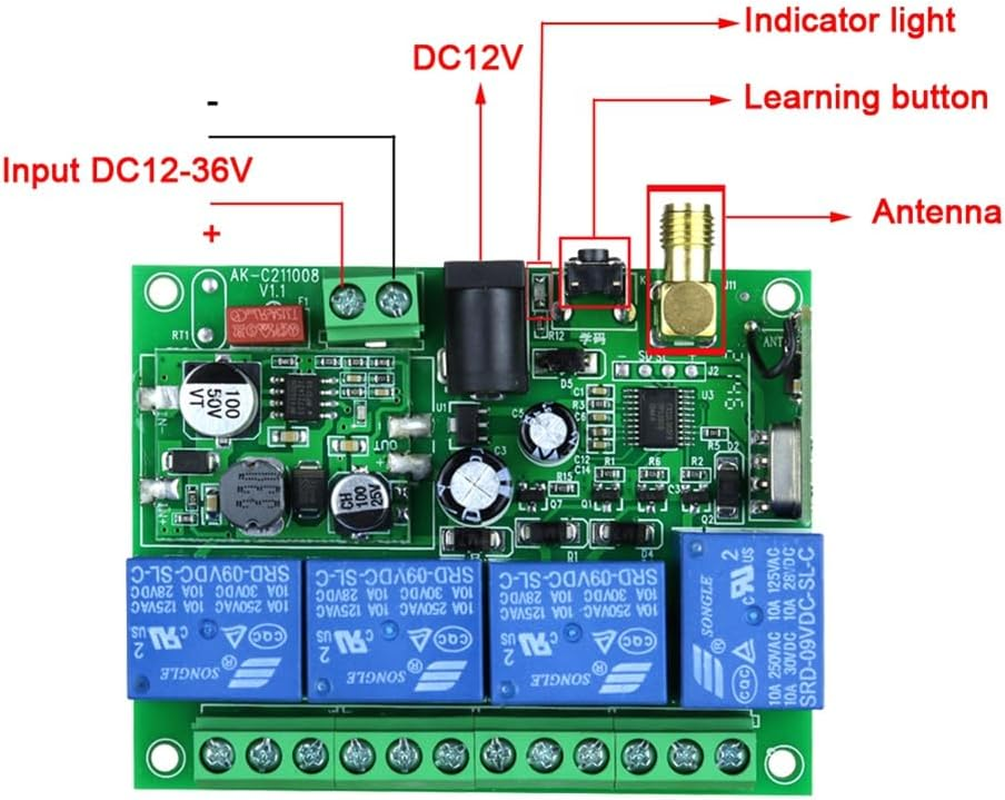

About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold → On; Release → Off.
Toggle: Press the Learning Button 2 times.
Relay: Press → On; Press same button again → Off.
Latched: Press the Learning Button 3 times.
Relay: Press → On; Press other button → Off.
2 channel Momentary + 2 channel Latched: Press the Learning Button 4 times.
2 channel Momentary + 2 channel Toggle: Press the Learning Button 5 times.
2 channel Toggle + 2 channel Latched: Press the Learning Button 6 times.

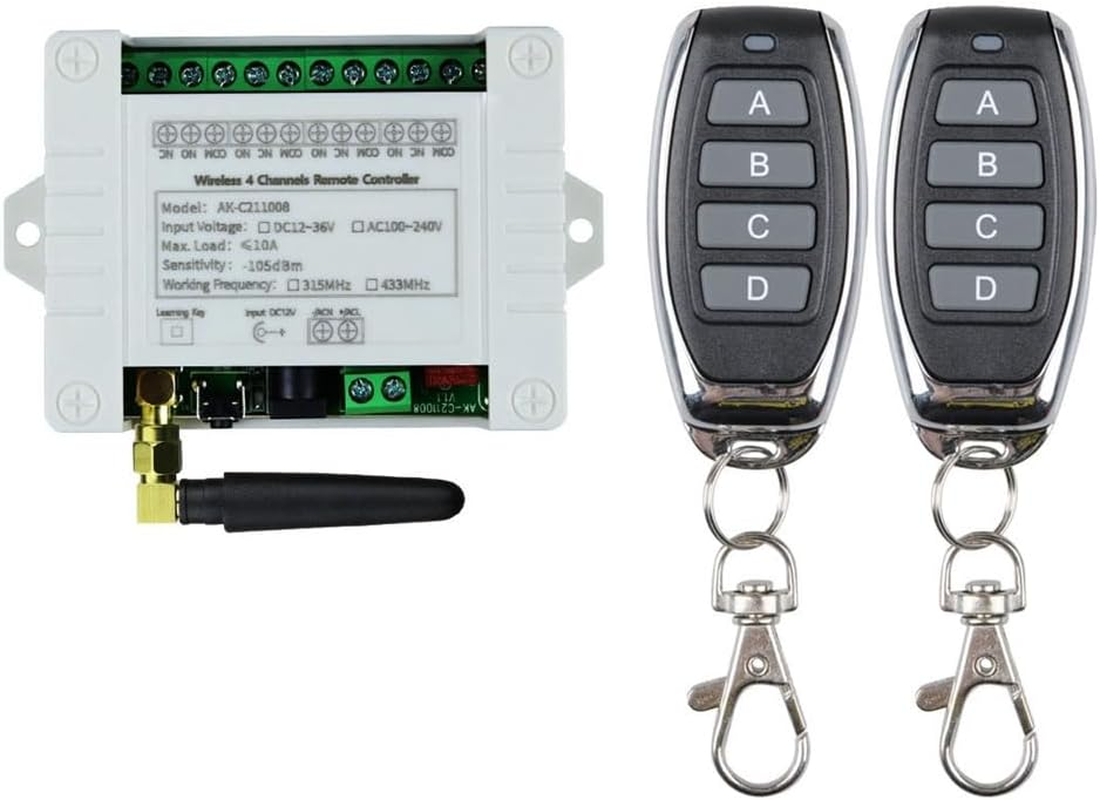

About Transmitter:
1. Buttons: 4 Buttons
2. Working Voltage:DC6V
3. Operating frequency :433MHz
4. Remote Distance: 50-100M
5. Operating Current: 12 mAh
6. Encode: EV1527 code
Remote Quantity:2PCS
Colour:White & Black
Material:Plastic+Metal
Package Contents:
1 * Remote Control Switch Receiver
2 * Remote Control Switch Transmitter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
