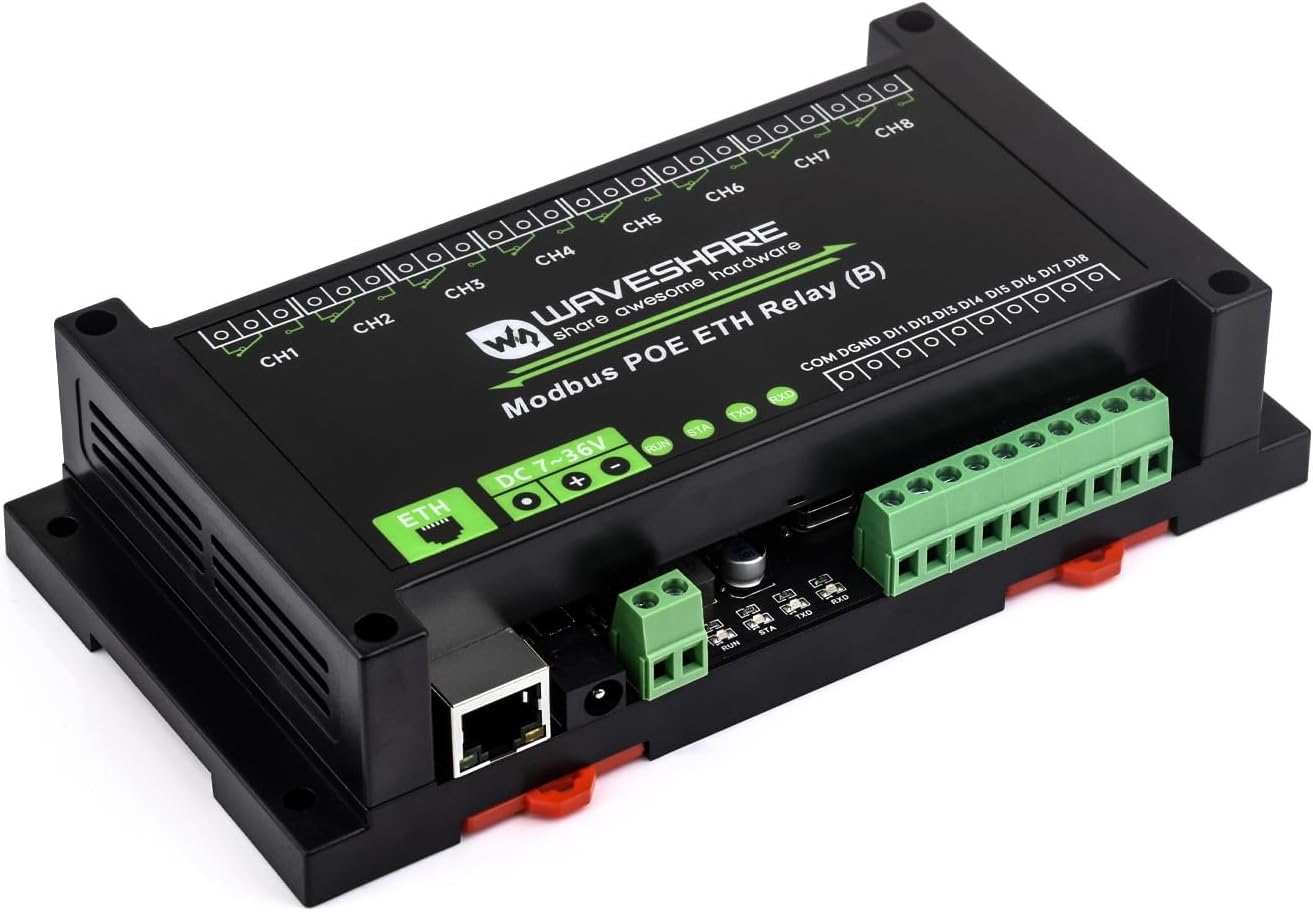

Waveshare 8-Ch Ethernet Relay Module (B) with Digital Input, Modbus Rtu/Modbus TCP Protocol, Poe Port Communication, with Various Isolation and Protection Circuits, Industrial Grade Rail-Mount Case
Waveshare 8-Ch Ethernet Relay Module (B) with Digital Input, Modbus Rtu/Modbus TCP Protocol, Poe Port Communication, with Various Isolation and Protection Circuits, Industrial Grade Rail-Mount Case
Brand: Waveshare
A$110.25
- ❤️Rich WiKi Resources❤️ We provide official Wiki resources, please contact us for more information.

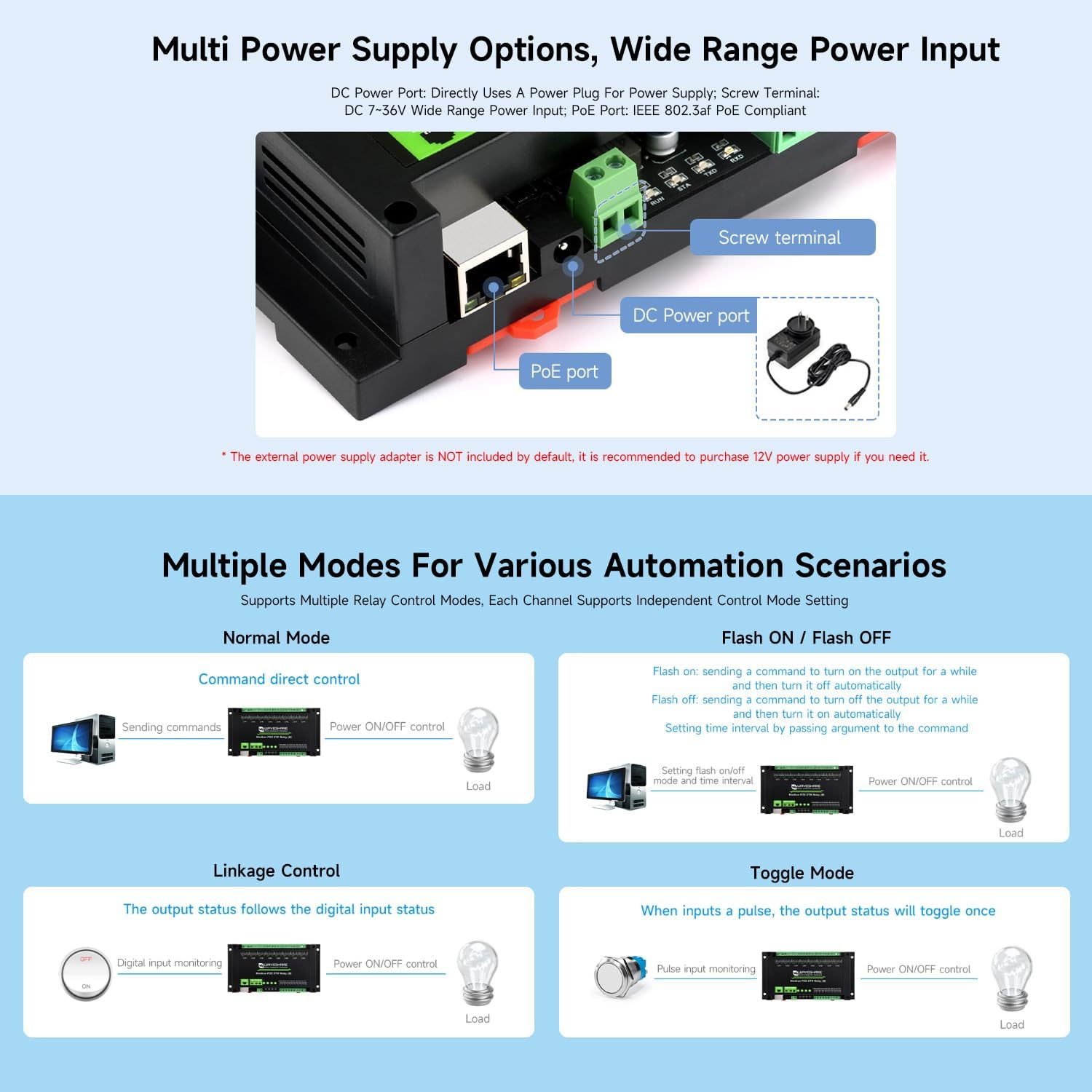

- ✅Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply

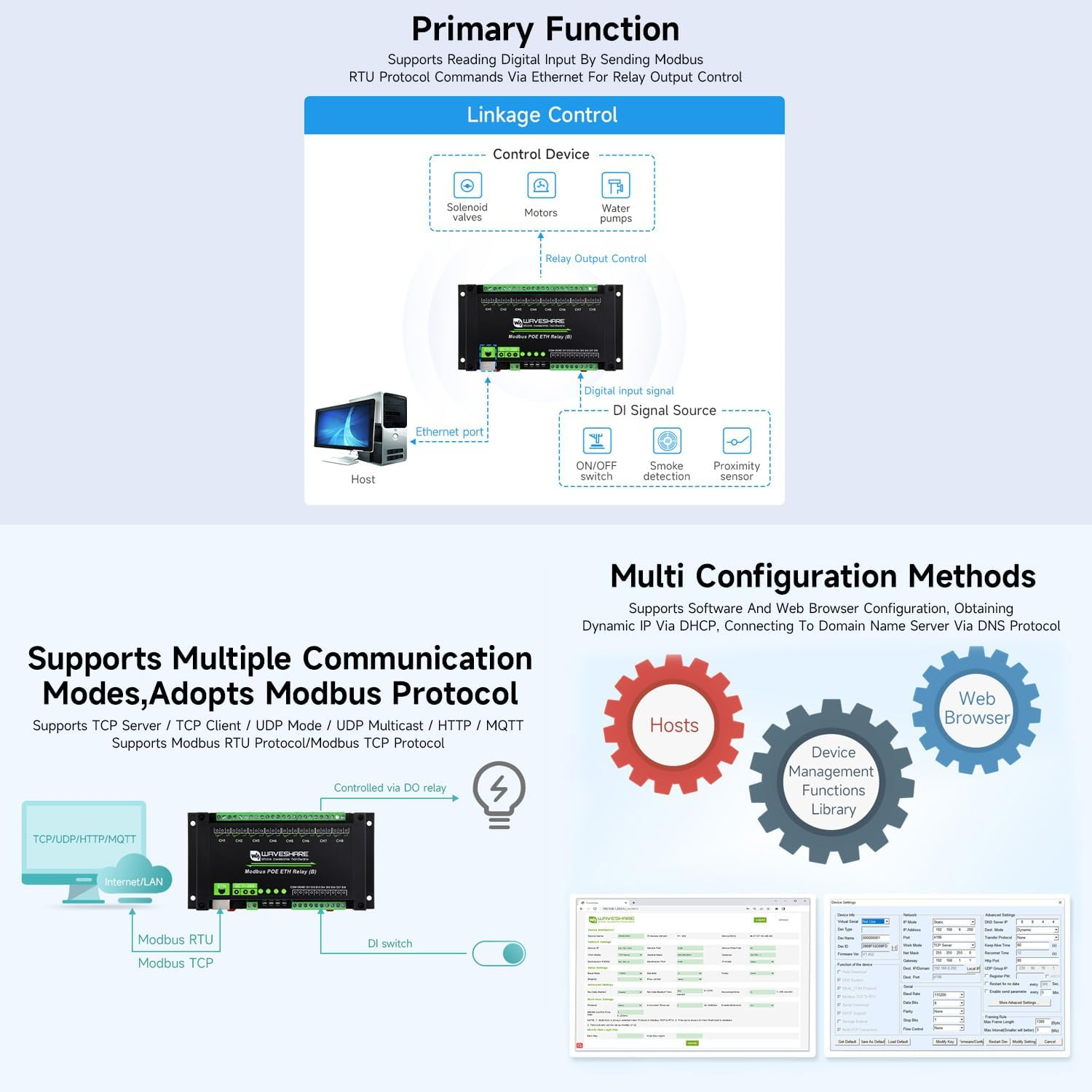

- ✅Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo. Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- ✅Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability.Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control

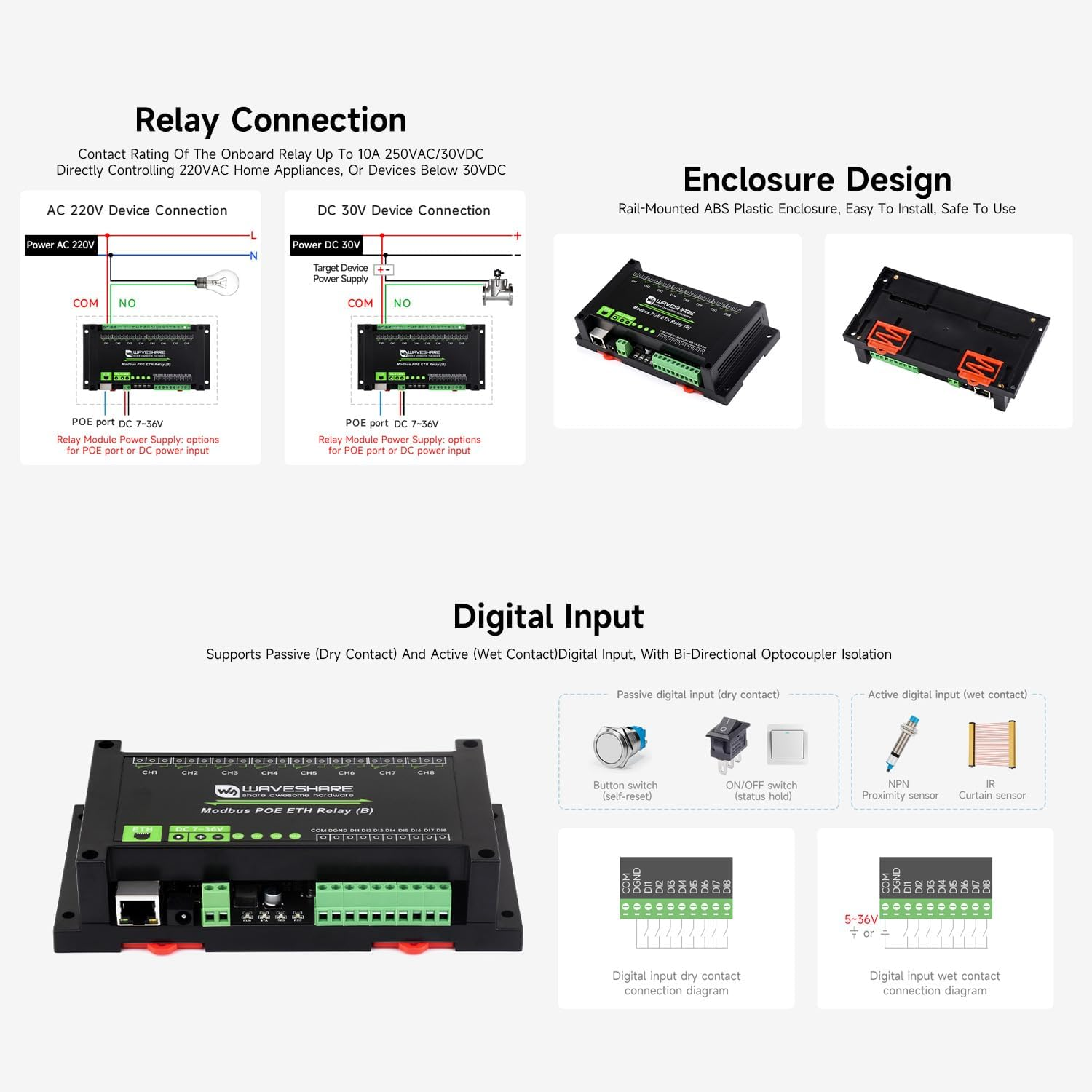

- ✅Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact rating: ≤10A 250VAC/30VDC. Rail-mounted ABS plastic enclosure, easy to install, safe to use. 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Product Description
- Item Model Number: Modbus POE ETH Relay (B)
- Part Number: Modbus POE ETH Relay (B)
- Mounting type: DIN Rail Mount
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Personal Computer
- Item Weight: 349 g
- Wattage: 70 watts
- Model: Modbus POE ETH Relay (B)
- Package Dimensions: 18.8 x 13.31 x 4.9 cm; 349 Grams
- Manufacturer: Waveshare
