DC 12V Universal Wireless Remote Control Switch 433Mhz 2CH 10A Relay Receiver Module with 2 Channel Remote Transmitter DC 24V 36V 48V Wireless Switch for Various Wireless Controls
DC 12V Universal Wireless Remote Control Switch 433Mhz 2CH 10A Relay Receiver Module with 2 Channel Remote Transmitter DC 24V 36V 48V Wireless Switch for Various Wireless Controls
Brand: MURANCLOUD
A$42.00
- Working Voltage: DC12 V; Max load current: 40 A; Working frequency: 433 Mhz
- 4 Working Modes: (we send Momentary Mode), Unique working mode, the four working modes of Momentary, Latched, Toggle, and 5 seconds delay can be switched at will, only need to through the Model button, you don't need to use a soldering iron or jumper cap
- Long Range: Signal can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance; Max range is up to 50meters with no obstacle
- Easy To Use: We have made transmitter and receiver working together and test it before ship it, when you get it don't need to do anything, just install it; The simple and practical programming realizes the two-way relay learning separately, which greatly facilitates the user's expansion application when using one control or multiple control and combination

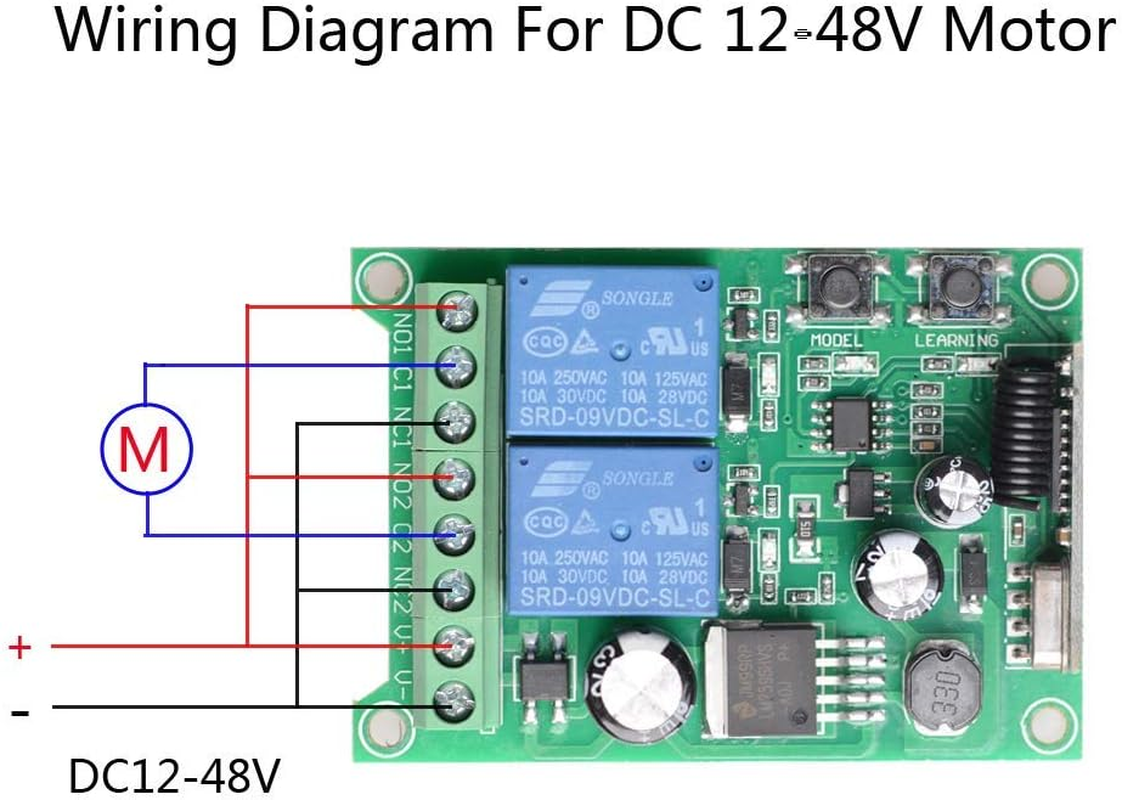

- Application Scenarios: Widely used in a variety of equipment control; such as cars, motorcycles; LED lamps / courtyard lights control; electric doors; access control; electric curtains and other intelligent control and security fields

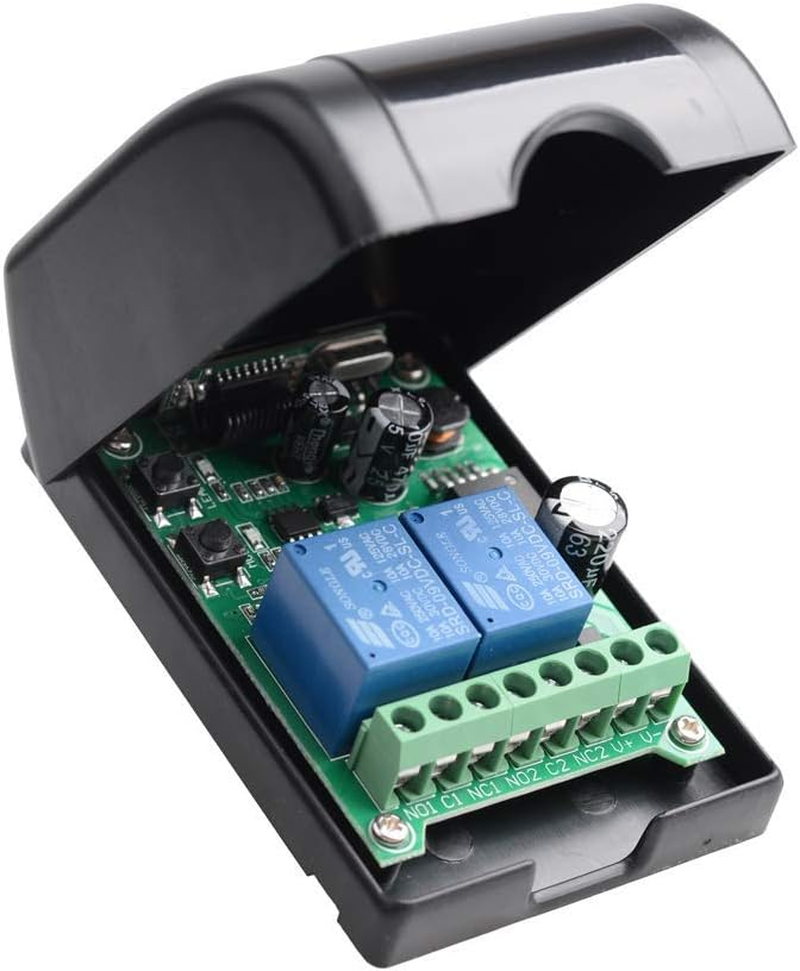

About Receiver:
Working voltage: DC12-48V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz

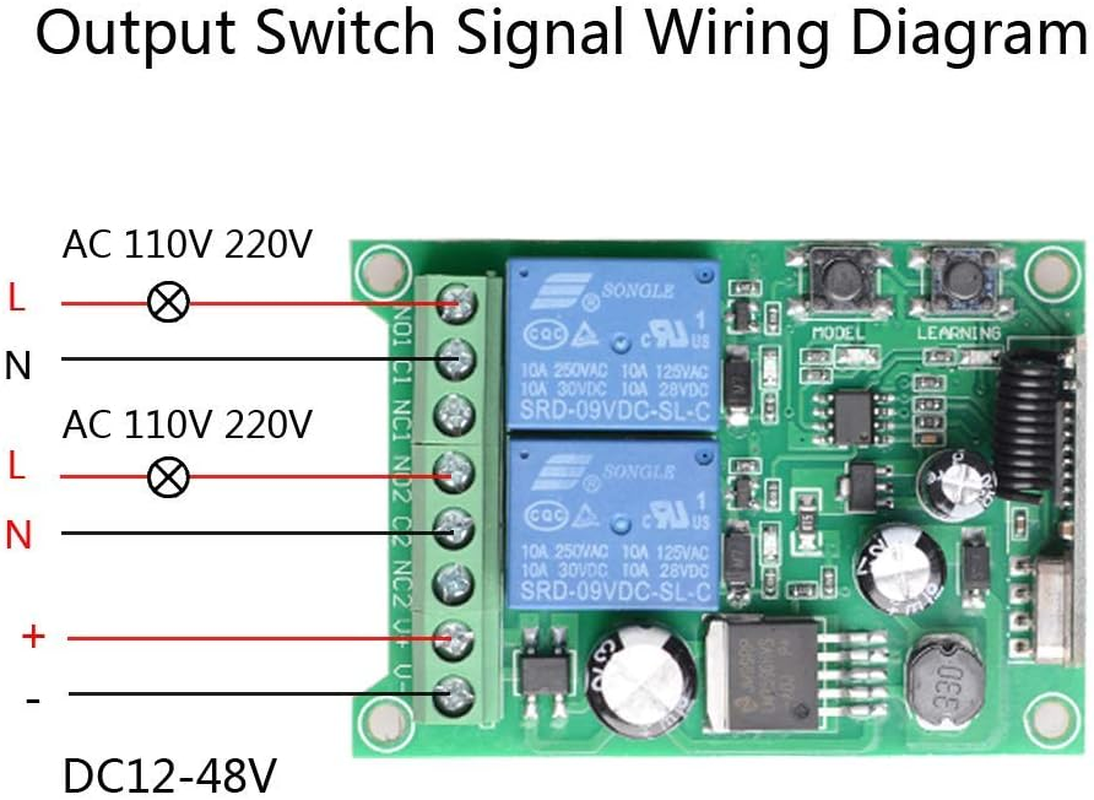

Output voltage: DC and Switch Signal is optional
Max load current: Less then 10A
Size: 8.5 x 5.7 x 2.6cm
About Working way:
Working way changed by Model button
1.Momentary: press model button 1 time.
Relay: Press and hold -> On; Release -> Off.
2.Latched: press model button 2 times.
Relay: Press -> On; Press other button -> Off.
3.Toggle: press model button 3 times.
Relay: Press -> On; Press same button again -> Off.
4.Delay 5 seconds: press model button 4 times.
Press remote control A button, the relay A actuates and keeps working 5 seconds. The same as relay B .
About Learning and clearing Method:
Learning: press learning button 1 time ,the LED indicator flash then press the transmitter button A, LED indicator flsah 3 times and off, button A learning successfully.
press learning button 2 times, the LED indicator flash then press the transmitter button B, LED indicator flsah 3 times and off, button B learning successfully.
Clearning: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote, Relay did not Respond ,it means clearning code successful.
About Transmitter:
Buttons: 2 Buttons
Working Voltage:D C12V
Operating frequency: 433MHz
Remote Distance: 20-50M

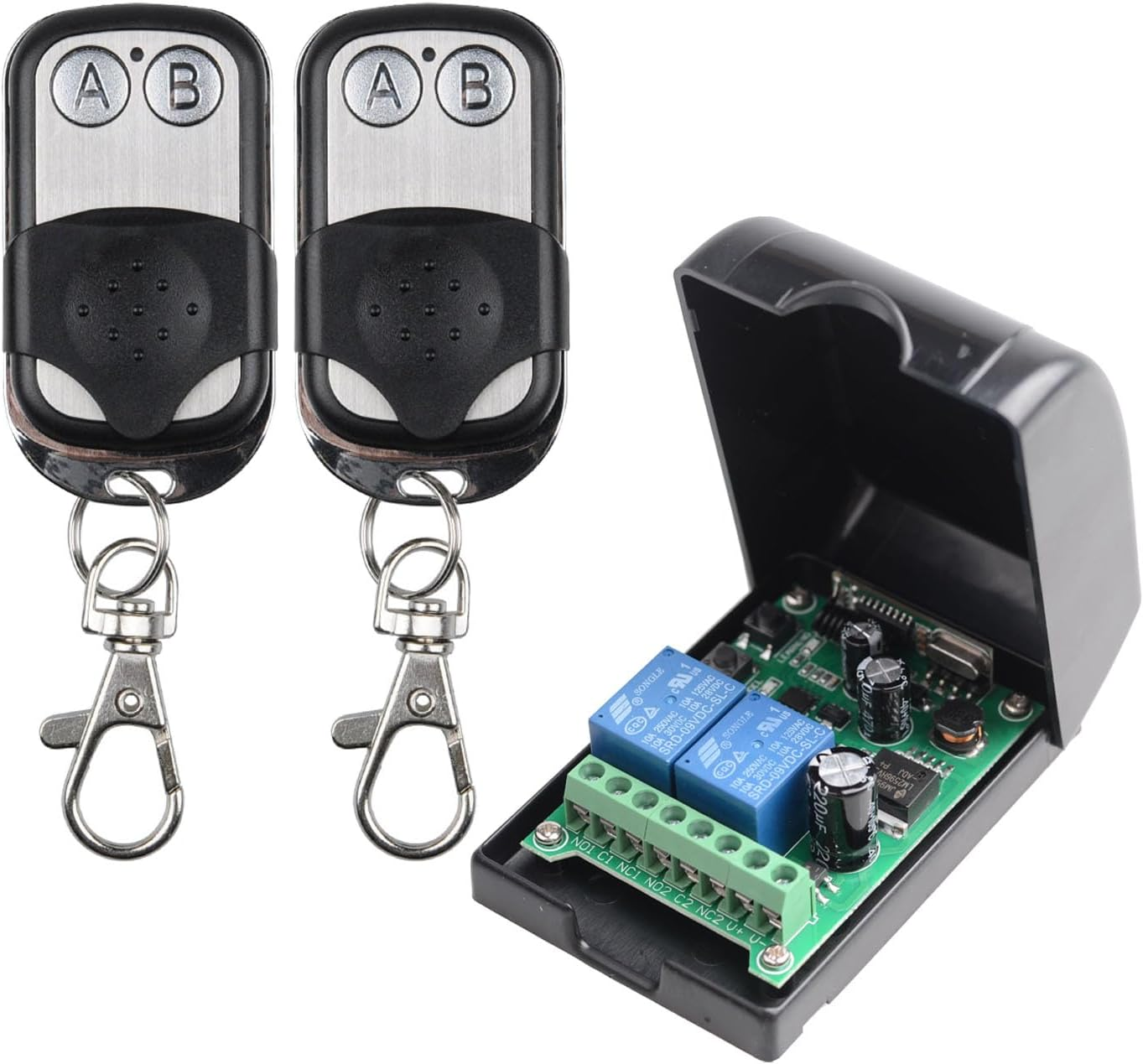

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manual
- Includes Rechargeable Battery: No
- Number of items: 1
- Batteries Included: Yes
- Batteries Required: Yes
- Brand: MURANCLOUD
- Battery cell composition: Alkaline
- Special Features: No Programming Required
- Compatible Devices: [INFERRED: Equipment and systems in fields like cars, motorcycles, LED lamps, electric doors, access control, electric curtains, and intelligent control and security]
- Connector Type: Radio Frequency
- Item Weight: 120 g
- Battery Description: 12V DC battery
- Package Dimensions: 13 x 11.8 x 3.7 cm; 120 Grams
- Manufacturer: MURANCLOUD
