DC 12V Wireless Remote Control Switch 433Mhz 30A 12V Relay DC 24V 36V 48V Wireless Switch in Household and Industrial Fields and More
DC 12V Wireless Remote Control Switch 433Mhz 30A 12V Relay DC 24V 36V 48V Wireless Switch in Household and Industrial Fields and More
Brand: MURANCLOUD
A$39.90
- EasyTo Use: Remote control and receiver are paired and tested before shipment, when you get it don't need to do anything, just install it
- Signal: Wireless RF signal can pass through walls, floors, doors or windows; You can use two or more units in the same place; You can turn on / off the receiver with transmitter from any place within a reliable distance(Max range is up to 164 ft / 50 m with no obstacle)
- Widely Use: This remote switch used in industrial control and security fields, such as light, motor, remote controller, wireless security alarm, windows,lifting equipment, electric doors, wireless door alarm, security industry machine, wireless controller, and other fields
- Learning Code: The Learning code has high-level security for its low repetitive rate and re-learn mode, it can delete the old code and re-learn a new code, when a remote control get lost, So you could always control of it

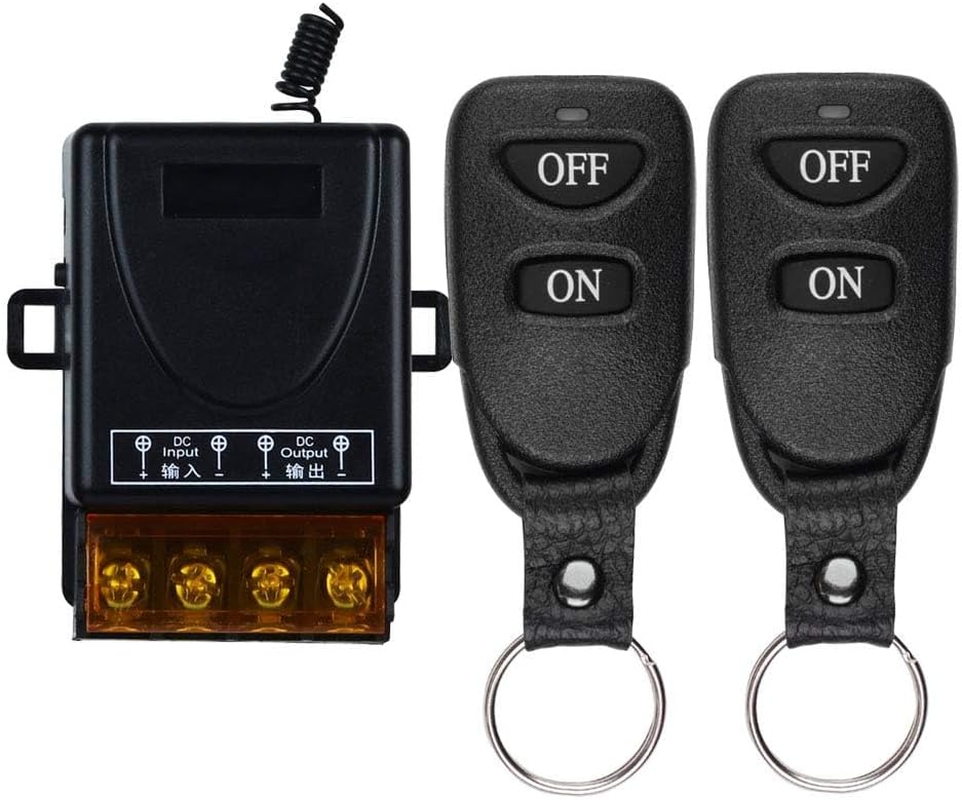

- The Package Include: 1 X Remote Switch , 2 X Remote Controls, 1 X Manual
About Receiver:
Working voltage: DC12V-48V
Quiescent condition: Less than 8mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: Input=output
Max load current: 30A
Size: 105 x51 x 30mm
About Working way:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :Press remote control button, the corresponding relay actuates and keeps working until the time out.
Learning Method : Input 12V for the Receiver
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning Method: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code.
About Transmitter:
Buttons: 2 Buttons
Remote Distance: 20-50M
Operating Current: 13 mAh
Encode: Fixed code / EV1527 code
Package Includes
2 x Transmitter
1 x Receiver
1 x User Manual
- Includes Rechargeable Battery: No
- Part Number: AK-QY02
- Number of items: 1
- Manufacturer reference: AK-QY02
- Batteries Included: Yes
- Batteries Required: Yes
- Brand: MURANCLOUD
- Battery cell composition: Alkaline
- Compatible Devices: Door, Electric Door, Lifting Equipment, Light, Motor, Security Alarm, Security Industry Machine, Window, Wireless Controller
- Connector Type: Radio Frequency
- Item Weight: 110 g
- Special Features: Learning Code, Multiple Working Ways
- Package Dimensions: 11.5 x 10.7 x 3.3 cm; 110 Grams
- Manufacturer: MURANCLOUD
