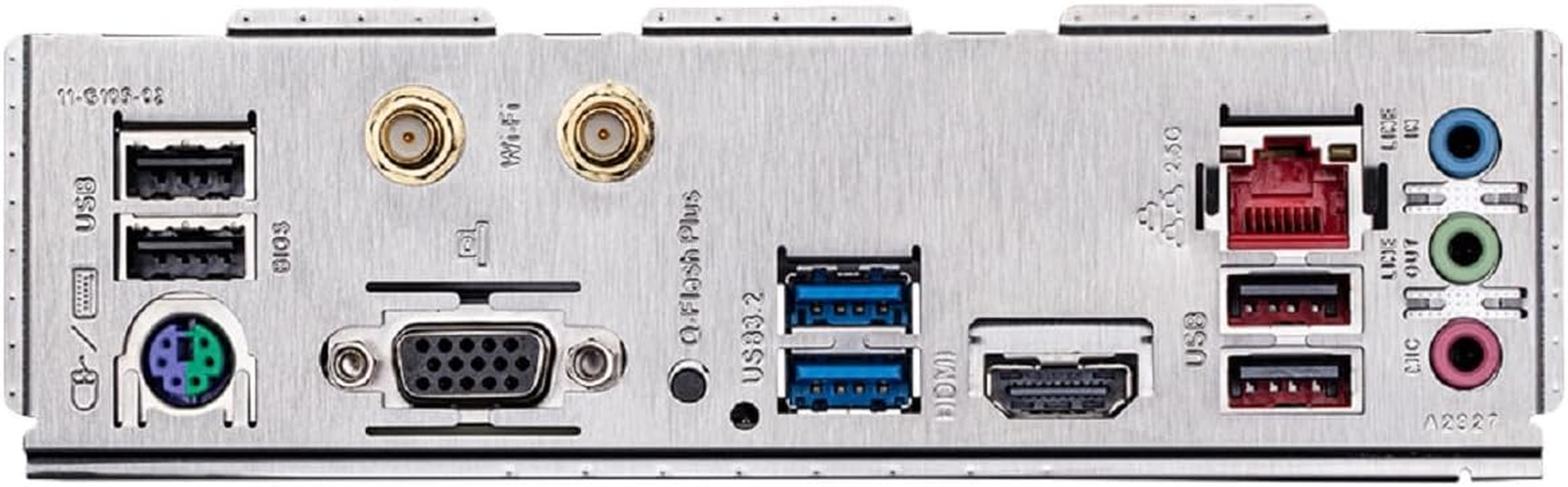

AMD Socket AM5 CPU, Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors (visit GIGABYTE website for the latest CPU support list.) AMD B650 Memory Chipset Support for DDR5 6400 (OC) / 6200 (OC) / 6000 (OC) / 5600 (OC) Memory Modules / 5200 / 4800 / 4400 MT/s 2 DIMM DDR5 Sockets with support up to 96GB (Single DIMM Capacity 48GB ) System Memory Dual Channel Memory Architecture Support for Unbuffered 1Rx8/2Rx8/1Rx16 DIMM Memory Modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) (CPU and memory configuration may affect supported memory types, data rate (speeds) e) and mobile number DRAM files, please refer to "Memory Support List" on the GIGABYTE website for more information.) Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics Support: - 1 D-Sub Port, with support for maximum resolution of 1920x1200@60Hz - 1 HDMI port, with support for maximum resolution of 4096x2160@60Hz * Support for HDMI 2.1 and HDCP 2.3. ** Support for HDMI 2.1 TMDS compatible native ports. (Graphics specifications may vary depending on CPU support.) Realtek® Audio CODEC Audio 2/4/5.1/7.1 Channel High Definition Audio * You can change the functionality of an audio jack using the audio software. To set up 7.1 channel audio, go to audio software for audio settings. Realtek® 2.5GbE LAN Chip (2.5Gbps/1Gbps/100Mbps) AzureWave Wi-Fi Wireless Communication Module AW-CB304NF (Realtek® RTL8821CE) - WIFI 802.11a, b, g, n, ac, with Dual Band Mount out of 2.4/5GHz - BLUETOOTH 4.2 - Support for 11ac wireless standard (actual data rate may vary depending on environment and equipment.) 1 x PCI Express x16 Slot (PCIEX16) Expansion Slots: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 Mode - AMD Ryzen™ 8000-Phoenix 1 Series Processors support PCIe 4.0 x8 Mode - AMD Ryzen™ 8000Series 0-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimal performance, if only a PCI Express graphics card is installed, please make sure to install it on PCIEX16 slot. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running on x1 Storage interface 1 x M.2 connector, CPU, with support for Socket 3 SSDs, M-Key, Type 2580/2280: - AMD Ryzen™ 7000 Series Processors with PCIe 4.0 x4.0 SSDs /x2 - Support for AMD Ryzen™ 8000-Phoenix Series 1 PCIe SSDs 4.0 x4/x2 - AMD Ryzen™ 8000-Phoenix 2 Series Processors Support PCIe 4.0 x4/x2 4 SATA Connectors 6Gb/s RAID 0, RAID 1 and RAID 10 for SSD storage devices NVMe RAID 0, RAID 1, and RAID 10 support for SATA USB CPU storage devices: - 2 USB 3.2 Gen 1 ports on back panel - 1 USB 2.0/1.1 port on back panel Chipset: - 2 USB 3.2 Gen 1 ports available via internal USB connector - 5 USB 2.0/1.1 ports (3 ports on back panel 2 ports available via internal USB connector) Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports available via internal USB connector Internal I/O Connectors 1 x 24 pin ATX Main Power Connector 1 x 8 pin ATX 12V Power Connector 1 x CPU Fan Head 2 x System Fan Heads headband heads Addressable LED ? ?1 x RGB LED Strip Head 1 x M.2 Socket 3 Connector 4 x SATA Connectors 6Gb/s 1 x Front Panel Connector 1 x Front Panel Audio Connector 1 x USB 3.2 Gen 1 connector 2 x USB 2.0/1.1 connectors 1 x Trusted Platform Module connector (For GC-TPM2.0 SP) I/GC-TPP M2 0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Rear Panel Connectors 4 x USB 2.0/1.1 Ports 1 x PS port/2 for keyboard/mouse 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 x HDMI port 1 port x RJ-4 Port 5 Š 3 x Audio Jacks I/O Controller Chip I/O Controller iTE® Monitoring H/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Detection Fan Failure Warning Fan Speed Control * The fan speed control function support will depend on the fan you install. BIOS 1 x 256 Mbit Flash Use of AMI UEFI BIOS Licensed PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC) Support * Apps available in GCC may vary by motherboard model. The supported functions of each application may also vary depending on the motherboard specifications. Q-Flash Support Q-Flash Plus Support Norton® Internet Security Software Pack (OEM Version) Bandwidth Management Software LAN Operating System Support for Windows 11 64-Bit Windows 10 Support 64-Bit Form Factor Micro ATX Form Factor 9.5" x 9.5"
