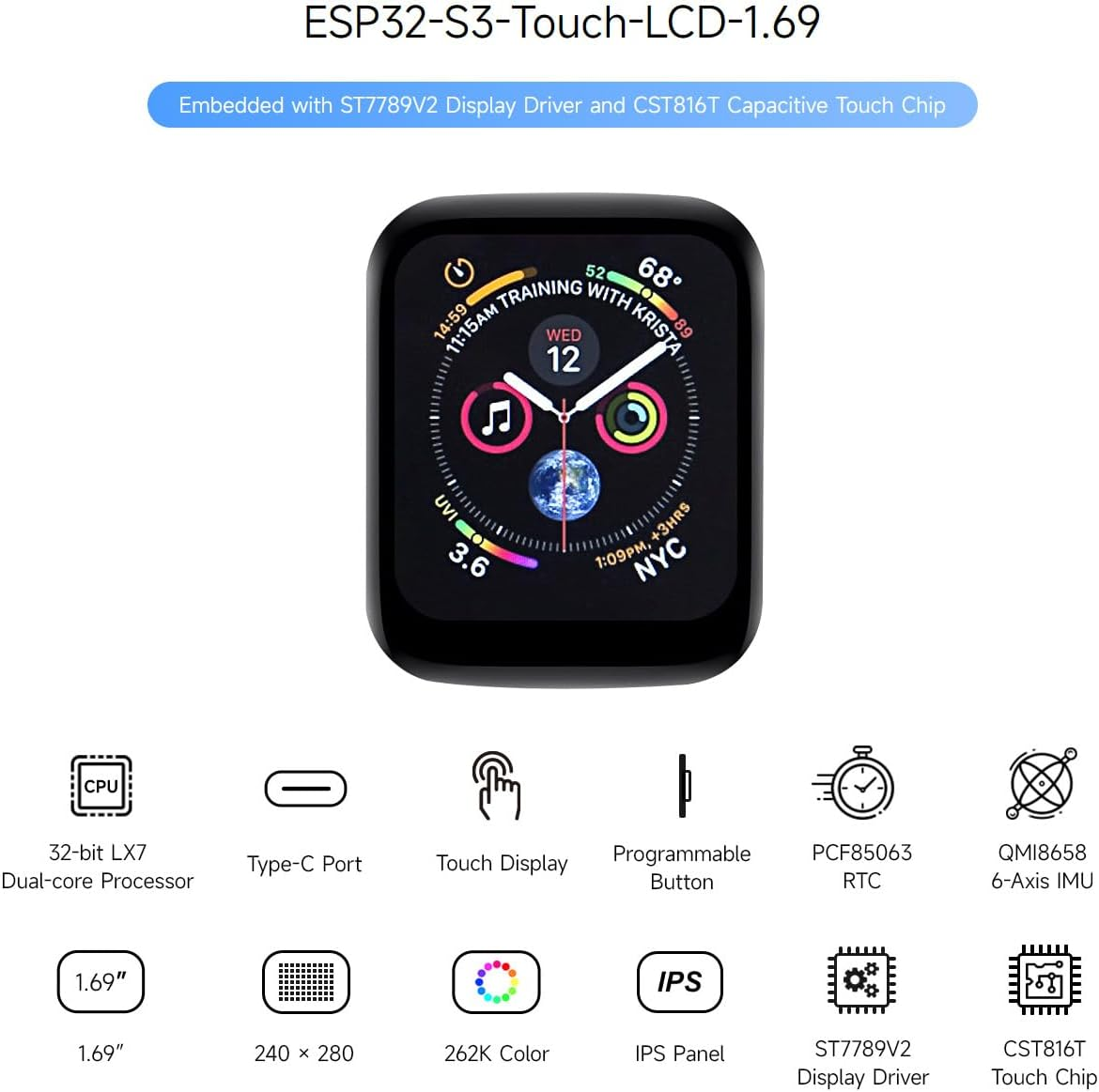

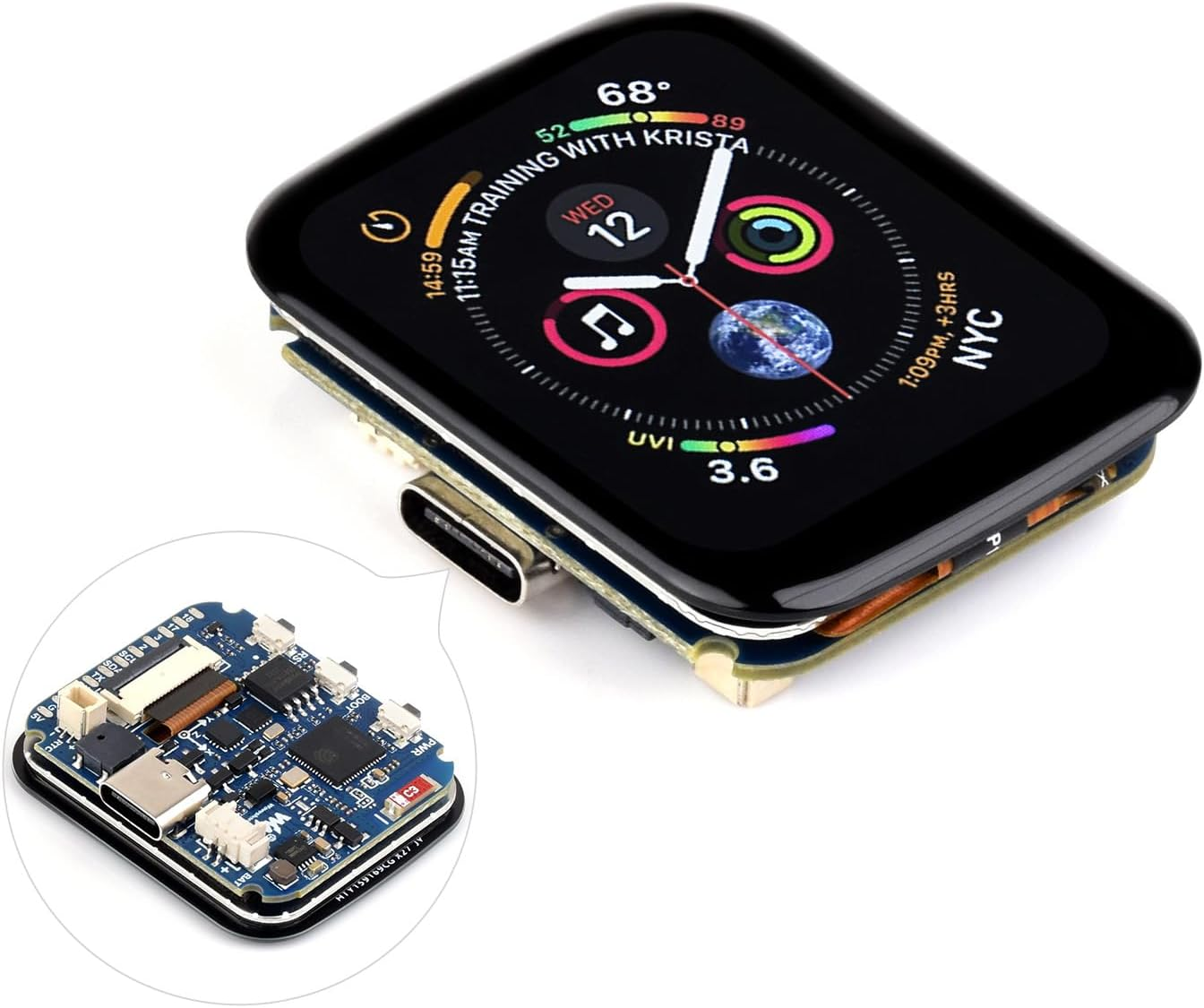

Waveshare ESP32-S3 1.69Inch 262K Color Touch LCD Development Board, 240×280 Resolution,Compact Size, Accelerometer and Gyroscope Sensor
Waveshare ESP32-S3 1.69Inch 262K Color Touch LCD Development Board, 240×280 Resolution,Compact Size, Accelerometer and Gyroscope Sensor
Brand: Waveshare
A$49.35

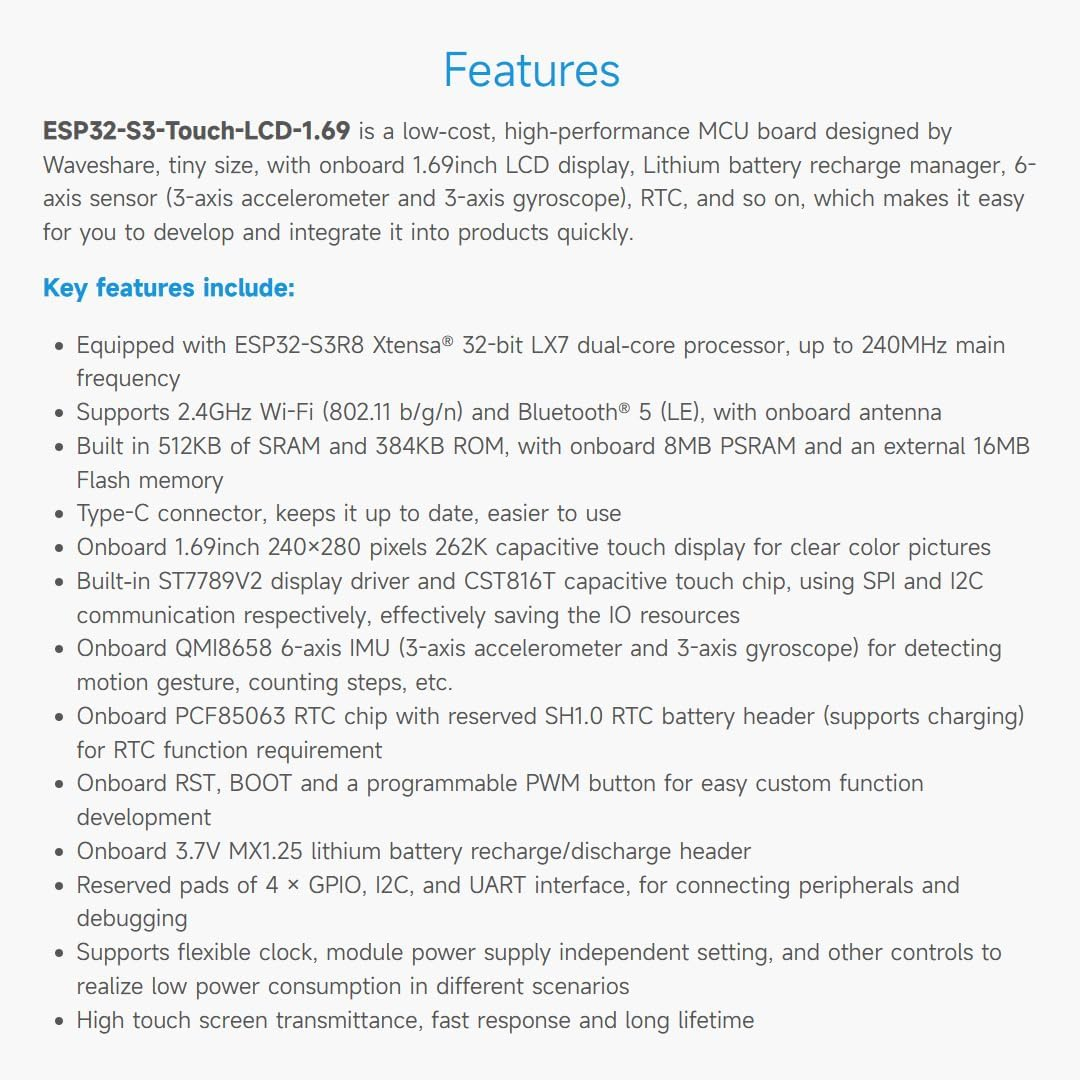

- Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual core processor with a main frequency of up to 240 MHz Supports 2.4 GHz Wi-F (802.11 b/g/n) and Blue-T 5 (LE), onboard antenna
- [Dual Built in 512KB SRAM and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash Adopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertion On board 1.69-inch capacitive touch LCD screen, 240 x 280 resolution, 262K color, capable of displaying color images clearly

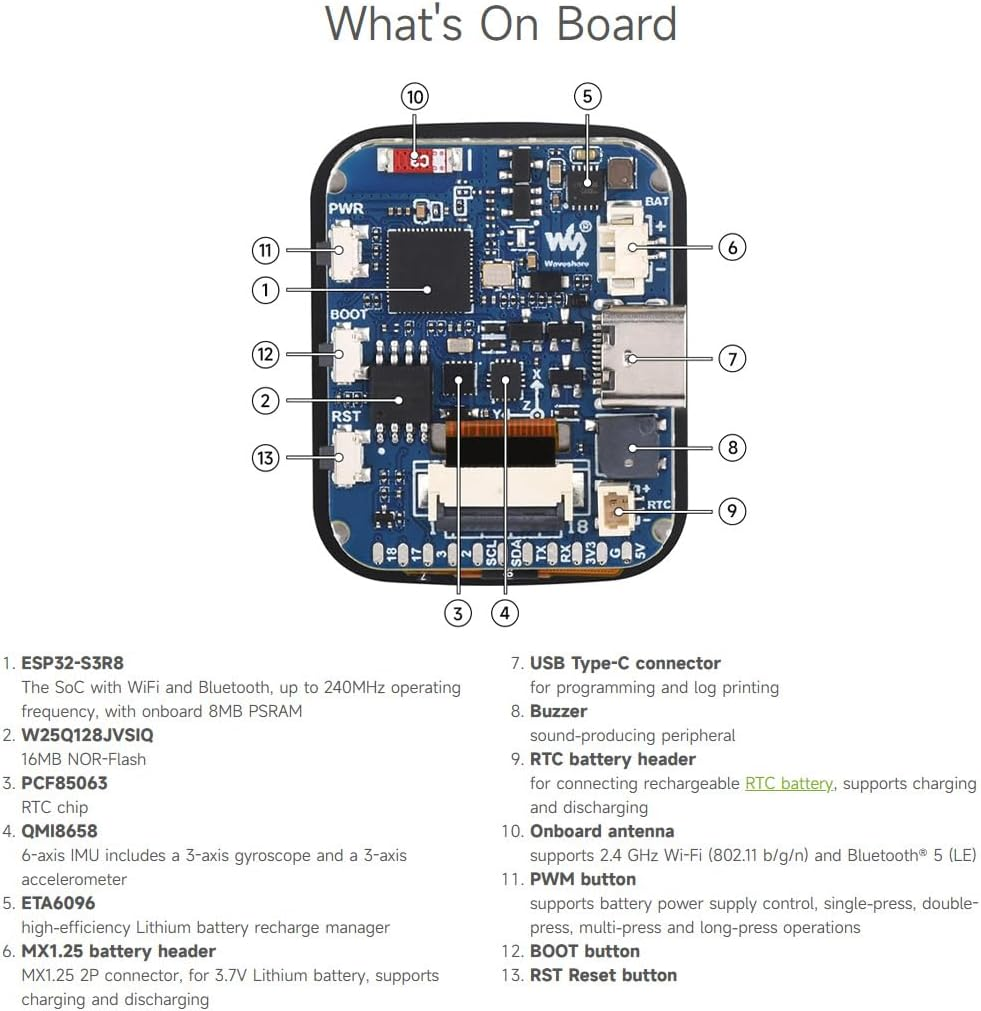

- Built in ST7789V2 driver chip and CST816T capacitive touch chip, communicate using SPI and I2C interfaces respectively, without occupying too many interface pin resources On board QMI8658 six axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion attitude, step counting, etc
- On board PCF85063 RTC chip with reserved 1.25 RTC battery slots (supporting charging), which can conveniently meet RTC function requirements On board RST, BOOT, and a customizable side button, making it easy to use buttons for custom function development .Board mounted 3.7V MX1.25 lithium battery charging and discharging interface Introduce 4 GPIO, I2C, and UART pads for external equipment and debugging, with flexible configuration of peripheral functions
- Supports precise control such as flexible clocks and individual module power settings, achieving low power consumption modes in multiple scenarios Touch screen has high transmittance, fast response, and long lifespan
Product Description
- Part Number: ESP32-S3-Touch-LCD-1.69
- Total USB ports: 1
- Operating System: Linux
- Model Name: ESP32-S3-Touch-LCD-1.69
- Manufacturer reference: ESP32-S3-Touch-LCD-1.69
- Batteries Included: No
- Batteries Required: No
- Memory Storage Capacity: 384 KB
- Brand: Waveshare
- Ram Memory Installed Size: 512 KB
- Connector Type: GPIO, I2C
- Wireless Type: 802.11bgn, Bluetooth
- Item Weight: 18 g
- Processor Count: 2
- Processor Speed: 2.4E+2 MHz
- Processor Brand: Espressif
- Package Dimensions: 6.81 x 5.11 x 1.9 cm; 18 Grams
- Manufacturer: Waveshare
