Milescraft Hingejig Self-Clamping Door Hinge & Latch Router Jig 7 Pieces Set
Milescraft Hingejig Self-Clamping Door Hinge & Latch Router Jig 7 Pieces Set
Brand: Milescraft
A$50.30
- Comes with everything needed to rout hinge and latch mortises onto new doors
- Self-clamping feature holds the HingeJig in place
- Padded clamp design sets up quickly and prevents damage to doors
- Used on all standard size 1-3/8” and 1-3/4” thick doors
- Eliminates need for multiple inserts to rout different hinge corner radiuses
From the manufacturer
About Us
Milescraft has a remarkable history of innovative product development, dating back to 2002. Over the years we have released several new products that stand out in the marketplace. All products are proudly engineered in the USA and developed and manufactured with the user in mind. We offer a variety of products such as workshop safety products, pocket hole jigs, doweling jigs, drill attachments and accessories, sign making jigs, sanding tools, framing tools and so much more.
Milescraft 1226 Hinge Jig
SELF-CLAMPING DOOR HINGE AND LATCH JIG

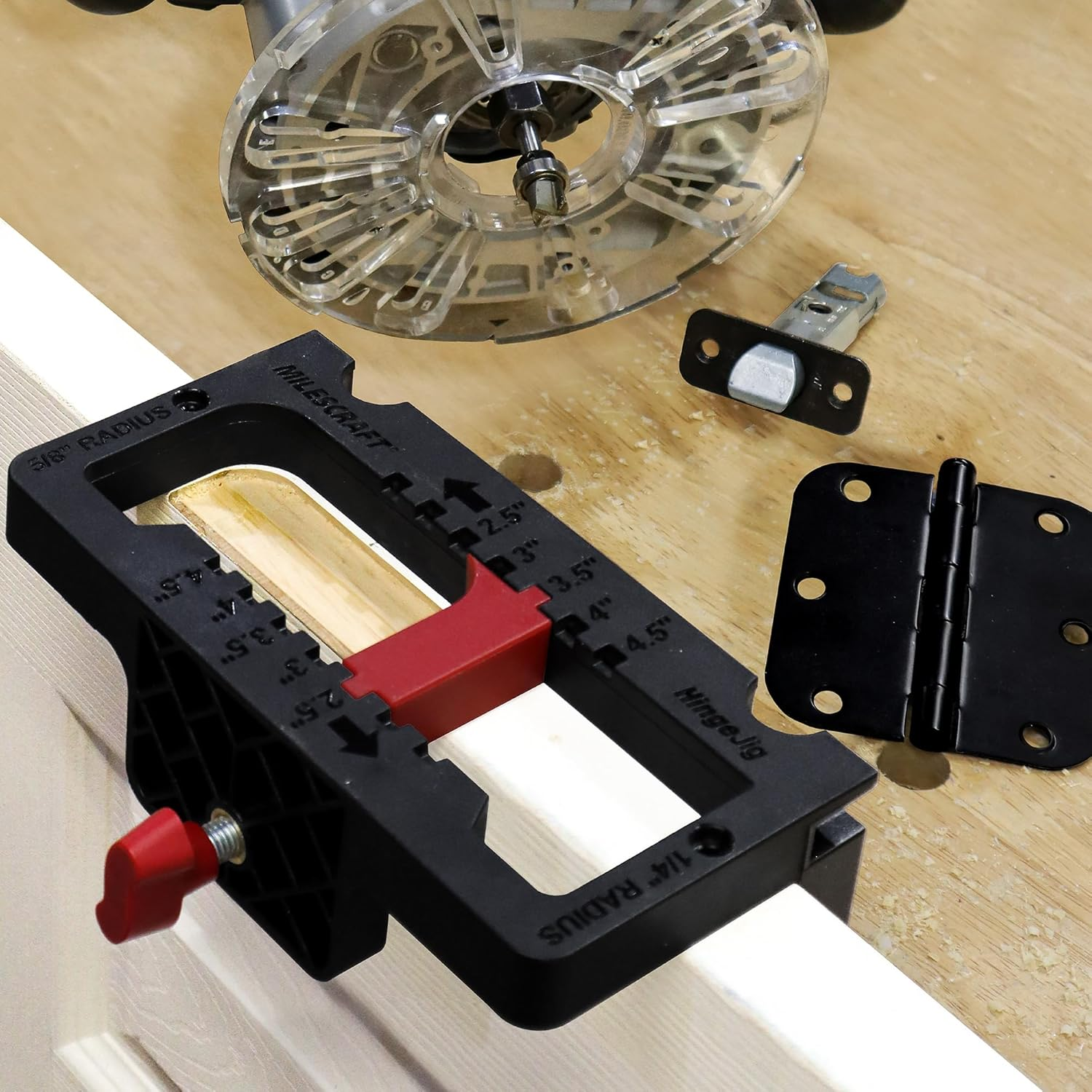

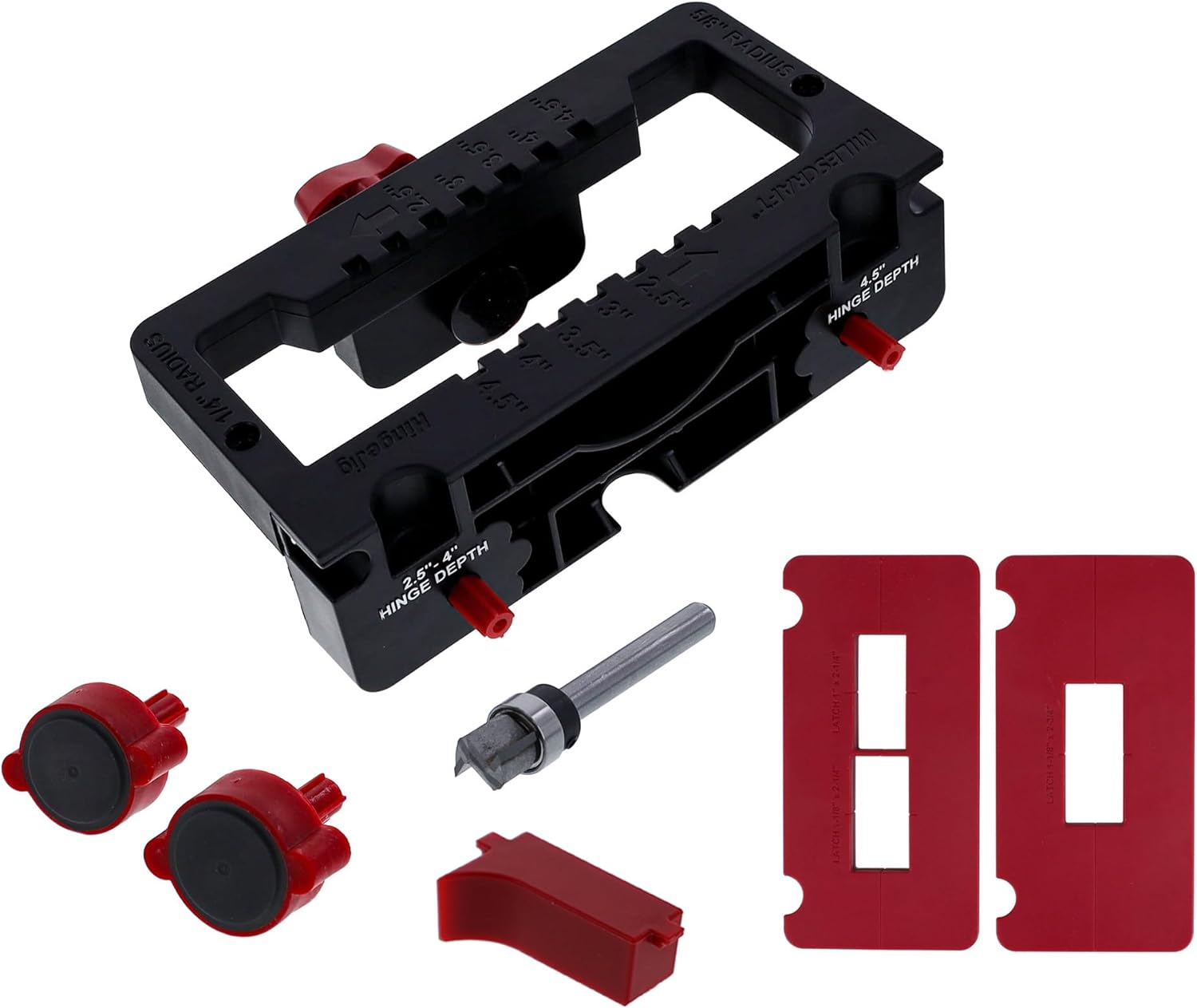

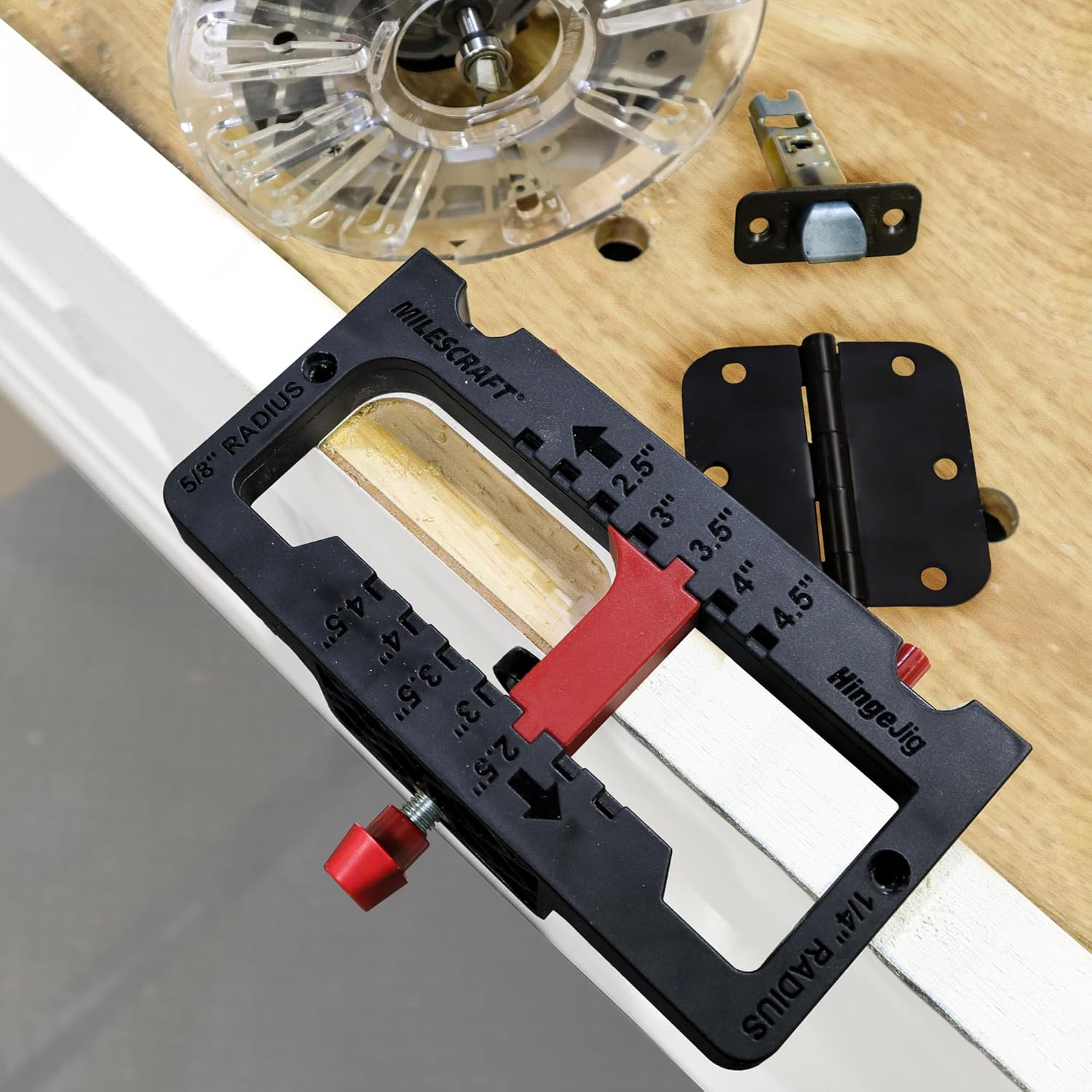

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig in place while routing without the use of screws or nails that can leave holes in a finished door.
Features & Benefits
Self-clamping
Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails.

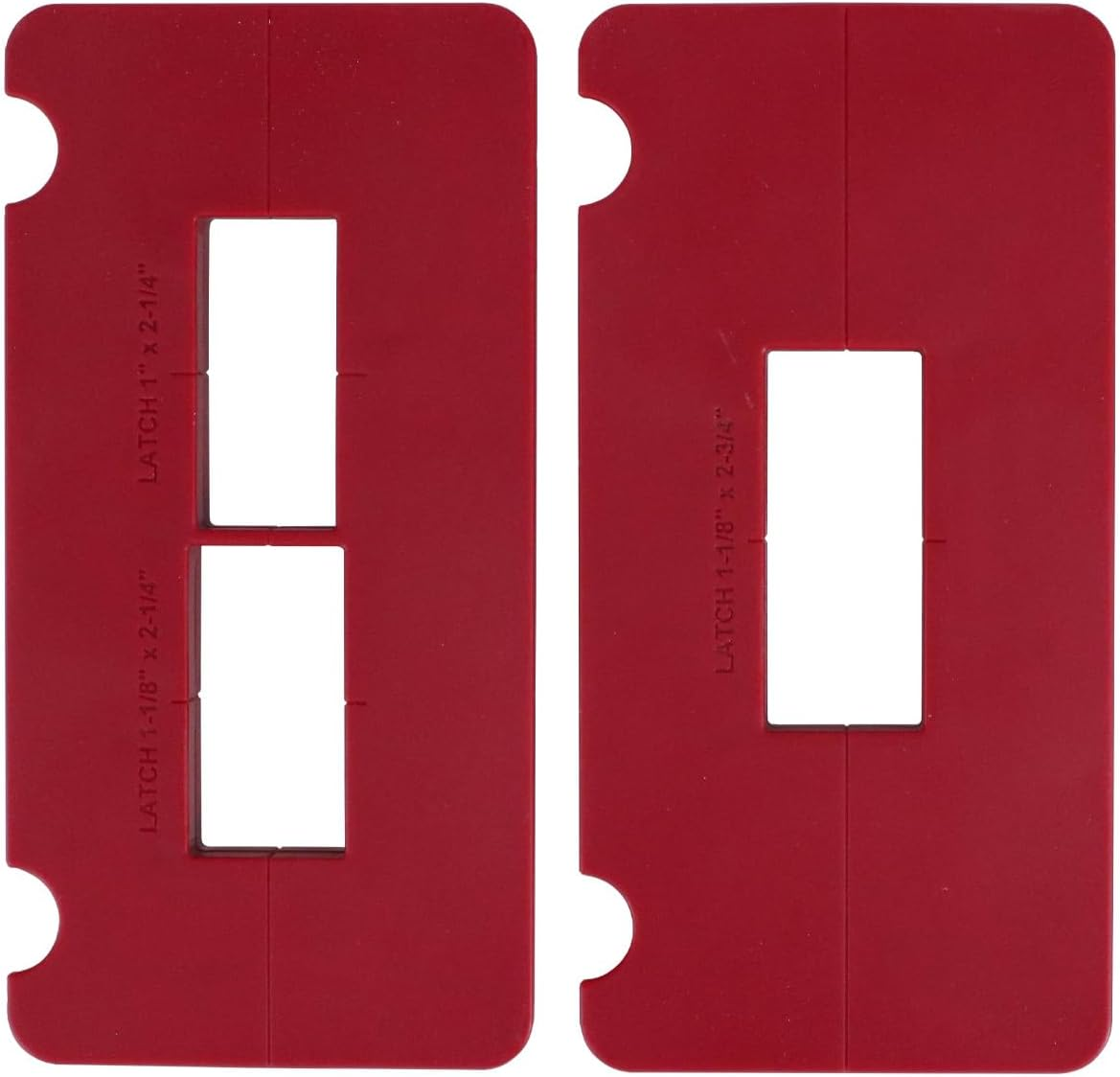

Latch Plates
Kit includes templates to rout common door latch mortises sized 1” x 2-1/4” , 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”.

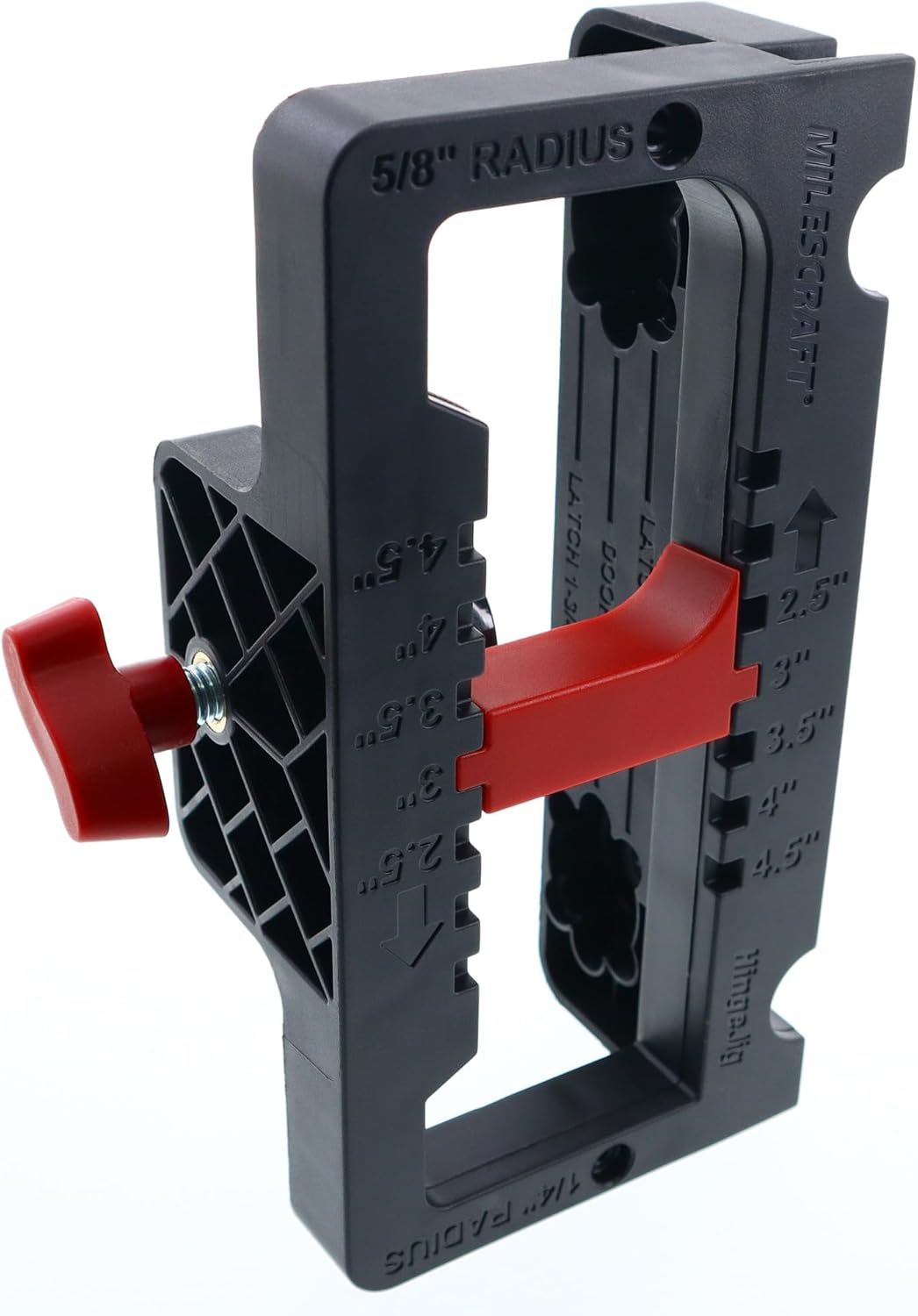

Adjustable Spacer
Routs hinge mortises for 2-1/2” to 4-1/2” hinges.
Backset Setting
Adjustable settings allow door hinge jig to be used on all standard size 1-3/8” and 1-3/4” thick doors.

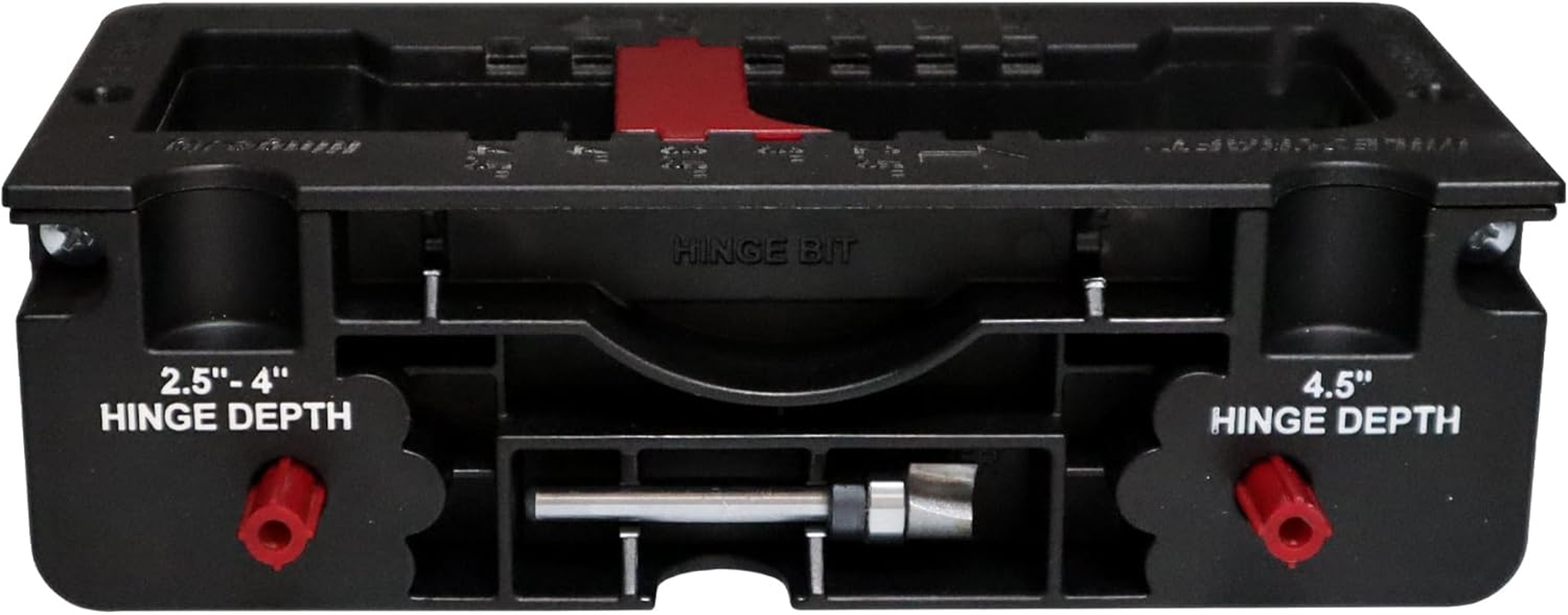

Hinge Depth Setting
Set router bit depth with built-in depth setting gauge for 2.5" to 4.5" hinges.
Router Bit Included
12mm Router bit with Bearing and included storage for the bit in the jig.
- Item Model Number: 1226
- Part Number: 1226
- Style: Hinge Jig
- Power Source: hand_powered
- Item Package Quantity: 1
- Product dimensions: 9.14 x 13.97 x 25.15 cm; 648.64 Grams
- Material: Plastic
- Country of origin: USA
- Batteries Required?: No
- Item Weight: 649 g
- Manufacturer: Milescraft
- Number Of Pieces: 1
- Colour: Multicolor
- Style Name: Hinge Jig
- Included Components: 1 x Milescraft HingeJig Self-Clamping Door Hinge & Latch Router Jig 7 Pieces Set
