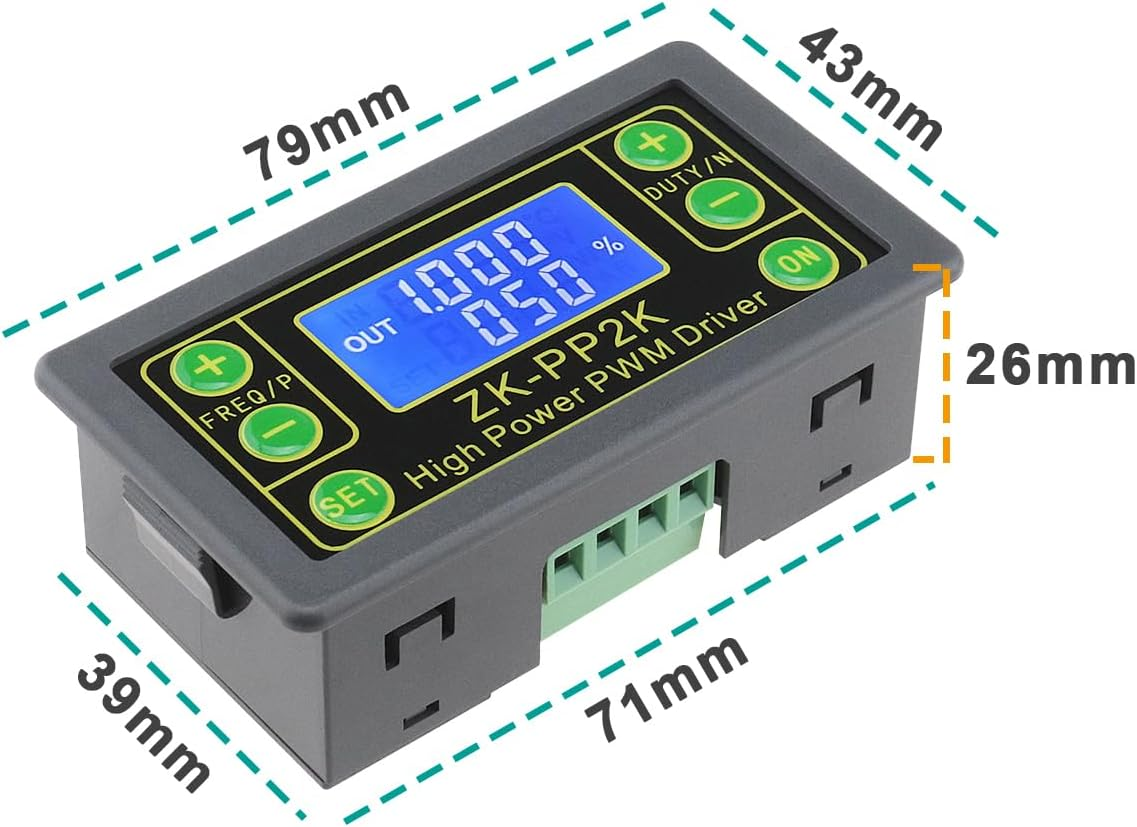

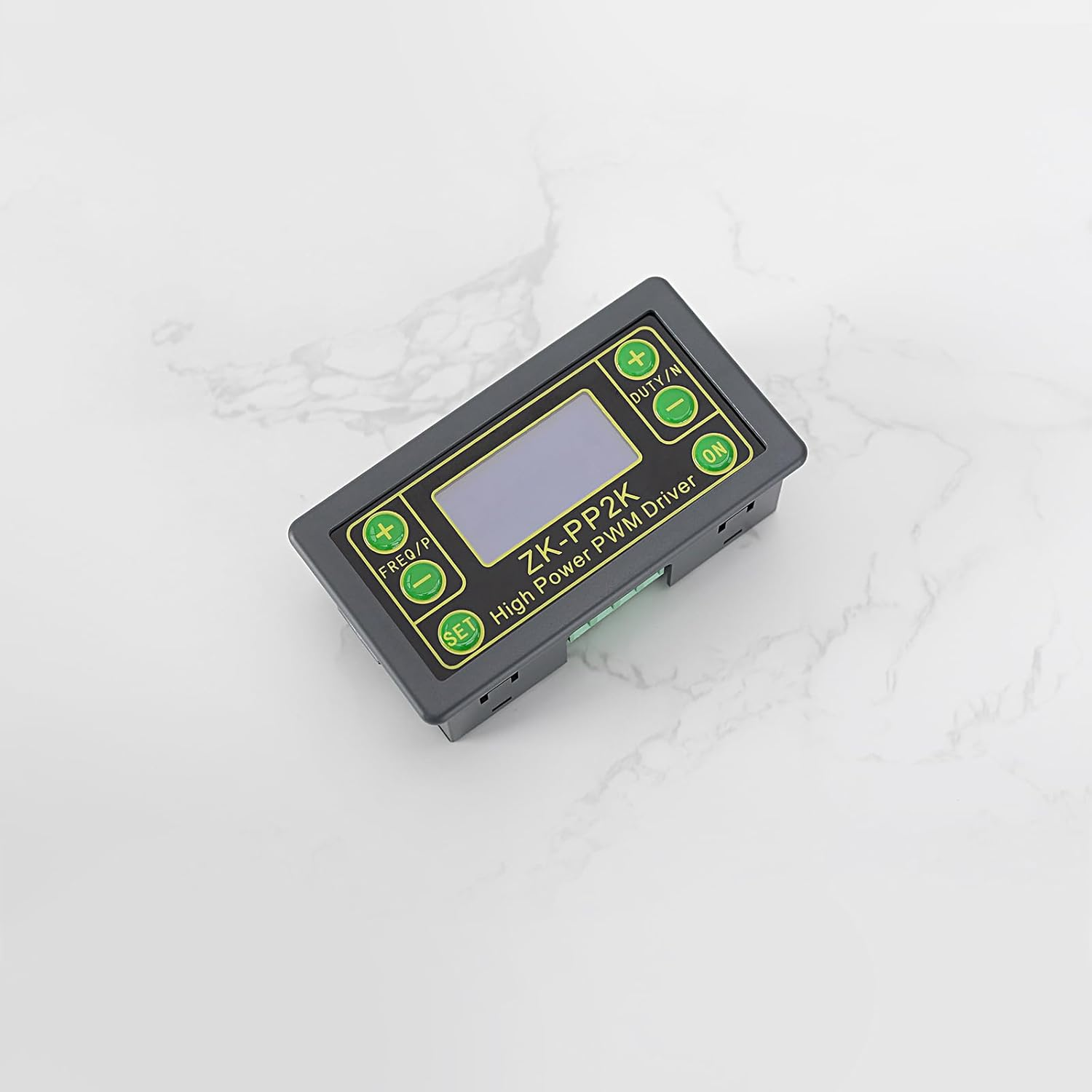

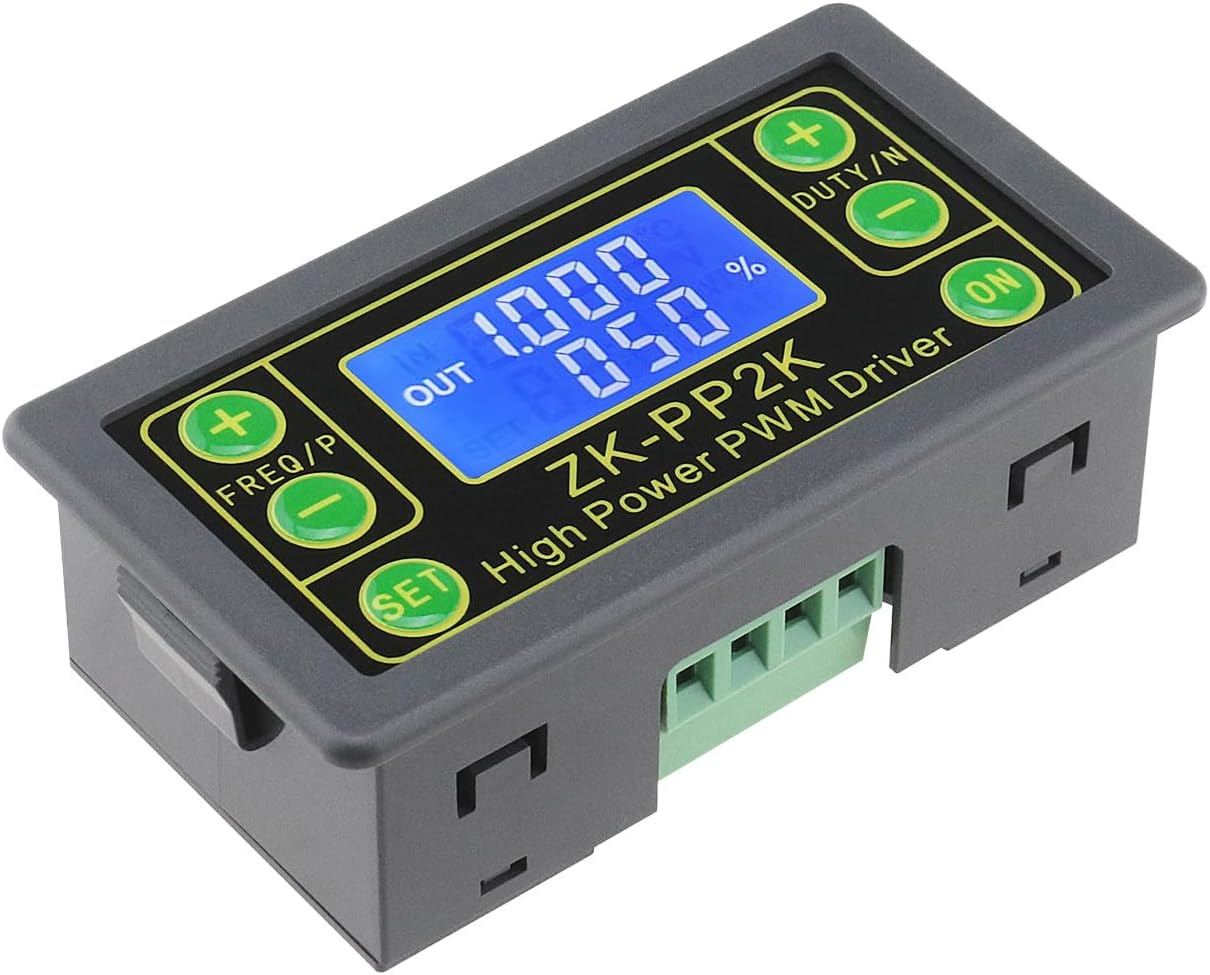

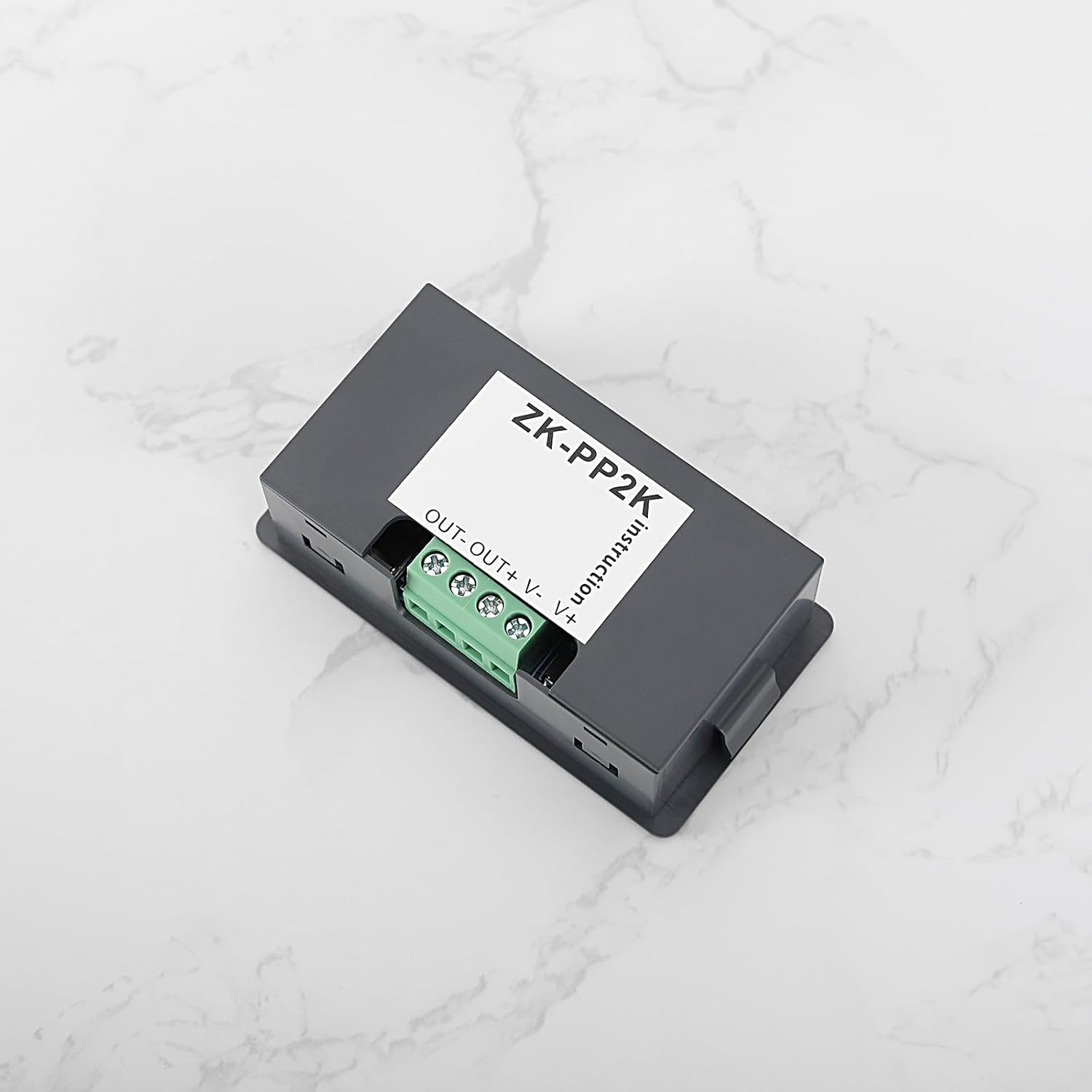

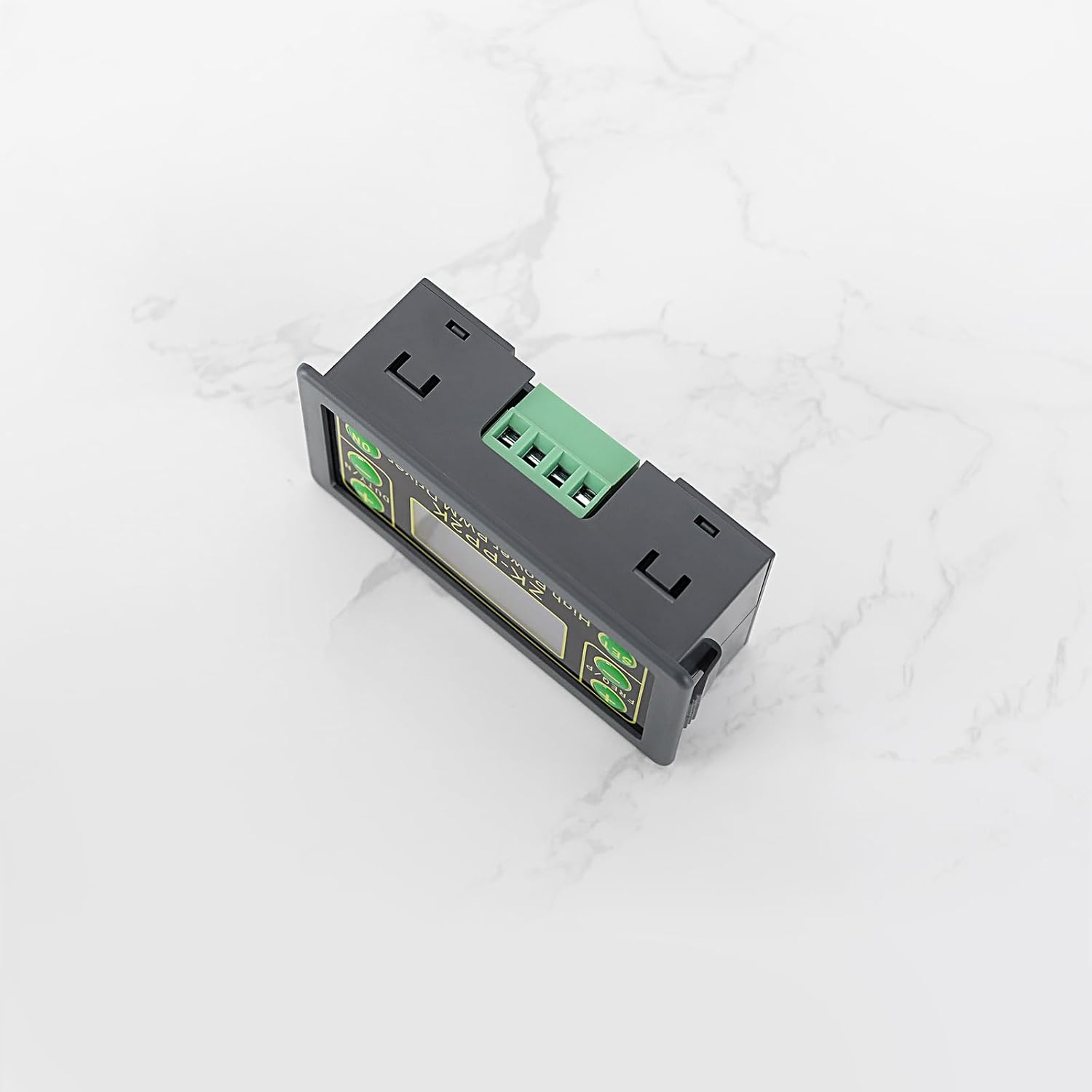

LT Easiyl PWM Motor Speed Controller ZK-PP2K PWM Pulse Frequency Generator DC 3.3~30V 12V 24V LCD Pulse Frequency Cycle Module for Signal Generator
LT Easiyl PWM Motor Speed Controller ZK-PP2K PWM Pulse Frequency Generator DC 3.3~30V 12V 24V LCD Pulse Frequency Cycle Module for Signal Generator
Brand: LT Easiyl

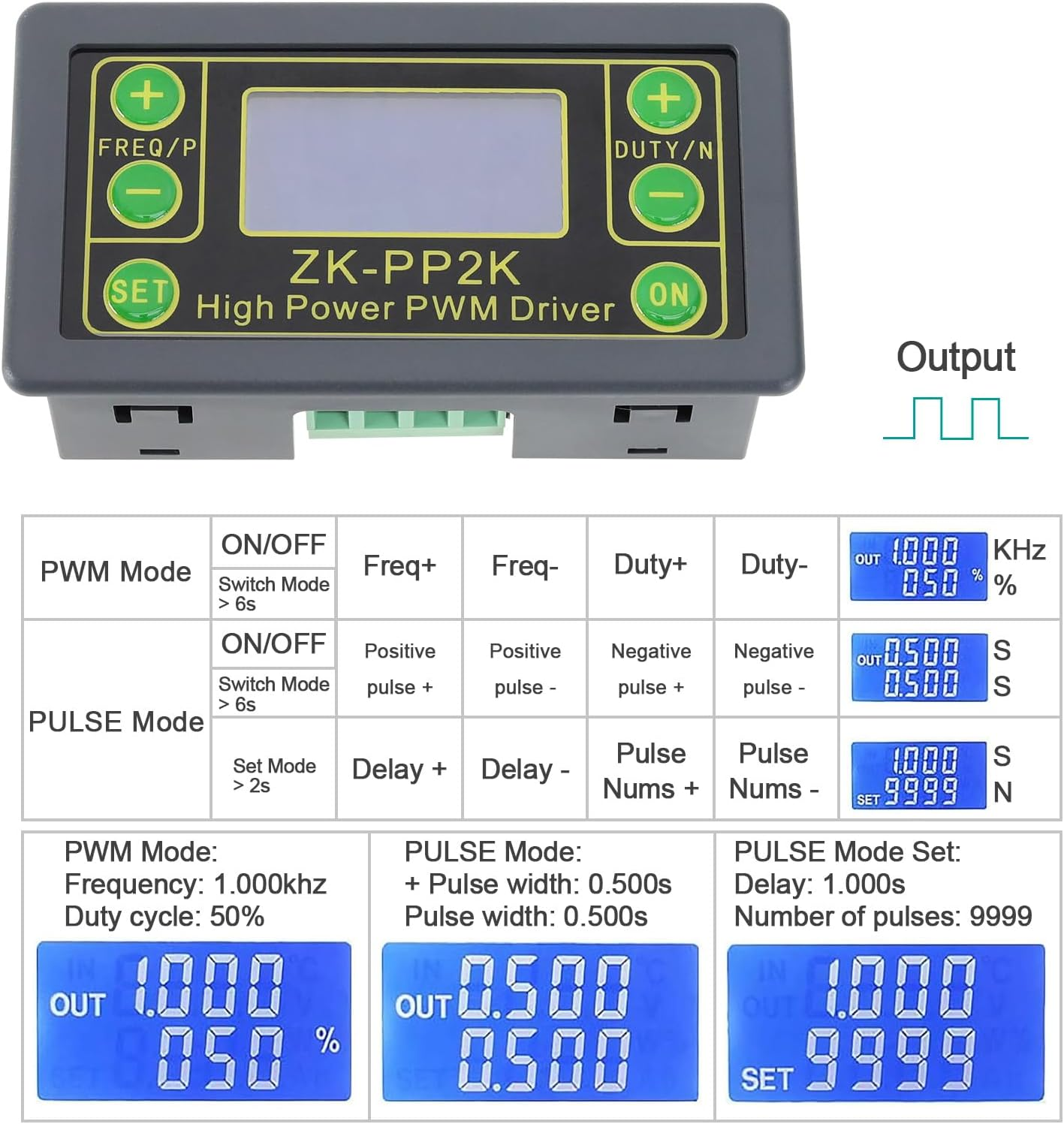

- DUAL MODE: PWM mode: Adjust the frequency and duty cycle. PULSE pulse mode: Set the positive and negative pulse time, the number of pulses and the delay time.
- Product Specifications: 1.Working voltage:3.3~30V (note that the positive and negative poles should not be reversed, otherwise it may burn) 2.Frequency range:1Hz~150KHz, the accuracy is about 2%. Motor speed regulation generally chooses 20KHZ 3.Duty cycle range:0-100%,1% step 4.Number of pulses:1-9999, or infinite (display '---' means infinite) 5.Delay output time:0.000s-9999s, the minimum can be set to 1ms 6.Positive and negative pulse width length:0.000s-9999s, the minimum can be set to 1ms
- Key operation instructions: 1. MOS switch type output, pay attention to no waveform, can directly drive the motor solenoid valve, etc. 2. When the number of switches reaches the set value, the output will be automatically stopped, and 'OUT' will disappear. 3. Press the ON key to control the presence or absence of the switch, and the disappearance of OUT means the output is turned off. 4. Power on and restart or ON key to turn on the output, and recalculate the switching times.
- Application scenarios: 1. PWM signal generator, square wave rectangular wave signal generator. 2. Used to generate square wave and rectangular wave signal to control DC motor or stepper motor driver; used for servo motor, stepper motor, substitute PLC pulse, etc. 3. ZK-PP2K can be matched with the driver to realize dimming, speed regulation, control solenoid valve, etc. ZK-PP2K can directly drive loads such as electric light motor solenoid valve.
Product Description
Item Specifications
Voltage:24 Volts
Horsepower:150 Watts
Package
1pc ZK-PP2K PWM DC Motor Speed Controller
- Part Number: 606-BI
- Batteries Required?: No
- Manufacturer reference: 606-BI
- Item Weight: 40 g
- Package Dimensions: 12.9 x 11.1 x 3 cm; 40 Grams
- Manufacturer: LT Easiyl
