Features:

The pulse relay can be configured to activate the detection of the vehicle or when the vehicle leaves the loop.

This characteristic determines the non-detection level at maximum sensitivity to avoid detecting vehicles such as large trucks.

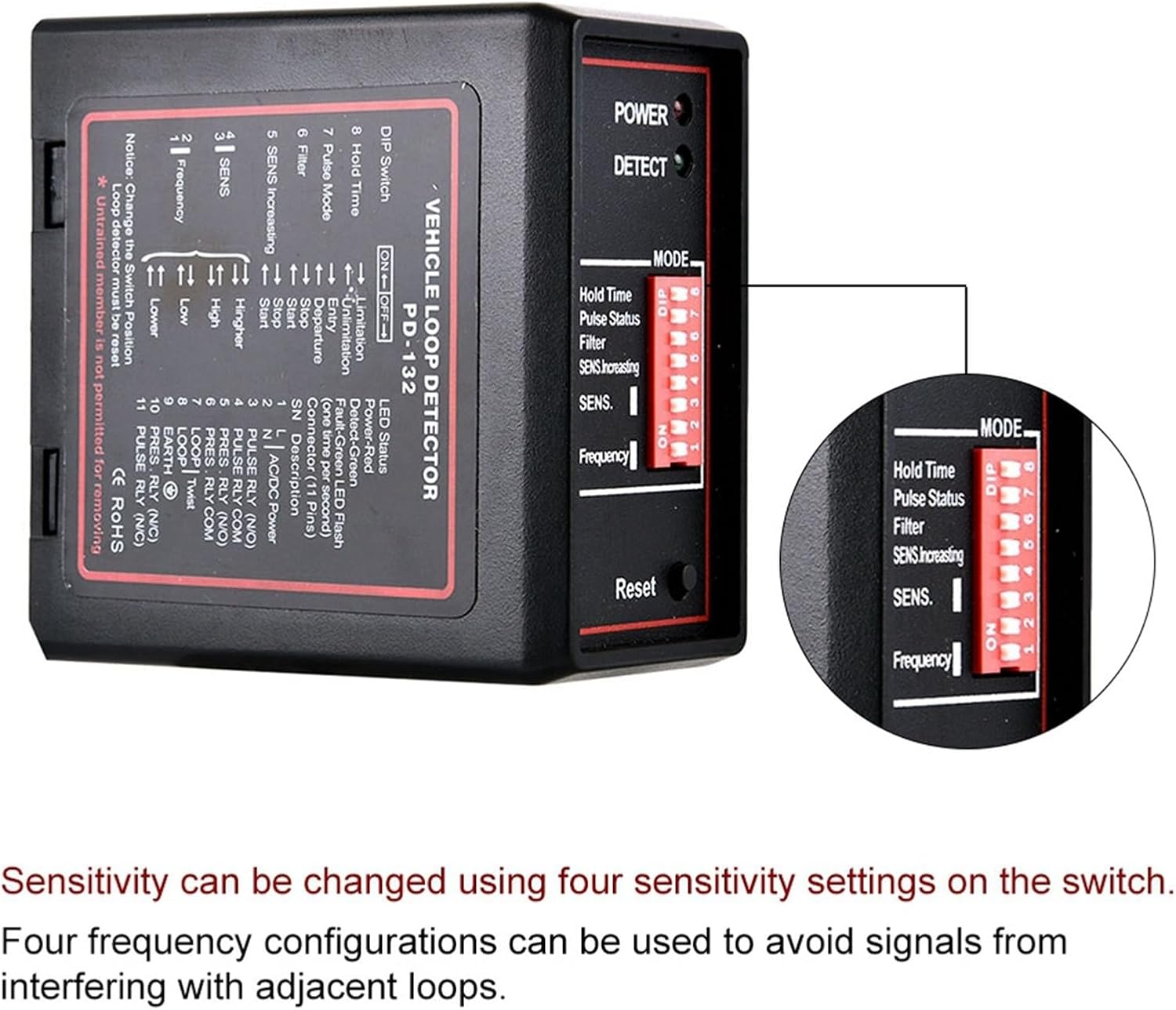

Sensitivity can be changed using four sensitivity settings on the switch.

Four frequency configurations can be used to avoid signals from interfering with adjacent loops.

This relay is typically used to prevent false detection of small or fast objects.

Specifications:

Condition: Brand New

Material: ABS

Color: Black

Reaction time: 10 ms

Supply voltage: 220 V

Power consumption: 4.5 VA

Output relay: 240 V/ 5 A

Voltage tolerance DC: ±15%

Withstand voltage AC: + 10%/ -15%

Operating temperature: -20°C to +65°C

Storage temperature: -40°C to +85°C

Frequency range: 20 kHz to 170 kHz

Sensitivity: adjustable in 4 increments

Signal hold time: unlimited /limit cycle for 10 minutes permanently

Loop inductance: The total loop plus connection line is 50μH to 1000μH (ideally 100μH to 300μH).

Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter.

Package List:

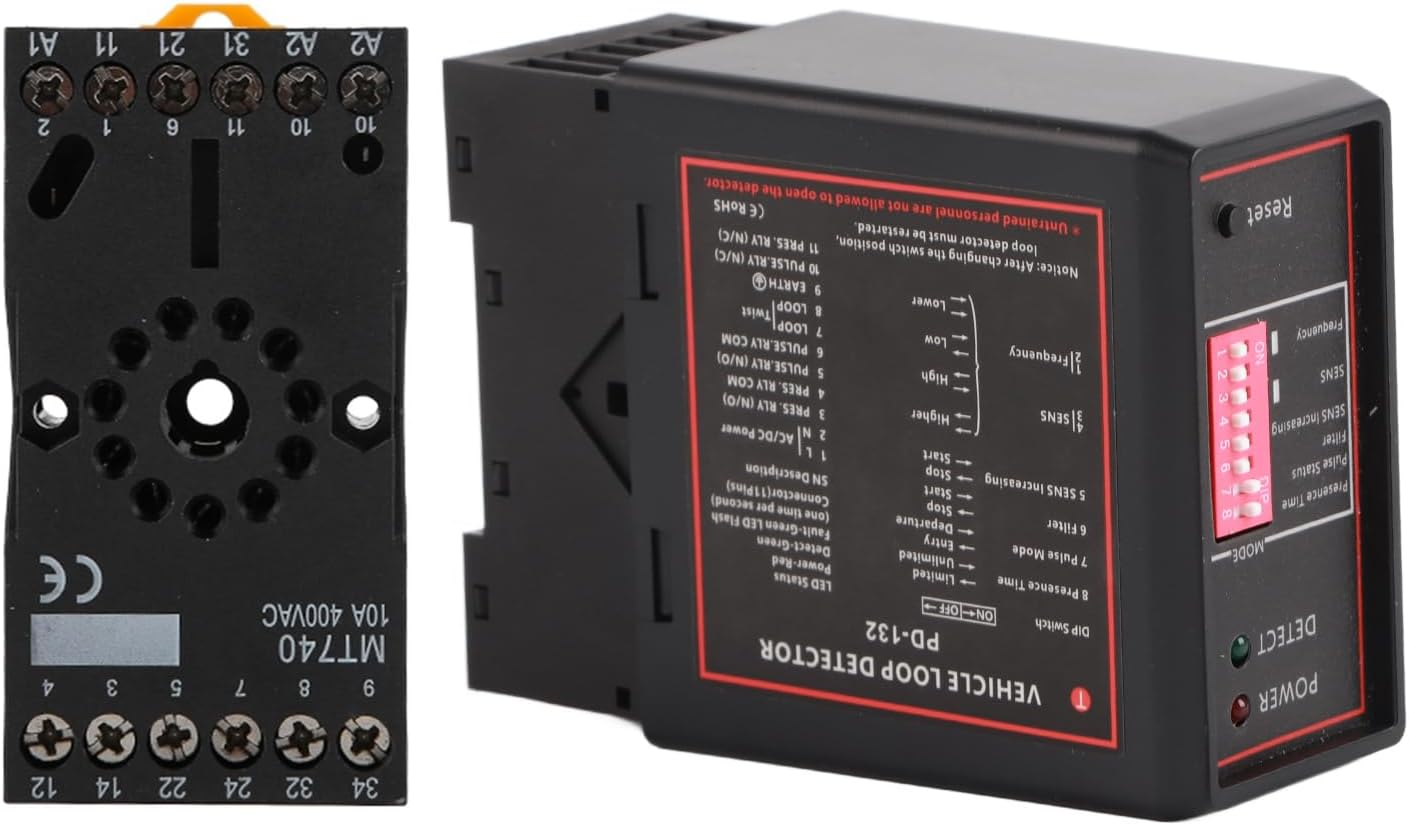

1* Barrier Opener

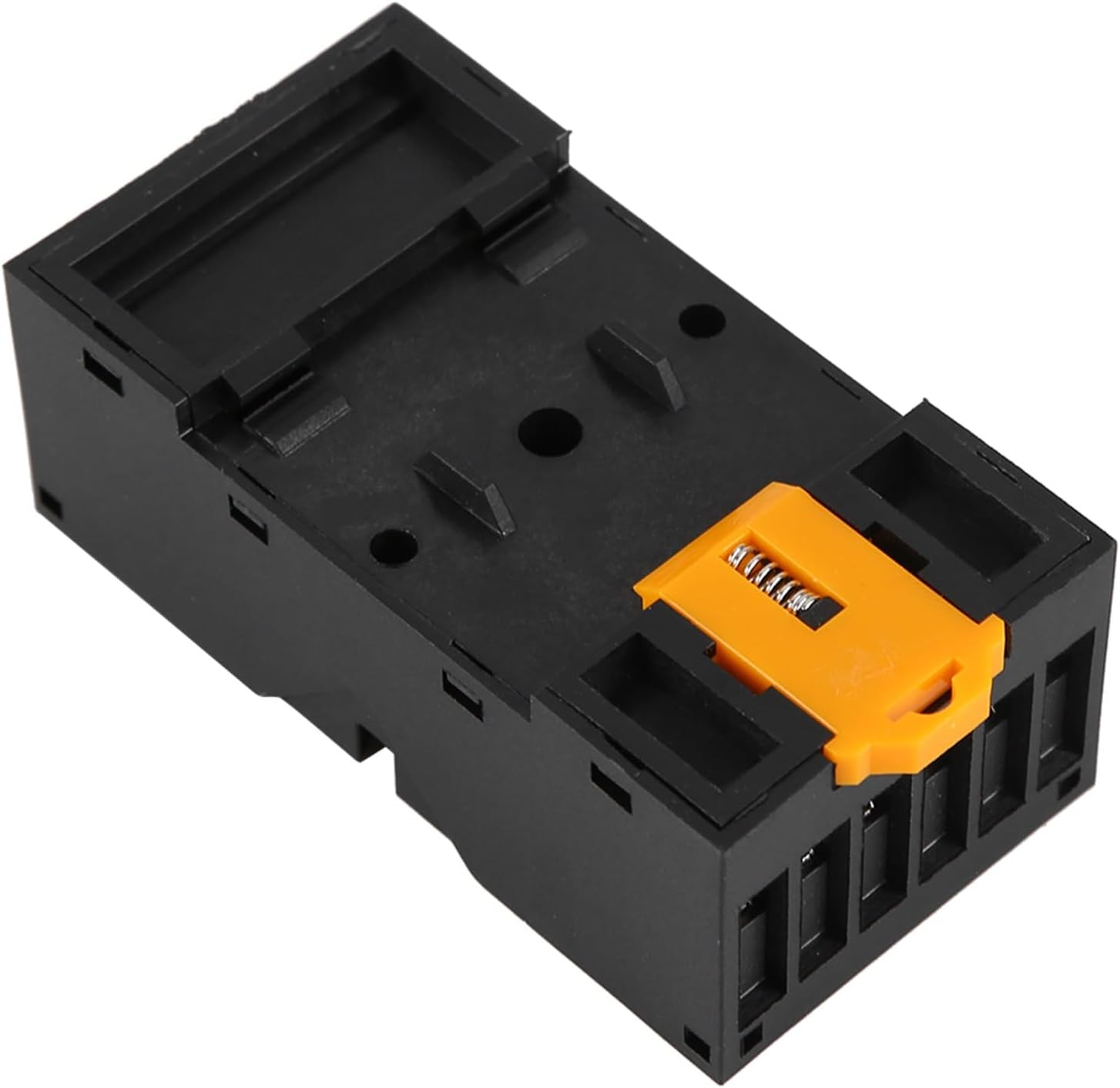

1* Connection Terminal

1* Instruction Manual

Note:

1.The detector must be installed in a convenient weatherproof position as close as possible to the loop.

2.The installation location must be chosen away from the heat source.

3.Other equipment around it must be at least 10 mm away (not to be tightly mounted to the wall).

4.Proper loop configuration and detector installation will ensure a successful inductive loop detection system.

5.Several important parameters of the loop include: cycle diagram, size, turn, and installation method.

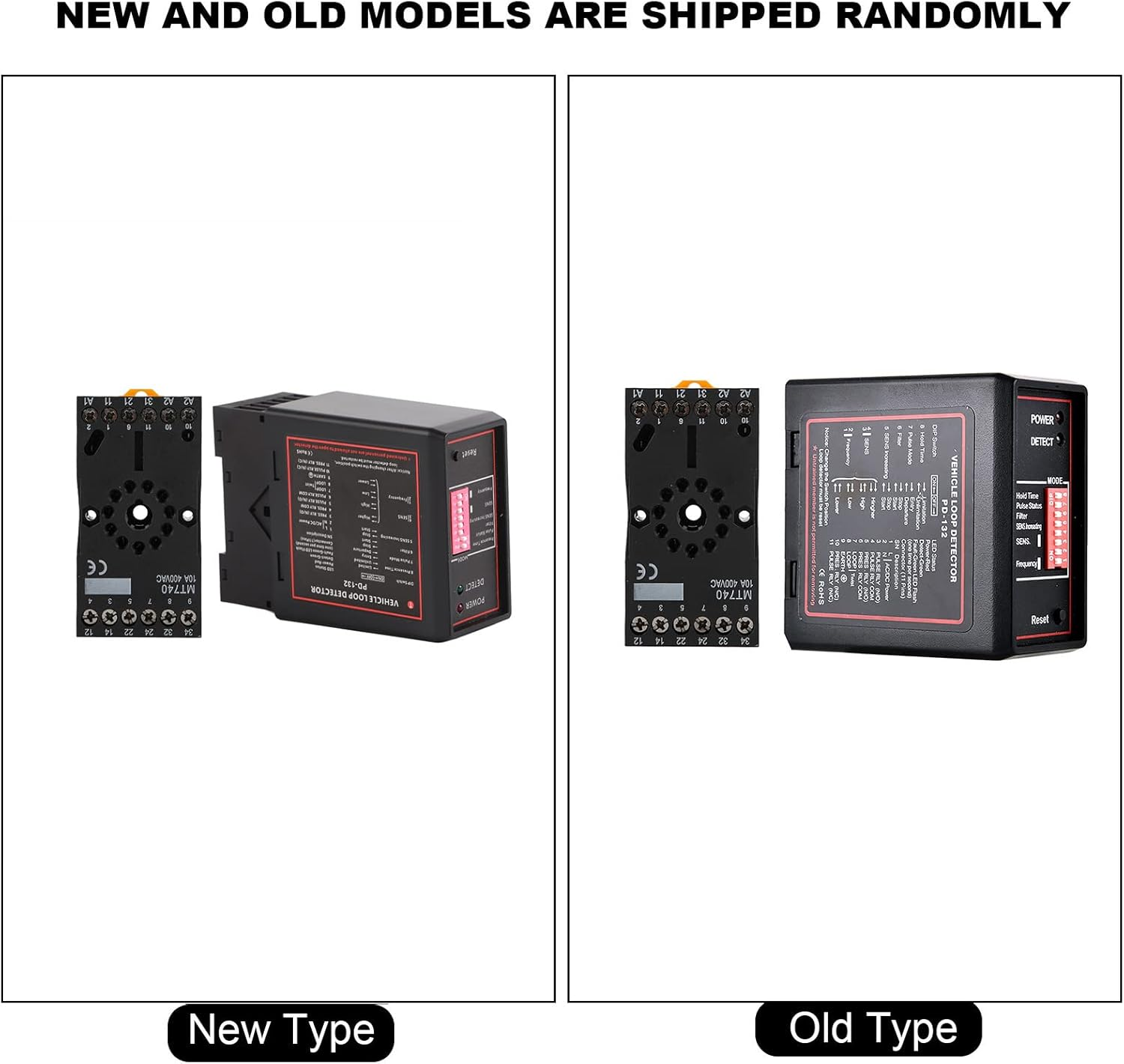

6. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
