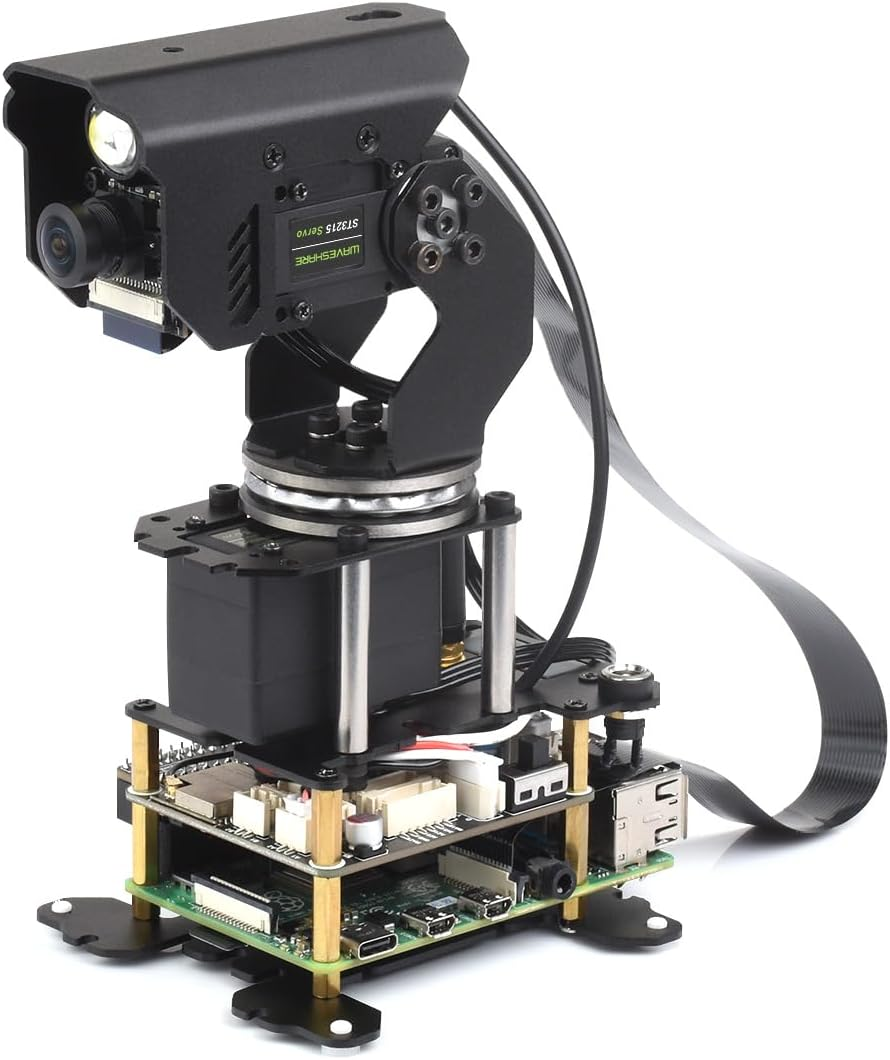

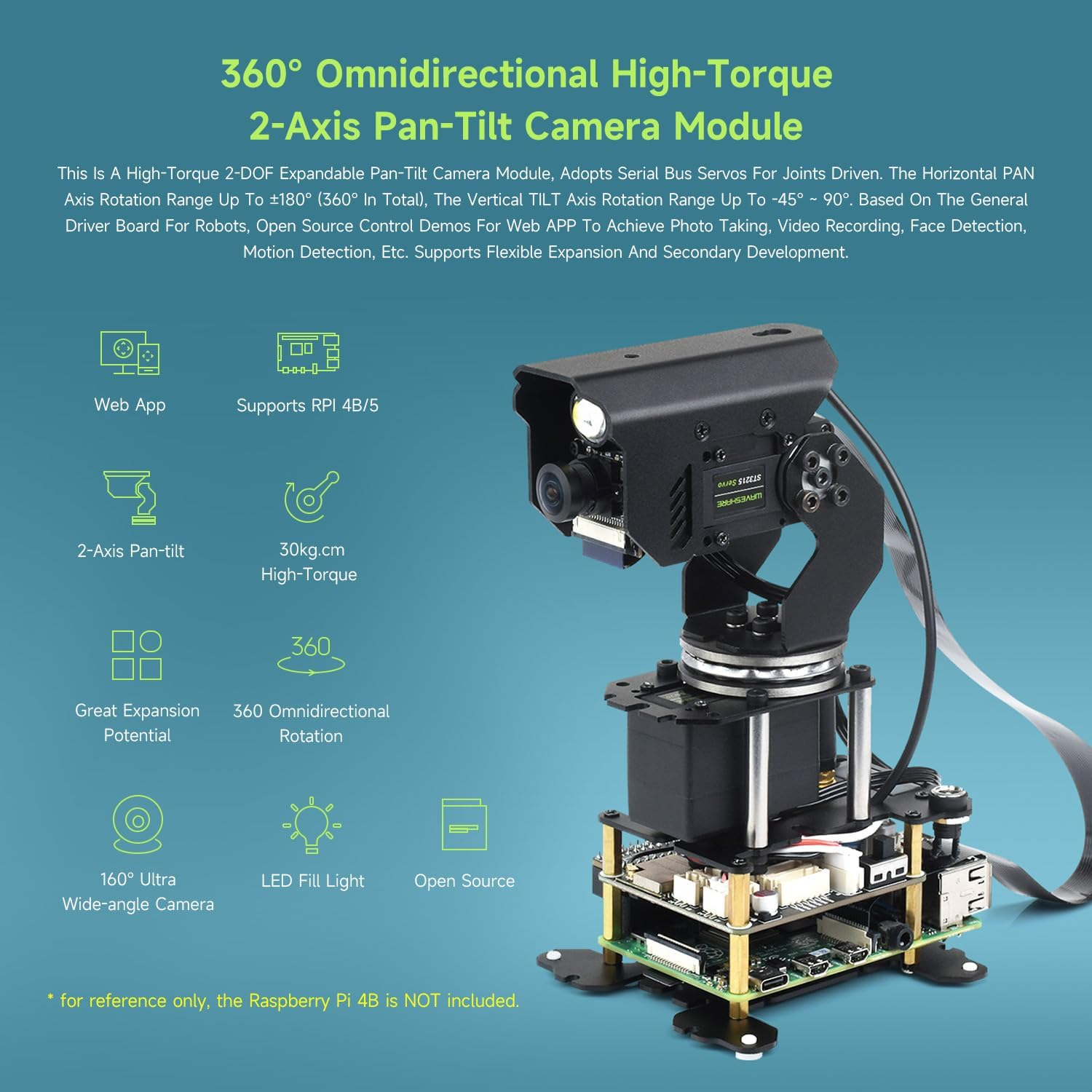

Waveshare 360° Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Module, Compatible with Raspberry Pi 4B / 5, Driven by Serial Bus Servos, Based on General Driver Board for Robots
Waveshare 360° Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Module, Compatible with Raspberry Pi 4B / 5, Driven by Serial Bus Servos, Based on General Driver Board for Robots
Brand: Waveshare
A$236.15
- For the electronic version of the user manual and technical support, please contact the store customer service if you need any assistance.

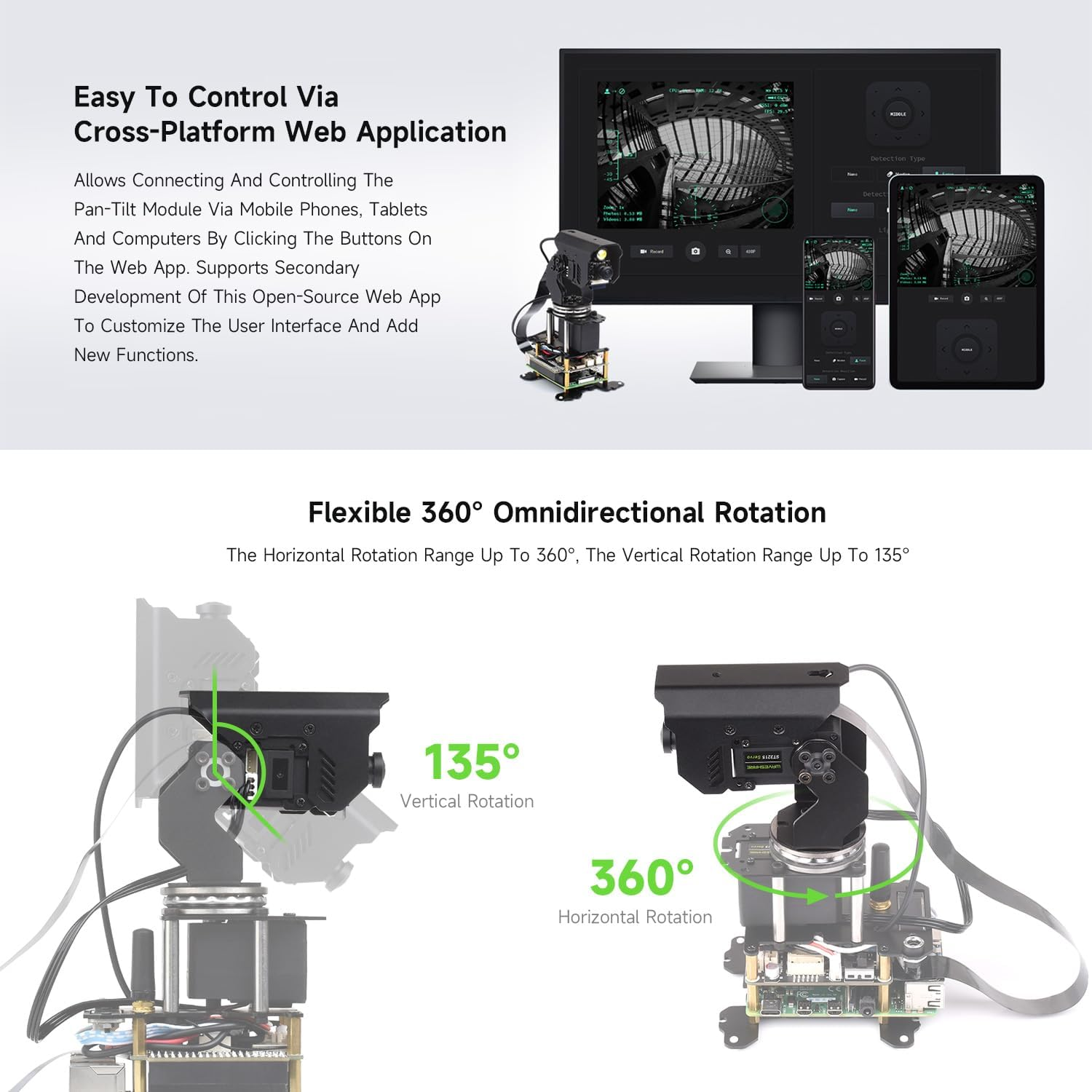

- Allows connecting and controlling the pan-tilt module via mobile phones, tablets and computers by clicking the buttons on the web app. Supports secondary development of this open-source web app to customize the uer interface and add new functions.The horizontal rotation range up to 360° , the vertical rotation range up to 135°
- Highly compatible with Raspberry Pi 4B/ Raspberry Pi 5. Can be easily integrated into your project. The Raspberry Pi is not included.Comes with a free picatinny rail and 1/4 screw. Open source for models and drawings. More convenient for users to integrate this pan-tilt camera module into other projects

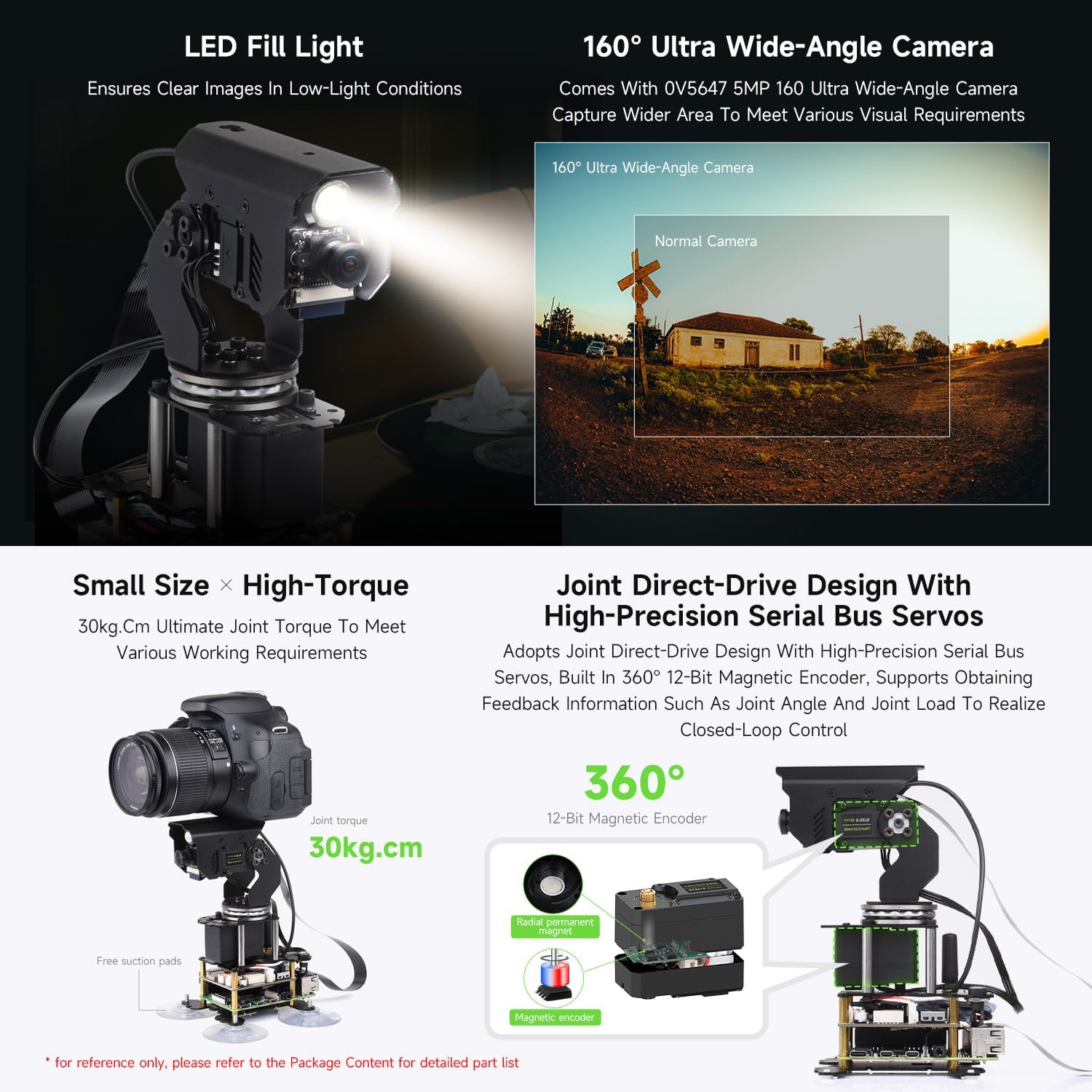

- Comes with 0V5647 5MP 160 Ultra Wide-Angle Camera. Capture wider area to meet various visual requirements
- 30kg.cm ultimate joint torque to meet various working requirements .Adopts joint direct-drive design with high-precision serial bus servos. Built in 360° 12-Bit magnetic encoder. Supports obtaining feedback information such as joint angle and joint load to realize closed-loop control
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
- Item Model Number: 8f1b4704-e5dc-44a8-8099-514e03d64db0
- Part Number: 2-Axis Pan-Tilt Camera Module
- Operating System: Raspberry Pi OS
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Raspberry Pi 4B, Raspberry Pi 5
- Actual viewing angle: 45 Degrees
- Wireless Type: Infrared
- Item Weight: 880 g
- Graphics Card Interface: PCI Express
- Compatible processor types: Raspberry Pi 4B, Raspberry Pi 5
- Ram Memory Technology: LPDDR4
- Model Name: 8f1b4704-e5dc-44a8-8099-514e03d64db0
- Model: 8f1b4704-e5dc-44a8-8099-514e03d64db0
- Package Dimensions: 23.11 x 16.76 x 6.86 cm; 880 Grams
- Manufacturer: Waveshare
