7 Band Sound Equalizer 12Db High Bass Dual Channel Digital Equalizer, Aluminum Alloy, Compatible with Headphones, 3.5Mm Interface for Cell Phones, DC5V to 12V Power Supply
7 Band Sound Equalizer 12Db High Bass Dual Channel Digital Equalizer, Aluminum Alloy, Compatible with Headphones, 3.5Mm Interface for Cell Phones, DC5V to 12V Power Supply
Brand: Jectse
A$38.85
- Control Range: 7 band equalization circuit control range ± 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
- Basic Parameters: 7 band sound equalizer preamplification gain, 4580 classic op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.

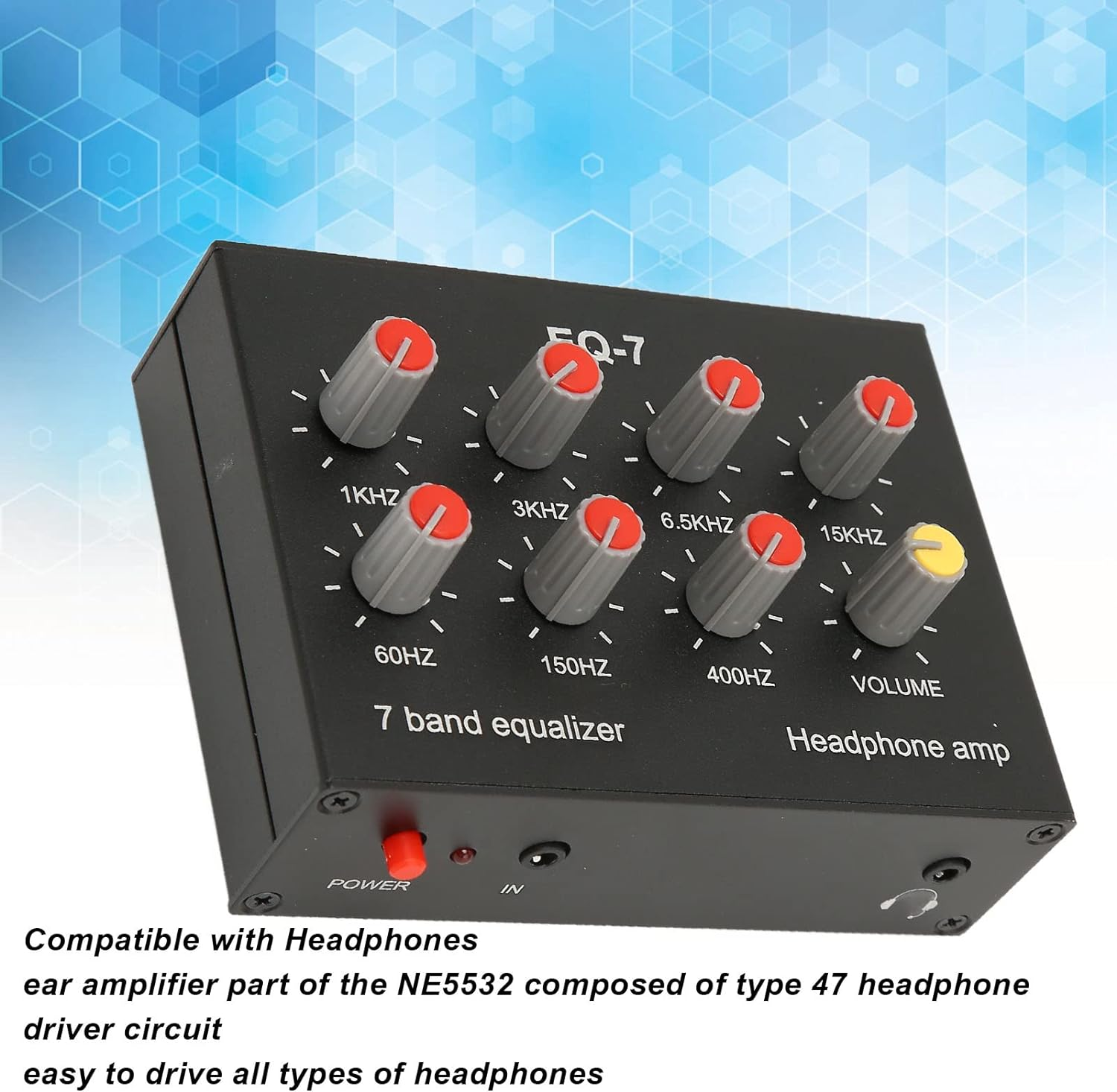

- Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.

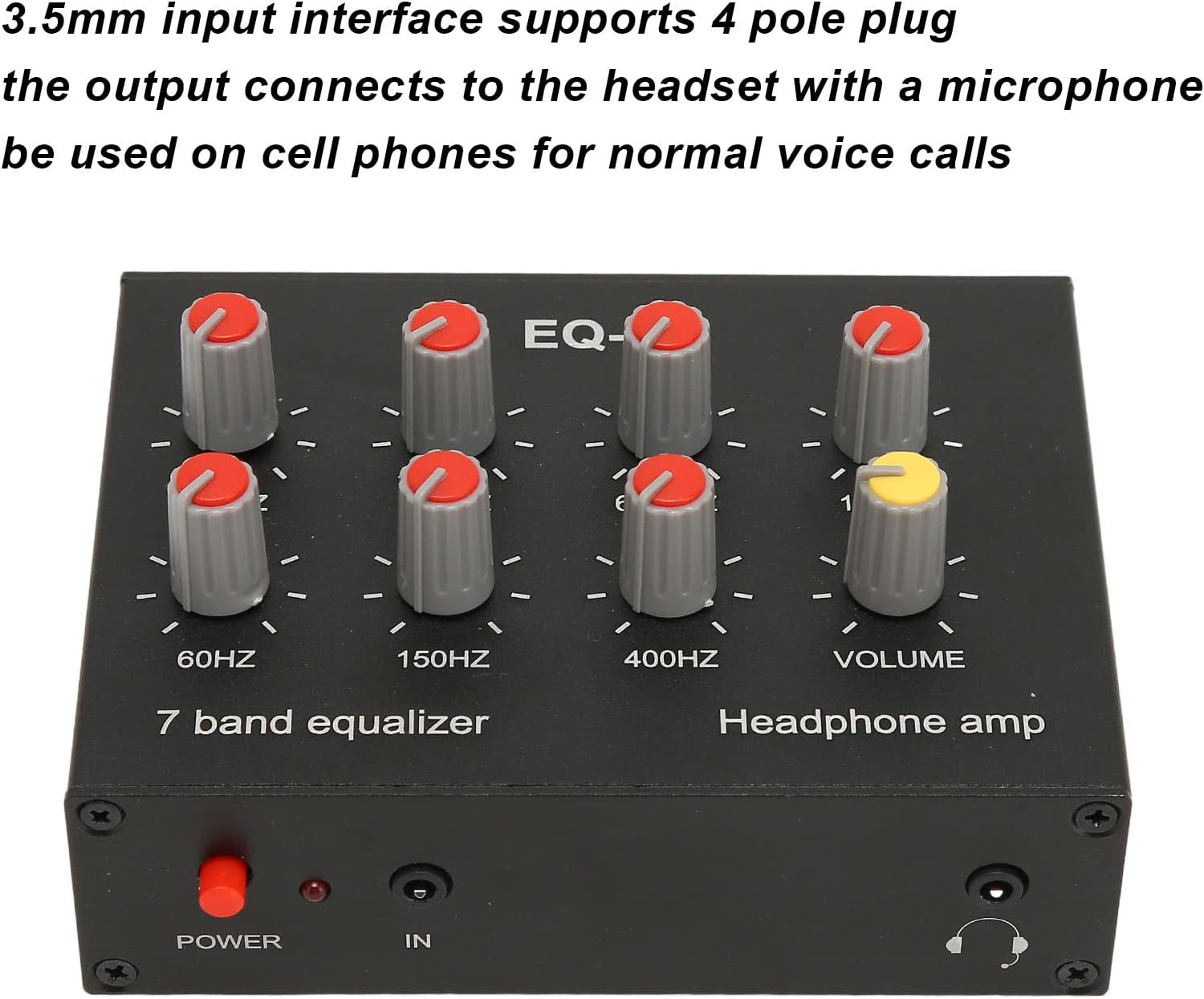

- 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a groupinterface is available.
- Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, , stable performance, DC5V‑12V power supply, dual channel sound.
Product Description

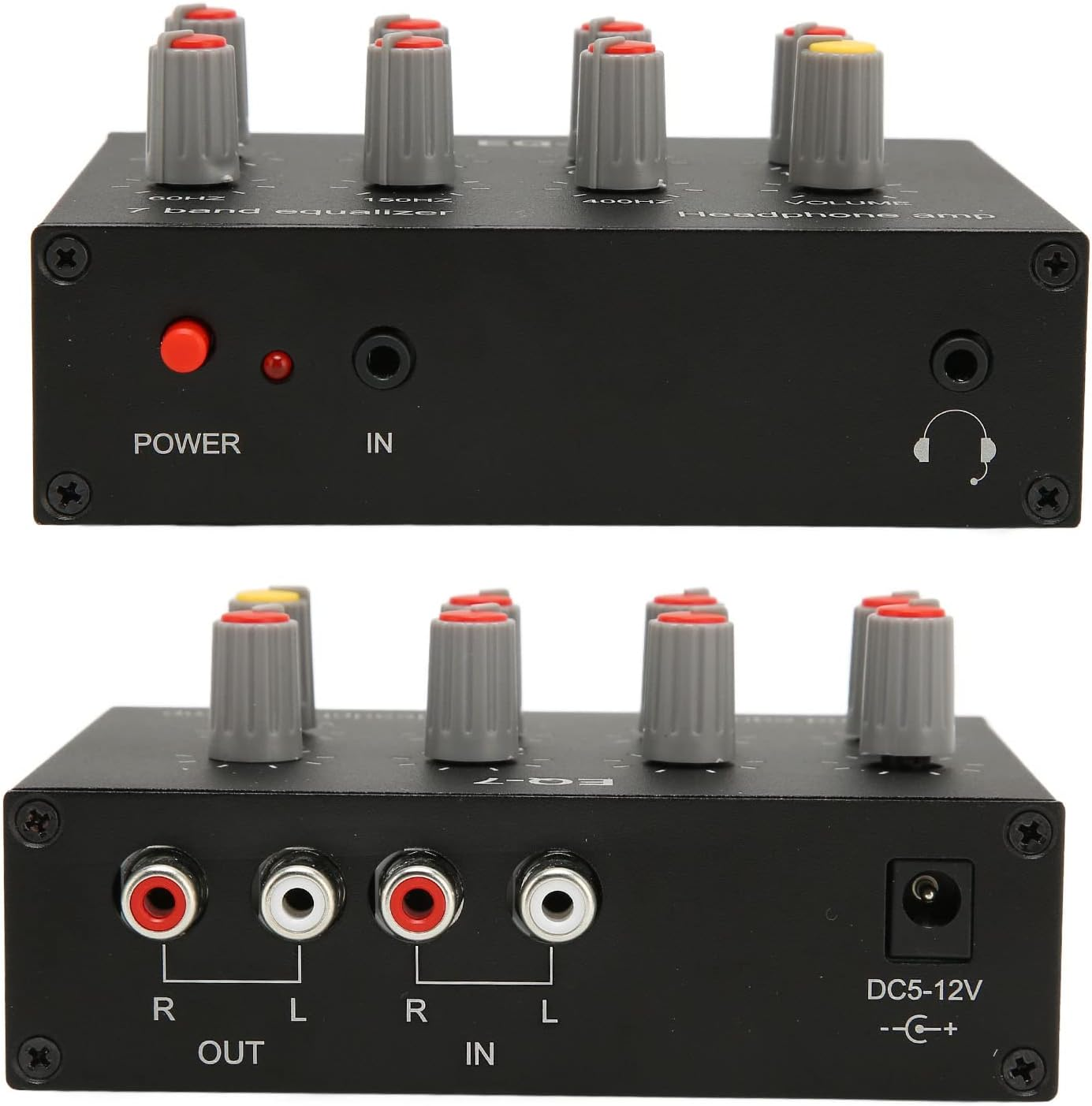

3.5mm interface:
3.5mm input connector supports 4-pin plug, the output connects to a headset with microphone, which can be used for normal voice calls on a cell phone, and there is another set of terminal-Lotus connectors available.
Control range:
7-band equalization circuit control range ± 12dB, equalization band: 60Hz, 150Hz, 400Hz, 1kHz, 3kHz, 6.5kHz, 15kHz, by TI or ST original TL074.
ALUMINUM ALLOY:
7-band car audio equalizer is made of aluminum alloy, high strength, corrosion resistance, stable performance, DC5V-12V power supply, dual-channel audio.
Specification:
Item type: 7 band sound equalizer
Material: aluminum alloy
Power supply: DC5V-12V
Interface specification: 5.5x2.1
Input impedance: 20K
Output impedance: 600 ohms
Equalization circuit control range: ±12dB
Equalization band: 60Hz, 150Hz, 400Hz, 1kHz, 3kHz, 6.5kHz, 15kHz

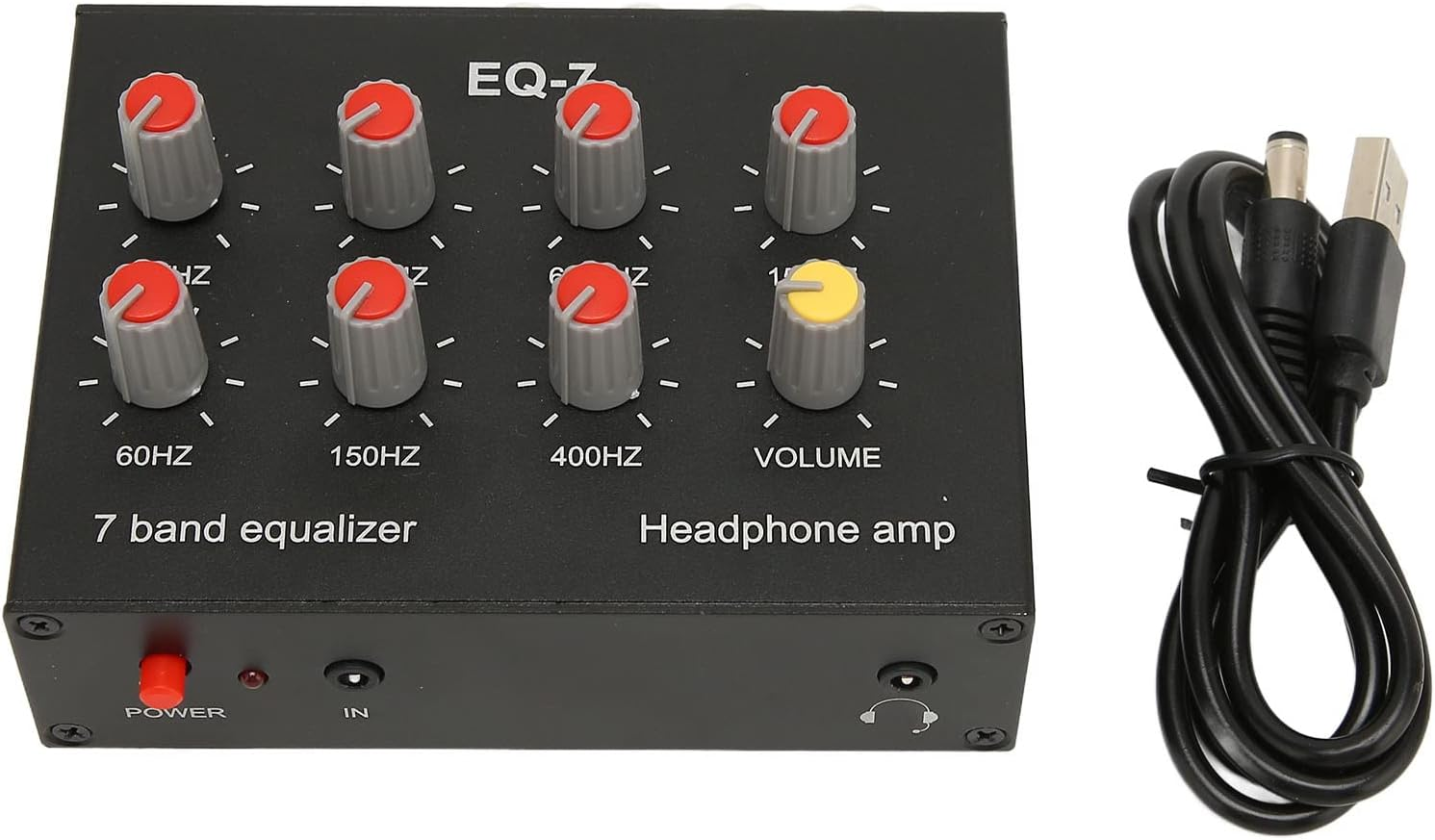

Packing List:
- 1 x 7-band sound equalizer
- Item Model Number: Jectse475insp1yc
- Part Number: Jectse475insp1yc
- Batteries Required: No
- Brand: Jectse
- Item Weight: 220 g
- Model Name: Jectse475insp1yc
- Model: Jectse475insp1yc
- Package Dimensions: 18 x 11 x 5.4 cm; 220 Grams
- Manufacturer: Jectse
