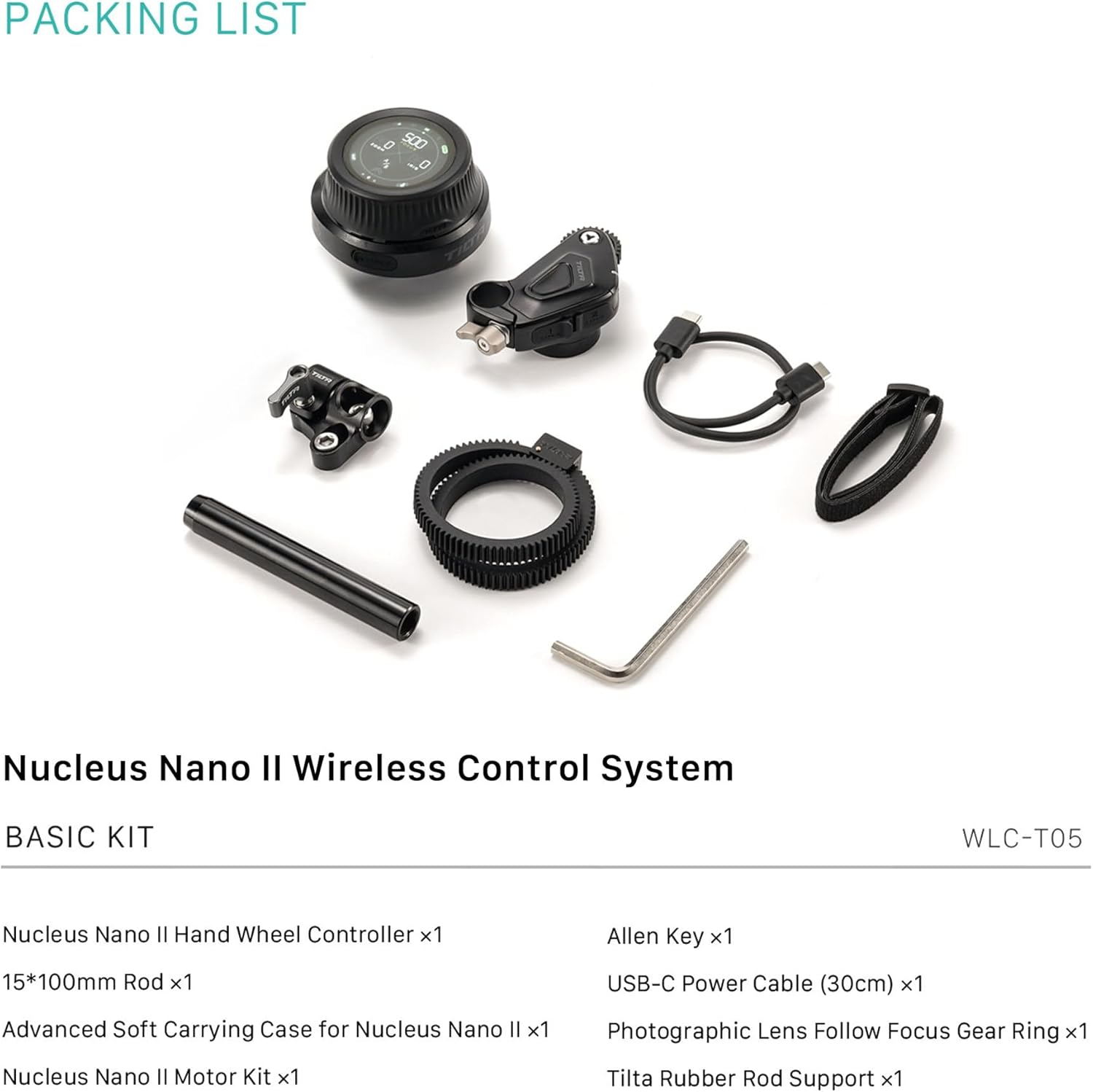

Nucleus Nano II Wireless Lens Control System | Basic Kit

NOTE: DO NOT POWER THE HAND WHEEL VIA P-TAP

Introducing the Nucleus Nano II – Wireless Lens Control System, the ultimate tool for filmmakers seeking precise control over their lenses. With advanced features and seamless compatibility, this system revolutionizes lens, camera, and gimbal control.

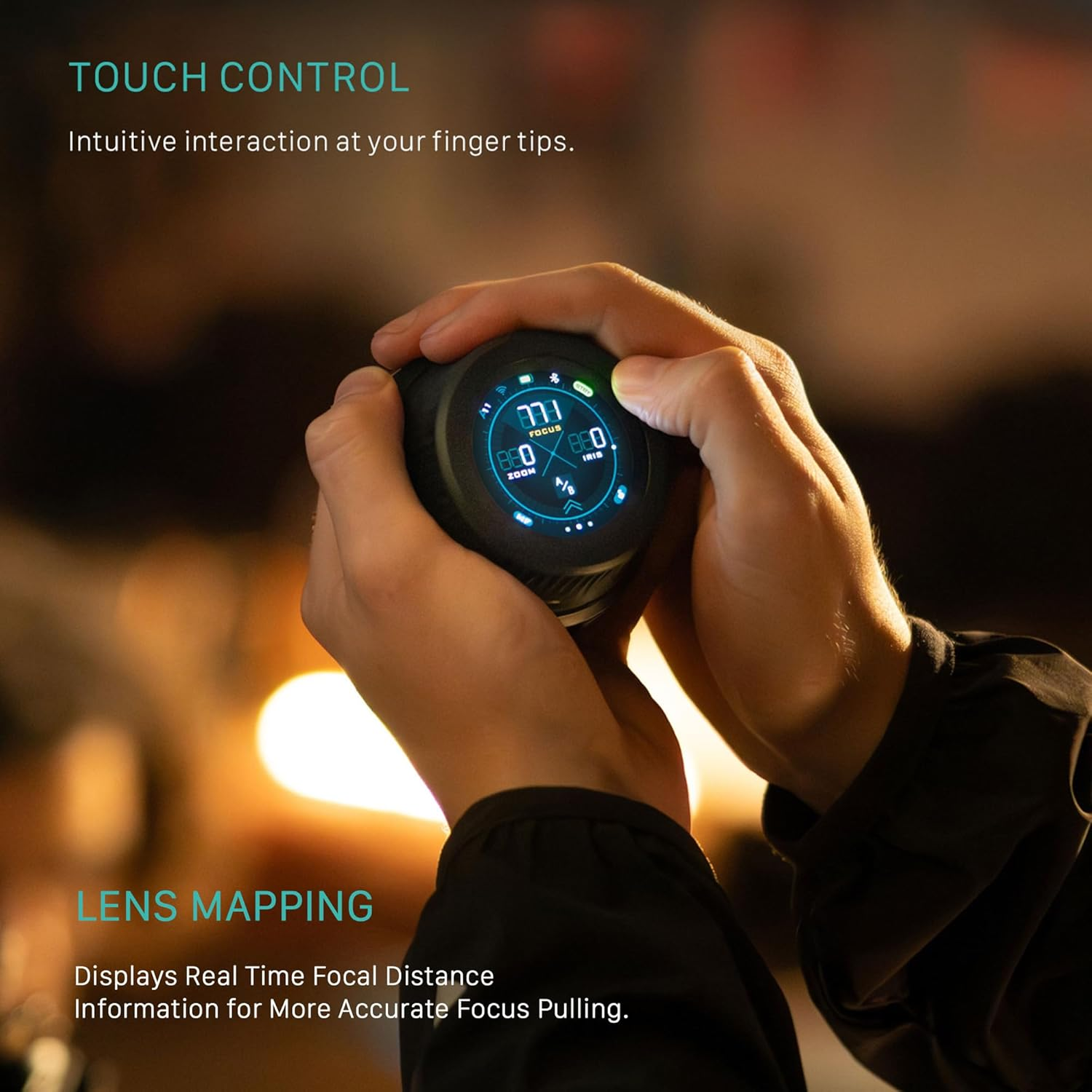

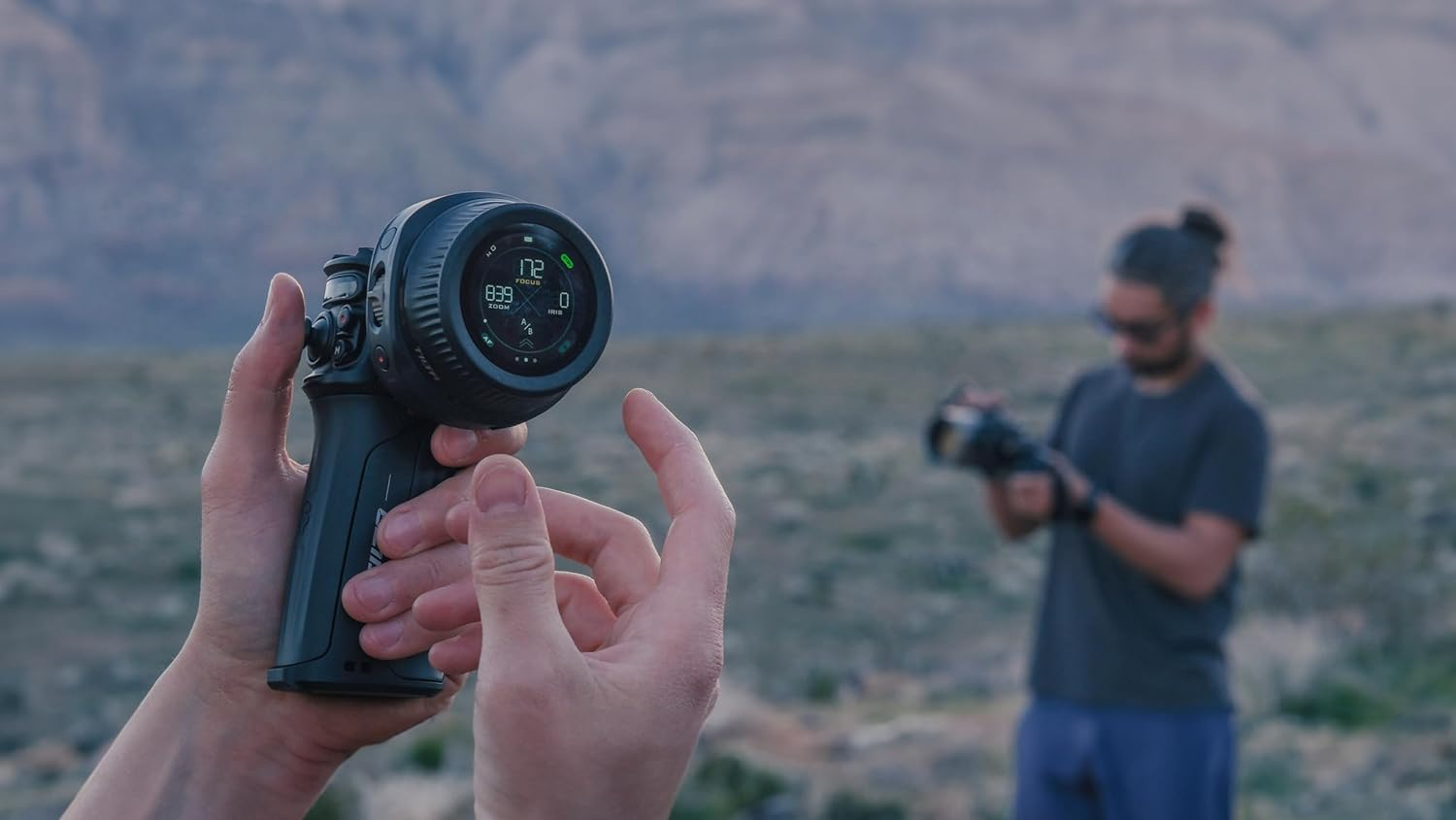

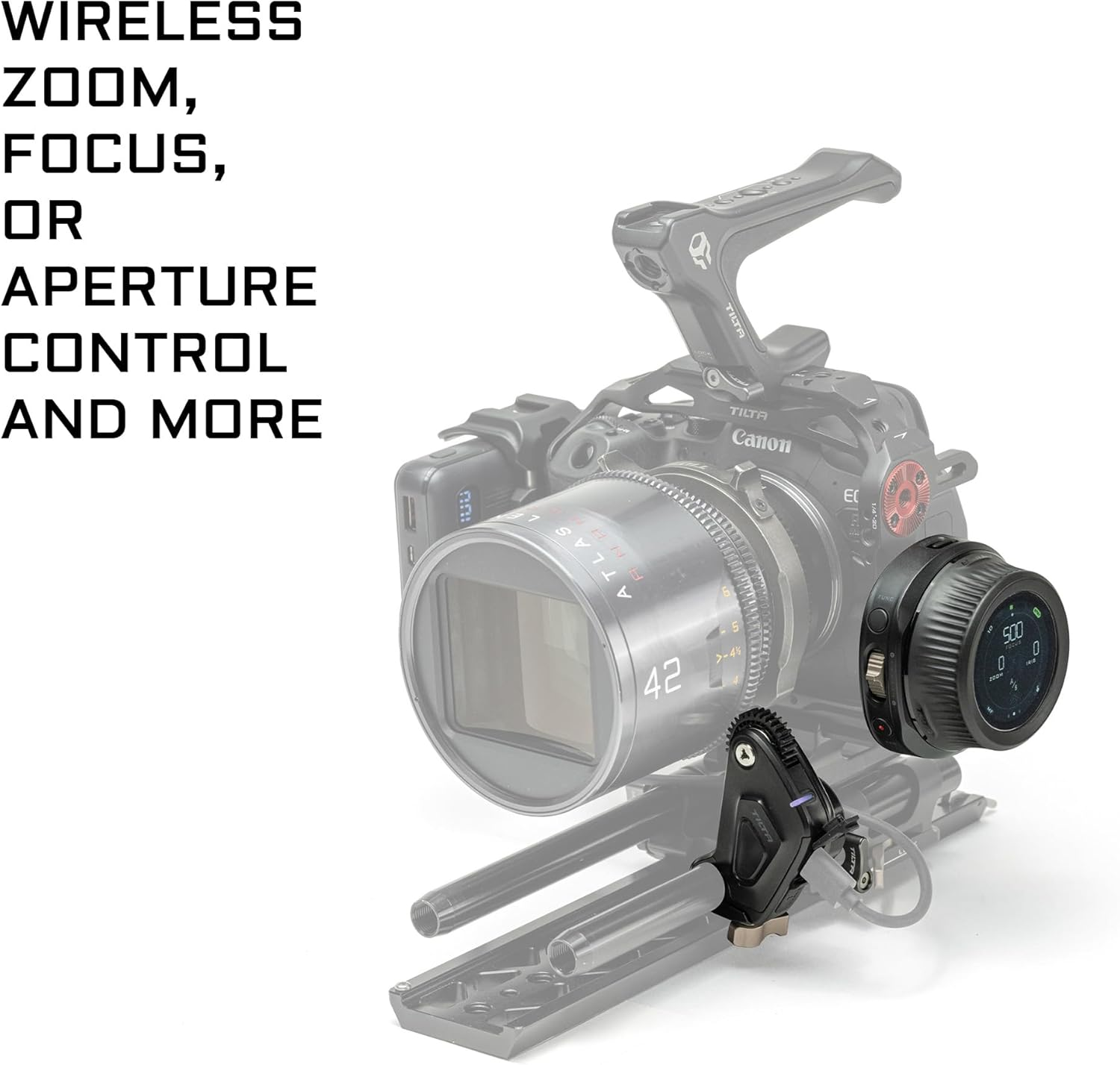

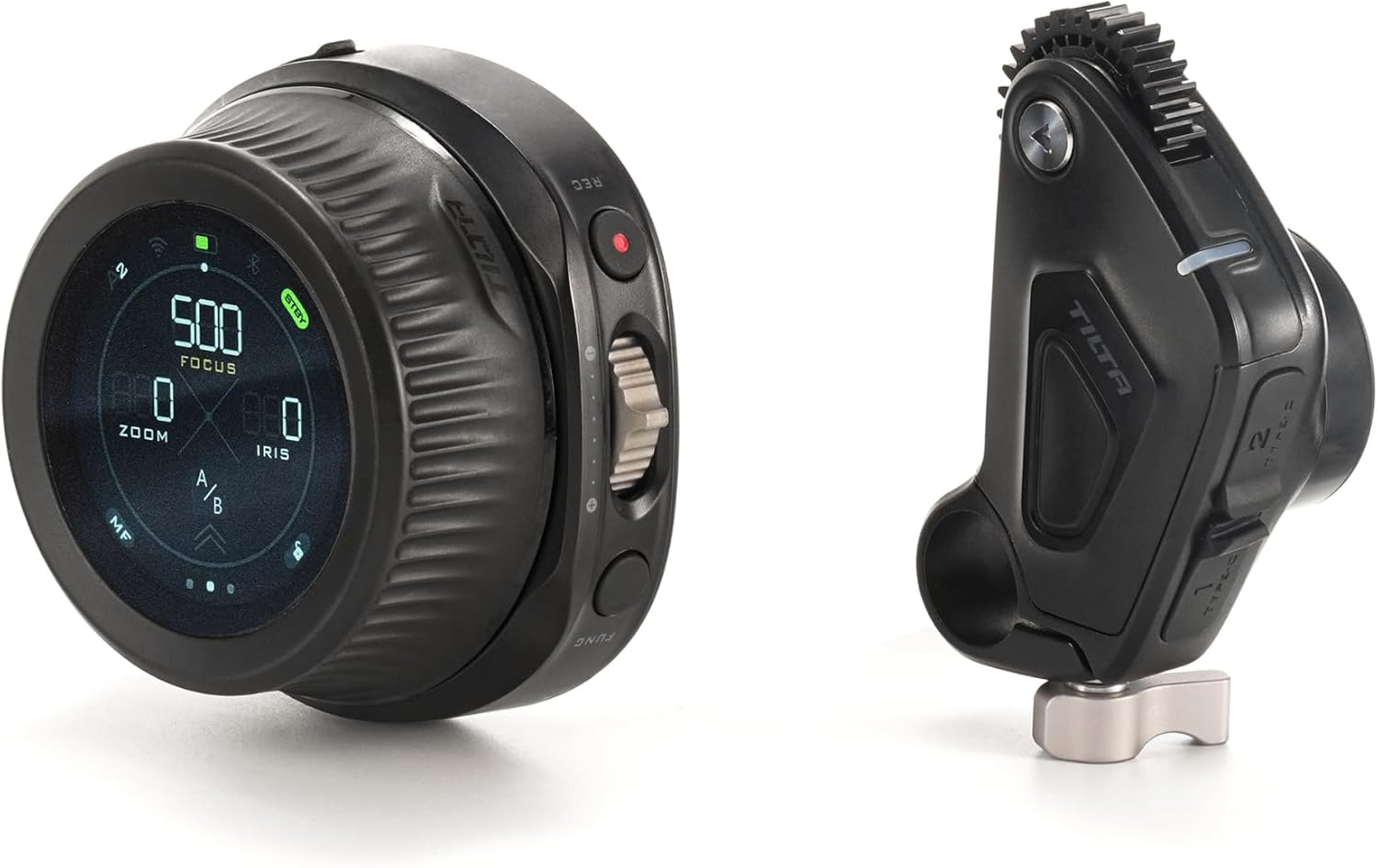

The new and improved Hand Wheel allows users to utilize the Main Dial to adjust Focus, while the new Control Rocker effortlessly handles Zoom or Iris functions via a dampened Rocker, perfect for easing in or out of zooms. Navigating through the system has never been easier thanks to the new 1.6” Circular Touch Screen Display and user-friendly interface which provides quick access to an array of advanced functions including dedicated pages for lens mapping and camera control functions. The Nano II allows users to wirelessly adjust camera settings via WiFi, Bluetooth, and the motor’s USB-C port for compatible camera systems such as Canon, Sony, Black Magic Design and can handle up to 4 motors for Focus, Iris, Zoom, and Mirage VND when used with the included Control Handle. This handle powers from a Sony L-Series Battery (F550/570) and can send power to the Nucleus Nano II Hand Wheel for extended battery life. It also features a focus dial on the front that can be used to control both Nucleus Series Motors and the DJI Focus Motor via the optional Wireless Receiver Module (not included) which can also be utilized in order to wirelessly operate the RS2 or RS3 Pro. The handle features a 1/4″-20 thread with locating points, perfect for mounting our Right Angle Rosette Adapter as well as a cold shoe receiver, which can be used with our optional Cold Shoe Mount in order to create the perfect focus pulling station when used with the Hand Wheel. The current firmware fully supports all controls compatible with BMPCC 4K, 6K, 6K Pro, and partially compatible with Sony FX3, A7S3, A7R5, ZV-E1, ZV-E10 and R7 for settings such as Run/Stop, Shutter Speed, ISO and Iris while Run Stop is currently supported for camera systems including all mentioned above as well as A7C, A7M4, A7R3, Canon R6M1, S1H, GH6 and S5M2 via an optional USB-C Run/Stop Cable. Additional camera systems will be made compatible in future firmware updates. The lens mapping control screen offers real-time focus distance information, allowing you to stay informed and in control of every frame without relying on physically marking a focus disc while an internal battery powered by USB-C, offers up to 20 hours of continuous power, depending on usage. The Nano II is our most compatible system to date featuring compatibility with DJI RS2, RS3 Pro, DJI Focus Motors, Nucleus M and the previous generation of Nucleus Nano, ensuring a smooth workflow for users who already utilize previous iterations of the Nucleus Ecosystem. Equipped with a high-performance motor, the Nano II delivers five times the torque of its predecessor with convenient USB-C power input and output ports, perfect for chaining together multiple motors from a single power source.

Note: Some features listed above at launch are not fully functional in the current firmware. Compatible with DJI Ronin/ DJI Focus Motor, Lens Mapping, and other features will be implemented in future firmware updates. Camera Control functionality is only compatible with select cameras at this time.

**Canon and Sony cameras are currently only compatible via USB-C PD Cables and Black Magic Design cameras are only compatible via Bluetooth**

When using Lens Mount Adapters: Nano II Bluetooth functionality will only be possible when using officially supported lenses for the specific adapter. The Control Handle NATO Mount is only intended for the Nano II Hand Wheel. Do not connect other accessories via this NATO mount or you will risk damaging the contact pins.

Features

Product Specifications

Hand Wheel

Motor

High Compatibility

Fully compatible with Tilta wireless lens control systems and the DJI Ronin lens control motor.
