LINOVISION Mini Industrial 4G LTE Router with Low Power Consumption, GPS, RS232/RS485, DI/DO, USB Dongle Mode for Computer, Cellular Router for Vending Machine, Vehicles, Robots with Solar Battery
LINOVISION Mini Industrial 4G LTE Router with Low Power Consumption, GPS, RS232/RS485, DI/DO, USB Dongle Mode for Computer, Cellular Router for Vending Machine, Vehicles, Robots with Solar Battery
Brand: LINOVISION
- INDUSTRIAL 4G LTE ROUTER - Unlocked 3G/4G LTE CAT4 router working with SIM cards from Optus Telstra and Vodafone; Powered by DC 5-24V or USB Type-C. Designed for harsh environment.
- SUPER COMPACT CELLULAR ROUTER - Palm-Sized dimension ( 2.76" x2.17'' x0.87'' ) suitable for suiting small embedded scenarios. Such as Vending Machine, Vehicles, Robots with Solar Battery, etc.
- LOW POWER CONSUMPTION - Optimized for battery or solar owered applications. Smart power saving modes (Normal, Idle, Standby). Typical 226mA in DC12 voltage and less than 1 Watt in Idle Mode.
- USB DONGLE MODE - Plug-n-add 4G LTE connection for your laptop or PC via USB Type C port
- BUILT-IN GPS AND GNSS - GPS and GNSS (Galileo, Glonass, and Beidou) are included. Capability of real-time location tracking of remote assets.

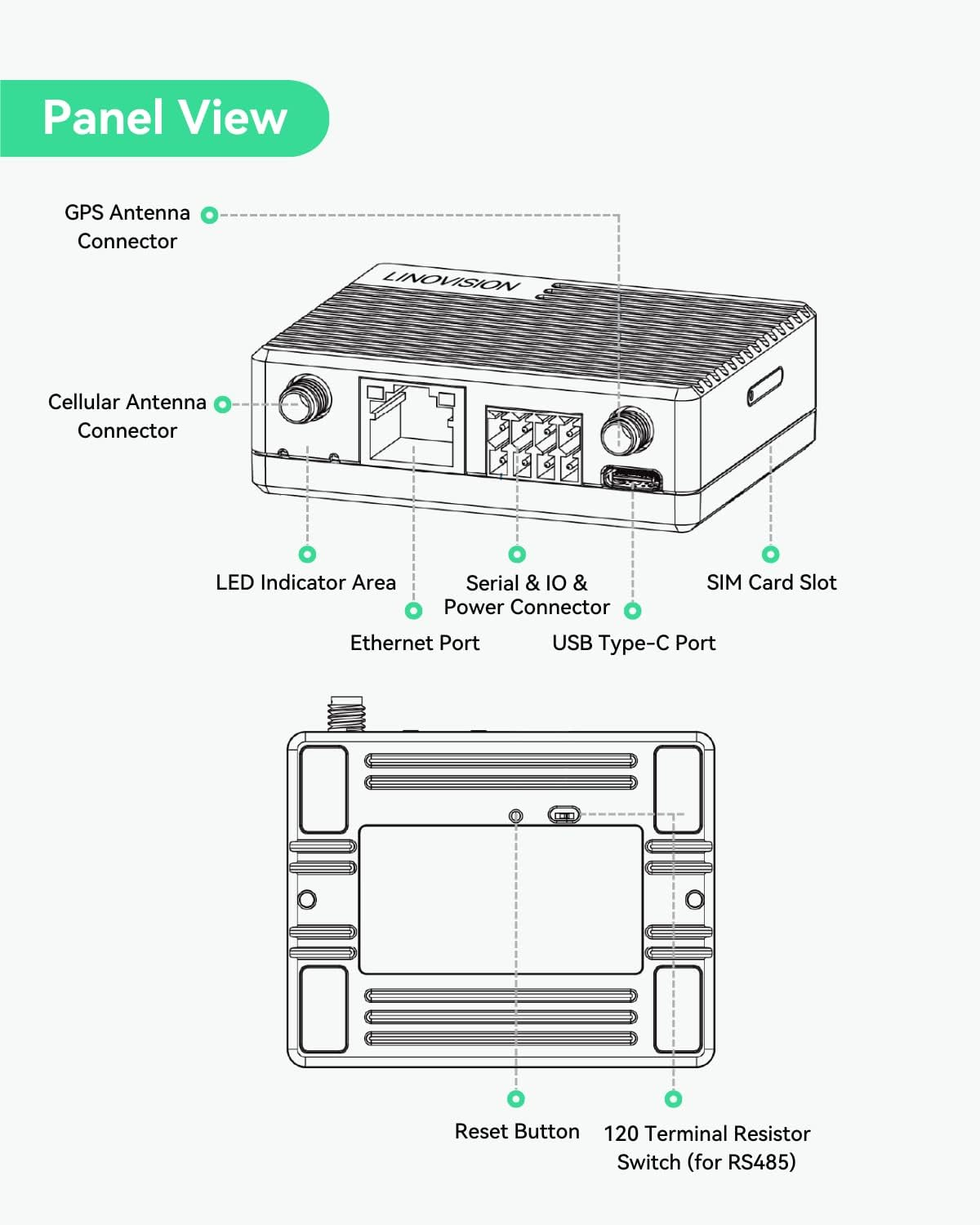

- RICH INTERFACES - Provide 1x 10M/100Mbps Ethernet, 1x RS232/RS485, 1x DI, 1xDO, USB (Type-C).
- AFTER-SALES SUPPORT - 2 years warranty on hardware; lifetime software upgrade; Technical support + Global after-hour support.
Product Description
Product Description
Outstanding Features
USB Dongle Mode
Plug-n-Add 4G LTE connectivity to your laptop (USB 2.0 Port)
Charging by USB 5V (Type C connector)

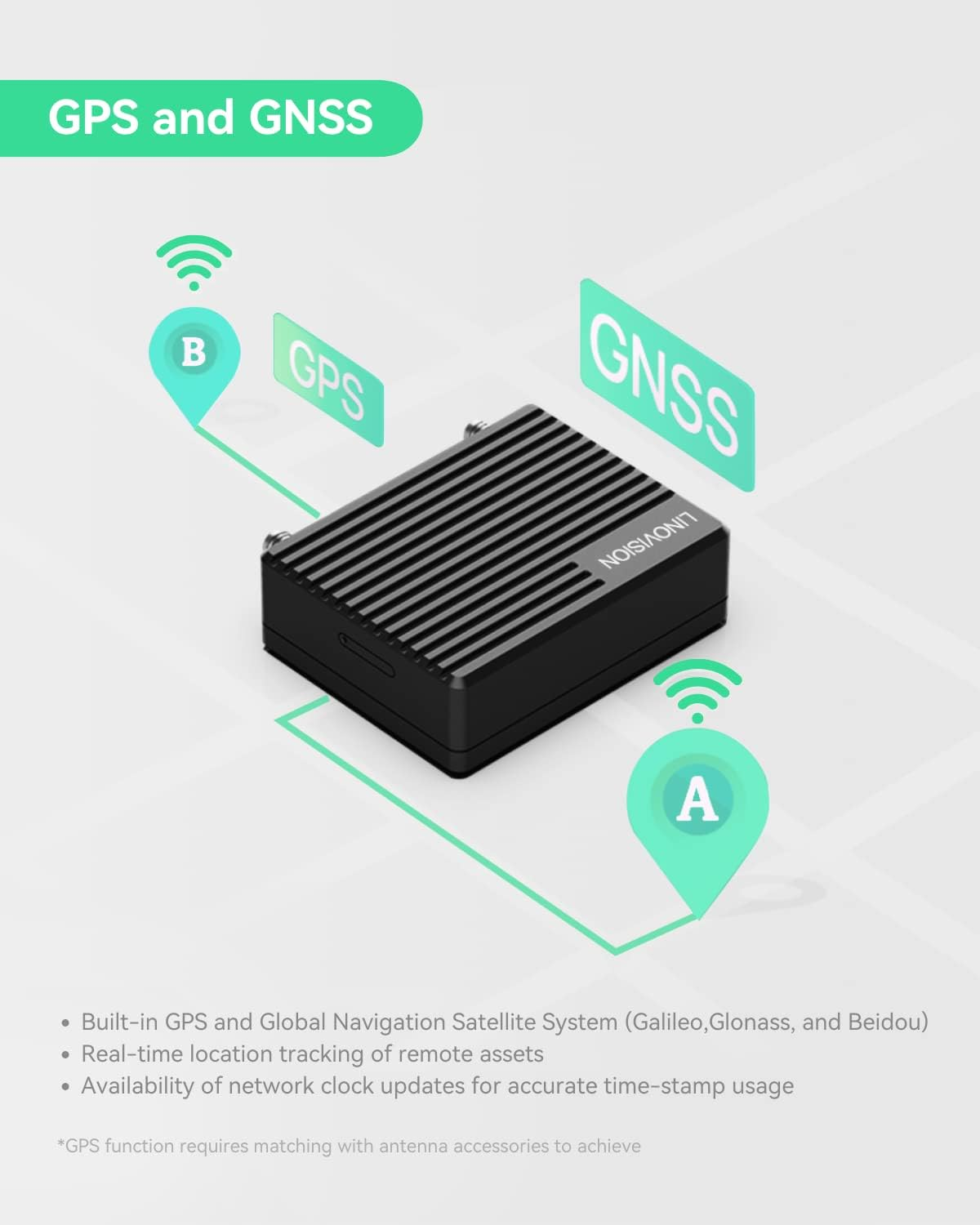

GPS and GNSS
Built-in GPS and Global Navigation Satellite System (Galileo,Glonass, and Beidou)
Real-time location tracking of remote assets
Availability of network clock updates for accurate time-stamp usage
*GPS function requires matching with antenna accessories to achieve
Specifications
| Network | 4G LTE (CAT 4)/WCDMA/GSM |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| SIM Slot | 1（Nano SIM-4FF） |
| Ethernet Interface | 1 × 10/100 Mbps LAN Port |
| GPS and GNSS | GPS/GLONASS/Beidou/Galileo/QZSS |
| Serial Interface | 1 × RS232 or 1 x RS485 (Software Switchable) |
| DI/DO | 1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation |
| USB | 1 × USB 2.0 (Type-C) for Power Supply, Network Supply and Debug |
| Frequency Band | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 WCDMA:B1/B2/B5/B8 GSM/EDGE:B2/B3/B5/B8 |
| LED Indicators | 1 × SYSTEM，1 × SIM |
| VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE |
| Power Input | 5-24 VDC; 5V/1A by USB Type-C Port |
| Ingress Protection | IP30 |

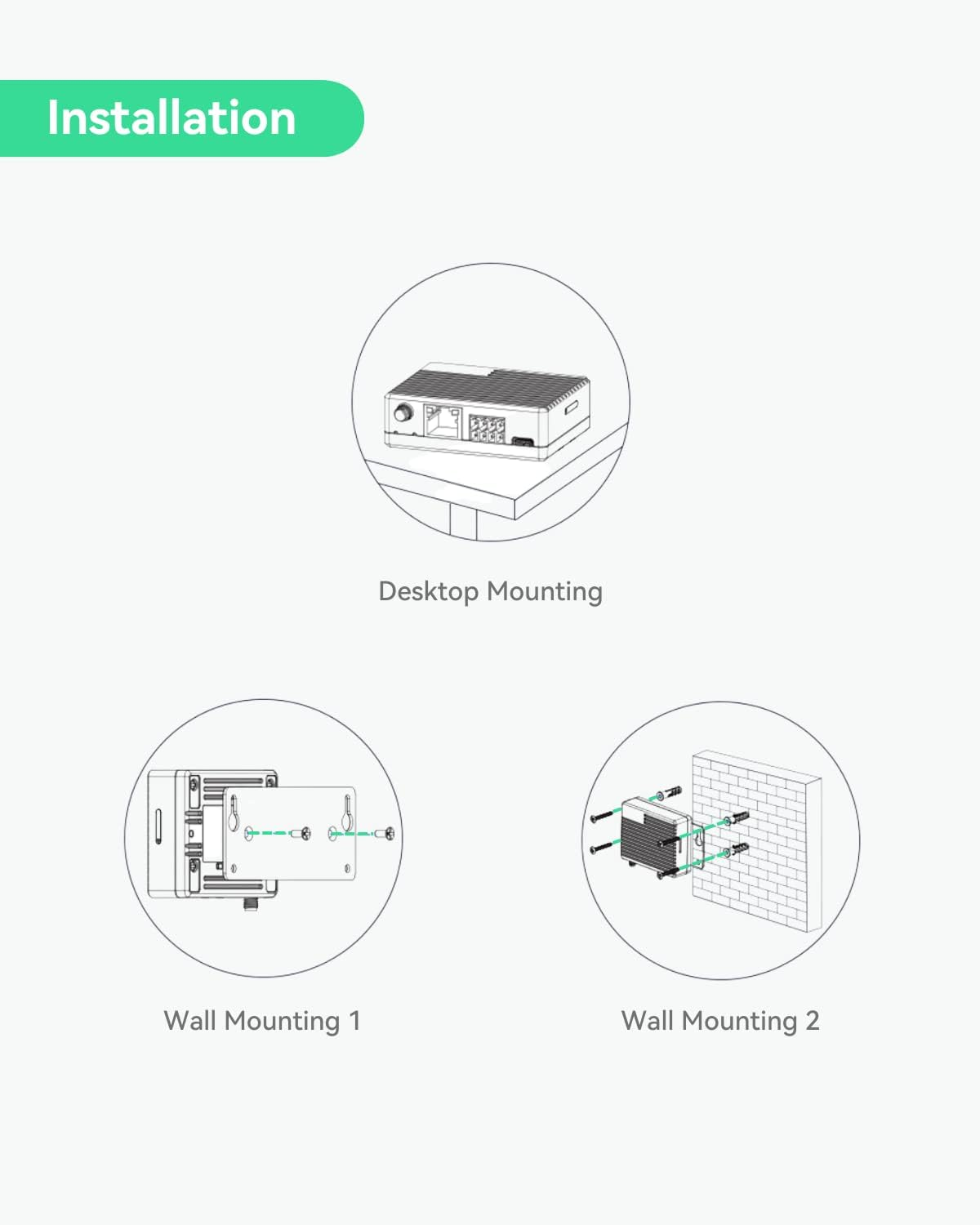

| Installation | Desktop, Wall Mounting |

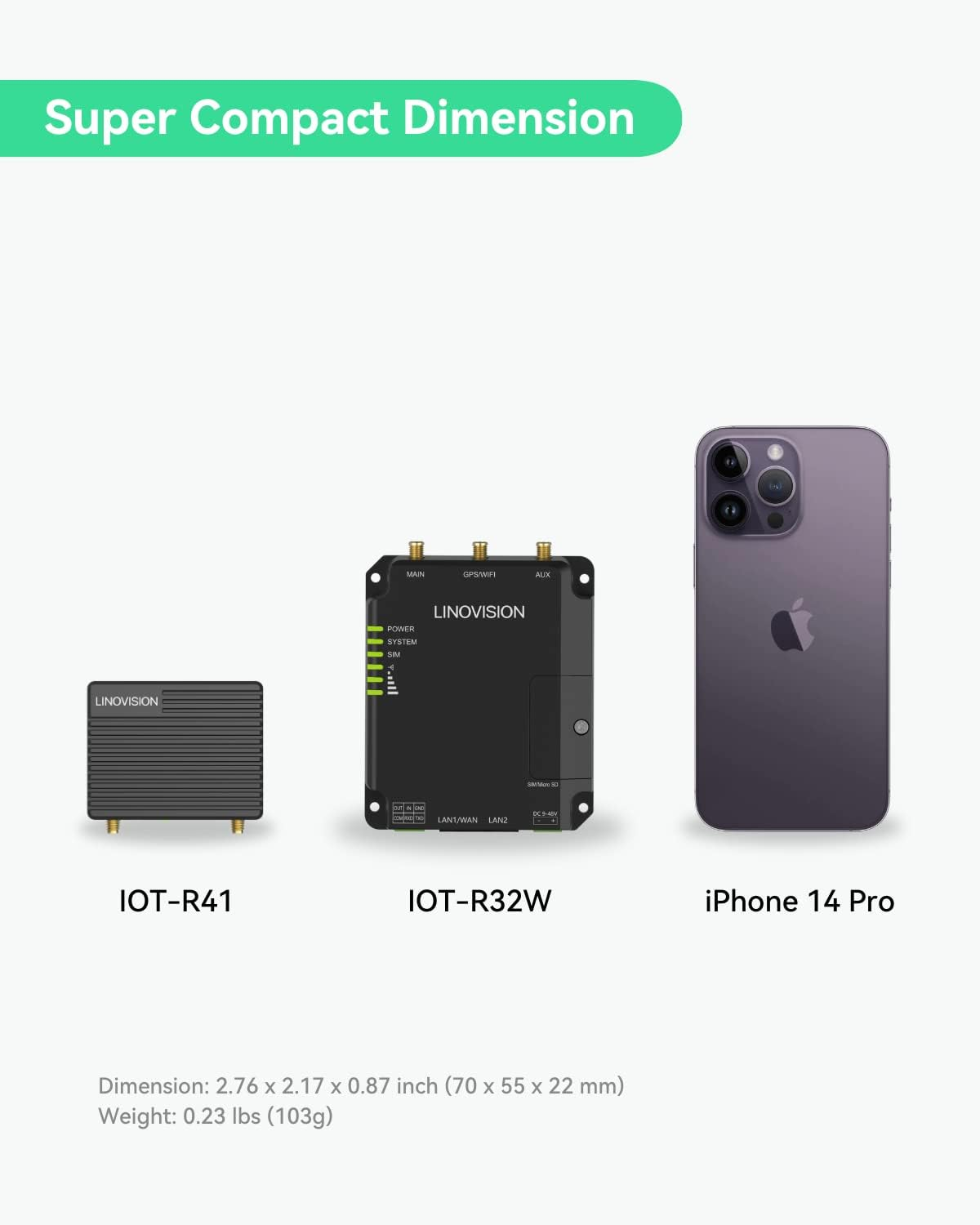

| Dimension | 70 x 55 x 22 mm (2.76 x 2.17 x 0.87 in); 103g |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
- Item Model Number: IOT-R41
- Data Transfer Rate: 100 Megabits Per Second
- Operating System: RouterOS
- Number of items: 1
- Mounting Hardware: router
- Batteries Included: No
- Batteries Required: No
- Brand: LINOVISION
- Special Features: WPS
- Compatible Devices: Laptop
- Wireless Type: 802.11b
- Item Weight: 492 g
- Number of Ports: 1
- Connector Type: LTE
- Frequency: 2.4 GHz
- Voltage: 24 Volts
- Model Name: IOT-R41
- Model: IOT-R41
- Package Dimensions: 17.1 x 12.5 x 6.7 cm; 492 Grams
- Manufacturer: LINOVISION
