Bingfu 4G LTE Antenna Outdoor 5Dbi Waterproof Wall Mount Antenna with Two SMA Connector Splitter Cable Compatible with GSM 3G 4G LTE Router Gateway Camera
Bingfu 4G LTE Antenna Outdoor 5Dbi Waterproof Wall Mount Antenna with Two SMA Connector Splitter Cable Compatible with GSM 3G 4G LTE Router Gateway Camera
Brand: Bingfu
A$37.80
- Frequency range: 698-960MHz, 1710-2170MHz, 2300-2700MHz; Gain: 5dBi; Feature: Fixed wall mount; Through-hole mounting; Omni directional; Waterproof: Rainproof; Through-Hole Mounting Screws: M12, 11.76mm-11.95mm;
- Antenna Connector: SMA Male connector, Antenna Cable: 3 Meter low loss KSR195 coaxial cable; Adapter: RP-SMA Male Adapter, Splitter Cable: 15cm SMA Female to Dual SMA Male splitter;
- Compatible with: 4G LTE Router, Broadband Modem Hotspot, CPE Router, Cellular Gateway, Vehicle Car Truck RV Bus Van Cellular; 4G LTE Cellular Trail Camera, Wildlife Camera, Hunting Camera, Outdoor Surveillance Camera, Cellular Surveillance Camera; Vehicle 4G LTE Tracker, Real-time Monitor, Vehicle Car DVR MDVR Video Recorder;
- Compatible with: Industrial 4G LTE router, IoT gateway, 4G-LTE-M2M-RTU-DTU terminal, built-in module, remote measurement and SMS alarm, remote SCADA DAQ module, remote relay gate opener switch, sales vending machine, digital signage, delivery locker, temperature humidity sensor monitoring system, GSM alarm system, wireless security sensor, Motion sensor alarm;

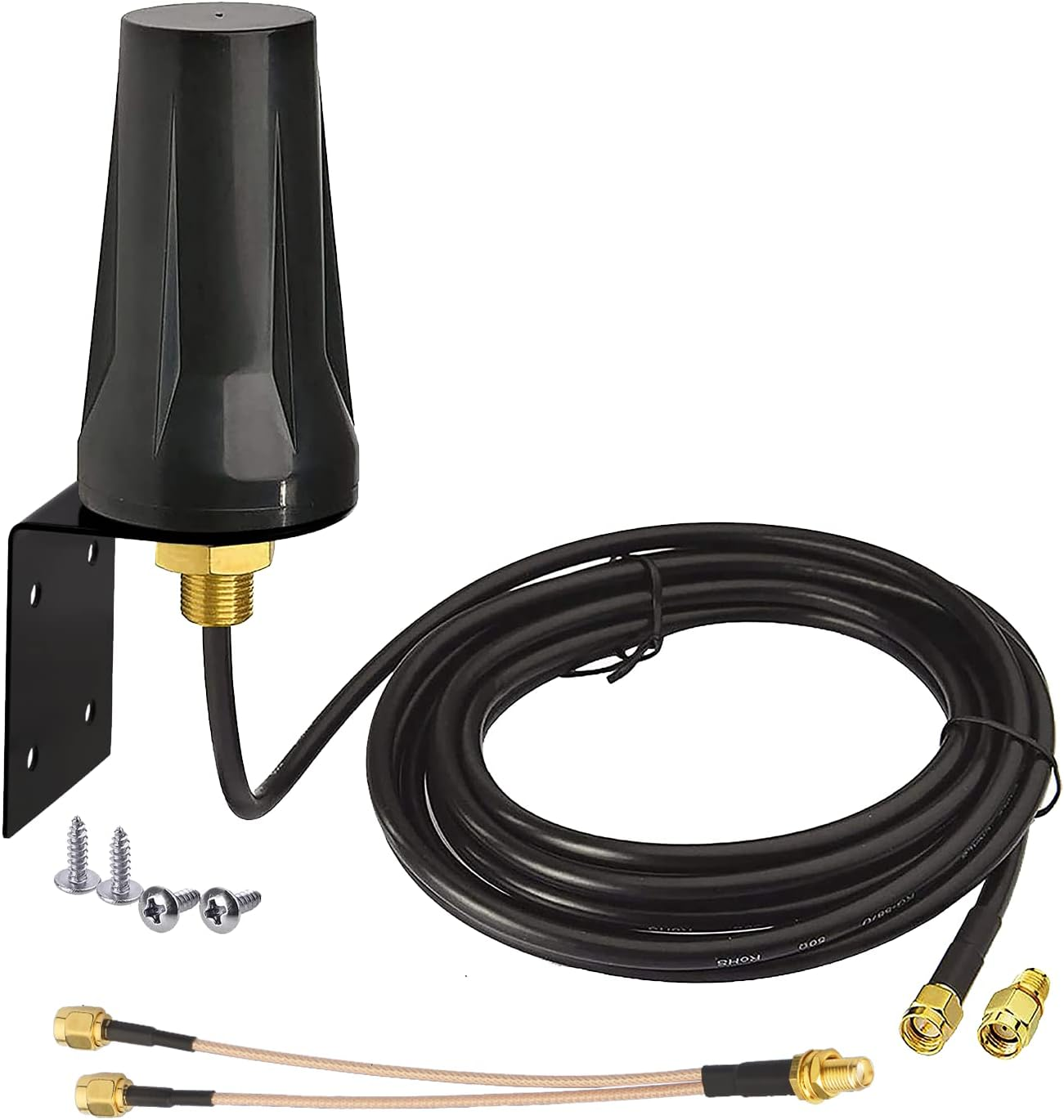

- Package list: 1 x Antenna, 1 x RP-SMA Male Adapter, 1 x SMA Female to Dual SMA Male Splitter, 1 x Wall Bracket, 4 x Self-tapping Screws (As the picture shown).
Product Description
Specification
| Frequency range: | 698-960MHz, 1710-2170MHz, 2300-2700MHz; |
| Gain: | 5dBi; |
| Impedance: | 50 ohms; |
| VSWR: | <2.0; |
| Polarization: | Linear Vertical; |
| Direction: | Omni-directional; |
| Antenna Connector: | SMA Male connector; |
| Adapter: | RP-SMA Male connector; |
| Antenna Cable: | 3 Meter KSR195 coaxial cable; |
| Splitter cable: | 15cm, SMA Female to Dual SMA Male connector; |

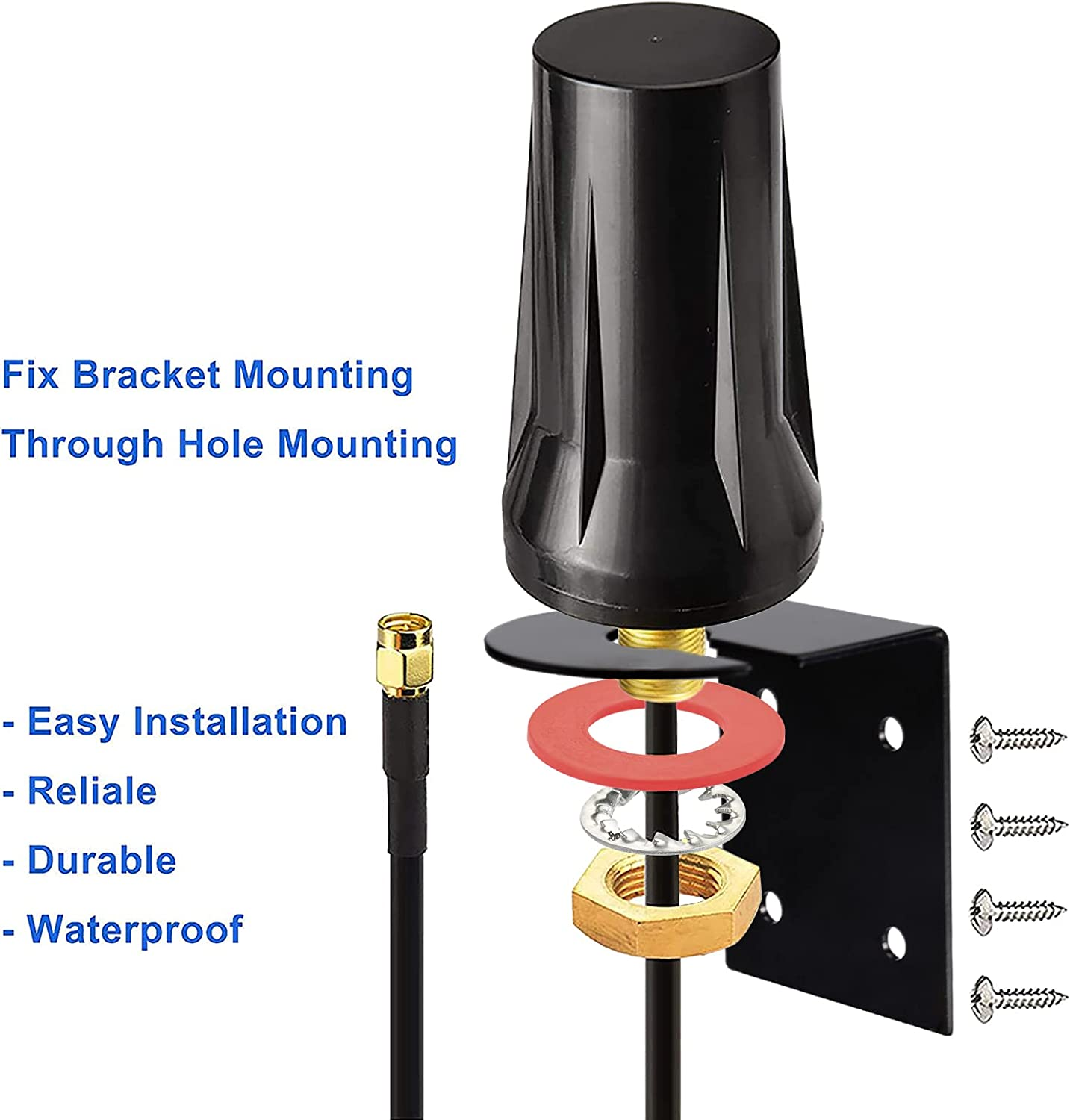

| Feature: | Fixed Wall Mount; Thru Hole Mount; Waterproof, Rainproof; |

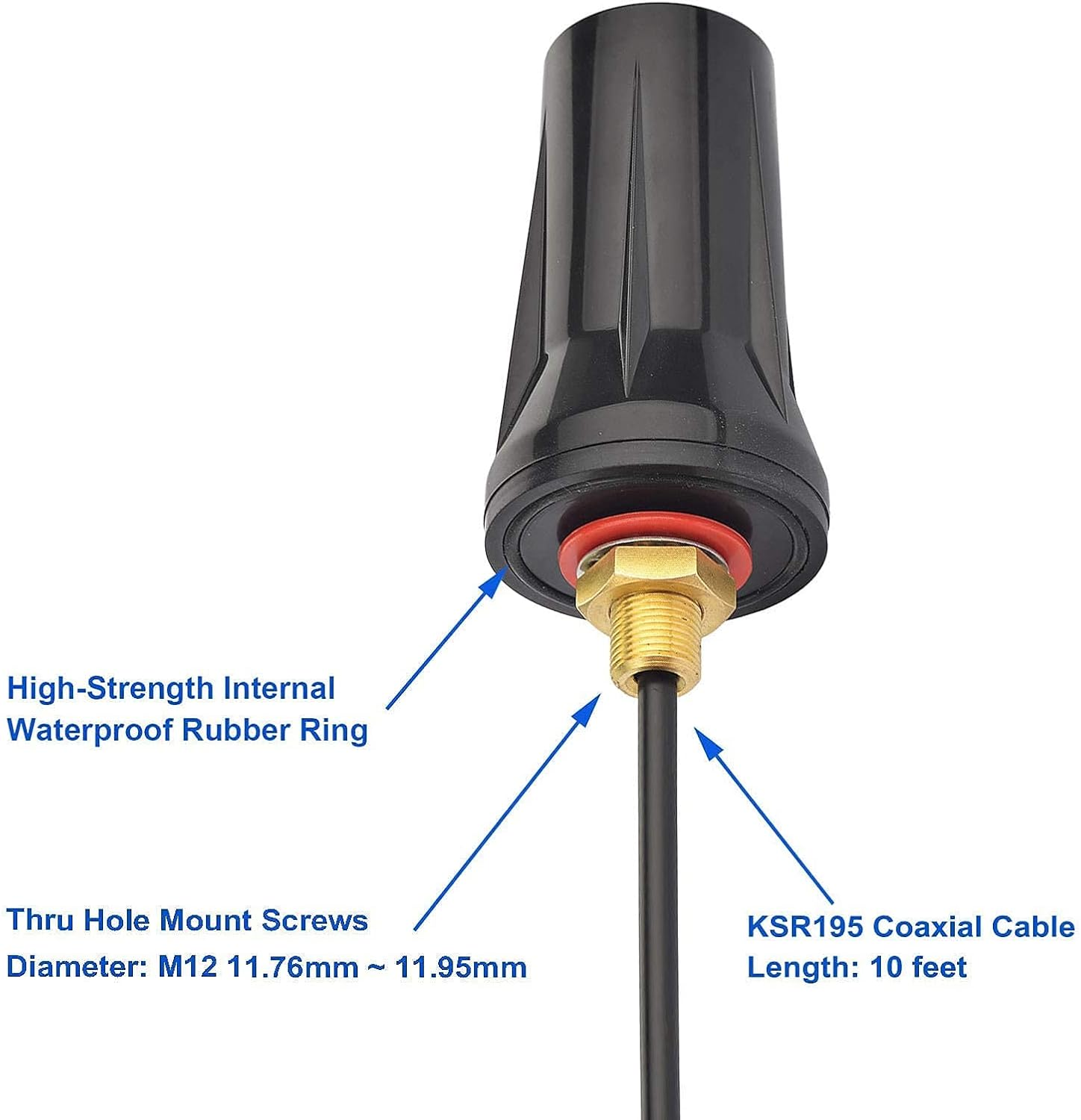

| Mounting Screws Diameter: | M12 (11.76mm-11.95mm); |
| Net weight: | 265g; |
| Operating temperature: | -20° to +80°; |
| Storage temperature: | -30° to +85°; |
| Package list: | 1 x Antenna, 1 x RP-SMA Adapter, 1 x SMA Female to Dual SMA Male Splitter, 1 x Wall Mount, 4 x Self Tapping Screws (As the picture shown) |
Compatible with:
- 4G LTE wireless router hub; Wireless hotspot router modem at home;
- 4G LTE industrial cellular gateway router modem terminal;
- 4G LTE RTU DTU remote control unit;
- Wildlife camera rear camera wildlife camera hunting camera;
- Vehicle car truck RV Bus Van;
- Internet of Things IoT;
- Machine-to-Machine M2M;
Compatible devices:
- Huawei 4G LTE Wireless Router: B525 B315 B593 B880 B890 B310 E5186 E5175 ZTE MF253S;
- Verizon Wireless Home Phone Novatel T2000 T1114 Router Hotspot-Modem;
- Cradlepoint IBR1700 IBR1100 IBR900 IBR600 IBR650 IBR350 IBR200 CBA850 AER2200 AER2100 AER1600 AER3100 MBR1400
- Sierra Wireless GX450 LX60 RV50 MG90 MP70 LS300 FX30 ES450 GX440 gateway router;
- Advantech Cradlepoint Digi Gemalto Encore InHand Inseego Option Red Lion Sierra Wireless Nimbelink ;
- Item Model Number: TON00661
- Part Number: TON00661
- Number of items: 1
- Batteries Included: No
- Batteries Required: No
- Brand: Bingfu
- Item Weight: 280 g
- Model: TON00661
- Product dimensions: 13.2 x 5.3 x 13.3 cm; 280 Grams
- Manufacturer: Bingfu
