Overview

• This is an upgraded DeskPi Pro V2, which builds your Raspberry Pi 4B Board into an excellent NUC-style desktop computer.
• It supports M.2 and 2.5" SSD drives, and it’s also equipped with a safe shutdown/rest button.
• It's with a super radiator and can automatically adjust the fan speed when the CPU temperature rises ensures that your overclocked pi4 will not overheat.

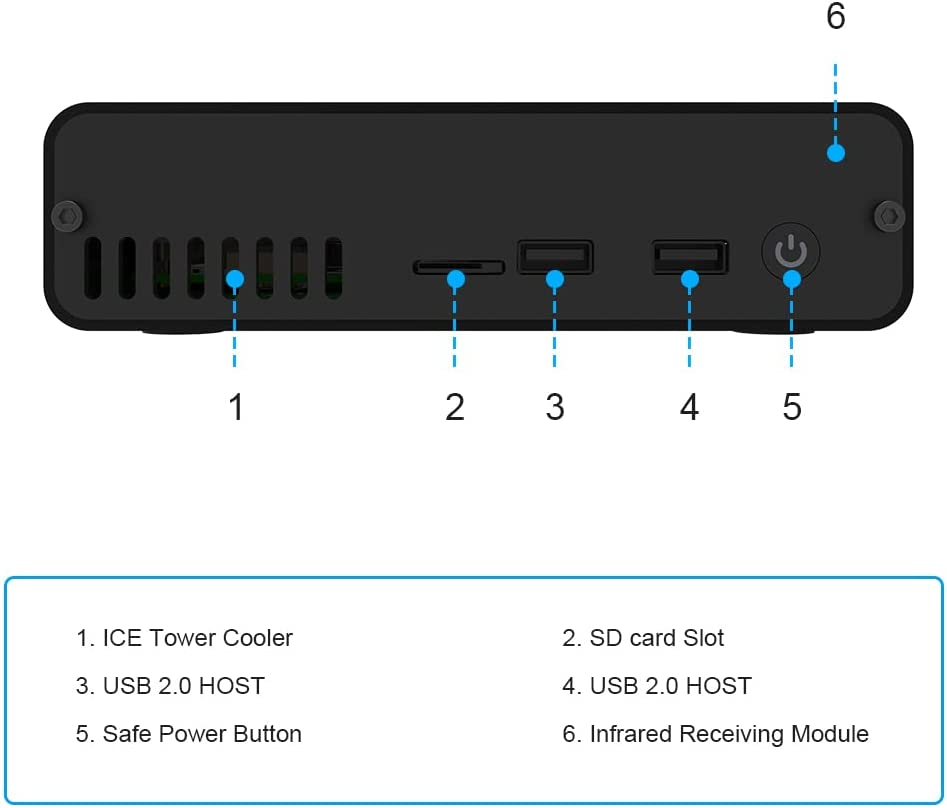

Front Side:

• Press button switch to turn on; Press button switch and hold for more than 8 seconds to force shutdown; LED red indicator indicates powered status and blue indicator indicates starting status.
• The shell script provides the fan driver and sends a power-off signal to the deskpi daughter board after the Raspberry Pi is shut down normally to cut off the power of the Raspberry Pi.
• Transfer the interface of the TF card slot to the front panel by the TF adapter board for easily access to the TF Card.

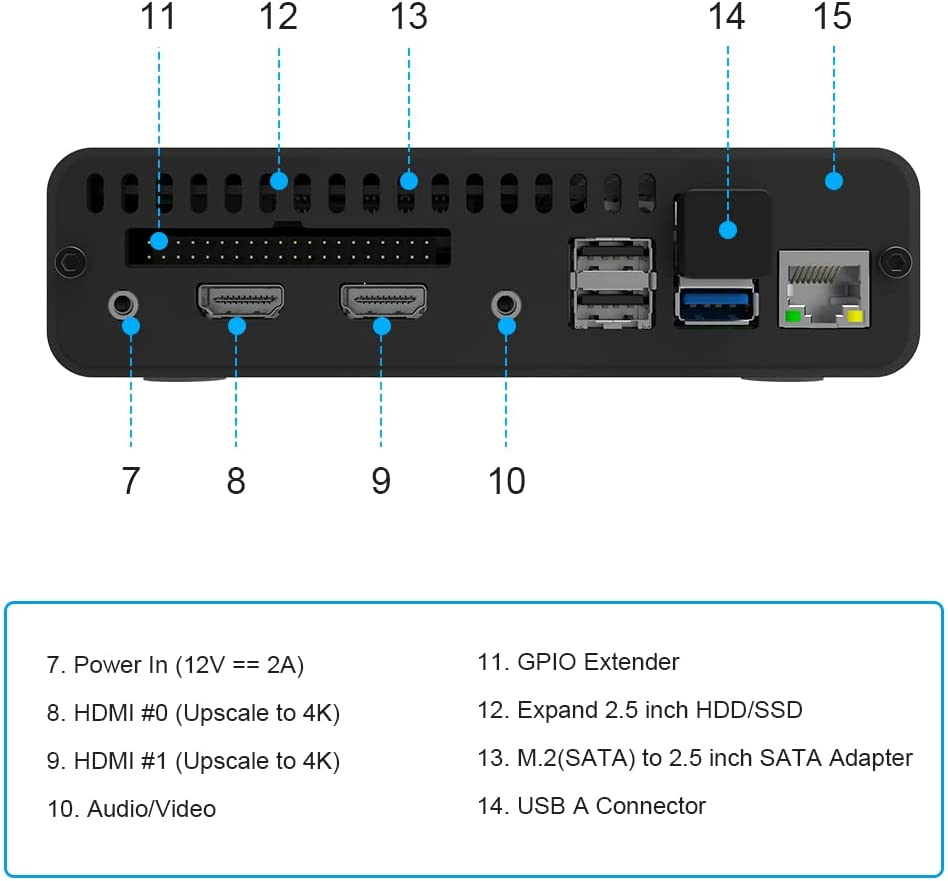

Back Side:

• Convert Micro HDMI to the two Full-sized HDMI at the back side of DeskPi Pro.
• Convert the 3.5mm audio interface to the back 3.5mm audio female interface.
• Turn the GPIO to the back side of DeskPi Pro Case and access it at the back side of DeskPi Pro Case. (Connected by FPC wide cable)
• The two front USB ports are initialized via configuration.

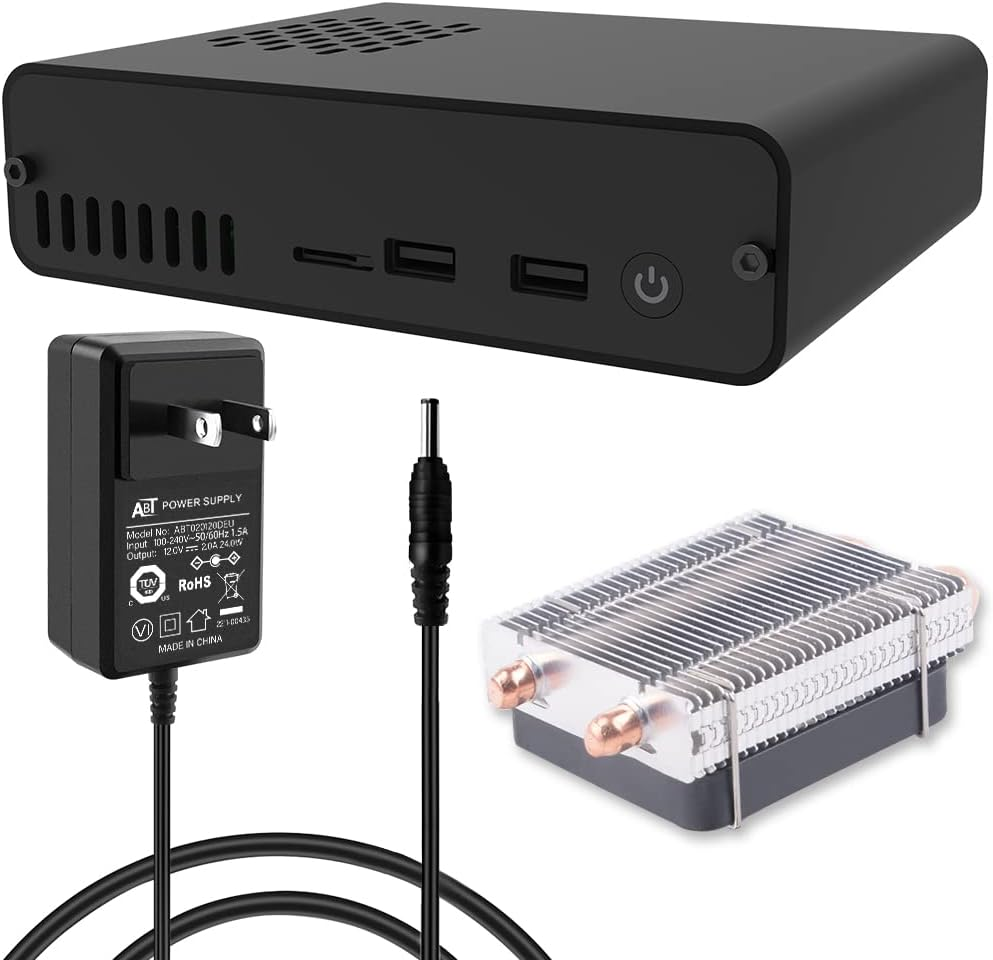

This amazing case keeps the Pi 4 cool using the Ice Tower Cooler+fan and can automatically adjust the fan speed as the CPU temperature rises.

NOTE

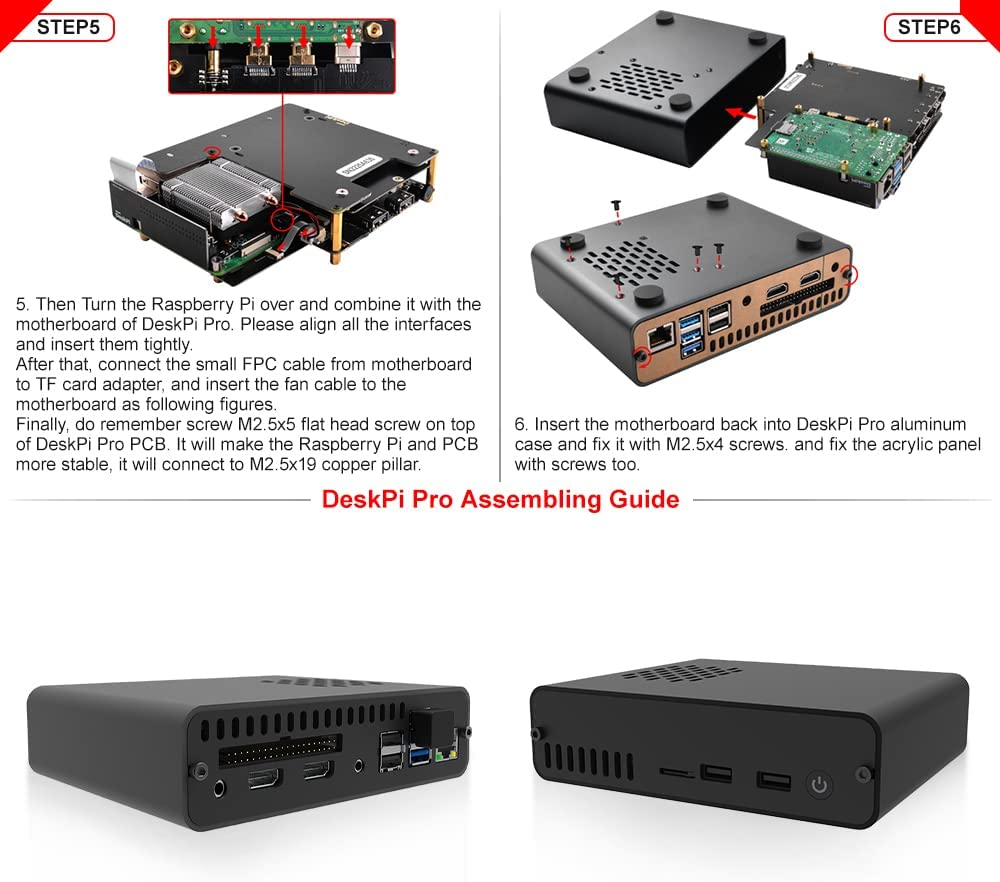

• Please install and configure your DeskPi Pro exactly according to the user manual.
• Our business spreads all over the world, making Raspberry Pi full of fun and convenience.
• Our technical service team is always ready to answer your questions.
• We summarized some possible faults and solutions. If you have questions unlisted in the following.
